Pole Mounted Solar PV Mounting System

Engineered for small-scale and off-grid solar applications requiring elevated structure stability, simplified installation, and adaptable tilt configuration — delivering reliable power generation where conventional ground arrays are impractical.

Pole-mounted solar systems are purpose-built for locations where standard multi-row ground arrays are oversized, where land preparation costs are prohibitive, or where an elevated, compact structure serves the site better than a sprawling fixed-tilt layout. Explore our complete range of solar mounting system types to find the optimal configuration for your project scale and site conditions.

Technical Overview

System Type

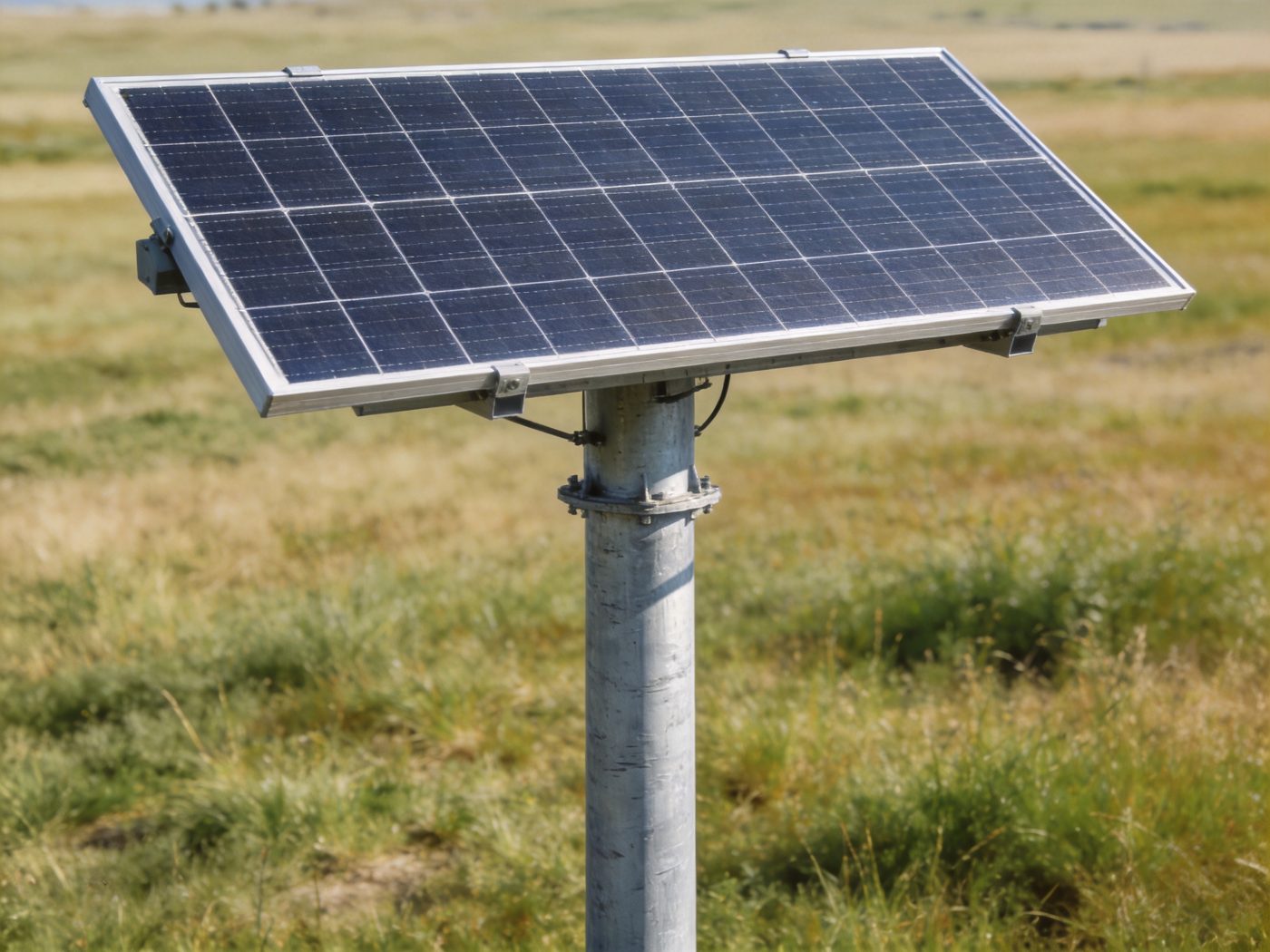

A pole-mounted solar PV system is a compact, single-support-point mounting solution where a module array of 2–24 panels is elevated above the ground on a central steel pole anchored in a concrete foundation. Unlike multi-row ground mounted solar systems that distribute load across dozens of pile points, pole-mount systems concentrate the entire structural load — dead load, wind moment, and snow load — into a single deep foundation, enabling rapid deployment on small footprints. This architecture makes pole mounts the go-to solution for distributed off-grid generation, agricultural power supply, remote telecom, and rural residential installations where project scale is 1–20 kW and land preparation for a multi-row array would be disproportionately expensive.

Structural Design

The primary structure consists of a vertical hot-dip galvanized steel pole — typically Schedule 40 steel pipe ranging from 2⅜” OD for 2-panel systems up to 6″ OD or larger for 12-panel-plus arrays — topped by a horizontal crossbeam assembly that carries the module mounting rail system. The crossbeam is bolted to the pole top via a head assembly that incorporates the tilt adjustment mechanism, allowing the module plane to be set at the design tilt angle either manually at installation or seasonally by the operator. The complete assembly provides a rigid, self-contained structural unit that does not require interconnection with adjacent structures or perimeter grounding frames.

Foundation Method

Pole-mount foundations are either concrete embedment piers or driven pile anchors. The standard approach is a reinforced concrete pier — typically 36″ diameter for small systems up to 8 panels, increasing to 48″+ square for larger arrays — poured around the pre-set steel pole base with the pole embedded to a minimum depth of 1.8 m (6 ft) below finished grade, and extended below the local frost line to prevent heave displacement. Concrete curing time of 48–72 hours is required before mounting hardware and modules are attached. Alternative non-penetrating structures that avoid ground excavation entirely include ballasted solar mounting systems on flat rooftops, though these serve fundamentally different deployment environments than pole-mount ground installations.

Suitable Terrain

Pole-mounted systems perform well on terrains that would challenge conventional multi-row ground arrays: rocky soils where multi-point pile driving is impractical, irregular or sloped land where levelling for row arrays would be costly, small clearings in wooded or partially shaded rural properties, and irrigated or cultivated fields where minimal land disturbance is essential. The single-foundation footprint occupies less than 1 m² of ground area per installation, leaving the surrounding land fully usable for agriculture, grazing, or other purposes.

Typical Project Scale

Pole-mounted systems are optimized for the 1–20 kW project size range. A single-pole array of 4–8 panels covers 1–2 kW; top-of-pole systems with 12–24 panels reach 4–8 kW per pole. Multiple poles can be deployed across a site to aggregate capacity to 20 kW or above, though at that scale, a compact fixed-tilt ground array typically becomes more cost-effective per watt.

System Architecture

Main Structural Components

A pole-mounted system integrates four principal mechanical elements:

• Central Steel Pole: Hot-dip galvanized Schedule 40 steel pipe, sized by structural engineering to the module array Effective Projected Area (EPA) and design wind speed. Pole diameter scales from 2⅜” OD (2-panel) to 6″+ OD (12+ panels), with wall thickness and embedment depth calculated to limit pole-top deflection under peak wind loading to within the module clamp tolerance.
• Horizontal Crossbeam: A welded or bolted steel beam assembly mounted at the pole top, spanning the full width of the module array. The beam transfers module dead load and wind overturning moment into the pole shaft and provides the connection points for the tilt adjustment mechanism.
• Mounting Rails: Anodized 6005-T5 aluminum extrusion profiles bolted transversely to the crossbeam, providing the module clamping surface and electrical bonding path. Rail length is matched to the number of module columns in the array.
• Module Clamps: A4-316 stainless steel end and mid-clamps, torqued to 96–144 in-lb per manufacturer specification, providing mechanical retention and grounding continuity for all framed module types.

Tilt Adjustment Mechanism

Most top-of-pole mount designs incorporate a manual tilt adjustment mechanism — a slotted arc bracket with pin-and-bolt locking at discrete angle increments (typically every 5°, from 10° to 45°) that allows the module plane to be repositioned seasonally to capture maximum irradiance as the sun’s elevation angle changes between summer and winter. Some fixed-angle designs omit the adjustment mechanism to reduce cost and complexity for applications where the optimal annual-average tilt can be set once at installation without seasonal correction. Seasonal adjustment from the minimum to maximum tilt range typically takes one operator 15–30 minutes per pole installation.

Corrosion Protection Strategy

All steel components — pole, crossbeam, and base plate — are hot-dip galvanized to a minimum zinc thickness of 85 µm per ASTM A123 / ISO 1461, providing a 25–35 year corrosion service life in standard atmospheric environments including agricultural dust and rural humidity. Aluminum rail profiles are hard-anodized to ≥ 10 µm per ISO 7599. All fasteners are A4-316 stainless steel to prevent galvanic corrosion at the aluminum-steel interface. In coastal environments within 1 km of marine exposure, enhanced 140 µm galvanizing or epoxy topcoat is specified for steel components.

Engineering Specifications

Parameter	Typical Specification
Wind Load Resistance	40–50 m/s (144–180 km/h) design wind speed; Effective Projected Area (EPA) per AASHTO / ASCE 7
Snow Load Capacity	1.0–1.5 kN/m² (≈ 21–31 PSF) ground snow load per ASCE 7
Tilt Angle Range	10°–45° manually adjustable (5° increments); fixed-angle option available
Module Capacity per Pole	2–24 modules (1–8 kWp per pole); multi-pole arrays scalable to 20 kW+
Pole Material	Hot-dip galvanized Schedule 40 steel pipe; 2⅜”–6″+ OD depending on array size
Rail Material	6005-T5 anodized aluminum; A4-316 stainless fasteners
Foundation Type	Reinforced concrete pier (36″–48″+ dia.); minimum embedment 1.8 m / 6 ft below grade
Concrete Specification	f’c ≥ 25 MPa at 28 days; rebar per ACI 318
Ground Clearance	0.6–2.4 m (adjustable via pole height selection)
Design Life	25+ years

Compliance & Structural Standards

Pole-mounted solar systems are designed and documented in compliance with the following standards, ensuring structural safety, electrical code compliance, and project bankability:

• ASCE 7-22: Minimum design loads — wind, snow, seismic, and dead load combinations for freestanding structures in all exposure categories
• AASHTO Standard Specifications for Structural Supports: EPA-based wind force calculation methodology specific to pole-supported structures
• ACI 318: Structural concrete foundation design — pier sizing, rebar specification, and load transfer from pole base plate to concrete
• NEC 2023 / IEC 62446: Electrical code compliance for DC wiring, grounding, and disconnection requirements
• CE / ISO 9001 / AS/NZS 1170: Product quality and structural load standard compliance for European, international, and Australian/New Zealand market projects

For building-integrated projects requiring attachment to roof structures, compliance also extends to IBC and local building department requirements. Roof-based projects may follow the structural attachment standards applicable to roof mounted solar systems, which involve different load path and penetration sealing requirements than freestanding pole foundations.

Installation Process

Site Survey

Site survey for a pole-mount installation focuses on three key parameters: solar access (confirming the pole location has unobstructed sky exposure across the full daily and seasonal sun path), soil bearing capacity (standard penetration testing or visual soil classification to select foundation depth and concrete volume), and utility conflict clearance (calling 811 / local utility marking service before any excavation to identify buried cables, pipes, and conduit in the dig zone). A qualified engineer performs the structural calculation confirming the required pole diameter, embedment depth, and concrete volume for the site’s design wind speed and ground snow load.

Foundation Preparation

The foundation hole is excavated to the specified diameter (36″ minimum for standard systems) and depth — at minimum 1.8 m / 6 ft below grade, plus any additional depth required by the structural engineer for frost penetration or soft-soil conditions. For small 2–4 panel systems, 3–4 cubic yards of concrete are required; medium 6–8 panel systems require 5–8 cubic yards; and 12+ panel arrays need 10+ cubic yards with engineer-specified reinforcing steel. The pole is positioned in the hole center using temporary bracing, verified plumb with a level, and concrete is poured to grade level in a single continuous pour. Curing time of 48–72 hours must be observed before structural loading begins.

Pole & Beam Assembly

Once the concrete has reached adequate curing strength, the mounting head assembly is slid over the pole top or attached to the pre-installed base plate. The crossbeam is bolted to the head assembly at the pre-calculated tilt angle, with all bolts torqued to specification and thread-locking compound applied to vibration-critical fasteners. Aluminum mounting rails are bolted transversely to the crossbeam at module-row spacing, and the grounding continuity of the rail system is verified using a continuity tester before module installation.

Module Mounting & Tilt Setting

Modules are installed on the rail system using end and mid-clamps torqued to manufacturer specification, starting at the bottom row and progressing upward. DC string wiring is routed in UV-resistant conduit along the rail system to the inverter or charge controller located at ground level or on the pole shaft in a weatherproof enclosure. Final tilt angle is confirmed with an inclinometer and locked in position with the tilt adjustment pin before the system is energized.

Performance & Return on Investment

Energy Yield Impact

The adjustable tilt range of 10°–45° is pole-mount systems’ primary performance advantage over shallow-tilt alternatives. A system with the ability to set optimal seasonal tilt can achieve annual energy yields 5–15% higher than a fixed-angle competitor locked at a compromise angle. Compared with a fixed-tilt solar mounting system at a pre-set latitude angle, a pole-mount with biannual tilt adjustment — steeper in winter to capture low-angle sun, shallower in summer — can recover a meaningful portion of the yield available to a dual-axis tracker at zero additional mechanical complexity. Better air circulation around the elevated array also reduces module operating temperatures by 3–6°C compared to ground-flush installations, delivering a further 1–3% yield improvement.

CAPEX Considerations

Pole-mounted systems are among the lowest-cost mounting solutions for the 1–20 kW scale range. A 4–8 panel top-of-pole mount kit including pole, head assembly, crossbeam, and rails typically costs $400–$1,200 hardware-only before module and inverter procurement. Installed system costs (hardware + foundation + labor) for a 5 kWp rural off-grid pole-mount system typically range from $1,800–$3,500/kW depending on foundation complexity, site access, and local labor rates. This cost profile is directly competitive with small fixed-tilt ground arrays at the same scale, with the advantage of faster installation and a dramatically smaller physical footprint.

Lifespan & Durability

Hot-dip galvanized steel pole foundations and structural hardware are engineered for a 25-year design life — matching the performance warranty period of Tier 1 PV modules. The concrete foundation has an effective service life exceeding 40–50 years, making it a permanent site asset that can support module repowering at end of the first module life cycle without foundation replacement. The elevated position of pole-mounted arrays also reduces soiling from ground-level dust accumulation and snow burial, extending cleaning intervals and maintaining higher average operational performance ratios.

Maintenance Requirements

Pole-mounted systems have minimal maintenance requirements: annual visual inspection of pole condition and base plate for corrosion, module surface cleaning (2–4 times per year in most environments), DC connection inspection and torque check every 2–3 years, and seasonal tilt adjustment (if applicable) taking 15–30 minutes per pole. The simple mechanical configuration has no motors, sensors, or control electronics requiring calibration or replacement, giving pole-mount systems a maintenance profile comparable to the lowest-complexity fixed-tilt ground arrays. Total annual O&M cost typically runs $50–$150 per kW — among the lowest of any grid-connected or off-grid solar mounting system.

Advantages

• Compact Single-Foundation Footprint: One concrete pier per pole installation occupies less than 1 m² of ground surface, leaving surrounding land fully accessible for agriculture, grazing, or other uses — a critical advantage on working farms and small rural properties.
• Flexible Tilt Angle: The 10°–45° adjustable tilt range enables seasonal optimization unavailable to fixed-tilt systems, and allows site-specific latitude matching across a wide geographic range without ordering custom structural components.
• Suitable for Uneven or Rocky Land: A single deep concrete foundation can be placed on irregular, sloped, or rocky terrain where multi-point pile driving for a row array would be impractical or prohibitively expensive — extending deployability to sites rejected for conventional ground-mount systems.
• Lower Material Usage per kW: Compared to a multi-row fixed-tilt array at the same capacity, a pole-mount system uses significantly less structural steel and fewer foundation elements — reducing material cost and embodied carbon per installed kWp at small project scales.
• Elevated Clearance Benefits: The 0.6–2.4 m ground clearance reduces shading from low vegetation and perimeter fencing, improves natural module cooling through unrestricted air circulation beneath the array, and reduces snow accumulation on module surfaces in winter climates.
• Fast Installation: With concrete curing as the only schedule-critical path item (48–72 hours), a complete pole-mount installation from foundation excavation to system commissioning can be accomplished in 2–4 days per installation site — well within the capacity of a two-person installation crew.

Limitations

• Not Suitable for Large-Scale Power Stations: The single-point structural concept is optimized for 1–20 kW per installation. Above this scale, the cost per watt of individual poles, foundations, and assembly labor exceeds the economics of multi-row fixed-tilt or tracking ground arrays — making pole-mount uncompetitive for commercial or utility-scale projects.
• Wind Load Concentration: All wind overturning moment is transferred through a single pole-to-foundation interface rather than distributed across multiple pile points. This concentrates the structural demand and requires careful engineering of pole section size and foundation depth to ensure safety in high-wind zones — particularly for larger 12–24 panel arrays with high EPA values.
• Limited Per-Site Capacity: Aggregating multiple pole installations to reach 20 kW+ involves multiple separate foundation pours, mounting assemblies, and wiring runs — increasing installation complexity and cost per watt versus a single-row array of equivalent capacity. For higher output projects, consider upgrading to a single axis tracking system or a compact fixed-tilt ground array that shares common rail and foundation infrastructure across all modules.

Application Scenarios

Rural Residential Projects

Off-grid rural homes, cabins, and remote dwellings represent the most prolific application environment for pole-mounted systems. A single top-of-pole array of 6–12 panels (2–4 kWp) combined with a battery storage system provides reliable off-grid power for residential loads including lighting, refrigeration, water pumping, and communications. The compact footprint allows installation in cleared areas adjacent to the dwelling without consuming productive land, and the adjustable tilt allows homeowners to optimize seasonal production in climates with pronounced winter irradiance deficits. Typical off-grid residential systems in rural North America, Australia, and Sub-Saharan Africa specify 2–4 pole-mount installations of 4–8 panels each to aggregate 5–15 kWp.

Agricultural Installations

Farms and agricultural operations use pole-mounted systems to power irrigation pumps, grain dryers, livestock waterers, electric fencing, and farm office loads without extending grid connections across large land areas. The single-foundation design allows pole installations in field margins, paddock corners, and hillside clearings where multi-row ground arrays would interfere with cultivation or livestock movement. Integrated agricultural solutions that combine solar energy generation with crop cultivation over the same land area can also use agrivoltaic solar structures — an increasingly popular approach for farms where land productivity and energy self-sufficiency are equally important goals.

Telecom & Off-Grid Systems

Remote telecommunications infrastructure — cell towers, weather monitoring stations, SCADA remote terminal units, pipeline monitoring equipment, and rural Wi-Fi relay nodes — rely heavily on pole-mounted solar systems for reliable off-grid power supply. The compact footprint, minimal site preparation requirements, and robust galvanized structure make pole-mount systems ideally suited to remote location deployment where access is infrequent and O&M must be minimized. A single 4–8 panel pole-mount system combined with a VRLA or lithium battery bank typically provides sufficient power for a full telecommunications relay station — eliminating diesel generator dependency and the associated fuel logistics cost in remote areas.

Compare With Other Mounting Systems

vs Ground-Mounted Systems

Utility-scale ground mounted systems use multi-row arrays spanning hectares of land, with dozens to hundreds of driven pile foundations supporting rails across thousands of modules. These systems achieve the lowest cost per watt at utility scale but require flat or gently sloping open land, significant civil infrastructure, and project sizes typically starting at 50 kW. Pole-mounted systems are the practical alternative where project scale is 1–20 kW, land availability is limited to small clearings or field margins, or multi-point foundation installation is impractical due to terrain. On any site large enough for a multi-row ground array, conventional ground-mount delivers better cost per watt and simpler O&M than an equivalent capacity aggregated from multiple pole installations.

vs Fixed-Tilt Systems

At project scales above 20 kW, fixed-tilt solar systems achieve materially lower installed cost per watt through shared rail infrastructure, higher pile utilization efficiency, and faster per-module installation rates. Fixed-tilt systems are constrained to flatter terrain and require a larger continuous land area. Pole-mount systems offer a unique advantage on irregular, sloped, or terrain-constrained sites at small scale — but this advantage diminishes as project size grows and the fixed-tilt economy of scale improves. The adjustable tilt feature of pole-mount systems is a genuine differentiator over standard fixed-tilt for operators willing to perform seasonal adjustments in high-latitude locations with pronounced seasonal irradiance variation.

vs Tracking Systems

A dual axis tracking system achieves 30–40% higher annual energy yield than a fixed installation through continuous two-axis sun following, but requires a project scale of at least 50 kW to justify the additional capital expenditure and O&M complexity of the drive system, control electronics, and precision foundation engineering. Pole-mount systems with seasonal tilt adjustment capture a portion of the tracking yield benefit — perhaps 5–15% above a static fixed-angle installation — at a fraction of the cost and complexity, making them the most practical approach to yield optimization for the sub-20 kW off-grid and rural scale where full tracker economics do not apply.

Frequently Asked Questions

What soil conditions require a deeper concrete foundation?

Standard pole-mount concrete foundations are designed for soil classes 1–4 (US Land Use and Soil Classification), covering the majority of agricultural and rural soils including sandy loam, clay-loam, and compacted gravel. Soft or highly compressible soils (peat, organic fill, saturated clay) have reduced bearing capacity and require a larger diameter pier, deeper embedment, or a driven pile substitute to achieve the required lateral resistance. High-water-table sites and expansive clays also require specific foundation adjustments to prevent uplift from frost heave or clay swell. A geotechnical assessment — at minimum a hand-auger test to verify soil class at the dig depth — is recommended before finalizing foundation dimensions on any site with uncertain soil conditions.

Can the tilt angle be adjusted seasonally?

Yes — this is one of the most valued features of top-of-pole mount systems. Most designs offer a slotted arc bracket with pin-and-bolt locking at 5° increments across the full 10°–45° range, allowing the module plane to be repositioned by one operator in 15–30 minutes per installation. A typical seasonal adjustment schedule sets a steeper angle (latitude + 15°) for October–February to maximize low-angle winter sun capture, and a shallower angle (latitude – 15°) for April–August to reduce excess irradiance at high summer sun elevation. This biannual adjustment can increase annual yield by 5–10% versus a single optimized fixed angle at most mid-latitude locations.

What corrosion protection is applied to pole-mount systems?

All structural steel components — pole, crossbeam, base plate, and hardware — are hot-dip galvanized to a minimum zinc layer thickness of 85 µm per ASTM A123 / ISO 1461, providing 25–35 years of corrosion protection in standard atmospheric environments including farm dust, fertilizer spray, and moderate humidity. Aluminum rail profiles are hard-anodized to ≥ 10 µm. All fasteners are A4-316 stainless steel to prevent galvanic corrosion at metal interfaces. For coastal installations within 1 km of marine exposure, upgraded specifications — 140 µm galvanizing or epoxy topcoat on steel, and Class 20 anodizing on aluminum — are applied to achieve the same service life in the more aggressive C4–C5 atmospheric corrosion environment.

What wind speeds can pole-mounted systems withstand?

Standard pole-mount systems are engineered for design wind speeds of 40–50 m/s (144–180 km/h), with pole diameter, wall thickness, and foundation embedment depth selected to maintain structural safety at the specified design wind speed using Effective Projected Area (EPA) methodology per AASHTO and ASCE 7. In high-wind zones (basic wind speed > 130 mph per ASCE 7), a site-specific structural engineering calculation is required — engineering calculations typically cost $500–$1,000 for a third-party engineer’s signed and sealed report. The system automatically stiffens structurally as module count and array size increase, since larger arrays mandate larger pole diameters and deeper foundations that inherently improve overall wind resistance.

Is it suitable for off-grid systems?

Pole-mounted systems are extensively used in off-grid solar-plus-storage applications and are arguably the most common mounting solution for off-grid power worldwide. The compact footprint, minimal site preparation, and compatibility with small inverter and battery systems make them the practical choice for off-grid cabins, agricultural pump stations, telecom equipment, and remote monitoring infrastructure. A 4–8 panel pole-mount array (1.5–3 kWp) paired with a 10–20 kWh battery bank covers typical daily energy needs for a rural residential off-grid home across most global climates. The elevated module position also improves performance in locations with tall grass, low shrubs, or seasonal snow cover that would shade or bury a ground-flush installation.

Related Mounting Systems

Pole-mounted systems serve the small-scale and off-grid segment of the solar mounting market with precision. As project scale grows or site conditions change, the following systems from the PV Rack portfolio may provide a better-matched solution:

• Ground-Mounted Solar Systems — the standard multi-row platform for projects above 20 kW on open terrain, delivering lower cost per watt through shared rail infrastructure and parallel pile foundation installation
• Fixed-Tilt Solar Mounting System — the lowest-CAPEX ground-mount option for cost-constrained projects on flat or gently sloping open land, ideal for the 20 kW–5 MW scale range where pole-mount economics no longer apply
• Single-Axis Tracking System — 15–25% yield uplift for utility and large C&I ground-mount projects in high-irradiance markets where project scale justifies the tracker hardware investment
• Ballasted Solar Mounting System — the non-penetrating rooftop alternative for buildings where ground installations are impractical and roof structural capacity permits ballasted deployment
