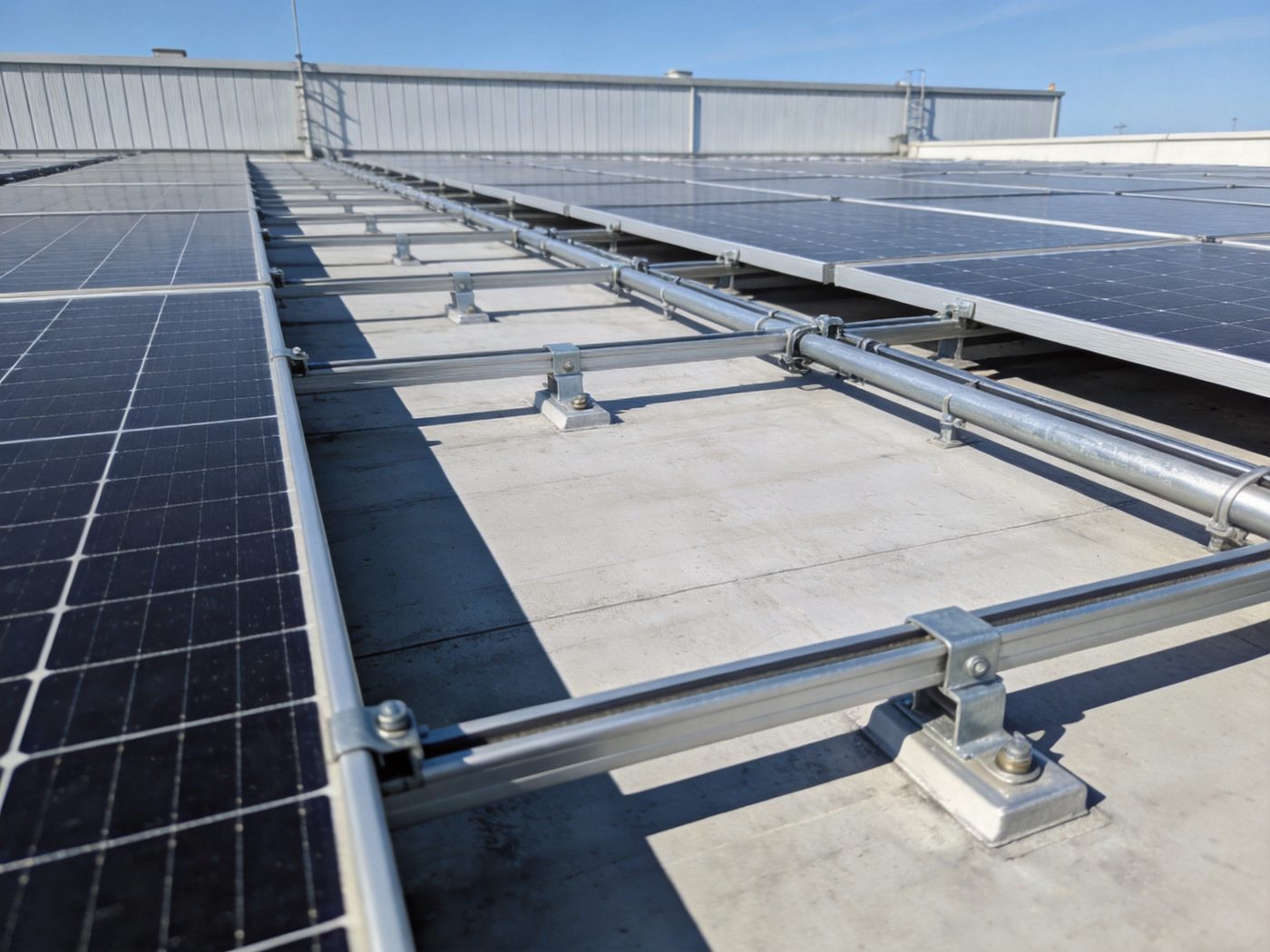

Metal Roof Solar PV Mounting System

Engineered for industrial and commercial metal roofing structures, this clamp-based solar mounting system delivers non-penetrating installation on standing seam profiles, high wind uplift resistance rated to 60 m/s, and rapid deployment for large-scale industrial rooftop projects.

Metal-clad industrial and commercial roofs — standing seam, trapezoidal sheet, corrugated — are among the most structurally efficient solar deployment surfaces available. Their steel or aluminum structural purlins provide direct, high-capacity load transfer paths for solar mounting forces; their smooth, regular profile geometry makes installation straightforward and systematic at scale; and their 30–50 year service life is well-matched to the 25-year operational life of a PV system. The clamp-based mounting system is the engineering solution that captures all of these advantages — delivering a fast, reliable, and in most cases completely penetration-free solar installation on the world’s most widely used industrial roof type. Explore all available solar mounting system types in the complete PV Rack portfolio to find the optimal solution for your building.

Technical Overview

System Type

A metal roof solar PV mounting system is a building-attached clamp-based racking solution specifically engineered for the three dominant metal roof profiles used in industrial and commercial construction: standing seam, trapezoidal sheet, and corrugated (sinusoidal) metal. The defining feature of metal roof mounting versus all other rooftop solar categories is the mechanical interface: rather than using hooks anchored to structural framing below the roof surface (as in tile roof systems) or ballast weight resting on the roof surface (as in flat roof systems), metal roof clamps grip the roof’s structural profile directly — the raised seam or rib — and transfer all solar mounting loads through the metal roof skin directly into the purlin-supported structure below. As part of the roof mounted solar systems family, metal roof systems offer the fastest installation of any roof-mounted category while delivering wind resistance ratings competitive with fully mechanically anchored penetrating systems.

Structural Design

The structural architecture is determined by the roof profile type. For standing seam roofs, the clamp grips the raised standing seam directly — the clamp body straddles the seam, and a set screw or T-bolt tightens the clamp jaws against the seam face at the manufacturer-specified clamping torque (typically 10–15 Nm for aluminum seam clamps), creating a high-friction mechanical connection with ≥ 500 N static hold force per clamp at seam heights of 38 mm, 50 mm, or 76 mm (the three standard standing seam heights found in commercial and industrial construction). Aluminum rails are mounted to the clamp tops, spanning perpendicular to the roof slope, with module clamps attached to the rails at standard module column spacing. Direct-attach configurations — where modules or sub-frames bolt directly to clamps without continuous rails — are available for specific lightweight module configurations where rail material cost and installation labor are primary optimization targets.

Attachment Method

Metal roof mounting uses three distinct attachment strategies depending on roof profile type, each with different waterproofing implications:

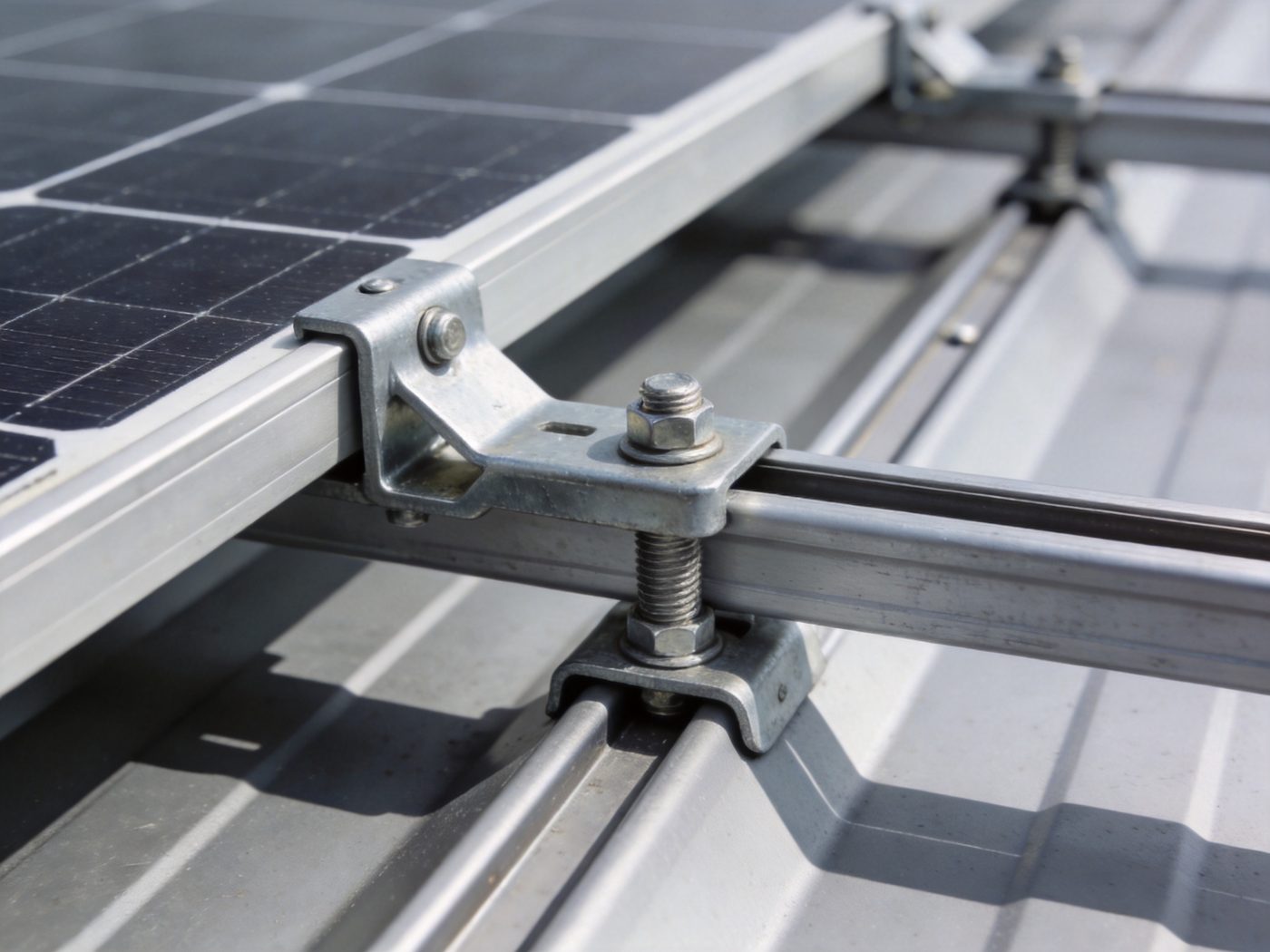

• Standing Seam Non-Penetrating Clamp: The gold standard for metal roof solar attachment — the clamp grips the raised seam without any screws, drills, or penetrations through the metal roof panel. Zero water infiltration risk from the mounting hardware. Applicable to all standing seam profiles with seam height ≥ 25 mm.
• Trapezoidal Sheet Clamp (Low Penetration): For trapezoidal profiles, adjustable-width clamps straddle the trapezoidal rib and are secured with 2–4 self-tapping screws through the rib crown — the highest point of the profile, above the water drainage channel, minimizing water ingress risk. EPDM washers under each screw head provide the watertight seal at penetration points. This contrasts with the tile roof hook approach and highlights the profile-specific engineering required for each roof type — compare with the tile roof solar mounting system approach where hooks are anchored into structural rafters below the tile surface.
• Corrugated (Sinusoidal) Profile Bracket: Straddle-block or peak-mount brackets anchor at the corrugation crown with EPDM-gasketed self-tapping screws driven into structural purlins at crown positions — structural attachment at purlins is required as the corrugated profile itself lacks sufficient section strength to carry mounting forces through the sheet alone.

Suitable Roof Profiles

Metal roof solar mounting systems are engineered for all three primary industrial and commercial metal roof profile categories:

• Standing Seam (Snap-Lock and Mechanical Seam): Seam heights of 38 mm, 50 mm, and 76 mm; non-penetrating seam clamp attachment; most prevalent on modern commercial and industrial buildings constructed post-2000
• Trapezoidal Sheet (IBR / Klip-Lok / Standard Trap): Rib height 27–60 mm; trapezoidal adjustable clamp with EPDM-gasketed rib crown screw penetration; the most common metal roof profile globally across agricultural, industrial, and commercial construction
• Corrugated (Sinusoidal / Box Rib): Ridge-to-ridge width 76–152 mm; straddle block or corrugated bracket with structural penetration at purlin positions; common in agricultural sheds, older industrial buildings, and developing-market commercial construction

Typical Project Scale

Metal roof solar systems are deployed across the full commercial and industrial project scale range — from 100 kW on a medium-sized industrial facility to 10 MW+ on large warehouse complexes, manufacturing campuses, and logistics hubs with metal-clad roof areas of 20,000–200,000 m². The 500 kW–5 MW range on single-building industrial rooftops is the most commercially active deployment segment, where the combination of large roof area, high electricity consumption, and strong metal purlin structure creates an ideal solar platform.

System Architecture

Main Components

A complete metal roof PV mounting assembly integrates four principal component categories:

• Seam Clamps (Standing Seam) / Profile Clamps (Trapezoidal/Corrugated): The primary structural interface between the PV array and the roof. Standing seam clamps are 6005-T5 aluminum or SUS304 stainless steel, with jaw opening matched to the roof seam width and height (38 mm, 50 mm, or 76 mm seam heights covered by corresponding clamp models). Set screw or T-bolt tightening to 10–15 Nm produces ≥ 500 N static retention force per clamp. Trapezoidal clamps are adjustable-width SUS304 stainless bodies with 2–4 EPDM-gasketed 5.5 mm self-tapping screws per clamp position.
• Rail System: 6005-T5 hard-anodized aluminum extrusion rails (≥ 10 µm anodizing per ISO 7599), spanning perpendicular to roof slope at clamp-top connections. Rail section modulus selected for mid-span deflection ≤ L/250 at full dead load plus wind uplift. Standard rail lengths of 3.3 m or 4.4 m, spliced at ≥ 100 mm overlap over clamp positions.
• Mid & End Clamps: A4-316 stainless steel clamps providing module frame mechanical retention (torqued to 8–12 Nm) and UL 2703-listed grounding continuity for all standard framed module types including large-format 700 W+ bifacial modules. Frameless module rubber-gasketed clamps available for thin-frame and unframed glass-glass bifacial modules.
• Grounding Lugs: UL 467 / IEC 62561-1-listed aluminum or copper grounding lugs bonded to the rail system at array perimeter positions, providing the electrical grounding continuity path for the complete PV array in compliance with NEC 2023 Article 690 and IEC 62446 requirements. On standing seam roofs, the metal roof structure itself provides an additional parallel grounding path through the clamp-seam-purlin contact chain.

Wind Load Transfer Mechanism

The structural efficiency of the clamp-based system derives from its direct load transfer path: wind uplift forces acting on the module plane are transferred through module clamps → rails → seam clamps → standing seam → metal roof panel → seam lock at purlin → structural purlin → building primary frame. This continuous mechanical chain engages the building’s structural framing directly without intermediate adhesive or sealant elements that could degrade over time. Engineering calculations for clamp spacing follow ASCE 7-22 Section 29.4.4 (steep-slope rooftop array) wind pressure coefficients, with perimeter and corner array zones receiving reduced clamp spacing (typically 600–900 mm c/c) versus interior zone standard spacing (1,200–1,500 mm c/c) to address the 1.5–2.5× higher wind pressure acting at array edges per wind tunnel testing data.

Corrosion Protection Strategy

The industrial rooftop environment subjects mounting hardware to a demanding corrosion profile: high humidity from roof condensation cycles, chemical exposure from industrial process emissions, and at coastal or waterfront facilities, marine salt aerosol at C4–C5 corrosion class. All aluminum components — rails, clamp bodies, and rail splice connectors — are hard-anodized to ≥ 10 µm per ISO 7599 Class 10 for standard inland industrial applications, and Class 20 (≥ 20 µm) for coastal facilities within 5 km of marine exposure. Stainless steel seam clamp components are SUS304 for standard environments and SUS316 for coastal or chemically aggressive industrial atmospheres. All fasteners are A4-316 stainless steel throughout. The combination of anodized aluminum and full-stainless hardware eliminates galvanic corrosion risk at all metal interfaces and provides C4–C5 rated corrosion resistance across the full system service life.

Engineering Specifications

Parameter	Typical Specification
Maximum Wind Load Resistance	Up to 65 m/s (234 km/h / 145 mph); standing seam clamp systems certified to 60 m/s per UL 2703 / ASCE 7-22
Seam Clamp Static Hold Force	≥ 500 N per clamp (standing seam); ≥ 1,000 N per clamp (trapezoidal at structural purlin)
Snow Load Capacity	1.4–2.0 kN/m² (29–42 PSF); unbalanced load per ASCE 7-22 Chapter 7
Tilt Angle	5°–20° (parallel to roof slope with tilt-leg addition); flush-to-slope standard configuration
Seam Height Compatibility	38 mm, 50 mm, 76 mm (standing seam); 27–60 mm rib height (trapezoidal adjustable)
Rail Material	6005-T5 hard-anodized aluminum; ≥ 10 µm (ISO 7599 Class 10); Class 20 for coastal
Clamp Material	SUS304 stainless (standard); SUS316 (coastal / aggressive industrial atmosphere)
Fasteners	A4-316 stainless steel throughout; 5.5 mm EPDM-gasketed self-tapping screws (trapezoidal / corrugated)
Module Compatibility	Framed and frameless; 30–50 mm frame depth; portrait and landscape orientation
Max Building Height (Standard Clamp)	Up to 22 m (65 ft); custom engineering for taller structures
Certification Standards	UL 2703, ASCE 7-22, IBC 2024, AS/NZS 1170.2, CE, ISO 9001, TÜV, SGS
Design Life	25+ years (aluminum and stainless hardware); metal roof service life 30–50 years

Building Code & Compliance

Metal roof solar installations on commercial and industrial buildings are regulated under the International Building Code (IBC) and its referenced standards, requiring licensed structural engineer calculations documenting wind uplift resistance, seismic load combinations, and structural deck capacity verification for permit submission. ASCE 7-22 Section 29.4.4 provides wind pressure coefficients for PV systems on steep-slope roofs — the applicable section for metal roof pitches above 7° — with array edge and corner zones receiving amplified pressure coefficients that drive clamp spacing decisions at array perimeters. UL 2703 certification covers grounding and bonding continuity requirements, electrical isolation from roof structure, and wind load resistance testing methodology for the complete clamp-rail-module assembly.

Metal roof systems are engineered to work in harmony with the building’s existing structural system — purlin sizing, spacing, and section modulus are verified as capable of accepting the transferred solar loads without modification in the vast majority of industrial metal buildings constructed to code. For ground-mounted alternatives applicable when open land is available adjacent to the building, see ground mounted solar systems engineering documentation.

Installation Process

Roof Structural Assessment

Pre-installation structural assessment confirms that the existing metal roof purlin system — purlin section size, material grade, and span — can accept the additional dead load and transferred wind uplift forces from the solar array without exceeding design limits. For most industrial metal buildings constructed to code, the purlin structure provides adequate capacity for standard solar loading of 12–20 kg/m² (module + rail + clamp); buildings with oversized purlin spans, unusual section sizes, or documented structural deficiencies require a licensed structural engineer’s written verification before installation proceeds. Roof membrane and sealant condition is also assessed for corrugated and trapezoidal profiles where penetrating screws are required — deteriorated existing sealant at purlin screw positions signals the need for sealant remediation before solar installation.

Clamp Attachment

For standing seam roofs, clamps are positioned along the seam at the engineering layout spacing (600–1,500 mm c/c depending on wind zone and array position) and tightened to the manufacturer-specified torque (typically 10–15Nm for set-screw clamps) using a calibrated torque driver. No tools are required to access below the roof surface — the entire clamp installation is conducted above the metal roof panel. For trapezoidal profiles, adjustable-width clamps are set to the measured rib crown width, positioned at purlin locations (verified by noting the screw pattern on the existing roof or using a stud finder), and four self-tapping 5.5 mm screws with EPDM washers are driven through the rib crown into the purlin at the specified torque — creating both a structural connection and an EPDM-sealed penetration simultaneously.

Rail Installation

Aluminum rails are inserted into the clamp top rail channels (T-slot or direct-bolt configuration depending on clamp model) and slid to position along each row. Rail alignment is verified using a taut string line or laser level along each rail run — any variation exceeding ±5 mm from level in 3 m is corrected by shimming the clamp-rail interface. Rail splices are positioned at ≥ 100 mm overlap over clamp positions, using structural splice connectors torqued to specification. Inter-rail grounding continuity is confirmed across the full array using a continuity tester before module installation.

Module Mounting

Modules are positioned on the completed rail system, starting at the eave row and progressing up the roof slope, and secured with end and mid-clamps torqued to manufacturer specification (8 Nm end clamps, 12 Nm mid-clamps). DC string wiring is routed in UV-resistant conduit clipped to the rail system at 500 mm intervals and sealed at conduit-to-junction-box entries with IP65 cable glands. All work is performed under a fall arrest system compliant with OSHA 1926.502, with anchor points pre-installed on the building’s structural ridge or approved roof anchor points before any work on the roof slope commences.

Performance & Return on Investment

Energy Yield Considerations

Metal roof solar systems on pitched metal roofs are installed parallel to the roof slope — module tilt and azimuth are fixed by the building’s architecture. Industrial metal buildings with south-facing roof pitches of 10°–20° deliver specific yields within 5–15% of a latitude-optimized fixed-tilt ground array at the same azimuth, making them highly productive solar surfaces even at shallow pitch. East or west-facing slopes deliver 15–25% lower yield than south-facing equivalents but remain financially viable at current module and electricity costs. Compared to a fixed-tilt solar mounting system at the same tilt angle and orientation on open ground, a metal roof system delivers equivalent specific yield — the mounting method does not impose a yield penalty. The practical constraint on metal roof yield is architectural: the building’s existing roof orientation is fixed, and the installer must assess the available yield at that orientation rather than selecting the optimal angle.

CAPEX Advantage

Metal roof solar systems benefit from two compounding cost advantages that frequently make them the lowest total installed cost per watt of any solar mounting option for industrial facilities. First, zero land acquisition or lease cost — the building’s existing metal roof is the solar platform, with no ground preparation, grading, or land survey required. Second, simplified installation: pre-assembled standing seam clamp kits reduce on-roof installation time by 30–40% versus penetrating attachment systems, lowering labor cost per watt for a given installation team. Installed system costs for 500 kW–5 MW industrial metal roof projects typically run $0.90–$1.40/W all-in — among the most competitive cost structures of any commercial building-integrated solar deployment.

Maintenance & Durability

Annual O&M requirements for metal roof solar systems are among the lowest of any mounting category: module cleaning (2–4 times/year), annual clamp torque check on a 10% sample (standing seam clamps are verified for set-screw engagement; trapezoidal penetration screws are checked for sealant integrity), and DC electrical thermal imaging every 2–3 years. The 25+ year design life of anodized aluminum and stainless hardware significantly exceeds the maintenance cycle of any other component in the system. Metal roofs themselves have a 30–50 year service life, meaning the building structure outlasts the first module generation without roof replacement — a key durability advantage over commercial membrane flat roofs that typically require replacement at 15–25 years.

Yield vs Tracking Systems

A single axis tracking system on open ground delivers 15–25% more annual energy than a fixed-tilt system at equivalent capacity — but requires open ground-level installation with unobstructed horizontal movement clearance for the rotating module plane. This makes single-axis tracking incompatible with building-attached metal roof deployment, where the roof slope and structural connections fix the module geometry permanently. For industrial building owners with no available open land, the metal roof clamp system is the only viable path to on-site solar generation at their facility — the tracking yield advantage is academically relevant but practically unavailable for building-only sites.

Advantages

• No Roof Penetration on Standing Seam Profiles: The seam clamp design delivers complete solar mounting structural integrity — clamp-to-seam clamping force ≥ 500 N per clamp with ≥ 2.5× safety factor against design wind uplift — without a single drill hole through the metal roof panel. This preserves the metal roof manufacturer’s full waterproofing warranty and eliminates the primary long-term maintenance liability of rooftop solar on commercial buildings.
• Rapid Installation: Pre-assembled seam clamp kits with factory-set jaw openings for standard seam heights can be installed on a standing seam roof at a rate of 40–80 clamps per hour per installer — three to four times faster than tile roof hook installation that requires individual hook positioning, rafter location, and underlay handling at each attachment point. This installation speed advantage directly translates to lower labor cost per watt for large industrial projects.
• Ideal for Industrial Buildings: Metal-clad industrial buildings — warehouses, manufacturing plants, logistics centers, food processing facilities — combine the three prerequisites for high-value rooftop solar: large flat or low-pitch roof area, high daytime electricity consumption, and structurally sound metal purlin framing that provides excellent load transfer for seam clamp attachment without structural modification.
• Lower Structural Complexity vs Alternatives: No specialist roofing subcontractors required, no concrete foundation engineering, no ballast weight calculation, and no rafter withdrawal capacity verification — a certified solar installation crew can complete a standing seam metal roof installation from clamp placement to final module commissioning without roofing specialist involvement.
• Compatibility with Existing Building Infrastructure: Metal industrial buildings typically have existing electrical infrastructure (transformers, main switchboards, cable trays) that can absorb PV system output with minimal modification, reducing balance-of-system costs versus ground-mount projects that require new electrical infrastructure from scratch.

Limitations

• Limited Tilt Range: Modules on metal pitched roofs are installed parallel to the roof slope — the tilt angle is fixed by the building’s architectural pitch (typically 5°–20° for industrial metal buildings). This range is below the optimal tilt for many mid-to-high latitude locations (25°–35° is typically optimal in the northern hemisphere), meaning metal roof systems may deliver 10–20% less specific yield than an optimal-tilt ground-mount system at high-latitude sites. Tilt-leg additions can increase tilt by 5°–10° above the roof pitch but add structural complexity and must be verified against increased wind uplift forces on the higher-profile array.
• Roof Load Constraints on Aging Structures: Older industrial metal buildings may have purlins approaching the end of their designed live load reserve — particularly when existing HVAC, lighting, and process equipment loads are already consuming most of the structural allowance. A structural engineering review of purlin capacity against the proposed solar loading is mandatory for any building more than 20 years old or with documented structural concerns.
• Corrugated Profile Requires Penetration: Corrugated sinusoidal profiles lack the rib structural stiffness of trapezoidal sections and require structural penetration into purlins at every attachment point — removing the non-penetrating advantage that makes standing seam systems so compelling. Waterproofing at each corrugated attachment point is dependent on EPDM gasket integrity maintained over the system’s 25-year life, requiring periodic sealant inspection and potential remediation. For buildings with flat or very low-slope non-metal roofing where non-penetrating ballasted installation is preferred, see flat roof solar mounting system documentation.
• Not Suitable for Non-Metal Roofs: The seam clamp and profile clamp attachment strategy is unique to metal roof profiles — it has no application on tile, slate, or membrane roofing. Buildings with mixed roof types (metal sections and tile or flat sections) require separate mounting systems on each roof area, managed as a combined rooftop solar project with zone-specific engineering.

Application Scenarios

Industrial Warehouses

Large-footprint industrial warehouses with metal cladding are the primary and highest-volume application for metal roof solar mounting systems. A typical 20,000 m² logistics warehouse with a standing seam metal roof, south-facing 15° pitch, and 40% roof coverage can accommodate 800 kWp–1.2 MWp of PV capacity, generating 900,000–1,400,000 kWh/year. This generation profile directly offsets the warehouse’s refrigeration, conveyor, lighting, and dock equipment electricity consumption, reducing energy costs by $90,000–$280,000/year at current commercial electricity tariffs. The combination of ITC (30% federal investment tax credit), MACRS 5-year accelerated depreciation, and zero land cost makes 1 MW+ warehouse metal roof projects among the strongest-returning capital investments available to logistics real estate owners in current markets.

Manufacturing Plants

Manufacturing facilities — automotive assembly, food processing, pharmaceutical production, metal fabrication, and electronics manufacturing — combine very large metal-clad roof areas with very high and relatively predictable daytime electricity loads, creating an ideal self-consumption solar deployment environment. Metal roof solar systems on manufacturing plants achieve self-consumption rates of 70–95% for continuous-process operations running 8–24 hours per day, maximizing the financial value of each generated kWh by avoiding retail electricity purchase rather than selling surplus at lower feed-in rates. Bifacial module selection for south-facing metal roof installations captures 5–15% additional reflected irradiance from the metal roof surface below the module array, further improving specific yield versus monofacial modules at the same installed capacity.

Commercial Distribution Centers

E-commerce distribution centers, 3PL fulfillment facilities, and cold chain logistics hubs are among the most active commercial metal roof solar deployment environments, driven by corporate sustainability commitments, rising electricity costs, and the structural suitability of modern standing seam metal cladding systems used across the global distribution center construction market. A 50,000 m² distribution center with standing seam roof can support 2.5–4 MWp of PV — covering 50–100% of the facility’s annual electricity consumption. Distribution center operators can also extend solar generation beyond the building footprint — parking areas at large distribution facilities can integrate solar coverage using a solar carport mounting system, combining EV charging infrastructure for delivery vehicles with additional generation capacity that the rooftop area alone cannot provide.

Compare With Other Mounting Systems

Metal Roof vs Tile Roof

Tile roof solar mounting systems use structurally anchored hooks routed beneath the tile surface to engage roof rafters — a more complex installation sequence than standing seam clamp mounting, requiring individual tile handling and hook height adjustment at each attachment point. Metal roof clamp systems are consistently faster to install and require no sub-surface rafter access. Tile roofs offer wider tilt range (10°–45° pitch) than standard industrial metal roofs (5°–20° pitch), which can give tile roofs a specific yield advantage at high-latitude locations. The choice between tile and metal roof systems is dictated entirely by the building’s existing roof type.

Metal Roof vs Flat Roof

Flat roof solar mounting systems use ballasted tilt frames to achieve an optimized tilt angle (10°–30°) above a horizontal roof surface — offering greater tilt angle freedom than metal pitched roofs but adding 3–10 lbs/ft² of ballast dead load to the roof structure. Metal roof systems transfer loading directly through the structural cladding into purlins, imposing a far lower dead load on the building (12–20 kg/m² vs 14–48 kg/m² for ballasted systems). The choice between flat roof ballasted and metal roof clamp systems is determined by the building’s roof type — metal-clad pitched buildings use clamp systems; flat-roofed concrete or membrane-deck buildings use ballasted flat roof systems.

Metal Roof vs Ground-Mounted

Utility scale ground mounted systems achieve lower installed cost per watt at project scales above 5 MW through optimized tilt angle, maximum GCR, and parallel-row installation efficiency on flat open terrain — but require open land that is unavailable at most industrial building sites. Metal roof systems consistently achieve lower total project cost than equivalent-capacity ground-mount when land acquisition or lease cost is factored in, particularly at urban and suburban industrial sites where land is constrained. For large industrial facilities with adjacent open land, the optimal strategy combines metal roof solar on the building with a compact ground-mount system on available land, sharing grid connection infrastructure and inverter capacity.

Frequently Asked Questions

Does metal roof solar installation require drilling?

It depends on the roof profile type. Standing seam metal roofs require zero drilling — seam clamps grip the raised standing seam mechanically without any penetrations through the metal panel, preserving the full roof waterproofing warranty. Trapezoidal sheet profiles require 2–4 self-tapping screws per clamp position through the rib crown — above the water drainage channel — with EPDM-gasketed washers providing an IP65-rated waterproof seal at each penetration. Corrugated sinusoidal profiles require structural penetrations into purlins at each mounting position, also sealed with EPDM-gasketed hardware. Standing seam non-penetrating clamp installation is always specified when the roof profile supports it — the zero-penetration advantage makes it the engineering and warranty-protection first choice.

What types of metal roofs are compatible?

All three primary industrial and commercial metal roof profiles are supported by purpose-engineered clamp systems. Standing seam roofs (seam heights 38 mm, 50 mm, and 76 mm) use non-penetrating seam clamps — the most elegant and warranty-friendly solution. Trapezoidal sheet roofs (rib height 27–60 mm) use adjustable-width profile clamps with EPDM-gasketed rib crown screws — applicable to the widest range of global industrial roof profiles including IBR, Klip-Lok, and standard European trap profiles. Corrugated sinusoidal roofs use straddle-block or peak-mount brackets with structural purlin penetrations. A site-specific roof profile measurement and clamp model selection is required before procurement for any project.

What wind loads can metal roof systems withstand?

Standard standing seam clamp systems are certified to 60 m/s (134 mph / 216 km/h) design wind speed per UL 2703 and ASCE 7-22 test protocols, with individual seam clamps delivering ≥ 500 N static hold force at ≥ 2.5× safety factor against design uplift. Enhanced engineering configurations for extreme wind zones (HVHZ, ASCE 7-22 basic wind speed ≥ 150 mph) are available using increased clamp density at edge and corner array zones, reinforced seam clamp models with dual set-screw engagement, and certified third-party wind tunnel test reports demonstrating compliance with Miami-Dade NOA or equivalent jurisdiction requirements.

How is corrosion prevented on industrial metal roofs?

Corrosion protection is engineered through material selection rather than applied coatings. All aluminum components (rails, clamp bodies) are hard-anodized to ISO 7599 Class 10 (≥ 10 µm) for standard industrial environments and Class 20 (≥ 20 µm) for coastal or chemically aggressive atmospheres — providing 25+ year corrosion resistance with no maintenance intervention. All structural clamp hardware is SUS304 stainless steel (standard) or SUS316 (coastal and industrial chemical environments). Fasteners are A4-316 stainless throughout. Galvanic isolation pads are used at aluminum-to-steel interfaces to prevent bimetallic corrosion where the aluminum rail contacts the steel roof cladding.

Can tilt be adjusted on metal roof systems?

Standard metal roof clamp-and-rail systems install modules parallel to the existing roof pitch — the tilt angle is fixed by the building’s architectural slope and cannot be adjusted in service. For applications where a tilt increase above the roof pitch is needed for yield optimization, add-on tilt leg assemblies (typically providing +5° to +10° above the base roof pitch) can be attached to the rail system, raising the rear of the module array to increase the effective tilt. Tilt leg additions increase the wind profile of the array and require structural recalculation of clamp spacing and hold-force requirements for the modified tilt configuration before installation.

Related Mounting Systems

Metal roof mounting is purpose-engineered for industrial and commercial metal-clad buildings. Complementary systems in the PV Rack portfolio serve adjacent roof types and site configurations:

• Tile Roof Solar Mounting System — hook-and-rail system for residential and low-rise commercial ceramic, concrete, and clay tile surfaces; the complement to metal roof mounting for organizations with mixed-portfolio building assets including both metal industrial and tile-roofed commercial properties
• Flat Roof Solar Mounting System — ballasted tilt-frame system for horizontal concrete deck and membrane roofing; the alternative mounting approach for industrial facilities with flat roof sections alongside metal-pitched sections
• Ballasted Solar Mounting System — non-penetrating weighted base system for flat commercial and industrial rooftops where zero attachment and maximum installation simplicity are the overriding requirements
• Fixed-Tilt Solar Mounting System — ground-mount racking for open land when roof area is insufficient for the required project capacity and utility-scale ground-mount economics apply at the adjacent site
