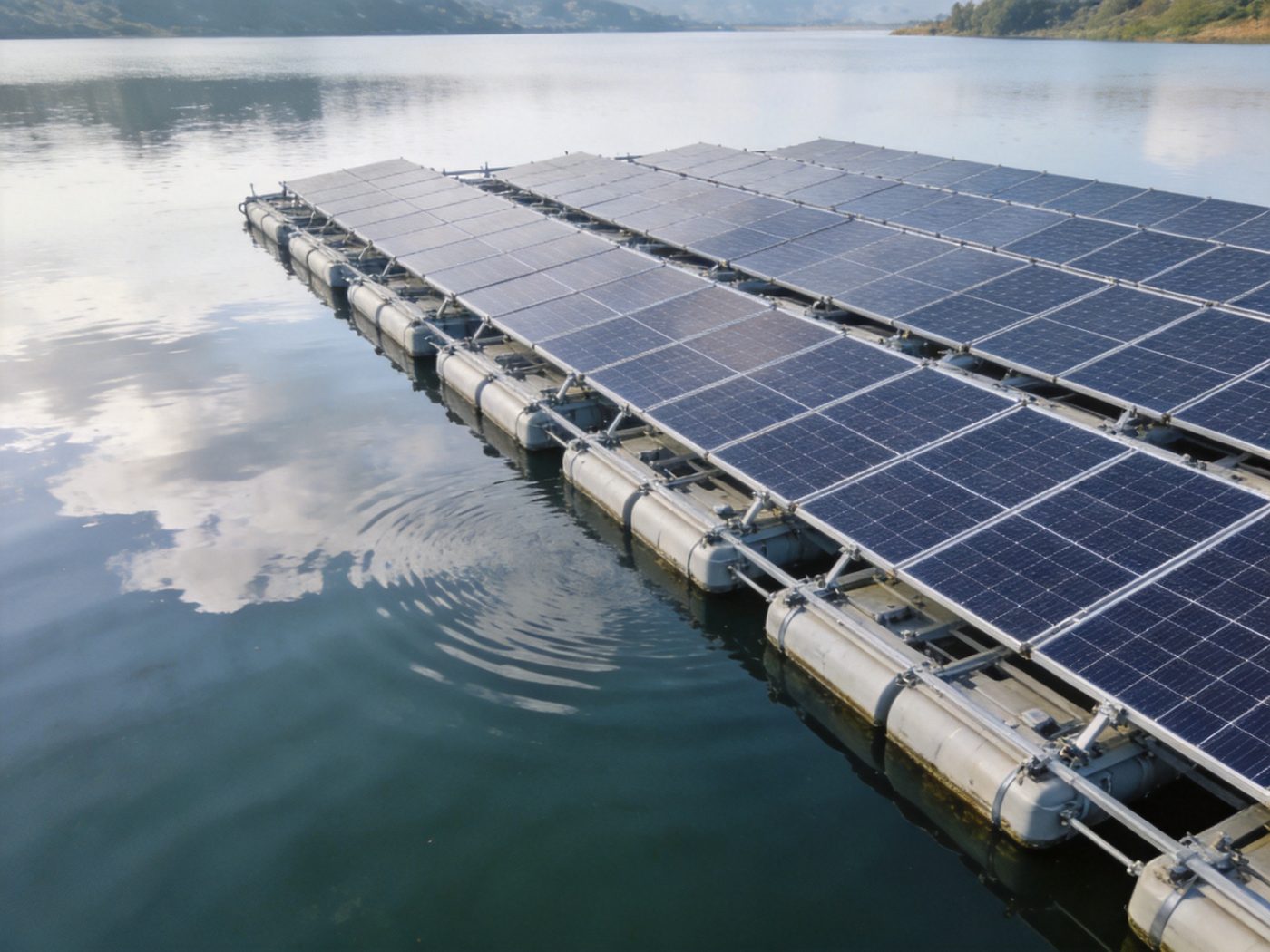

Floating Solar PV Mounting System

Engineered for reservoirs, lakes, and industrial water bodies, our floating solar mounting system delivers enhanced energy yield, superior corrosion resistance, and long-term structural stability in marine and freshwater environments.

Technical Overview of Floating Solar Mounting Systems

Item	Specification
System Type	Water-surface floating PV (Floatovoltaic / FPV)
Structural Design	Modular HDPE floating platform + anodized aluminum / stainless steel rail frame
Anchoring Method	Shore anchoring (cable to bank) / bottom anchoring (concrete deadweight or helical anchor)
Suitable Water Bodies	Reservoirs, lakes, ponds, wastewater treatment plants, mining pits, irrigation basins
Minimum Water Depth	≥ 0.5 m operational; typically deployed in 1.5–15 m depth zones
Typical Project Scale	500 kW – 100 MW+
Design Life	25+ years

Floating solar PV — technically termed floatovoltaic (FPV) — is the fastest-growing segment of the global solar market, with installed capacity exceeding 3.4 GW and expanding rapidly across Asia, Europe, the Middle East, and the Americas. Unlike conventional land-based installations, floating solar systems are deployed on water surfaces, making them a fundamentally different structural, environmental, and commercial proposition from a ground-mounted solar mounting system. The core engineering differences are: the primary structure must achieve stable buoyancy across a wide range of water levels and wave conditions rather than transferring loads to ground; all materials must withstand immersion, water spray, and high-humidity environments at corrosion class C5-M; and the anchoring system must resist wind and wave forces through a flexible mooring configuration rather than rigid pile foundations. These unique requirements are offset by three compelling operational advantages that purely land-based systems cannot replicate: the complete elimination of land acquisition or lease cost, a 5–15% energy yield increase from water-surface cooling of module temperatures, and a reduction in reservoir water evaporation of 50–70% in covered areas — a significant co-benefit in water-stressed regions.

Floating System Architecture & Structural Design

Floating Platform Structure (HDPE Floats)

The primary structural platform of a floating solar system consists of interlocking high-density polyethylene (HDPE) modular float units — factory-moulded hollow blocks engineered to support the full dead load of the PV array (modules, rails, fasteners, and cables) at a minimum 2.5× safety factor above the calculated design load. HDPE is specified for floating solar platforms because of its exceptional combination of properties: it is inherently non-corrosive in both freshwater and marine environments, UV stabilized with carbon black or proprietary UV inhibitor additives for 25+ year service life under direct solar exposure, and chemically inert to the range of water chemistries found in reservoirs, wastewater treatment ponds, and agricultural water bodies. Individual float units typically measure 500–1,000 mm in plan dimension and interlock with neighbouring units via tongue-and-groove or pin-and-socket mechanical connections, forming a continuous rigid-flexible platform that distributes loads evenly across the water surface. Integrated maintenance walkway channels — wider float units with anti-slip surfaces — are built into the array layout at regular intervals (typically every 3–5 module rows) to provide safe personnel access for cleaning, inspection, and module replacement without requiring watercraft access.

Anchoring & Mooring System

The anchoring and mooring system is the most critical and site-specific engineering element of any floating solar installation. Its function is to maintain the array’s position within defined drift limits under the worst-case combination of wind load (from all directions), wave action, and water level variation — while applying no rigid restraint that would prevent the platform from rising and falling freely with the water surface. Two primary anchoring strategies are employed: shore anchoring uses stainless steel cables or high-tensile HDPE ropes routed from dedicated connection points on the array perimeter to anchor posts or rock bolts on the reservoir bank — suitable for smaller arrays in enclosed water bodies; bottom anchoring uses marine-grade concrete deadweight blocks, helical screw anchors, or driven pile anchors on the water bed, connected to the float platform via adjustable mooring lines — preferred for large arrays or water bodies with significant fetch where wave and wind loads are higher. In practice, most projects combine both strategies: perimeter arrays are shore-anchored for stability, while interior array sections use bottom anchors. The mooring line material — typically UV-resistant polyester or HDPE rope, or stainless steel cable for high-load applications — must accommodate seasonal water level variations of 1–8 m in reservoir applications without developing slack that allows uncontrolled array drift.

PV Module Support Frame

Photovoltaic modules are mounted on an aluminum alloy support frame — typically 6005-T5 or 6061-T6 anodized extrusion profiles — bolted directly to the HDPE float platform’s integrated mounting bosses. All fasteners are A4-grade (316) stainless steel to resist the chloride and high-humidity environment at C5-M corrosion class. Module tilt angle is pre-set at the factory in 5°, 10°, 12°, or 15° configurations to match the project’s latitude and drainage requirements. A deliberate drainage gap of 15–25 mm is maintained between adjacent module lower edges and the float surface to allow rainwater runoff, prevent standing water accumulation, and ensure adequate air circulation beneath the modules — a critical detail for both electrical safety and structural integrity of the frame fasteners. Module orientation can be configured as portrait or landscape, with double-row symmetrical facing layouts common for higher module density per float unit.

Engineering Specifications

Parameter	Typical Specification
Wind Load Resistance	40–55 m/s (144–198 km/h) design wind speed; stow position ≥ 55 m/s
Wave Height Tolerance	Up to 0.5–1.5 m significant wave height (site class dependent)
Water Level Variation	0–8 m seasonal variation accommodated by mooring line adjustment
Corrosion Protection Class	C5-M (ISO 12944) — marine and high-humidity industrial environment rating
Float Material	HDPE (UV stabilized, carbon black additive); buoyancy factor ≥ 2.5×
Float Bearing Capacity	Main floater: ≥ 70 kg/m² distributed load
Module Tilt Angle	5°, 10°, 12°, or 15° (factory pre-set; site-selectable)
Rail Material	6005-T5 / 6061-T6 hard-anodized aluminum (≥ 15 µm, ISO 7599)
Fasteners	A4-316 stainless steel throughout (ISO 3506 / ASTM F593)
Cable System	Submersible-rated DC cables (IP68 / UV-resistant jacket); marine-grade conduit and connectors
Design Life	25+ years (HDPE platform); 15-year mooring line inspection interval

The corrosion protection requirements for floating solar systems are fundamentally more demanding than those for any land-based mounting application. The C5-M classification under ISO 12944 — the highest standard corrosion category, designated for marine and industrial immersion environments — governs all metallic components that come into contact with water, water spray, or the permanently humid air space immediately above the water surface. This is a categorically more aggressive specification than the C3–C4 corrosion class typically applicable to inland roof-mounted solar structures or ground-mount racking in standard atmospheric environments. To meet C5-M requirements, the aluminum rail system is hard-anodized to a minimum 15 µm oxide layer depth, all steel fasteners are A4-grade (316) stainless steel with no carbon steel substitution permitted, all cable connectors are IP68-rated waterproof type, and mooring hardware is marine-grade 316L stainless or hot-dip galvanized with minimum 140 µm zinc thickness. The HDPE float platform itself is inherently immune to corrosion and requires no surface coating maintenance, making it the preferred material over steel pontoon alternatives for 25-year design life applications.

Floating Solar Installation Process

Site & Water Depth Survey

Pre-construction survey for floating solar is more comprehensive than equivalent land surveys, requiring both above-water and underwater investigation. Bathymetric mapping establishes water depth contours across the installation zone to identify areas meeting the minimum 0.5 m operational depth (typically ≥ 1.5 m preferred). Water quality sampling characterizes pH, chloride content, dissolved solids, and biological oxygen demand — parameters that influence material specification and corrosion protection selection. Shore topography is surveyed for anchor point feasibility, cable routing, and access for construction vessels. All survey data informs the anchor layout design and mooring line length calculation before any procurement is initiated.

Anchoring Layout Design

The anchoring layout is engineered to limit array drift to within ±2–5 m under the design wind and wave load combination while maintaining mooring line tension within the working load limit of the selected rope or cable specification. Bottom anchor positions are staked using GPS-referenced survey equipment, and concrete deadweight blocks (typically 500–2,000 kg each, depending on load) are placed by crane vessel or barge. Mooring line lengths are calculated to accommodate the full seasonal water level variation range — lines that are too short go taut at high water and apply excessive force to the float platform; lines that are too long allow uncontrolled drift at low water. Adjustable mooring line connectors enable field fine-tuning of tension after installation.

Float & Structure Assembly

HDPE float units arrive on site pre-assembled in factory-prepared sub-array sections (typically 4–12 float units per section) and are assembled into full array blocks on the water surface using a floating work platform or pontoon vessel. Interlocking connections between float units are secured with stainless steel pins or HDPE fasteners and inspected for full engagement before module rail installation begins. The modular assembly approach allows parallel work fronts across the water body, with typical assembly rates of 50–100 kW per crew per day for experienced installation teams. Maintenance walkway channels are integrated at the specified intervals during float assembly and must be in place before module installation commences to ensure safe working conditions for all subsequent trades.

Module Mounting & Cable Routing

Aluminum rail profiles are bolted to the float platform mounting bosses, and modules are installed using stainless-steel end and mid-clamps at manufacturer-specified torque. All DC wiring is routed in IP68-rated submersible conduit along the float platform surface, with conduit clamped at 500 mm intervals to prevent wind-induced fatigue at cable entry points. Waterproof MC4 connectors are used throughout, with heat-shrink sealed junction boxes rated IP67 minimum for all DC combiner and string connections. Cables crossing between float sections use flexible marine-grade conduit loops of sufficient length to accommodate relative platform movement without tension. All water-surface installation activities are conducted with crew wearing personal flotation devices (PFDs) and following a site-specific marine safety plan — a mandatory requirement for insurance and permitting compliance.

Energy Yield & Investment Return

Enhanced Yield from Water Cooling

The most commercially significant performance advantage of floating solar over land-based systems is the natural cooling effect of the water surface on module operating temperature. Standard crystalline silicon PV modules lose approximately 0.4–0.5% of output for every 1°C rise in module temperature above the standard test condition of 25°C. Field measurements from operational floating solar installations consistently show that module temperatures are 10–15°C lower than equivalent land-mounted modules in the same irradiance environment, directly translating to a 5–15% increase in annual energy yield. The Yamakura Dam installation in Japan has recorded efficiency gains of approximately 11% compared to equivalent land-based systems; Singapore’s Tengeh Reservoir project has demonstrated similar results. Compared to a fixed-tilt solar mounting system at the same location, the yield improvement from water-surface temperature reduction is a consistent, site-independent advantage that strengthens floating solar’s financial case — particularly in hot climates where module temperature derating is most severe.

CAPEX, Lifespan & O&M Profile

Floating solar systems carry a CAPEX premium of approximately 10–20% over equivalent-capacity ground-mounted fixed-tilt installations, reflecting the additional cost of the HDPE float platform, marine-grade materials, anchoring system, and waterproof electrical infrastructure. For utility-scale projects, total installed costs typically range from $0.90–$1.30/W (above the $0.85–$1.10/W benchmark for ground-mount fixed-tilt), with the cost premium narrowing as project scale increases and float unit procurement volumes reduce unit cost. The 25-year design life matches the module performance warranty period, ensuring the structural asset life does not constrain project economics. Annual O&M costs run approximately $12–$20/kW/year — comparable to ground-mount systems — but with the added requirement of water-borne access for module cleaning and structural inspection, which typically requires a small rubber inflatable workboat or paddle platform rather than standard ground-level equipment. The 5–15% yield premium over land-based alternatives meaningfully improves the project’s LCOE despite the higher initial investment.

Long-Term ROI

For utility and large C&I projects on sites with accessible water bodies, floating solar delivers compelling ROI driven by the combination of zero land cost, the yield premium from water-surface cooling, and the ancillary co-benefit values of evaporation reduction andalgae control. Projects on utility reservoirs or industrial water bodies typically achieve payback periods of 6–10 years (before incentives) and 4–7 years with applicable tax incentives (ITC, MACRS) — broadly comparable to ground-mount fixed-tilt despite the higher CAPEX, because the yield premium and land cost elimination offset the structural cost difference. In water-stressed regions where reservoir evaporation has quantifiable economic value (agricultural irrigation, municipal supply), the water conservation co-benefit can be assigned a shadow price that further improves the project’s full social return on investment.

Advantages & Limitations

Advantages

• Zero Land Occupation: Floating solar generates electricity from water surfaces that serve other primary functions — water storage, irrigation supply, wastewater treatment — without consuming any terrestrial land area, eliminating land lease or acquisition cost and bypassing land-use planning conflicts that affect ground-mount projects.
• Reduced Water Evaporation: The shading provided by the float platform reduces direct solar radiation on the covered water surface, cutting evaporation by 50–70% in the covered area. At utility-scale installations on agricultural or municipal reservoirs, this translates to millions of cubic metres of water conserved annually — a significant co-benefit in water-scarce regions.
• Improved Panel Efficiency (5–15% Yield Gain): Water-surface proximity maintains module temperatures 10–15°C below land-mounted equivalents, producing 5–15% more annual energy from the same installed capacity — an unconditional performance advantage that improves project economics without additional capital investment.
• Algae Growth Suppression: Array shading reduces photosynthetically active radiation reaching the water surface, inhibiting the growth of harmful cyanobacteria (blue-green algae) that can deplete dissolved oxygen and produce toxins threatening aquatic life and drinking water quality. A three-year French study found floating PV arrays reduced average water temperatures by approximately 1.2°C, mitigating thermal stress on aquatic ecosystems.
• Environmental Synergy: On appropriate water bodies, floating solar can serve as an environmental enhancement measure — improving water quality through algae control, reducing thermal stratification, and providing habitat structures for certain aquatic species at array edges and anchor points.

Limitations

• Higher Initial Cost: The HDPE float platform, marine-grade materials, waterproof electrical infrastructure, and anchoring system add 10–20% to CAPEX versus equivalent-capacity ground-mount fixed-tilt installations — requiring a clear financial case based on land cost savings, yield premium, and water conservation co-benefits.
• Complex Anchoring Engineering: Site-specific anchoring design requires detailed bathymetric survey, geotechnical assessment of the water bed, water level variation data, and structural engineering of mooring lines and anchor loads — a more complex pre-construction process than standard ground-mount pile layout design.
• Environmental Permitting Required: Installation on navigable, regulated, or ecologically sensitive water bodies requires environmental impact assessment, water body use permits, and consultation with fisheries, water authority, and conservation bodies — a permitting process that can extend project development timelines by 6–18 months depending on jurisdiction.
• Water-Borne O&M Access: Module cleaning, structural inspection, and electrical maintenance require water-borne access using inflatable workboats or floating work platforms — adding logistical complexity and crew safety requirements compared to ground-level maintenance.
• Potential Ecological Impact at High Coverage Ratios: When floating arrays cover a large proportion of a water body’s surface area (>30–40%), reduced light penetration and altered thermal dynamics can affect dissolved oxygen levels and the ecology of light-dependent aquatic organisms. Coverage ratio limits and ecological monitoring requirements are typically specified in environmental permits.

Application Scenarios

Utility-Scale Reservoir Projects

Large hydroelectric and water supply reservoirs represent the highest-capacity and most commercially mature application environment for floating solar. The large continuous water surface areas available at utility reservoirs — often hundreds to thousands of hectares — support project scales from 10 MW to 100 MW+ on a single water body, with modular float platform systems enabling phased construction across multiple seasons. The co-location with existing hydro infrastructure creates a particularly powerful hybrid energy system: the reservoir’s hydro turbines provide dispatchable generation capacity that can compensate for solar intermittency, while the floating solar array reduces reservoir evaporation and extends the effective water storage volume. Projects in South Korea, China, India, and the Netherlands have demonstrated this hybrid reservoir solar model at scales up to several hundred MW.

Industrial Wastewater Treatment Plants

Municipal and industrial wastewater treatment facilities operate large open retention ponds and clarification basins that are ideal candidates for floating solar deployment. The ponds serve a defined operational function that is unaffected by solar array coverage — in fact, reduced UV penetration and lower water temperatures from the floating array can slow algae growth in treatment ponds, improving treatment efficiency. The on-site solar generation directly offsets the electricity-intensive pumping, aeration, and treatment processes that typically make wastewater treatment the largest energy cost item for municipal authorities. Projects on wastewater ponds must use corrosion materials rated for the elevated H₂S and ammonia environment — typically HDPE floats with A4-316 stainless hardware rated to C5-M with additional chemical resistance specification.

Mining Pits & Artificial Lakes

Flooded open-cut mining pits and man-made water retention lakes at mining operations represent a growing application niche for floating solar. These water bodies have no primary agricultural or environmental function, reducing permitting complexity, and mining sites typically have very high on-site electricity demands (crushing, pumping, processing) that create strong self-consumption economics. The remote location of many mining operations — where grid electricity is expensive or unavailable — makes on-site renewable generation with floating solar plus storage an attractive energy strategy that can materially reduce diesel fuel dependency and operating cost.

Agricultural Water Bodies

Irrigation reservoirs, farm dams, and agricultural retention ponds can host floating solar arrays that simultaneously power irrigation pumps, offset farm electricity costs, and conserve the stored water through evaporation reduction — a compelling triple value proposition in water-limited agricultural regions. The co-location of solar energy generation with water-dependent agricultural activities is also the foundational concept of water-surface agrivoltaics; for installations that combine water-surface solar with adjacent land-based crop cultivation, see agrivoltaic mounting system solutions designed for integrated water-land agricultural energy projects.

Floating Solar vs Other Mounting Systems

Floating vs Ground-Mounted

The primary differentiation between floating solar and ground-mounted solar mounting systems is land use: ground-mount requires dedicated terrestrial land area at 1.5–2.5 hectares per MW, while floating systems deploy on water surfaces that serve another primary function. Where land is scarce, expensive, or committed to agricultural or development use, floating solar enables project development that ground-mount cannot. The yield premium from water cooling (5–15%) partially offsets floating solar’s higher CAPEX, and the land cost elimination creates a structurally different financial model. Ground-mount remains the lower-cost solution where open land is readily available; floating solar is the solution of choice when land constraints or water conservation co-benefits justify the modest cost premium.

Floating vs Ballasted Systems

Ballasted PV mounting systems deploy on flat solid surfaces — typically commercial rooftops — using weighted blocks to avoid structural penetration. The two systems share the characteristic of deploying on surfaces committed to another primary use, but their structural engineering, environmental context, and application environments are entirely distinct. Ballasted systems are constrained to low tilt angles (5°–15°) on rigid substrates; floating systems operate on dynamic water surfaces requiring buoyancy, mooring, and marine-grade materials. The two technologies are complementary rather than competitive: a facility with both a flat rooftop and an adjacent water body can deploy ballasted rooftop PV and floating water-surface PV simultaneously to maximize total on-site generation from all available surfaces.

Floating vs Solar Carport

Both floating solar and solar carport systems generate energy from surfaces serving a primary non-solar function — water storage and vehicle parking respectively — without consuming dedicated land. The carport’s value proposition is dual-use infrastructure for commercial and institutional facilities; floating solar’s value proposition is energy generation plus water conservation on water bodies. Their capital costs are broadly similar — both carry a 10–30% premium over standard ground-mount — but their engineering requirements, permitting pathways, and application environments are entirely different. Site selection determines which is applicable: a site with a parking lot needs a carport; a site with a reservoir or pond needs floating solar; some large campuses need both.

Frequently Asked Questions

What water depth is required for floating solar installation?

A minimum operational water depth of approximately 0.5 m is required to provide clearance between the float platform base and the water bed, preventing grounding at low water levels. In practice, deployment in less than 1.5 m depth is avoided because the combination of wave action and water level variation can cause the array to periodically ground on the water bed, stressing float connections and mooring lines. Most installations are designed for water depths of 1.5–15 m, with deeper water bodies requiring longer mooring lines and larger anchor masses. Very shallow water bodies (< 1.0 m) may require pile-supported floating structures rather than free-floating platforms to maintain stable array geometry.

How does the anchoring system resist wind loads?

The anchoring system is designed using a combination of mooring line pretension and geometric redundancy. Under wind loading from any direction, a subset of the multi-point mooring lines comes into tension to resist the resulting drag and lift forces on the array, while the remaining lines carry minimal load. The design wind speed for the anchoring system — typically the site’s 50-year return period design wind — generates a calculated array drag force that is distributed among the anchor points according to the mooring geometry. Each anchor and mooring line is independently rated for the maximum load it can receive under any wind direction, with a minimum safety factor of 3.0 on ultimate tensile strength. Mooring line slack is minimized to ensure rapid load engagement at wind onset without allowing significant array displacement.

What corrosion protection standards are followed?

All metallic components in floating solar systems are specified to ISO 12944 Corrosion Class C5-M — the highest standard classification, covering permanently immersed or marine splash-zone environments. This means: aluminum rails are hard-anodized to ≥ 15 µm (ISO 7599 Class 20); all fasteners are A4-grade 316 stainless steel (ISO 3506 / ASTM F593); mooring hardware is 316L stainless or hot-dip galvanized to ≥ 140 µm; DC cable connectors are IP68-rated waterproof; and all junction boxes are IP67 minimum. The HDPE float platform itself requires no corrosion protection coating — its UV-stabilized polymer composition is inherently immune to electrochemical corrosion, making it maintenance-free in the corrosion sense throughout its 25-year design life.

Is floating solar suitable for drinking water reservoirs?

Yes, with appropriate material specification and design precautions. HDPE float materials are food-grade compatible and do not leach harmful compounds into water under normal operating conditions — a characteristic that has been verified by water quality monitoring at multiple operational drinking water reservoir projects in Europe and Asia. All materials in contact with or immersed in drinking water reservoirs must be specified as non-toxic and non-leaching (NSF/ANSI 61 or equivalent standard). Cable and conduit materials are selected to prevent hydrocarbon or plasticizer migration. Electrical equipment — inverters, transformers, combiner boxes — is located on shore or on sealed, containment-equipped floating platforms to prevent lubricant or coolant release into the water body. Regular water quality monitoring as specified by the permitting authority is conducted throughout the project life.

How does floating PV affect aquatic ecosystems?

The ecological effects of floating solar on aquatic ecosystems are site-specific and depend primarily on the coverage ratio (percentage of water surface covered), the water body type, and the existing ecological baseline. At coverage ratios below 30–40%, consistently observed positive effects include reduced harmful algal bloom frequency (as shading limits cyanobacteria growth), lower water temperatures during heatwaves (reducing thermal stress on fish and invertebrates), and reduced evaporation preserving water volume and ecological habitat. At high coverage ratios, reduced light penetration can decrease photosynthetic production by submerged aquatic plants and phytoplankton, and altered thermal stratification can affect dissolved oxygen dynamics. Environmental impact assessment for each project should include baseline aquatic ecology survey, modelling of shading and thermal effects at the proposed coverage ratio, and a post-installation ecological monitoring programme. Current research and operational evidence from hundreds of global FPV installations supports careful, well-designed floating solar deployment as compatible with healthy aquatic ecosystems at coverage ratios below 30%.
