Technical Overview of Ballasted Solar Mounting Systems

Item	Specification
System Type	Non-penetrating flat roof-mounted PV ballast system
Structural Design	Pre-assembled hot-dip galvanized steel ballast tray + anodized aluminum rail system
Foundation Method	Concrete ballast blocks or integrated tray ballast — no roof penetration required
Suitable Roof Types	Flat concrete roofs, TPO / PVC / EPDM membrane roofs, bituminous flat roofs
Tilt Angle Options	5°, 10°, 12°, 15° (site-selectable; east-west configurations available)
Typical Project Scale	100 kW – 10 MW
Design Life	25+ years

A ballasted solar PV mounting system is the preferred solution for flat commercial and industrial rooftops where preserving roof membrane integrity is a non-negotiable requirement. The entire system rests on the roof surface through a distributed load-spreading tray and ballast block arrangement — no drilling, no anchor bolts, and no membrane penetrations of any kind. This non-penetrating approach protects the building owner’s roof warranty, eliminates leak risk at racking attachment points, and dramatically reduces installation time compared to mechanically anchored systems. On large flat roofs — industrial warehouses, commercial shopping centers, logistics hubs, and institutional buildings — ballasted systems can be deployed by trained crews at 150–250 kW per day, leveraging the speed of pre-assembled modular tray components.

For facilities where roof-mounted solar solutions are the primary option — and where roof structural load capacity is sufficient to accommodate the ballast weight — the ballasted system provides the lowest-risk, fastest-deploying, and most reversible solar installation architecture available. Explore all solar mounting types at our complete solar PV mounting system portfolio to find the best fit for your project.

Ballasted System Architecture & Structural Design

Ballast Tray Structure

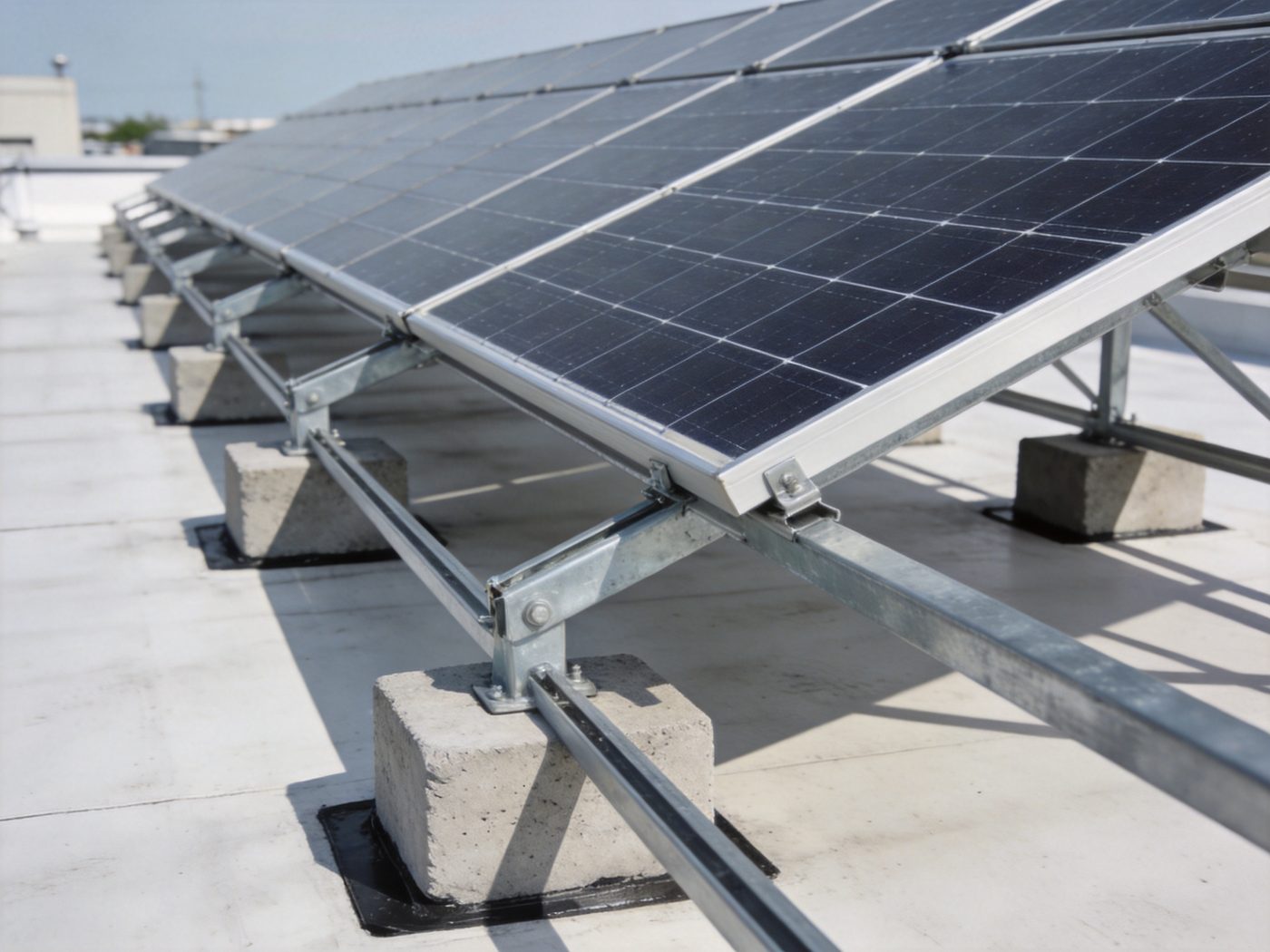

The ballast tray is the primary load-distributing element of the system — a hot-dip galvanized steel press-formed tray that sits flat on the roof membrane, spreading the combined weight of the concrete ballast and PV array over a large contact area to minimize point loading on the roof structure. Tray contact surfaces are lined with an EPDM rubber pad that prevents abrasion of the membrane beneath and provides slight friction engagement to resist horizontal wind-induced sliding. Integrated drainage channels moulded into the tray base allow rainwater to flow freely beneath the system without pooling — a critical detail for preserving membrane condition and preventing standing water that could degrade waterproofing over time. Pre-assembled tray configurations arrive on site with ballast housing integrated, reducing field assembly to module rail attachment and concrete block placement.

Rail & Module Support System

Module mounting rails are 6005-T5 anodized aluminum extrusion profiles bolted to the tray’s integral rail mounts via A4-316 stainless steel fasteners. The rail system accommodates standard 60-cell, 72-cell, and large-format (700 W+) framed modules in both portrait and landscape orientation, with adjustable module clamp widths covering frame thicknesses of 30–50 mm. Tilt angle is set by the tray geometry at 5°, 10°, or 15° (south-facing single-tilt) or in a balanced east-west back-to-back configuration at 10° that eliminates net wind uplift entirely by creating a self-ballasting aerodynamic profile. Module end clamps and mid-clamps are stainless steel, tightened to manufacturer-specified torque (typically 96–144 in-lb), providing mechanical retention and electrical bonding continuity. Rail splices and inter-tray connections maintain electrical grounding continuity across the full array without requiring additional bonding jumpers.

Wind Load Distribution Mechanism

Wind uplift is the governing structural design challenge for ballasted systems — unlike mechanically anchored racks where uplift force is resisted by fastener tension, ballasted systems rely entirely on the weight of the ballast and the aerodynamic performance of the array profile to remain stable. All leading ballasted system designs are wind-tunnel tested to generate project-specific pressure coefficients that are used to calculate the required ballast weight at each array position. Aerodynamic deflectors — low-profile steel or aluminum wind shields installed at the upwind array edge and perimeter rows — redirect airflow over the module surface, substantially reducing the net uplift pressure coefficient and therefore the required ballast weight by 20–35%. Edge and corner array positions, where wind pressure coefficients are highest per ASCE 7 Chapter 30, receive additional ballast blocks (typically 1.5–2.0× the field-zone ballast weight). This engineered ballast distribution strategy minimizes total roof dead load while maintaining structural safety across all wind directions.

Engineering Specifications

Parameter	Typical Specification
Design Wind Load	35–44 m/s (126–158 km/h) per ASCE 7-22 / EN 1991-1-4; wind tunnel tested
Snow Load Capacity	1.0–1.6 kN/m² (≈ 21–33 PSF); compliant with ASCE 7 ground snow load maps
Tilt Angle Options	5°, 10°, 12°, 15° south-facing; 10° east-west back-to-back
Ballast Weight Range	30–90 kg per module position (zone-specific per wind load calculation; 15–25 lb/sq ft low wind zones, up to 60+ lb/sq ft high wind zones)
Roof Load Addition	15–30 kg/m² typical distributed load (varies by wind zone and array coverage ratio)
Tray Material	Hot-dip galvanized steel (HDG); EPDM contact pad on membrane-facing surface
Rail Material	6005-T5 anodized aluminum (anodizing ≥ 10 µm); A4-316 stainless fasteners throughout
Ballast Blocks	Pre-cast concrete (density ≥ 2,200 kg/m³); polymer-encased integrated tray ballast option
Compatible Roof Membranes	TPO, PVC, EPDM, bituminous, concrete flat roof
Design Standards	ASCE 7-22, IBC, EN 1991-1-4 (Eurocode 1), NEC 2023, IEC 62446
Design Life	25+ years

The fundamental engineering distinction between a ballasted rooftop system and a ground-mounted solar mounting system lies in how vertical and lateral loads are resolved. Ground-mount systems transfer all loads — dead load, wind uplift, wind lateral — into the earth through driven piles or concrete foundations, allowing tilt angles of 20°–40° and virtually unlimited wind uplift resistance. Ballasted systems must resolve all loads entirely through gravity and friction on the roof surface, constraining tilt angles to 5°–15° (to limit net wind uplift force) and requiring careful ballast weight engineering to achieve adequate safety factors within the roof’s structural load capacity limits. This engineering constraint is the defining characteristic of the ballasted system: every project requires a site-specific structural and wind load calculation by a licensed engineer to verify that the selected ballast weight achieves the required safety factor (typically ≥ 1.5 per ASCE 7) while the total roof dead load addition remains within the building’s structural capacity.

Installation Process

Roof Structural Assessment

Before any ballasted system design is finalized, a structural assessment of the existing roof must confirm that the building’s framing and deck can support the additional distributed dead load of the ballast tray system — typically 15–30 kg/m² above the existing roof dead load. The structural engineer reviews original building drawings, conducts a visual inspection of roof condition and framing, and performs load path analysis to verify that the added ballast load can be safely transferred to supporting columns and foundations. Roof membrane condition is also inspected to confirm that the existing waterproofing surface is suitable for ballasted tray contact without requiring remediation prior to system installation.

Layout & Wind Load Calculation

The array layout is designed within the roof’s available area, observing ASCE 7-required setbacks from roof edges (typically 4 ft / 1.2 m minimum from parapet or roof edge, increasing to 6–10 ft in higher wind zones) to reduce wind uplift pressure at the array perimeter. Wind load calculations follow ASCE 7-22 Chapter 30 (components and cladding) procedures, with wind tunnel-tested pressure coefficients substituted where the system manufacturer provides certified wind tunnel data — which typically reduces required ballast by 20–35% versus code-only calculations. The output is a zone-specific ballast placement plan showing field zone, edge zone, and corner zone ballast weights that ensure the minimum safety factor against sliding and uplift is met at every array position across all design wind directions.

Tray & Rail Assembly

Pre-assembled tray sections are hoisted to the roof using a crane or rooftop material hoist and positioned according to the layout plan. EPDM contact pads are verified to be in place and undamaged before each tray is set down on the membrane. Trays are connected to adjacent units using stainless steel interlocking connectors that resist relative horizontal displacement under wind loading while maintaining drainage clearance between units. Aluminum rails are attached to the tray rail mounts and torqued to specification. No drilling, welding, or cutting is performed on the roof surface at any stage — all connections are made with pre-fabricated stainless hardware, and no sealant or adhesive contacts the roof membrane. This no-penetration discipline is verified by the installation supervisor at each stage.

Module Installation & Ballast Placement

Modules are installed on the completed rail system using stainless end and mid-clamps, starting at the bottom row and progressing upward, with DC string wiring routed in UV-resistant conduit clipped to the rail system. Concrete ballast blocks are positioned on the tray ballast ledges according to the zone-specific ballast placement plan — field zone blocks first, followed by additional edge and corner zone blocks. Final ballast count is verified against the engineering plan and documented in the as-built record. Total installation time for a 500 kW ballasted system is typically 3–5 working days for an experienced crew — significantly faster than an equivalent mechanically anchored system requiring individual fastener drilling and sealant application at each attachment point.

Performance & Return on Investment

Energy Yield

A ballasted system’s energy yield is primarily determined by available roof area, module efficiency, local irradiance, and the system tilt angle. The constrained tilt angle of 5°–15° — required to limit wind uplift — results in a specific yield 5–12% below a latitude-optimized fixed-tilt solar mounting system at 25°–35° tilt on open ground. However, on a rooftop where no open land alternative exists, this yield differential is irrelevant: the comparison is ballasted rooftop PV versus no PV at all. East-west back-to-back configurations at 10° tilt can reduce morning and evening shading losses between rows and increase GCR (ground coverage ratio) by 20–30% — effectively fitting more modules per square metre of roof area, offsetting the lower tilt angle yield with higher array density. For buildings with significant electricity consumption during peak solar hours, on-site generation from a ballasted rooftop system directly displaces grid electricity at commercial tariff rates of $0.08–$0.20/kWh, creating immediate bill savings.

CAPEX & Installation Cost

Ballasted system installed costs typically range from $2.50–$3.20/W DC for commercial-scale projects — lower than penetrating mechanically-anchored rooftop systems ($2.80–$3.50/W) due to reduced installation labor, and comparable to or slightly above large ground-mount fixed-tilt systems ($0.85–$1.20/W for the racking component alone, but lower in total project cost per watt for large utility scale). The speed advantage of modular ballasted installation — 40–50% faster deployment than equivalent penetrating systems — reduces labor cost per watt and compresses the project schedule, enabling earlier system commissioning and revenue generation. Pre-engineered integrated tray systems with factory-prepared ballast housing arrive largely pre-assembled, with minimal field labor required beyond placement, connecting, and module installation.

Long-Term ROI & Maintenance

Annual O&M costs for ballasted systems run $10–$18/kW/year — competitive with all rooftop mounting alternatives — covering module cleaning (2–4 times/year), annual structural inspection for tray position integrity and ballast block condition, DC electrical inspection, and thermal imaging. The non-penetrating design eliminates the most expensive maintenance liability in rooftop solar: leak investigation and repair at penetration points. No fastener seals to inspect, no flashing to replace, and no re-caulking cycles. The system is also fully reversible: if the building owner needs to replace the roof membrane during the system’s operational life, the ballasted array can be removed and reinstated without any structural remediation — typically at 20–30% of a new system installation cost. For projects applying ITC (30% federal tax credit) and MACRS 5-year accelerated depreciation, commercial ballasted rooftop systems typically achieve payback periods of 5–9 years with 20-year IRRs of 12–18%.

Advantages & Limitations

Advantages

• Non-Penetrating Installation: The definitive advantage of ballasted systems — zero drilling, zero anchor bolts, and zero membrane penetrations of any kind. Roof warranty is fully preserved, leak risk is virtually eliminated at racking attachment points, and the building owner retains full control of the roof surface without any structural modification.
• Preserves Roof Waterproof Layer: The ballast tray’s EPDM contact pad protects the membrane from abrasion, and the distributed tray footprint avoids the concentrated point loads that membrane-puncturing anchors impose. This makes ballasted systems particularly well-suited to high-quality membrane roofs (TPO, PVC, EPDM) where waterproof integrity has high asset value.
• Fastest Installation of Any Rooftop System: Pre-assembled modular trays reduce on-site field assembly to placement, connection, and module installation — 40–50% faster than mechanically anchored penetrating systems. Large industrial flat roofs can be completely racked and ready for module installation in 1–2 days per MW by an experienced crew.
• Fully Removable & Relocatable: Because no permanent attachment exists between the racking system and the building structure, the entire system can be removed, relocated, or reconfigured without leaving any permanent mark on the roof. This reversibility is a significant advantage for leased buildings, roofs approaching end of membrane life, or projects where future roof use is uncertain.
• Lower Engineering Risk Profile: The absence of penetration points eliminates the most common source of roof-related insurance claims and maintenance disputes in rooftop solar — structural seal failure and associated water infiltration. This simplifies the insurance, warranty, and liability landscape for building owners and solar operators.
• East-West Configuration Capability: The back-to-back east-west tray configuration at 10° eliminates net wind uplift through self-ballasting aerodynamics, enabling higher array density per square metre and extending deployability to roofs where structural load capacity limits standard south-facing ballasted layouts.

Limitations

• Requires Roof Load Capacity Verification: The distributed weight of concrete ballast blocks — typically adding 15–30 kg/m² to existing roof dead loads — requires a structural engineering assessment to confirm the building’s roof framing, deck, and foundations can safely carry the additional load. Buildings with aging or light-gauge roof structures may have insufficient capacity for standard ballasted systems without structural reinforcement.
• Higher Ballast in High-Wind Zones: In coastal, hurricane-exposure, or high-plateau wind zones (basic wind speed > 130 mph / 58 m/s), the required ballast weight per module increases substantially — potentially to 60+ kg/m² — which may exceed roof load capacity or make the system economically uncompetitive versus a penetrating mechanically anchored alternative.
• Constrained to Flat or Very Low-Slope Roofs: Effective ballasted system performance requires flat (≤ 5° pitch) or very low-slope roofs where tray friction and gravity act against wind-induced sliding loads. Roofs with pitch above 5° are unsuitable for conventional ballasted systems; significantly sloped roofs require mechanically anchored penetrating systems.
• Lower Tilt Angle Limits Yield: The 5°–15° tilt range required to limit wind uplift delivers lower annual specific yield than a latitude-optimized ground-mount at 25°–35° — a trade-off that is acceptable for rooftop-constrained sites but must be accounted for in financial modelling.

Application Scenarios

Industrial Flat Roof Buildings

Large industrial manufacturing and processing facilities with flat concrete or membrane roofs represent the primary commercial application for ballasted solar systems. These buildings typically combine extensive unobstructed flat roof areas (5,000–50,000+ m²), high daytime electricity consumption from manufacturing processes, and roof structures designed for industrial loading that can accommodate ballasted array weight. A 10,000 m² industrial flat roof at typical 30–40% GCR can support 300–500 kWp of ballasted PV, generating 350,000–600,000 kWh/year and directly offsetting the facility’s peak tariff electricity cost. The rapid installation speed of ballasted systems — critical on active manufacturing sites where roof access windows are limited — is a key operational advantage over penetrating alternatives.

Commercial Shopping Centers

Regional and neighborhood shopping centers commonly feature large single-story flat roof structures over retail and supermarket anchor tenants — ideal ballasted solar deployment surfaces. The non-penetrating installation approach is particularly important in retail contexts where roof waterproofing failures have direct operational and liability consequences, and where tenancy agreements may restrict structural roof modifications. Ballasted systems installed on shopping center roofs generate electricity that is typically consumed directly by HVAC, lighting, and refrigeration loads within the building, maximizing self-consumption value without grid export complexity. For sites where parking area is also available, a combined approach — ballasted rooftop PV plus solar carport in the car park — can achieve maximum total site generation capacity.

Logistics Warehouses

Distribution centers and logistics warehouses are among the most prolifically deployed environments for ballasted solar globally. The combination of very large continuous flat roof areas (often 20,000–100,000 m²), high daytime electricity loads from automation, lighting, and dock equipment, and simplified single-tenancy ownership that streamlines rooftop access agreements makes logistics assets a near-ideal fit for large-scale ballasted rooftop PV. Pre-assembled ballasted systems can be installed at warehouse scale with minimal disruption to building operations below, as no penetration work requires interior access or temporary waterproofing measures.

Government & Institutional Buildings

Government offices, municipal facilities, schools, and hospitals frequently specify ballasted systems for flat-roofed buildings where maintaining roof warranty integrity and minimizing structural intervention risk are institutional procurement priorities. The fully reversible nature of ballasted systems aligns with public sector asset management principles — the PV system can be removed at end of life without leaving any permanent modification to the building fabric. Government facilities also benefit from the ESG reporting and carbon reduction value of on-site renewable generation, and many jurisdictions offer enhanced tax incentives or direct grants for public sector solar installation. For facilities where building-integrated roof-mounted solar structures with architectural integration are preferred, penetrating attached systems can complement or replace ballasted approaches depending on structural assessment outcomes.

Ballasted vs Other Solar Mounting Systems

Ballasted vs Fixed-Tilt

A fixed-tilt solar mounting system on open ground represents the baseline cost and performance reference for commercial solar: lowest racking CAPEX ($0.12–$0.15/W), optimized tilt angle (20°–35° latitude-matched), and zero roof load constraint. Ballasted rooftop systems carry a higher installed cost ($2.50–$3.20/W total) and accept a lower tilt angle (5°–15°) and corresponding yield penalty, but deploy on roof surfaces where ground-mount is simply not an option. The decision between ballasted rooftop and ground-mount fixed-tilt is therefore not a performance comparison — it is a site availability question: if open land is available and structurally suitable, ground-mount fixed-tilt delivers better yield and lower cost; if only a flat rooftop is available, ballasted is the optimal non-penetrating solution.

Dimension	Ballasted Rooftop	Fixed-Tilt Ground Mount
Tilt Angle	5°–15°	20°–35°
Annual Yield vs Optimized	5–12% below latitude-optimized	Baseline (optimized)
Total Installed Cost	$2.50–$3.20/W	$0.85–$1.20/W (racking-only component)
Land / Roof Requirement	Flat roof surface	Open land (1.5–2.5 ha/MWp)
Structural Penetration	None (non-penetrating)	Driven piles / concrete piers
Reversibility	Fully reversible, no permanent change	Foundation removal required

Ballasted vs Ground-Mounted

Ground-mounted solar systems and ballasted rooftop systems occupy entirely different deployment environments — open land versus building rooftops — making them complementary rather than competing technologies on most commercial sites. A facility that has both a flat roof and adjacent open land can deploy ballasted rooftop PV to maximize roof utilization and a separate ground-mount array on available land, capturing generation from both surfaces. The engineering distinction is fundamental: ground-mount transfers all loads to the earth through structural foundations; ballasted systems transfer all loads to the roof through gravity and friction, within the constraints of roof structural capacity and wind uplift resistance. Neither is a “simplified version” of the other — they are structurally distinct systems for distinct environments.

Ballasted vs Solar Carport

Both ballasted rooftop and solar carport systems deploy PV on surfaces serving a primary non-solar function — roof space and parking area respectively — without consuming dedicated open land. The carport requires new structural steel construction (columns, beams, and canopy frame) and concrete foundations, making it more capital intensive per watt ($1.80–$2.80/W) than ballasted rooftop systems. Ballasted systems use the existing roof structure as the support platform, with only tray and ballast cost above the PV system hardware. On sites with both flat rooftops and parking lots, the optimal strategy combines ballasted rooftop PV for the roof and solar carports for the parking area, maximizing total site generation from all available surfaces simultaneously.

Frequently Asked Questions

What roof load capacity is required for ballasted systems?

Ballasted systems add a distributed dead load of approximately 15–30 kg/m² to the existing roof structure — equivalent to 1.5–3.0 kN/m² — in addition to the existing roof dead load (roofing membrane, insulation, decking). Most commercial flat roofs designed to IBC or equivalent standards carry a live load allowance of 1.0–2.4 kN/m² (20–50 PSF) in addition to dead loads, providing capacity for standard ballasted systems without structural modification. However, a licensed structural engineer must review original building drawings and perform load path analysis to confirm adequacy for the specific project location, wind zone, and array layout. Buildings with lightweight steel deck and minimal live load reserve may require a penetrating mechanically anchored system or structural reinforcement before ballasted installation is feasible.

How is wind uplift calculated for ballasted systems?

Wind uplift calculations for ballasted rooftop systems follow ASCE 7-22 Chapter 30 (components and cladding) procedures, with zone-specific pressure coefficients applied to the array area. The basic uplift resistance requirement is: Required Ballast Weight = (Wind Uplift Force × Safety Factor) ÷ Ballast Effectiveness Factor. Safety factors of 1.5–2.0 are typically applied depending on local code requirements. All leading ballasted system manufacturers conduct wind tunnel testing of their products to generate certified pressure coefficients that typically reduce required ballast weight by 20–35% versus conservative code-only calculations. Edge and corner array positions receive 1.5–2.0× the field zone ballast weight due to the higher pressure coefficients at array perimeter locations per ASCE 7.

Does ballast weight affect the waterproof membrane?

Properly specified and installed ballasted systems are compatible with all major flat roof membrane types (TPO, PVC, EPDM, bituminous) and do not degrade membrane performance when EPDM protective pads are used under all tray contact points. The distributed tray footprint spreads load across a wide membrane contact area, avoiding the localized high-stress puncture loads associated with mechanically anchored point attachments. Long-term membrane compatibility is confirmed through material testing — ballast tray materials must be chemically compatible with the specific membrane chemistry (particularly PVC membranes, which are sensitive to plasticizer migration from adjacent materials). For premium membrane installations, a separation layer of additional EPDM sheet or geotextile fleece under the entire tray array provides an additional level of membrane protection.

What certifications are available for ballasted systems?

PV Rack ballasted mounting systems carry CE marking (confirming conformity to applicable EU directives including structural, electrical safety, and electromagnetic compatibility), ISO 9001 quality management system certification, and SGS material testing certification for galvanizing thickness and aluminum anodize quality. Structural wind load performance is certified through accredited wind tunnel testing conducted at recognized facilities, with test reports available to lenders’ technical advisors for project finance due diligence. Systems are designed in accordance with ASCE 7-22 (US market), EN 1991 Eurocode 1 (European market), and AS/NZS 1170 (Australian market) as applicable to the project location.

Can the system be relocated after installation?

Yes — full relocatability is one of the most commercially significant advantages of non-penetrating ballasted systems. Because no permanent attachment exists between the racking system and the building structure, the complete array can be disassembled,
