UL Certification for Solar Mounting Systems: Testing, Compliance & Approval Guide

Engineering and regulatory requirements for UL 2703 and structural certification of solar racking systems in North America.

1. Executive UL Compliance Summary

In the North American solar market, physical steel alone does not guarantee bankability. For a solar mounting system to be legally installed, permitted, and insured, it must navigate the stringent electrical and fire safety requirements defined by Underwriters Laboratories (UL). The cornerstone of this compliance is UL 2703, the harmonized standard for mounting systems, clamping devices, and ground lugs. For a broader overview of solar mounting regulations and standards, visit our global solar mounting regulations framework.

Unlike structural load codes which vary wildly by zip code, UL certification represents a universal baseline for life safety. It ensures that the metal racking acts as a continuous, reliable grounding path for stray electrical faults, and guarantees that the integration of the racking and solar modules will not accelerate the spread of fire across a building’s roof. In jurisdictions across the US and Canada, installing unlisted racking hardware is an immediate permit violation.

Item Summary
Applicable Region United States & Canada
Core Standard UL 2703 (Harmonized ANSI/UL Standard)
Certification Type System-Level (Testing the interaction of Racking + Module)
Required For AHJ Approval, NEC Compliance, Utility Interconnection
Testing Focus Electrical Grounding, Bonding Continuity, System Fire Classification

2. What UL Certification Covers in Solar Projects

2.1 Scope of UL 2703

The scope of UL 2703 is intentionally narrow but highly critical. It evaluates the mounting system not just as a piece of dead metal, but as an active component of the electrical circuit and building envelope. The standard primarily evaluates three parameters: the mechanical load capacity of the module-to-rack connection, the electrical impedance of the bonding path (ensuring fault currents can safely travel through the racking to the ground rod), and the system-level fire classification. It applies to both ground-mounted systems and roof-integrated arrays with a maximum system voltage of up to 1500V DC.

2.2 When UL Certification Is Mandatory

UL certification is functionally mandatory for virtually all commercial, residential, and utility-scale projects in the US. The National Electrical Code (NEC) mandates that all electrical equipment—which includes the racking due to its role in the grounding circuit—must be “listed and labeled” by a Nationally Recognized Testing Laboratory (NRTL). Consequently, the local Authority Having Jurisdiction (AHJ) will explicitly look for the UL mark during the permitting process. Navigating US building code requirements for solar mounting is impossible without a UL-listed foundation.

2.3 UL vs Structural Code Compliance

A common and dangerous industry misconception is equating a UL listing with universal structural adequacy. UL 2703 does evaluate mechanical loading (e.g., downward pressure and uplift on the module clamps), but it does not replace site-specific structural engineering. A UL listing does not mean a racking system can survive a Category 5 hurricane in Florida or a 8.0 earthquake in California. For actual structural survival, the system must simultaneously comply with wind load standards for solar mounting systems (ASCE 7) and seismic standards for solar mounting systems.

3. UL 2703 Testing Requirements Explained

Achieving a UL 2703 listing is a grueling, multi-month laboratory process. NRTLs like UL, CSA, or Intertek subject the racking systems to a battery of physical and electrical abuses to guarantee 30-year field safety.

3.1 Grounding & Bonding Tests

The anodized coating on aluminum rails and the oxidation on steel act as electrical insulators. UL 2703 tests the ability of grounding lugs, bonding jumpers, and serrated module clamps to reliably pierce these coatings and establish a low-impedance electrical path. The laboratory passes massive fault currents through the assembled rack to verify that the bonding path does not melt, arc, or degrade over time. Continuity must be maintained across splices, hinges, and expansion joints.

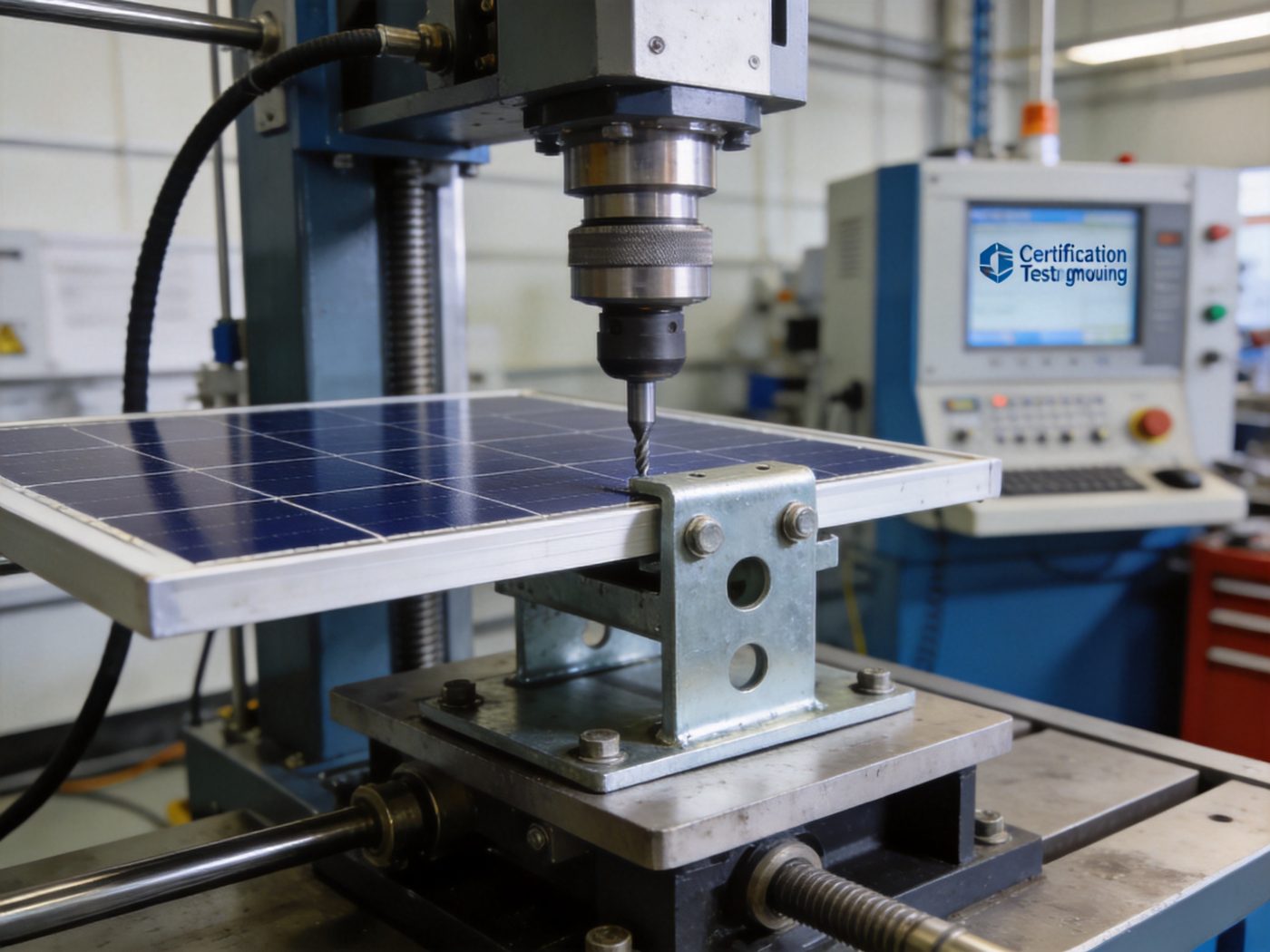

3.2 Mechanical Load Testing

While not replacing ASCE 7, UL 2703 mandates baseline mechanical load testing to ensure the module will not rip out of the racking clamps under stress. The system is subjected to static downward loads (simulating snow) and upward pull tests (simulating wind uplift). The system must hold the required load without the clamping devices failing or the module slipping out of the rails, providing a baseline mechanical verification that structural engineers can reference.

3.3 Fire Classification Testing

For rooftop systems, the interaction between the solar module, the racking geometry, and the roof membrane can create a “wind tunnel” effect that accelerates the spread of fire. UL 2703 evaluates the entire assembly—Module + Rack + Roof Deck—to assign a System Fire Class (Class A, B, or C). A racking system cannot achieve a Class A fire rating in isolation; it must be tested and listed in combination with specific “Types” of solar modules.

3.4 Environmental & Durability Tests

Electrical bonding relies on bare metal contact, which is highly susceptible to galvanic corrosion. UL 2703 subjects the grounding components to intense temperature cycling, humidity, and salt fog chambers to ensure the electrical resistance does not spike as the metal ages. However, for true structural steel longevity, engineers must still cross-reference rigorous corrosion standards for solar mounting systems.

4. Relationship Between UL Certification and Structural Codes

Compliance is a matrix. UL certification provides the electrical and fire safety baseline, while structural codes dictate the physical steel tonnage and foundation design.

4.1 UL vs ASCE 7

UL 2703 and ASCE 7 work in tandem. ASCE 7 dictates the exact wind pressure (e.g., 45 psf uplift) that the environment will exert on the system. UL 2703 provides the verified test data proving that the specific module clamp can hold 45 psf without failing. A project cannot achieve North America solar compliance requirements without satisfying both: the ASCE 7 mathematical demand and the UL 2703 physical capacity.

4.2 UL vs Eurocode

UL 2703 is strictly a North American standard. In Europe, electrical and mechanical safety are handled through CE marking directives and Eurocode standards for solar mounting. While the physics of grounding and loading are identical, the testing protocols and documentation pathways are entirely distinct. A UL-listed product cannot be deployed in the EU without undergoing the separate CE conformity assessment process.

4.3 AHJ Approval Process

During the permitting phase, the AHJ will review the structural PE-stamped drawings (for ASCE 7) and the electrical line diagrams (for UL 2703). Crucially, the AHJ will verify this again during the physical site walk. If the inspector finds that contractors substituted an unlisted, generic grounding lug instead of the specific lug defined in the UL 2703 manual, the project will fail its inspection and audit requirements and face immediate “red tag” delays.

5. Certification Process Workflow

Obtaining a UL 2703 listing is a rigorous, iterative process that demands deep collaboration between the manufacturer’s engineering team and the NRTL.

  1. Engineering Design & Pre-Evaluation: The manufacturer designs the extrusion profiles, clamps, and grounding paths, ensuring sufficient bite depth for bonding pins and appropriate geometries for fire mitigation.
  2. Sample Submission: Production-grade samples, alongside an extensive matrix of targeted solar module “Types,” are submitted to the testing laboratory.
  3. Laboratory Testing: The NRTL executes the destructive mechanical load tests, the high-amperage grounding continuity tests, and the burn-block fire classification tests.
  4. Evaluation Report & Listing: Upon passing, the NRTL issues a comprehensive test report and adds the racking system to their public directory of listed products.
  5. Factory Audit (Initial): The NRTL physically inspects the manufacturing facility to ensure the factory is capable of producing the product exactly as it was tested.
  6. Ongoing Surveillance: To maintain the UL mark, the manufacturer must submit to unannounced quarterly factory inspections by the NRTL, ensuring zero unapproved deviations in material or tolerances.

6. Required Documentation for UL Approval

The culmination of the UL process is the documentation package, which EPCs rely heavily upon for project execution and AHJ submittals.

6.1 Structural Calculation Reports

While UL is not a structural code, the UL test report details the exact mechanical limits of the racking components (e.g., maximum allowable clamp tension). This data is directly ingested by the structural engineer of record to produce the final PE-stamped calculation package for the AHJ.

6.2 Installation Manuals

The installation manual is a legally binding document under UL 2703. It strictly dictates the exact torque specifications for every bolt and the precise approved module combinations. Deviating from the manual instantly voids the UL listing and the associated safety guarantees.

6.3 Material Traceability & Factory Audit

The UL mark guarantees consistency. This requires total traceability of aluminum extrusions and steel coils back to the mill. Premium manufacturers align their UL compliance with ISO standards for solar mounting manufacturing, ensuring that the rigorous quality control demanded by the quarterly UL audits is woven into their daily operational DNA.

7. Common UL Certification Failures

Compliance failures in the field are rarely due to the racking failing the initial lab test; they occur because the field installation deviated from the strict parameters of the UL listing.

  • Improper Bonding Path: Failing to install the required bonding jumpers across rail splices, leaving entire sections of the array ungrounded and lethally hazardous.
  • Missing Fire Rating Compatibility: Pairing a Class A racking system with a module “Type” that it was not explicitly tested with, instantly voiding the roof’s fire classification.
  • Unsupported Configuration: Spanning rails further than the UL mechanical load test approved, leading to mid-span deflection and module micro-cracking.
  • Unverified Structural Changes: A manufacturer silently thinning out a steel profile or changing an aluminum alloy grade without notifying the NRTL, invalidating the certification.
  • Incorrect Installation Deviation: Field crews using impact drivers instead of calibrated torque wrenches, either stripping the grounding pins or under-torquing the clamps, breaking the UL 2703 electrical continuity.
  • Mixing System Components: Using Manufacturer A’s rails with Manufacturer B’s grounding clamps. UL 2703 is a system-level certification; mixing brands voids the listing.
  • Expired Certification: Failing to realize that the UL 2703 standard was updated, and the legacy racking product is no longer compliant with current NEC codes.
  • Coatings Inhibiting Ground: Field-painting or applying post-installation anti-corrosion sprays that seep into the clamping joints, destroying the electrical bonding path.

8. Our UL Compliance Engineering Approach

At PVRack, we view UL 2703 not as a bureaucratic hurdle, but as a critical validation of our engineering integrity. Our product development lifecycle is built entirely around achieving and exceeding NRTL requirements. Before a single physical prototype is milled, we utilize advanced electrical impedance modeling and finite element structural validation to simulate exactly how our systems will perform in the UL testing chambers.

We coordinate directly with leading NRTLs to maintain an expansive matrix of approved module combinations and fire classifications, ensuring our EPC partners are never restricted in their panel procurement. By leveraging our deep expertise in structural connection design, we engineer grounding pins and serrated clamps that effortlessly pierce anodized coatings while maintaining massive mechanical pull-out strength. Furthermore, our dedicated compliance team provides comprehensive documentation support, ensuring that when you submit a PVRack system to your local AHJ, the permit is approved without delay.

9. FAQ Section

Is UL 2703 mandatory for all solar installations?

In the United States and Canada, effectively yes. The National Electrical Code (NEC) requires that solar mounting systems be listed and identified for their purpose. AHJs uniformly enforce this by requiring proof of UL 2703 certification before issuing a building or electrical permit.

Does UL certification cover structural wind and snow loads?

No. UL 2703 includes baseline mechanical load testing to ensure the module stays attached to the rack, but it does not evaluate the entire structure against the site-specific wind and snow loads defined in ASCE 7. You need a UL 2703 listing for the hardware, and a PE-stamped ASCE 7 calculation for the site.

How long does the UL certification process take?

For a manufacturer testing a new product from scratch, the process typically takes 3 to 6 months, depending on laboratory lead times and whether any design iterations are required after initial failure. Expanding an existing listing to include new module “Types” can take 4 to 8 weeks.

Can field modifications void a UL listing?

Absolutely. Drilling unauthorized holes in the rails, substituting third-party grounding lugs, or failing to torque bolts to the exact specifications in the UL-approved installation manual instantly voids the UL listing and places massive liability on the EPC.

Is UL certification required outside the US?

Generally, no. UL is a North American-centric standard suite. In Europe, solar mounting systems must comply with CE marking directives and Eurocode standards. In other international markets, local standards (like JIS in Japan or AS/NZS in Australia) take precedence, though many international developers respect UL 2703 as a global benchmark for quality.

What is the difference between UL 1703 and UL 2703?

UL 1703 (now largely transitioned to UL 61730) is the safety standard for the photovoltaic modules themselves. UL 2703 is the safety standard specifically for the racking, mounting, and grounding hardware that holds those modules. They work together to ensure a safe system.
