Eurocode Standards for Solar Mounting Systems: EN Structural Compliance & Design Guide
Comprehensive engineering guidance on EN 1990–1999 structural, wind, seismic, and steel design requirements for solar racking systems in Europe.
1. Executive Compliance Summary
Eurocodes are the primary cross-border structural design framework used throughout the EU market for building and civil works, including solar mounting structures.
For a broader overview of international solar mounting regulations, refer to
global solar mounting regulations framework.
In practice, Eurocode compliance is not a single “one-size-fits-all” checklist: it is an EN 1990–1999 system plus a country-specific National Annex (NA)
that defines the project’s design values, maps, and partial factor selections.
For EPCs, distributors, and project owners, this means the same racking design can be fully compliant in one EU country while being under-designed or
over-designed in another if the National Annex is not applied correctly.
The goal of this guide is to translate the Eurocode hierarchy into concrete solar racking decisions: wind and snow actions (EN 1991), steel member checks
(EN 1993), seismic actions and anchorage (EN 1998), and the compliance evidence needed for CE and EU documentation.
| Item | Summary |
|---|---|
| Applicable Regions | EU Member States (and many neighbouring markets referencing EN standards). |
| Governing Framework | Eurocodes EN 1990–1999 (Basis of Design, Actions, Steel, Seismic, etc.). |
| National Adaptation | National Annex (NA) selects maps, parameters, and partial factors for each country. |
| Key Structural Focus | Wind, snow, seismic; member buckling; connection detailing; anchorage and foundations. |
| Required Marking | CE Marking for applicable structural components and documented EU conformity. |
2. What Eurocodes Govern in Solar Projects
2.1 Applicable Project Types
Eurocode requirements apply to a wide range of solar installations, but the engineering emphasis changes by system type.
For ground-mounted solar systems, the dominant checks typically include EN 1991 wind actions,
EN 1991 snow actions, EN 1993 steel capacity, and foundation/anchorage verification under the appropriate geotechnical basis.
For roof-mounted solar systems, Eurocode-based checks also include roof load transfer,
connection detailing, and serviceability limits (deflection and vibration) to protect both the roof envelope and the PV modules.
Tracker systems add additional dynamic and operational load cases; even when the “tracker supplier” provides load tables, the project still requires
Eurocode-aligned validation for the site’s NA-defined wind, snow, and seismic environment.
2.2 Eurocode Hierarchy Structure
Eurocodes are organised as a coherent structural system rather than isolated documents.
EN 1990 establishes the “Basis of Structural Design,” including reliability concepts, limit state design, and the structure of load combinations.
EN 1991 defines “Actions on Structures,” which is where wind and snow loads for solar are anchored.
EN 1993 governs the design of steel structures, including cross-section resistance, member buckling, and connection design rules that directly influence racking rails,
posts, and bracing members.
EN 1998 covers earthquake design and is critical for mounting systems in higher seismic zones in Southern Europe.
2.3 Role of National Annexes
The National Annex (NA) is the mechanism that transforms a European standard into a nationally adopted design tool.
It selects nationally determined parameters (NDPs), including wind zone maps, snow load maps, terrain categories, and partial safety factors.
As a result, a design basis in Germany (DIN EN with a German NA) may differ materially from Spain or France even when the same EN 1991 clause is used.
For procurement teams, the NA is not paperwork: it directly changes the required steel thickness, bolt count, embedment depth, and corrosion protection level.
3. Eurocode Structural Framework for Solar Mounting
Solar racking compliance in Europe is best understood as a chain: EN 1990 defines reliability and combination rules; EN 1991 defines actions;
EN 1993 defines steel resistance; EN 1998 defines seismic actions; and CE/EU documentation provides the market-facing evidence that the structure is controlled,
tested, and traceable.
When an EPC is “asked for Eurocode,” the reviewer usually wants to see (1) the NA used, (2) the EN 1990 combination methodology,
(3) EN 1991 wind/snow calculations, and (4) EN 1993 member and connection checks with clear utilisation ratios.
3.1 EN 1990 – Basis of Structural Design
EN 1990 is where the design philosophy is formalised: ultimate limit state (ULS) ensures collapse prevention; serviceability limit state (SLS) ensures
deflections, rotations, and vibrations remain within functional limits.
For solar racking, EN 1990 matters because the controlling cases are often not “dead load + wind” in a simple way; they are combination-driven.
Partial factors and combination factors determine whether uplift or compression governs, and whether the most critical check is a bolt in tension,
a thin-walled member in buckling, or a foundation in pull-out.
3.2 EN 1991 – Actions on Structures
EN 1991 is the heart of environmental loading for PV structures in Europe.
For wind-driven design and verification, many projects translate EN 1991 wind actions into racking-level pressures and uplift forces, then validate components
against published capacities and/or project-specific calculations.
For a dedicated engineering breakdown, see
wind load standards for solar mounting systems.
EN 1991 also drives snow design, which can be the governing action in Scandinavia and Alpine regions; if you need practical interpretation for PV geometry,
refer to snow load considerations under EN 1991.
Because EN 1991 values and maps are NA-dependent, EN 1991 appears repeatedly across the design package: initial assumptions, calculation sheets,
and final PE/chartered review notes.

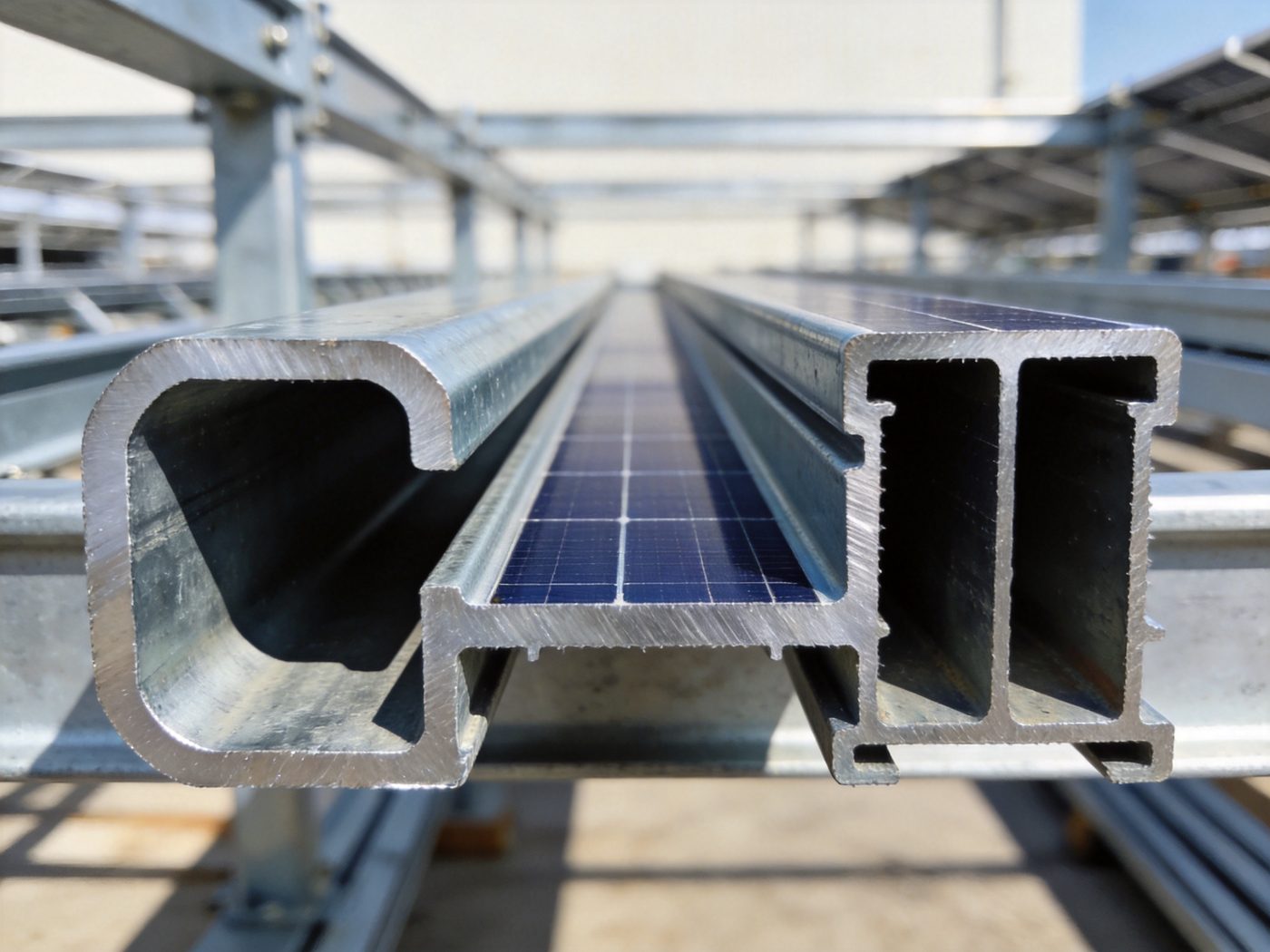

3.3 EN 1993 – Steel Structure Design
EN 1993 is where the racking becomes “real steel engineering.”
Thin-walled rails and posts can fail by local buckling, lateral-torsional buckling, or connection slip before they reach yield strength.
EN 1993 checks therefore determine whether the system must upgrade steel grade, thicken key profiles, add intermediate supports, or increase bracing density.
EN 1993 is also the main driver behind connection detailing: bolt spacing, edge distance, bearing capacity, and slip resistance in friction-grip joints.
In many racking failures, the steel member itself is adequate but the EN 1993 connection detailing is not.
3.4 EN 1998 – Seismic Design
EN 1998 becomes decisive in Southern Europe where seismic actions can govern the anchorage design, especially for rooftop systems.
Even when wind dominates ULS, EN 1998 can dominate detailing because it demands controlled load paths, reliable anchorage, and ductile behaviour
where appropriate.
For a solar-specific summary and interpretation, see
seismic standards for solar mounting structures.
EN 1998 is also where “non-structural component” logic can appear for rooftop arrays: the host building amplifies acceleration, and the PV array must be designed
so that sliding, overturning, or connector rupture does not occur.
4. Structural Design Implications for Solar Racking in Europe
Eurocode compliance is not just a calculation exercise. It shapes the physical architecture of a racking system: member sizing, bracing layout,
connection geometry, corrosion strategy, and foundation selection.
The sections below outline the highest-impact design implications that repeatedly show up in EU permitting, lender technical advisor reviews,
and third-party structural audits.
4.1 Wind Zones Across Europe
Wind design in Europe is highly sensitive to terrain category and topographic exposure.
EN 1991 defines the framework, but the NA provides the country-specific wind maps and parameter values that determine the baseline wind action.
For solar, the critical issue is not just “wind speed,” but the resulting uplift pressures on the module plane and the way those forces resolve into
tension on fasteners and pull-out on foundations.
Many project delays happen when terrain is misclassified (for example, treating open terrain as sheltered), because the resulting uplift forces can increase
significantly after correction.
For deeper guidance aligned to European contexts, see
European wind load calculation requirements.
In practice, wind design drives three procurement decisions: stronger connections in perimeter/corner zones, thicker rails where suction governs,
and higher-performance anchorage where uplift is the controlling action.
4.2 Snow Load & Alpine Regions
EN 1991 snow actions are particularly critical for Northern and high-altitude regions.
In Scandinavian climates, snow can dominate ULS and can also create challenging SLS cases (permanent deflection leading to misalignment, clamp loosening,
and accelerated fatigue).
In Alpine regions, drift and accumulation can be highly non-uniform due to complex topography and wind patterns, meaning “average snow” assumptions
may under-predict peak effects on edge rows.
In procurement terms: snow-driven projects often require higher moment-of-inertia rails, denser purlin spacing, and additional bracing for compression stability
under long-duration loading.
4.3 Seismic Zones (Southern Europe)
EN 1998 seismic design becomes a primary driver in Italy, Greece, and other Southern European markets where seismic hazard is meaningful.
For ground mounts, the governing checks can include foundation stability, connection ductility, and displacement control under seismic actions.
For rooftop arrays, seismic checks often focus on sliding prevention, anchor pull-out, and ensuring that load paths remain continuous under cyclic loading.
For a detailed solar interpretation, review
solar seismic compliance requirements.
In EN 1998 environments, the best “low risk” design pattern is often fewer but stronger anchorage points with verified substrate capacities,
rather than many weak points that may fail progressively during cyclic loading.
4.4 Corrosion Classification (EN ISO 12944)
Structural adequacy is meaningless if corrosion consumes the steel before the project reaches end-of-life.
Across the EU, corrosion design is frequently aligned to EN ISO 12944 classification logic (C1–C5, and special cases like CX),
and procurement must match coating systems to the environmental class.
Coastal locations, industrial zones, and agricultural sites with chemical exposure can drive faster degradation than “standard inland” assumptions.
The correct specification ties together environment class, coating type, thickness, and cut-edge protection strategy.
For practical selection and compliance alignment, use
corrosion standards for solar mounting systems.
This corrosion block is also where EU documentation matters: coating certifications, thickness test reports, and traceability can be required for CE files
and for warranty enforcement.
4.5 Foundation Design Under Eurocodes
Foundation and anchorage design is where wind uplift and soil reality intersect.
Even when the above-ground structure satisfies EN 1993 checks, the system fails if the foundation cannot develop the required pull-out resistance or lateral stiffness.
In typical utility deployments, deep steel foundations such as
pile-driven foundation systems
offer predictable load transfer in many soil profiles, while
ground screw foundations
can provide rapid installation with strong uplift resistance in appropriate soils.
Eurocode-aligned foundation selection should always be justified by geotechnical data, required embedment depth, corrosion environment, and installation constraints,
not by supplier preference alone.
5. National Annex Variations Across EU
Eurocodes create a unified EN language, but the National Annex is where each country encodes local risk assumptions and design values.
In tendering and distribution, this is the single most important “compliance gap” risk: using the wrong NA can create an under-designed system
that fails technical review, or an over-designed system that loses on price.
The sections below outline how NA differences commonly impact solar mounting choices, especially for EN 1991 actions, EN 1993 steel sizing,
and EN 1998 seismic detailing.
5.1 Germany (DIN EN)
Germany’s DIN EN implementation is typically rigorous in documentation expectations, and reviewers often require clear demonstration of NA-selected values
and load combinations per EN 1990.
In wind and snow, “terrain” and “zone” classifications are frequently audited, and conservative assumptions are common in third-party reviews.
For procurement, this tends to favour systems with strong evidence packages: traceable materials, clear calculation notes, and consistent manufacturing tolerances
that reduce installation variability.
5.2 France (NF EN)
France’s NF EN approach often emphasises correct application of NA-defined climatic actions and consistent documentation for approvals.
For rooftop systems, reviewers may also scrutinise how load is transferred to the host structure, including connection detailing and serviceability checks.
Procurement teams should ensure that component certification and declared performance align with the applicable EN framework and the project’s NA assumptions.
5.3 Spain & Southern Europe
In Southern Europe, wind can dominate in coastal and exposed terrain, while EN 1998 seismic design can become decisive for certain regions and building categories.
Design teams must ensure seismic detailing is not treated as optional: even when the racking is “lightweight,” anchorage failure under seismic actions
can be a critical safety hazard.
Procurement strategy here often prioritises anchorage verification, substrate testing, and conservative connection design margins.
| Country / Region | Common NA Sensitivity | Primary Risk if Misapplied | Procurement Impact |
|---|---|---|---|
| Germany (DIN EN) | Strict documentation, cautious EN 1990 combinations; EN 1991 terrain classification review. | Permit or lender TA rejection due to unclear NA basis and combination logic. | Prefer systems with strong calculation packages and traceability. |
| France (NF EN) | NA-specific action values and roof integration evidence for rooftop arrays. | Underestimated wind/snow actions; insufficient connection detailing. | Prioritise connection kits, tested fasteners, and serviceability controls. |
| Spain / Southern EU | Coastal wind sensitivity and EN 1998 relevance in certain zones. | Seismic under-design leading to anchorage failure and liability exposure. | Use stronger anchorage design and verified substrate capacities. |
6. CE Marking & Certification Requirements
Eurocode calculations establish structural adequacy, but EU market access and project acceptance require evidence.
In Europe, compliance is rarely “one document.” It is a controlled package: declared performance, manufacturing controls, traceability,
and the CE/EU documentation that proves the system delivered to site matches what was evaluated.
This section clarifies how CE, EN, and EU documentation intersect for solar mounting systems.
6.1 CE Marking for Structural Components
CE marking is the most visible compliance marker in the EU market, but it must be understood correctly.
CE is not a “quality award”; it is a declaration mechanism tied to specific regulations and harmonised EN routes where applicable.
For solar mounting systems, the CE requirement often appears at the component level (structural parts, fasteners, and declared-performance items),
as well as in the documentation package delivered to the project owner.
For practical guidance, see
CE marking requirements for solar mounting systems.
In procurement, CE compliance reduces risk in two ways: it supports smoother customs/import processes and increases acceptance probability in technical review,
especially when combined with Eurocode-based calculation evidence.
6.2 ISO Quality & Manufacturing Standards
Eurocode compliance assumes manufacturing consistency: the steel grade, thickness, hole positions, coating thickness, and welding details must match the design.
ISO systems are therefore not “extra paperwork”; they reduce variance risk at scale.
If you need procurement-friendly standards language for factory control and traceability, review
ISO standards for solar mounting manufacturing.
For large EU rollouts, ISO-backed process control typically improves installation speed and reduces nonconformance reports (NCRs) caused by mismatched components.
6.3 EU Compliance Documentation
EU compliance is the operational layer: the calculation package, the NA basis, the declared materials, coating evidence, inspection records,
and the CE/ISO artifacts that confirm controlled production.
Documentation expectations can vary by project owner, country, and insurer, but the common requirement is clear traceability and a defensible compliance basis.
For a structured checklist, see
EU solar compliance requirements.
In high-value EU projects, strong documentation often becomes a differentiator in tender scoring because it directly reduces project delay risk.
7. Common Compliance Risks in EU Solar Projects
EU projects fail compliance reviews more often due to process errors than due to “weak steel.”
The following risks are repeatedly observed in tendering and EPC execution, especially when teams attempt to reuse designs across multiple EU countries
without re-basing the NA and EN 1990 combinations.
- Incorrect National Annex selection: Using the wrong NA (or a default parameter set) for EN 1991 wind/snow actions.
- Wind terrain misclassification: Assigning an overly sheltered terrain category, underestimating uplift forces.
- Snow drift underestimation: Ignoring local drift conditions in Alpine or complex roof geometries.
- EN 1993 buckling not governing-checked: Passing simple strength checks while missing slender-member buckling failures.
- EN 1998 seismic treated as “optional”: Omitting anchorage and displacement control in seismic zones.
- Wrong corrosion category: Specifying inland coatings for coastal/industrial exposure leading to premature degradation.
- Missing CE documentation: Delivering components without the required declaration/marking evidence for project acceptance.
- Poor traceability: Inconsistent material certificates, coating thickness records, or batch identification across EU shipments.
8. Our Engineering Approach to Eurocode Compliance
Our approach treats Eurocode compliance as a design methodology, not a post-design “documentation step.”
We start by locking the NA basis and the governing EN 1990 combination logic, then build the action model (EN 1991 wind and snow) and resistance model
(EN 1993 steel and connection checks) around that basis.
For seismic regions, EN 1998 checks are integrated early so that anchorage detailing is engineered from the beginning rather than patched in late.
We focus on load-path clarity, repeatable manufacturing, and inspection-ready documentation so that EPC teams can move through EU permitting and
lender technical advisor reviews without iterative redesign.
When complex sites require special nodes or unusual load paths, we apply our
structural connection design expertise
to ensure connections remain the strongest link, not the weakest.
The end result is a compliance package that aligns Eurocode logic with real procurement constraints: lead time, interchangeability, and field installability.
9. FAQ Section
Is CE marking mandatory for solar mounting systems in the EU?
In many EU procurement contexts, CE-related documentation is expected as part of the conformity package for structural components and declared performance.
Whether CE marking is legally required for a specific item depends on the applicable regulation route and how the component is classified in the supply chain.
From an EPC perspective, CE alignment is often “functionally mandatory” because it reduces review friction, customs issues, and warranty disputes.
Do Eurocodes apply to all EU countries in the same way?
Eurocodes are harmonised EN standards, but each country applies its own National Annex.
The structure of EN 1990–1999 is consistent across the EU, yet the NA changes the design values, maps, and parameter selections.
This is why cross-country replication requires re-basing EN 1991 actions and re-validating combinations.
What is a National Annex and why does it matter for racking?
The National Annex selects nationally determined parameters, such as wind zone maps, snow maps, and partial factors.
For solar racking, this directly changes uplift forces, steel utilisation ratios, connection forces, and required foundation resistance.
Using the wrong NA is one of the fastest ways to fail an EU technical review.
Does EN 1998 seismic design apply to every solar project?
EN 1998 relevance depends on the site seismic hazard and the project classification in the local design environment.
Many Northern EU regions have low seismic demand, while Southern EU regions may require meaningful EN 1998 checks.
Rooftop arrays can also experience amplified accelerations due to building motion, so the project context matters.
How often should EN 1991 appear in the engineering package?
EN 1991 typically appears multiple times: initial assumptions, wind/snow calculation sheets, load combinations aligned with EN 1990,
and final design summaries.
For lender-reviewed EU projects, the NA basis for EN 1991 is as important as the calculation itself.
What is the most common “hidden” EN 1993 issue in PV racking?
Buckling and connection slip.
A member can have adequate yield strength but still fail by slender-member instability under compression, or a bolted joint can slip under cyclic loading.
EN 1993 checks that explicitly address these failure modes often reveal governing cases that simple strength checks miss.
How do wind and corrosion interact in coastal EU projects?
Coastal projects can combine higher wind demand with more aggressive corrosion.
This can shift the controlling design from “member strength” to “connection durability,” because corrosion can reduce bolt clamping force and accelerate joint degradation.
The safest strategy is to align coating selection to the corrosion class and verify that connection materials remain compatible over the full EU project life.
“`
