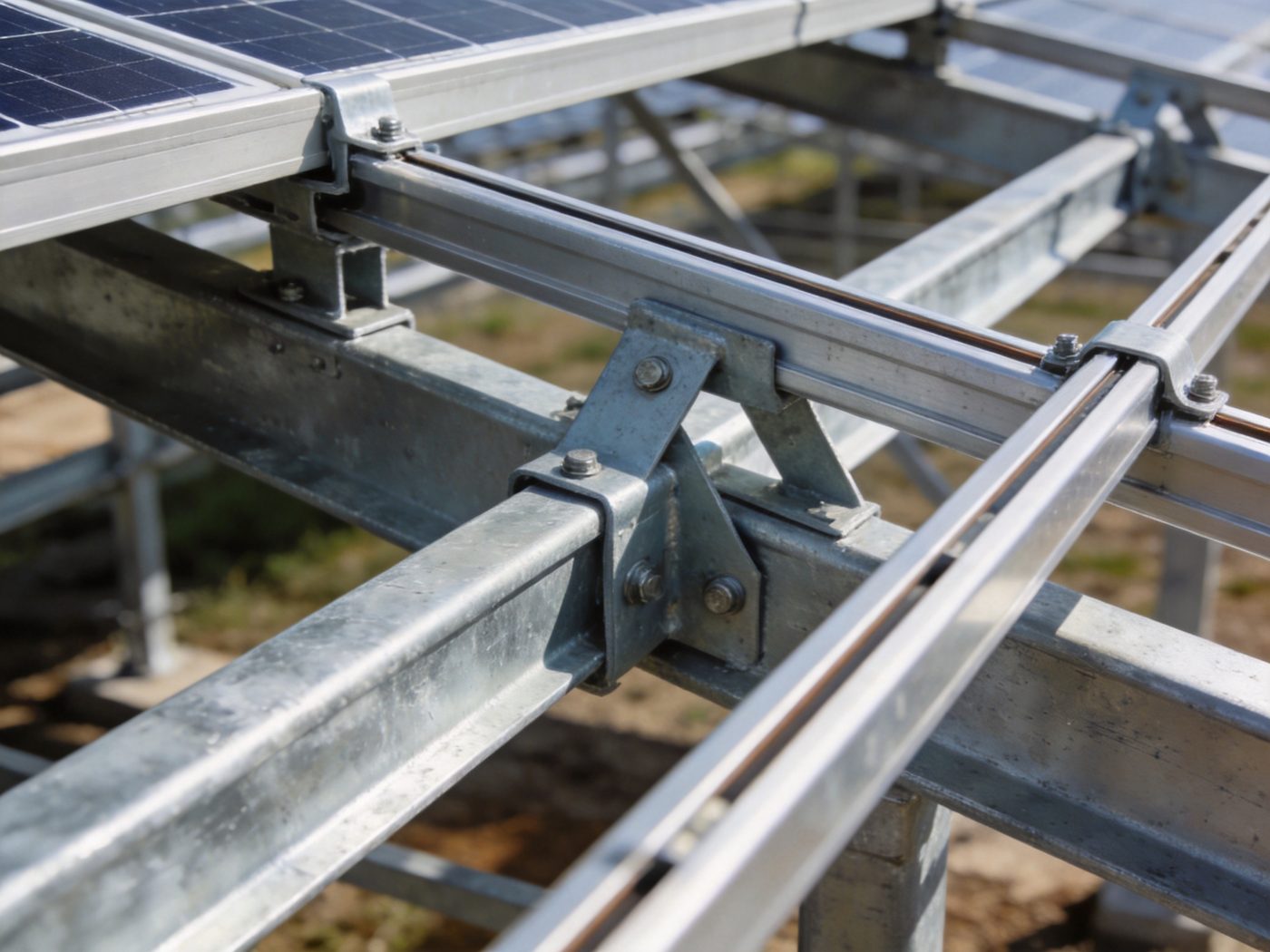

Structural Bracing for Solar Mounting Systems: Stability Design, Lateral Resistance & Engineering Optimization Guide

Engineering Context

Why Structural Instability Is the Primary Solar Mounting Failure Mode

Solar mounting structural failure under wind and seismic events follows three independent instability mechanisms, each requiring different structural countermeasures. Overturning: horizontal lateral force at the panel centroid (at height H above grade) creates an overturning moment M_OT = F_lat × H at the column base; for an unbraced single-column configuration, this moment is resisted entirely in bending by the column section and pile head moment capacity — a resistance that increases with column section modulus but decreases rapidly as column height increases (moment arm grows linearly while pile head moment capacity remains fixed). At typical utility-scale ground-mount column heights of 1.0–1.8 m with pile heads designed for vertical load, pile head moment capacity is frequently the binding constraint, and the unbraced column fails in overturning when wind lateral force exceeds what the pile head can resist in bending. Lateral drift: even when the structure does not fail, excessive lateral drift under sustained wind creates module-to-module gap closure that produces glass fracture, cable management system failure, and tracker drive mechanism damage from accumulated plastic displacement — failure modes that are not catastrophic in a single event but produce progressive system damage over a 25-year operating life of repeated wind events. Buckling: tracker torque tubes with insufficient torsional stiffness (low GJ) flutter under wind-induced asymmetric pressure between leading and trailing panel edges — a dynamic instability with resonant amplification of 1.5–2.5× static design pressure that is the most aerodynamically complex failure mode in solar structural engineering. All three mechanisms are addressed by bracing: overturning and drift by diagonal frame bracing that provides additional lateral load paths; torsional buckling by tracker end-restraint systems and intermediate torque tube stiffeners. The lateral load demand that governs bracing design at each site is determined by the ASCE 7-22 wind pressure methodology documented in the wind load calculation resource.

Why Bracing Becomes Critical in Long-Span Configurations

Lateral stiffness of an unbraced cantilevered column in bending is governed by the column’s flexural rigidity: k_lateral = 3EI/H³ — where E is elastic modulus, I is the second moment of area, and H is the above-grade column height. The cubic relationship with height means that doubling column height reduces lateral stiffness by 8×. For long-span configurations that increase post spacing to reduce pile count (a standard utility-scale cost optimization strategy), wider post spacing reduces the number of column stiffness contributions per unit length of the structural frame — while the wind lateral force on the frame per unit length remains unchanged. The combined effect of increased post spacing (fewer columns per row length) and standard-height columns produces unbraced frame lateral stiffness that fails drift limit compliance at post spacings above 2.5–3.0 m in V_ult ≥ 130 mph environments — the exact spacing regime where most utility-scale projects operate for cost optimization. The structural engineering framework for long-span design — including the complete interaction between post spacing, section dimension, deflection limit compliance, and the threshold at which bracing becomes structurally mandatory — is developed in the long span structural design resource.

Engineering Fundamentals

What Is Structural Bracing? The Triangulation Principle

Structural bracing introduces triangulated load paths into a rectangular structural frame — converting the mechanism (a pin-jointed rectangular frame that can shear laterally without resistance) into a stable structure (a triangulated frame where all members carry load in axial tension or compression). The fundamental principle is that a triangle is the only polygon that cannot change shape without changing member length; adding a diagonal brace to a rectangular bay of a solar mounting frame converts it from a deformable quadrilateral to two stable triangles. Bracing members carry lateral load as axial force — the most structurally efficient mode for any linear member — rather than as bending moment, which requires section modulus that scales with the square of the unsupported length. A 40×40×3 mm square HSS steel brace member at 45° in a 1.5 m × 1.5 m frame bay carries 21.2 kN lateral load at a stress of 118 MPa — well within the S350 yield strength of 350 MPa — while the equivalent unbraced column bending would require a 100×100×4 mm section to resist the same lateral force at the same drift limit. Bracing reduces required material cross-section at the column level while adding a smaller-section brace member, producing a net structural material cost reduction in most lateral-load-governed configurations above a threshold lateral force that is easily exceeded in SDC C–F and high-wind environments.

Load Path Through Bracing Members: From Lateral Force to Foundation

The lateral load path in a braced solar mounting frame follows: horizontal wind or seismic force at panel height → column-to-rail connection → column → brace-to-column gusset connection → brace member (axial tension or compression) → brace-to-column-base or brace-to-pile-head connection → pile head → soil resistance. Every link in this chain must be verified for the governing lateral demand — and the connection at the brace end is consistently the weakest link in post-event assessments because brace connection design forces under ASCE 7-22 LRFD load combinations include the seismic Ω₀ = 2.0 amplification for concentric braced frame connections in SDC C–F. A brace member designed for the computed lateral force without Ω₀ amplification at the end connection will develop its full axial capacity and yield before the oversized connection fails — the intended structural behavior. A brace with a connection designed without Ω₀ amplification may fail at the connection at a force level below the brace member’s axial capacity — a brittle failure mode that produces total loss of the lateral resisting mechanism. The complete connection design methodology including bolt pattern, gusset plate sizing, and Ω₀ amplification requirements for seismic brace connections is covered in the structural connection design resource.

Types of Bracing Used in Solar Mounting Structural Systems

Three bracing configurations are used in utility-scale solar mounting structures, each with distinct structural characteristics and applications. Single diagonal bracing: one diagonal member in each braced bay; carries lateral force in either tension (when wind acts in the bracing direction) or compression (when wind reverses); requires the brace to be designed for both tension and compression capacity; effective length factor K = 1.0 for pin-connected diagonals; optimal at angles of 35–55° from horizontal. X-bracing (cross bracing): two crossing diagonal members in each braced bay; under lateral load, one diagonal acts in tension and the other buckles in compression — the tension diagonal carries the full lateral force, and the compression diagonal is neglected per AISC 360-22 §E for slender members (KL/r > 200); X-bracing allows slender, lightweight tension-only members (flat bar, rod, or angle) because compression capacity is not required; effective lateral stiffness per unit material is high because the active (tension) diagonal is always loaded in its most efficient mode. Knee bracing (haunched brace): a short diagonal from the column to the rail at a point partway up the column height, rather than from base to top; reduces the effective unsupported length of the column in the lateral direction without a full-height brace; particularly suited to tracker installations where full-height diagonal bracing would interfere with torque tube rotation clearance; provides moderate lateral stiffness improvement at lower material cost than full diagonal bracing.

Bracing Influence on Section Capacity: Effective Length Reduction

The critical compression capacity of a column or brace member is governed by the Euler buckling formula:

\[ F_{cr} \propto \frac{\pi^2 E}{(KL/r)^2} \]

where KL = effective length = K × L (actual unsupported length); r = radius of gyration; K = effective length factor (1.0 for pin-pin; 0.7 for pin-fixed; 0.5 for fixed-fixed). A braced column with bracing at mid-height has an effective unsupported length of L/2 instead of L — reducing the slenderness ratio KL/r by 50% and increasing critical buckling stress by 4× for the same section geometry. This is the structural mechanism through which bracing enables thinner wall sections to carry the same compressive load — and through which bracing can produce net material savings when structural section specifications are driven by buckling rather than yield. The specific interaction between section wall thickness, radius of gyration, effective length, and buckling capacity across the member sections used in solar mounting structures is quantified in the material thickness and strength resource.

Design Standards & Cross-Reference

Structural bracing requirements for solar mounting systems are governed by three levels of standard: the load standard that determines when bracing is required (ASCE 7-22 drift limits and seismic system classification), the member design standard that governs brace section sizing (AISC 360-22 for steel; ADM 2020 for aluminum), and the seismic detailing standard that governs ductile brace connection design in SDC C–F (AISC 341-22). ASCE 7-22 Chapter 12 (Seismic) and Chapter 26–29 (Wind) do not mandate bracing directly — they define lateral drift limits and response modification factors that, when verified against the unbraced structural configuration, determine whether bracing is structurally required to achieve compliance. ASCE 7-22 Section 12.3.3 defines the seismic force-resisting system (SFRS) and assigns R factors to each system type: R = 1.25 for cantilevered column systems (unbraced), R = 3.25 for ordinary concentrically braced frames (CBF). The engineer selects the applicable SFRS based on the proposed structural configuration, and the R factor determines the calculated design base shear — creating the direct economic link between bracing specification and seismic structural cost. IBC 2024 Section 1604.3.6 addresses serviceability drift limits under wind for structures classified as nonbuilding structures — the classification that applies to utility-scale ground-mount solar: lateral drift under wind must not exceed H/400 for drift-sensitive attached components (cable management systems, tracker drive systems) or H/200 for structural stability. EN 1993-1-1:2005 (Eurocode 3) provides the European equivalent of AISC 360-22 for steel member design, including effective length determination and buckling curve selection for bracing members in solar mounting structures.

Engineering Variable Comparison Table

Engineering Calculation Insight: Lateral Stiffness and Bracing Efficiency

The following example demonstrates the quantitative bracing design calculation for a ground-mount tracker installation at a high-wind SDC D California site — showing how bracing configuration changes the governing structural system, reduces design base shear, and resolves lateral drift non-compliance simultaneously.

Design inputs: Post spacing: 3.0 m; Column: 100×100×4 mm RHS, S350 grade, H = 1.5 m above grade; E = 205,000 MPa; I = 487 cm⁴; Wind lateral force per column (Exposure C, V_ult = 140 mph, panel tributary height 1.2 m): F_wind = q_h × A_trib = 0.00256 × 0.85 × 0.85 × 0.85 × 140² × 1.2 × 3.0 × 0.6 = 8.1 kN; Seismic base shear per column (S_DS = 0.90 g, SDC D, R = 1.25 unbraced): C_s = 0.90/1.25 = 0.720; column tributary seismic weight W = 3.5 kN; F_seismic = 0.720 × 3.5 = 2.52 kN per column — wind governs lateral demand.

Step 1 — Unbraced frame lateral drift under wind:

\[ \delta_{\text{unbraced}} = \frac{F_{\text{wind}} \times H^3}{3EI} = \frac{8.1 \times 1{,}500^3}{3 \times 205{,}000 \times 487 \times 10^4} = 9.1 \ \text{mm} \]

Drift limit H/200 = 1,500/200 = 7.5 mm — unbraced drift exceeds limit by 21%. Section upgrade required to comply unbraced: I_req = F × H³/(3E × δ_lim) = 8.1 × 1,500³/(3 × 205,000 × 7.5) = 594 cm⁴ → minimum 120×120×4 mm RHS (I = 699 cm⁴); adds $0.005/W in column material.

Step 2 — Braced frame alternative (diagonal brace at 45°): Lateral stiffness of 45° brace member (50×50×3 mm square HSS, L_brace = 1,500/sin45° = 2,121 mm; A_brace = 564 mm²):

\[ k_{\text{brace}} = \frac{EA \sin^2\theta}{L_{\text{brace}}} = \frac{205{,}000 \times 564 \times 0.5}{2{,}121} = 27{,}275 \ \text{N/mm} = 27.3 \ \text{kN/mm} \]

Total lateral stiffness (column + brace): k_total = 3EI/H³ + k_{brace,horizontal} = 2.66 + 27.3 = 29.96 kN/mm. Braced frame drift: δ_braced = 8.1/29.96 = 0.27 mm — 97% below the drift limit. The braced frame using a 50×50×3 mm brace member — costing approximately 22% of the 120×120×4 mm column upgrade material per metre — achieves 34× better drift compliance than the column upgrade alternative.

Step 3 — Seismic base shear reduction from CBF classification: With bracing, R = 3.25 (CBF per ASCE 7-22 Table 12.2-1); C_s,braced = 0.90/3.25 = 0.277 versus C_s,unbraced = 0.720; seismic design force per column reduces from 2.52 kN to 0.97 kN — a 61.5% reduction. The seismic demand reduction in SDC D from system classification change through bracing is the highest-impact structural cost reduction available in seismic solar mounting design — and its interaction with column section design and foundation lateral demand is quantified in the seismic design resource.

Real Engineering Case: Lateral Displacement Remediation, Coastal Ground-Mount, V_ult = 140 mph

Project Profile

Location: Horry County, South Carolina (coastal plain; V_ult = 142 mph ASCE 7-22 RC II; Exposure D — within 1.6 km of Atlantic Intracoastal Waterway; p_g = 0.14 kPa, negligible) | System: 18 MWp fixed-tilt ground-mounted installation at 25° tilt, 3.0 m post spacing, 1.4 m column height — for the complete structural engineering methodology of utility-scale ground-mounted solar mounting systems in high-wind coastal environments | Original Specification: 100×80×3.0 mm RHS column, S350 grade, HDG ISO 1461; no diagonal bracing; column base connection two M14 Grade 8.8 bolts to H-pile head plate; rail 80×60×2.5 mm RHS.

Engineering Challenge

Post-installation structural review during South Carolina DHEC permit processing identified that the design used Exposure C wind pressure (q_h = 27.8 psf) rather than the correct Exposure D classification (q_h = 34.2 psf) — a 23% underestimate of design wind pressure at the coastal location within 1.6 km of a large tidal waterway. With the corrected Exposure D velocity pressure: lateral wind force per column = 34.2 × 144 × 0.85 × 0.6 × 3.0 / 1,000 × 4.448 = 10.7 kN. Unbraced column lateral drift: δ = 10.7 × 1,400³/(3 × 205,000 × 283 × 10⁴) = 16.8 mm. Drift limit H/200 = 1,400/200 = 7.0 mm — unbraced drift at 240% of limit. Additionally: pile head overturning moment demand = 10.7 × 1.4 = 15.0 kN·m; actual pile head moment capacity for the specified 100×100 mm H-pile at 1.8 m embedment in medium sand = 6.8 kN·m — 45% of demand. Two independent structural non-compliances: drift and pile head moment. No section upgrade or pile re-specification alone could resolve both deficiencies cost-effectively without addressing the lateral load path.

Structural Adjustment & Outcome

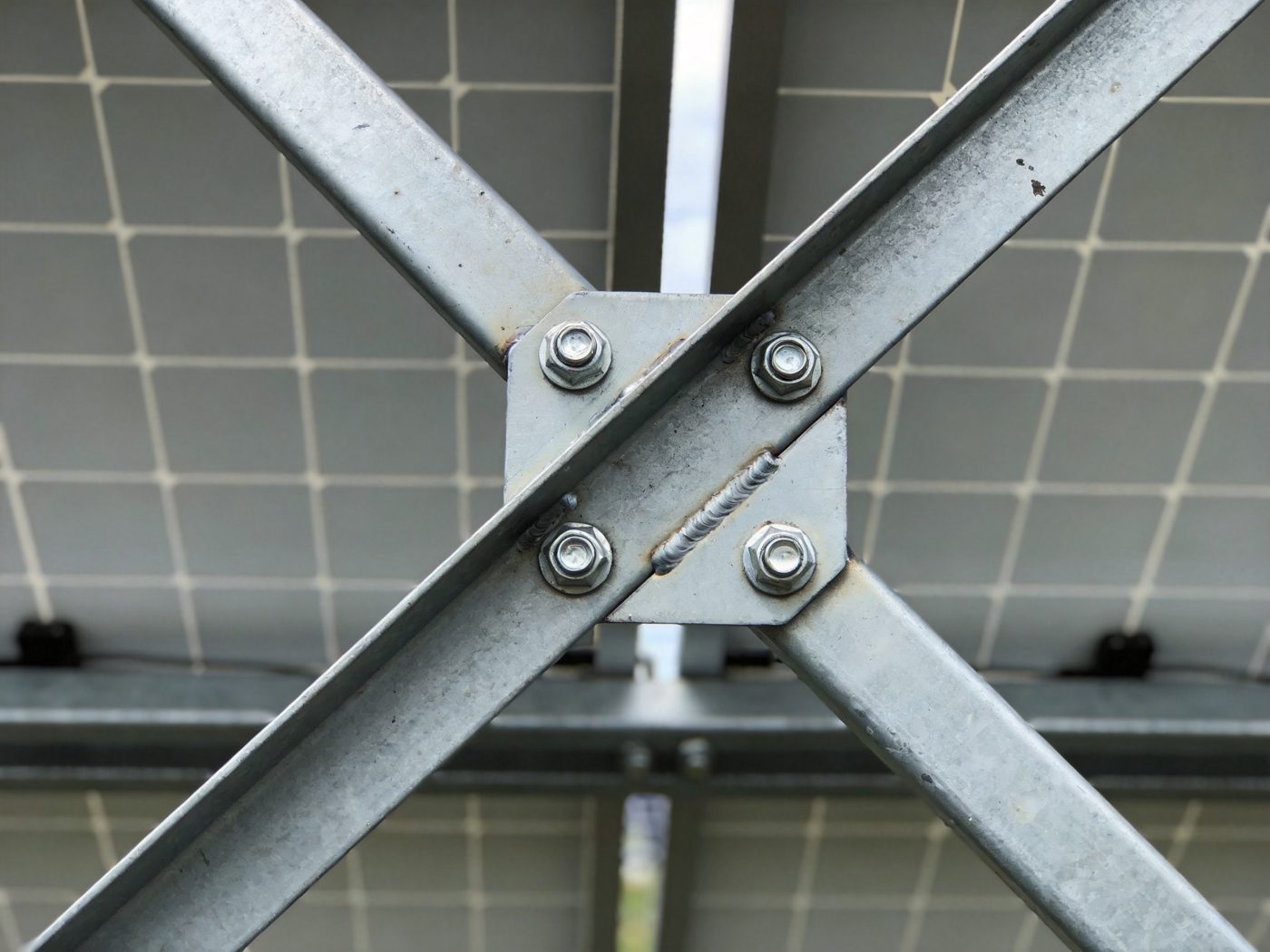

The resolution strategy added cross-bracing at every fourth bay (12 m braced frame spacing) using 60×60×3.5 mm square HSS steel X-braces: tension diagonal active, compression diagonal neglected. Active brace length = √(1,400² + 3,000²) = 3,313 mm; A_brace = 7.84 cm²; k_{brace,horizontal} = EA × (3,000/3,313)² / 3,313 = 205,000 × 784 × 0.821 / 3,313 = 39.8 kN/mm. With bracing every 4 bays, effective lateral stiffness per column = 39.8/4 + k_column = 9.95 + 1.26 = 11.2 kN/mm. Braced system drift: δ_braced = 10.7 / 11,200 = 0.96 mm — 86% below the 7.0 mm drift limit. Bracing simultaneously transferred the majority of lateral force to the brace axial load path, reducing the pile head moment demand from 15.0 kN·m to 15.0 × (k_column/k_total) = 15.0 × (1.26/11.2) = 1.7 kN·m — fully within the pile head moment capacity of 6.8 kN·m. Brace end connections at the column base were specified in stainless steel components grade A4-80 per the project’s Exposure D coastal C4 atmospheric classification — preventing zinc coating failure at the highly stressed brace connection points in the salt-laden coastal environment. Total structural remediation cost: $0.0058/W DC; the reduction in pile head moment demand eliminated the requirement for pile re-driving, which had been estimated at $0.018/W.

Failure Risks & Common Engineering Mistakes

Ignoring Slenderness Ratio in Compression Brace Design

Single-diagonal brace members that are required to carry compression (when wind reverses direction) must be designed as compression members with slenderness ratio KL/r ≤ 200 per AISC 360-22 Section E2. A common specification error is selecting a brace section based only on the tension capacity — either because the engineer assumes tension always governs (true for X-bracing, but not for single diagonal) or because the simplified calculation ignores the reversed wind case. Flat bar braces (100×8 mm, for example) have a minimum radius of gyration r = t/√12 = 2.3 mm in the weak-axis buckling direction; at a brace length of 2,000 mm and K = 1.0 (pin-pin), KL/r = 869 — 4.3× the 200 limit. Under wind load reversal, this brace buckles immediately at any compressive force and provides zero lateral resistance — equivalent to having no brace at all. Flat bar and rod sections should only be used in explicitly designed tension-only X-bracing configurations where the compression diagonal is mechanically confirmed to be inactive (slack in zero-load condition via turnbuckle or slotted hole).

Improper Bracing Angle: Below 30° or Above 65°

Bracing angle significantly affects both the structural efficiency (lateral stiffness per unit brace material) and the load distribution to the column base and foundation. At angles below 30°: the brace is nearly horizontal; the horizontal force component carried by the brace (F_brace × cos θ) is large relative to the axial brace force; the vertical force component (F_brace × sin θ) introduced at the foundation connection is small — favorable — but the required brace length is very long relative to the lateral load resisted, producing poor material efficiency. At angles above 65°: the brace approaches vertical; the vertical force component at the base becomes dominant; the brace introduces significant downward (compression) or upward (tension for load reversal) force at the column base that adds to or subtracts from the pile head vertical load — requiring the foundation to be verified for this combined vertical-plus-horizontal demand that is not present at the optimal 45° angle. The 35–55° range represents the design zone of highest lateral stiffness contribution per unit brace material, minimizes the brace-induced vertical foundation reaction, and produces brace lengths compatible with the typical column height and post spacing geometry of utility-scale ground-mount configurations.

Weak Connection Points at Brace Ends

Brace connections to columns and pile heads are the structural critical path in lateral load resistance — and post-event structural assessments consistently identify connection failure (bolt shear, gusset plate tearing, weld fracture) rather than brace member failure as the mode that eliminates lateral resistance. Three connection design errors are prevalent: (1) Sizing connection bolts for calculated brace axial force without applying the Ω₀ = 2.0 amplification required by AISC 341-22 for seismic CBF connections in SDC C–F — the connection must be designed for the brace’s expected yield force, not the calculated demand force; (2) Using M10 or M12 bolts at brace-to-column gussets for cost economy when the required shear capacity with Ω₀ amplification demands M16 or M20 bolts; (3) Specifying HDG carbon steel gusset plates and bolts at coastal or high-humidity sites where corrosion-induced section loss progressively reduces connection capacity below the design value. Connection long-term capacity in corrosive environments — including the zinc coating requirements and inspection criteria for brace connections over a 25-year design life — is addressed in the corrosion protection strategies resource.

System Integration Impact

Foundation Reaction Redistribution from Bracing

Adding diagonal bracing to a solar mounting frame fundamentally changes the foundation load distribution. In an unbraced cantilevered column frame, wind lateral force produces: (1) horizontal pile head shear; (2) pile head bending moment; (3) differential pile tension (leeward) and compression (windward) from the overturning moment. All three demand components act simultaneously at each pile head. In a braced frame, the brace transfers the majority of lateral force as a direct axial load to the base-of-brace foundation connection — which may be the same pile or a separate ground anchor — dramatically reducing pile head bending moment while introducing a concentrated vertical load at the brace foundation point. If the brace terminates at the same pile as the column (the most common configuration), the combined vertical load (pile head compression or tension from brace axial force component) must be verified against pile capacity. The foundation type and pile capacity determination for combined vertical and lateral demand under braced frame loading — including the specific pile head connection detailing for brace force transfer — is developed in the foundation selection guide.

Bracing Interaction with Tilt Angle and Array Geometry

Panel tilt angle affects the structural requirement for bracing through two mechanisms: the tilt-dependent wind pressure coefficient C_N (higher tilt → higher lateral force → lower bracing threshold → bracing required at lower wind speeds) and the geometry constraint on brace placement (higher panel tilt reduces the clearance envelope below the panel rail for diagonal brace installation in the north-south direction). For fixed-tilt arrays at 30–40° tilt with standard 1.5–2.0 m column heights, north-south diagonal bracing from column base to the upslope rail-to-column connection is geometrically feasible at brace angles of 40–50° — the structural efficiency zone. For tilt angles above 45°, the brace geometry becomes constrained; knee braces to mid-column or east-west cross bracing within the column row may be required as alternatives. The complete tilt angle decision framework — including the structural cost implications of tilt change on bracing requirements — is provided in the tilt angle optimization resource.

Snow Load and Bracing Interaction

Snow load acts vertically on the panel array and does not directly produce the horizontal lateral force that bracing is designed to resist — but snow accumulation increases effective seismic weight W per ASCE 7-22 Section 12.7.2 at p_g ≥ 1.44 kPa, which increases the seismic base shear that bracing must resist. Additionally, snow accumulation on unbraced tracker rows may shift the torque tube load centroid from mid-span (symmetric design case) to an asymmetric distribution along the row length — particularly during non-uniform accumulation following partial snow-shedding events — creating torsional demand on the torque tube that requires brace-restrained torque tube end conditions to prevent torsional instability. The quantitative interaction between snow load, seismic weight contribution, and bracing requirements for cold-climate solar projects is developed in the snow load considerations resource.

Engineering Decision Guide

When Bracing Is Structurally Critical:

• Post spacing ≥ 2.5 m with V_ult ≥ 120 mph in Exposure C — unbraced frame lateral drift non-compliance is near-certain at these parameters; bracing is more cost-effective than section upgrade beyond one-grade thickness increase
• SDC C–F seismic sites — bracing changes system classification from R = 1.25 to R = 3.25, reducing seismic design base shear by 2.6×; the material cost of bracing is typically recovered by reduced column and connection specifications within the same project budget
• Column height H ≥ 1.5 m with V_ult ≥ 115 mph or SDC C — lateral stiffness k = 3EI/H³ at 1.5 m height is less than half of k at 1.2 m height; the additional drift from greater column height typically exceeds drift limits without bracing at moderate-to-high lateral loads
• Tracker installations with row length ≥ 30 m — torsional instability under dynamic wind loading requires brace-restrained torque tube end conditions; unrestrained tracker rows at this length exhibit dynamic amplification of wind-induced torsion
• Coastal Exposure D sites at V_ult ≥ 130 mph — the Exposure D velocity pressure coefficient K_z = 1.03 versus Exposure C K_z = 0.85 produces 47% higher wind pressure per unit height; the resulting lateral force increase typically forces bracing requirement below the post spacing or column height that would require bracing in Exposure C

When Minimal or No Bracing May Be Structurally Adequate:

• Low-rise residential or commercial rooftop applications — short column heights (H ≤ 0.3 m tilt leg), limited wind lateral exposure, and low tributary area per attachment point produce lateral forces well within unbraced compliance range
• SDC A–B sites at V_ult ≤ 100 mph and post spacing ≤ 2.0 m — combined low lateral demand and short spans may produce compliant unbraced drift; explicit calculation required; do not assume compliance without calculation
• Very short post spacing ≤ 1.5 m in low-wind regions — high pile density provides lateral restraint through soil-pile interaction without above-grade bracing

Cost & Lifecycle Impact

The complete structural cost benchmarking framework disaggregated by bracing configuration, seismic zone, and wind speed is provided in the solar mounting cost per watt analysis resource.

Related Engineering Topics

• Wind Load Calculation — ASCE 7-22 lateral wind force on solar mounting structures; governing wind load for bracing design; Exposure C versus D velocity pressure comparison; lateral force at column height from ASCE 7-22 Chapter 29
• Seismic Design — ASCE 7-22 R factor for CBF (3.25) versus cantilever column (1.25); seismic base shear reduction from bracing; AISC 341-22 seismic brace connection design requirements; Ω₀ amplification at brace end connections in SDC C–F
• Material Thickness and Strength — Column section thickness selection for lateral bending capacity; section upgrade as alternative to bracing for small drift deficits; effective length reduction from bracing and resulting section thickness savings
• Structural Connection Design — Brace end connection bolt pattern design; gusset plate sizing and thickness; Ω₀-amplified connection design force calculation; seismic connection detailing per AISC 341-22
• Modular Structural Systems — Integrated bracing in pre-engineered modular solar mounting systems; factory-installed brace modules vs field-installed brace kits; modular CBF configurations for rapid deployment in SDC D–F markets
• Aluminum vs Steel — Aluminum brace member design: lower E (70,000 MPa vs 205,000 MPa) requires larger aluminum section for equal stiffness; aluminum X-brace tension capacity comparison with steel; weight benefit of aluminum bracing for seismic weight reduction in SDC D–F

Technical Resources

• Bracing Angle Optimization Sheet — Single-page design reference for brace geometry optimization; inputs: column height H, post spacing, wind lateral force; outputs: brace axial force at each angle (30°, 35°, 40°, 45°, 50°, 55°, 60°); horizontal and vertical force components at column base; required brace section (tension capacity, compression capacity, slenderness KL/r at each angle); optimal angle selection table showing minimum material section at each angle for the input lateral force; graphical display of lateral stiffness contribution factor versus angle. Download PDF
• Lateral Stability Checklist — Structural verification checklist for lateral stability of solar mounting systems per ASCE 7-22: (1) unbraced frame drift calculation (δ = FH³/3EI) vs H/200 and H/400 limits; (2) bracing type selection (diagonal, X-brace, knee brace) with SFRS classification; (3) brace section slenderness check KL/r ≤ 200 (non-seismic) or seismic limit; (4) brace axial capacity vs design force (LRFD); (5) brace connection design force with and without Ω₀ amplification; (6) pile head moment demand with and without bracing; (7) SDC classification and CBF R factor documentation; formatted for AHJ submission. Download PDF
• Drift Calculation Template — Excel workbook for lateral drift calculation at each structural level: inputs: column section (E, I), column height H, post spacing, wind lateral force per column (from ASCE 7-22 wind load calculator), brace section (E, A, θ); outputs: unbraced frame drift δ_unbraced; braced frame lateral stiffness k_total; braced frame drift δ_braced; drift limit compliance flag (H/200 and H/400); seismic drift with C_d amplification; minimum brace section for drift compliance at input lateral force; sensitivity table showing required brace section versus post spacing and wind speed. Download XLSX

Frequently Asked Questions

Why is structural bracing important in solar mounting systems?

Solar mounting structures are inherently lateral-load-sensitive: they present large flat surfaces to horizontal wind, have above-grade heights that create overturning moments, and use minimized section geometry to reduce material cost — all of which maximize the ratio of lateral demand to lateral resistance. Without bracing, the only lateral resistance is column bending — a mode that is highly sensitive to column height (stiffness scales with H⁻³) and produces maximum stress at the pile head, where moment capacity may be the limiting factor. Bracing provides a supplementary lateral load path in axial tension or compression that is 5–15× stiffer per unit material than column bending, resolves pile head moment non-compliance, and changes the SFRS classification from R = 1.25 to R = 3.25 in seismic design — a 2.6× seismic demand reduction that frequently exceeds the cost of the bracing itself in SDC C–F environments.

Does adding bracing reduce the total wind load on a solar mounting structure?

No — bracing does not reduce the wind load (which is governed by atmospheric conditions and panel geometry per ASCE 7-22), but it reduces the structural demand at each individual member and connection by providing a more efficient load path. An unbraced column must resist the full wind lateral force in bending; a braced column resists only a fraction of that force in bending, with the remainder carried by the brace in axial tension or compression. The pile head moment demand also reduces dramatically — from F × H (full overturning moment) to F × k_column/k_total × H (the column’s proportional share of lateral stiffness). At the stiffness ratio achieved in the worked example above (29.96 kN/mm total vs 2.66 kN/mm column alone), pile head moment reduces to 8.9% of the unbraced value.

What is the optimal bracing angle for solar mounting structures?

The optimal bracing angle from horizontal is 35°–55°, with 45° providing the theoretical maximum lateral stiffness contribution per unit brace material. The efficiency metric — lateral stiffness contribution per unit axial force in the brace — equals sin θ × cos θ = sin(2θ)/2, which is maximized at θ = 45°. Practical constraints modify this: at 45°, the brace length for a 1.5 m column and 1.5 m base width is 2.12 m, which fits comfortably within the 3.0 m standard post spacing; at typical column heights of 1.2–1.8 m and post spacings of 2.0–3.0 m, the geometric constraint usually produces natural brace angles of 30°–55°, within the efficient design range. Brace angles below 30° should be avoided as they require long, slender brace members with poor compression slenderness ratios; angles above 60° should be verified for the increased vertical load component introduced at the foundation connection.

How does bracing affect seismic design category requirements?

Bracing changes the ASCE 7-22 seismic force-resisting system classification and the associated R factor: from cantilever column system (R = 1.25, Ω₀ = 2.5) to ordinary concentrically braced frame (R = 3.25, Ω₀ = 2.0). The R factor is the divisor in the base shear formula C_s = S_DS/(R/I_e) — so increasing R from 1.25 to 3.25 reduces the seismic design base shear by exactly 2.6×. This reduction cascades through the entire structural specification: lower base shear → smaller column sections needed for seismic demand → smaller connection bolts at Ω₀-amplified demand → lower pile lateral force → shallower pile embedment depth. In SDC D–F, this cascade of cost reductions typically exceeds the cost of the bracing members and connections, making the bracing addition a net cost-negative structural upgrade in high-seismic solar markets.

Can adding bracing allow the use of thinner structural sections?

Yes, through two independent mechanisms. First, reducing column bending demand: when bracing carries the majority of lateral force, the column bending moment at the base reduces to a fraction of the unbraced value — the required column section modulus (Z_req = M/f_y) reduces proportionally, potentially allowing one or two wall thickness grades thinner. Second, reducing effective unsupported length for buckling: if the brace connects to the column at mid-height, it provides lateral restraint that halves the effective length KL, increasing the critical buckling load by 4× and allowing a thinner-wall column section to satisfy the same axial compression plus bending interaction check. Both mechanisms are active simultaneously in a well-designed braced frame — the combination can produce column section reductions of 25–40% by section modulus that offset a significant fraction of the brace material cost.

Engineering Summary

• Structural instability — not material fracture — is the governing solar mounting failure mode in wind and seismic events; bracing prevents instability by converting the unresistable bending mechanism of an unbraced cantilevered frame into a stable triangulated structure where lateral load is carried in axial tension and compression — the most material-efficient structural mode available to linear members
• Bracing reduces unsupported length and therefore governs buckling capacity — mid-height bracing halves the effective column length and increases critical buckling load by 4× per Euler’s formula, enabling thinner wall sections to satisfy the same buckling limit state; for long-span configurations (post spacing ≥ 2.5 m) where buckling governs column specification, bracing produces net material savings that offset brace cost
• Bracing is essential for long-span utility-scale configurations at moderate-to-high lateral loads — at post spacing ≥ 2.5 m and V_ult ≥ 120 mph in Exposure C, unbraced frame lateral drift non-compliance is the standard outcome without explicit bracing; the threshold is lower in Exposure D coastal environments and in SDC C–F seismic sites; every project above these thresholds requires either bracing or explicit verification that the unbraced section is compliant
• Bracing changes seismic system classification from R = 1.25 to R = 3.25 — a 2.6× seismic base shear reduction that cascades through column, connection, and foundation specifications in SDC C–F; in high-seismic markets (California, Japan, Chile), the structural cost savings from this R factor change typically exceed the bracing material cost, making bracing addition a net cost-negative structural upgrade at the system level
