Modular Structural Systems for Solar Mounting: Engineering Design, Assembly Efficiency & Structural Optimization Guide

Engineering Context

Why Modular Design Is Changing Solar Structural Engineering

The traditional solar mounting installation workflow — deliver structural sections to site as individual components (rail lengths, column sections, bolts, washers), cut and drill to field measurements, assemble connections one bolt at a time at each post location — was inherited from general steel construction practice and is structurally adequate but labor-inefficient for the repetitive, high-volume, geometrically regular installation environment of utility-scale solar. A modular structural workflow replaces on-site component assembly with factory-prefabricated subassemblies: post-to-column subassemblies with pre-installed base plates, pre-torqued bolts, and factory-verified structural connections arrive at site ready for pile-head attachment; rail-and-panel-clamp subassemblies arrive with module attachment hardware pre-positioned at factory-programmed spacing. The structural engineering consequence is not a reduction in code compliance — the modular subassembly must satisfy the same ASCE 7-22 (or regional equivalent) wind, snow, and seismic design requirements as the field-assembled component equivalent. The engineering consequence is a shift in quality control: connection torque verification, bolt pattern alignment, and structural geometry verification are performed under controlled factory conditions rather than on-site in variable weather, which consistently produces higher assembly quality at lower inspection cost. The span design implications that govern modular bay sizing — particularly the interaction between module span, section grade, and deflection compliance — are developed in the long span structural design resource.

Difference Between Modular and Conventional Frame Systems

Conventional solar mounting frame systems are designed as structural specifications — a set of section sizes, connection types, and load assumptions that define a structurally compliant system, leaving the assembly sequence, fabrication tolerances, and installation method to the site team. Modular solar mounting frame systems are designed as product engineering systems — the structural specification and the assembly sequence are co-designed from the outset, with structural member dimensions, connection hole patterns, and subassembly boundaries all specified to enable a defined factory fabrication and site installation workflow. The key engineering differences: (1) connection design in conventional systems is optimized for minimum structural material; connection design in modular systems is optimized for minimum assembly operations — preferring bolted over welded connections, standard bolt patterns over project-specific patterns, and slip-critical connections (factory torqued) over snug-tight connections (field-verified); (2) section selection in conventional systems can vary per-member based on individual load demands; section selection in modular systems uses a standardized section family with a manageable number of grades, accepting minor overdesign at lightly loaded members in exchange for procurement and fabrication simplicity. The structural connection design principles that govern both conventional and modular joint design — including bolt capacity, bearing limit states, and seismic overstrength requirements — are detailed in the structural connection design resource.

Engineering Fundamentals

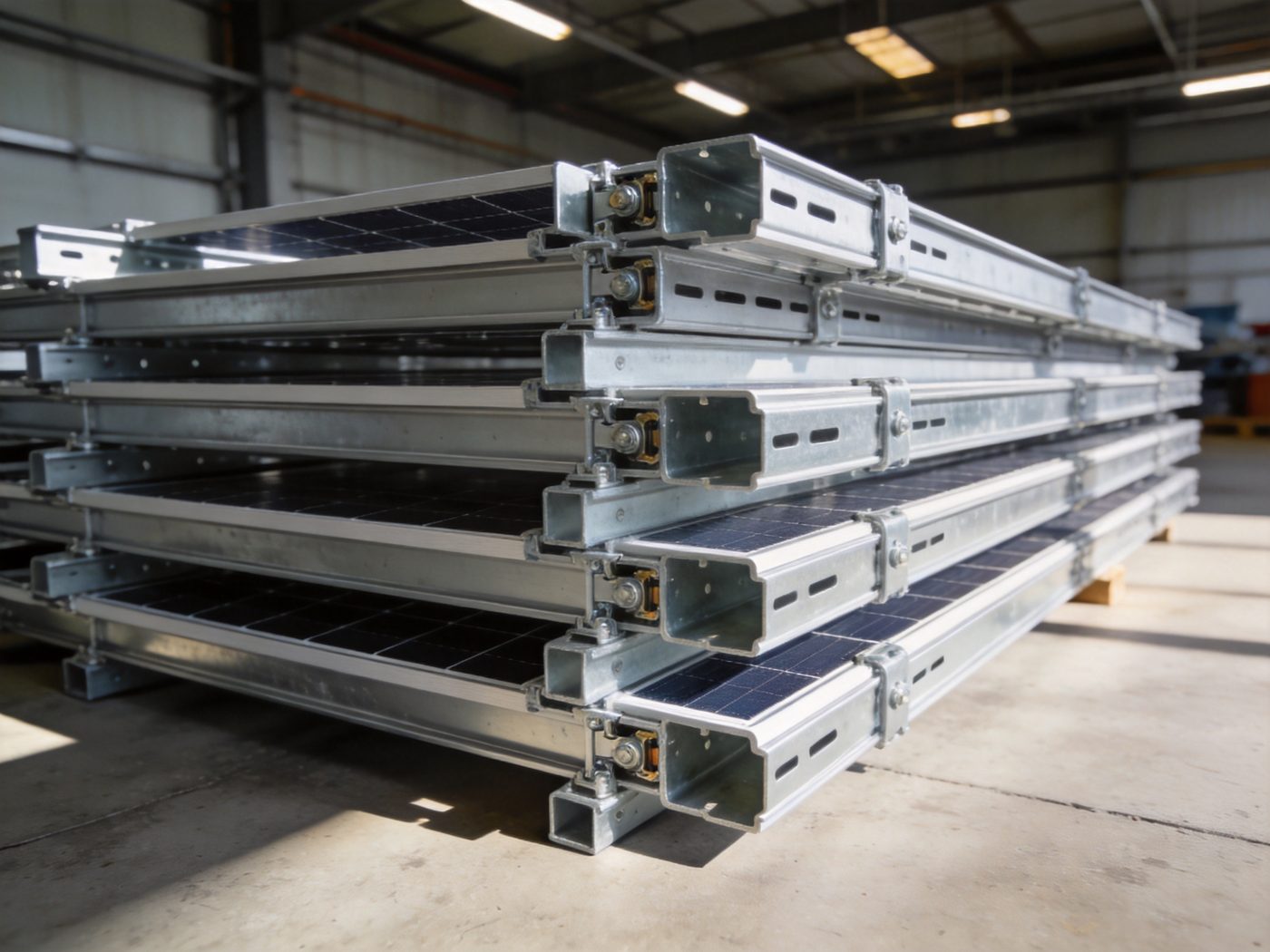

What Is a Modular Structural System? Standardized Components and Interchangeable Modules

A modular structural system for solar mounting is defined by three engineering characteristics: (1) Standardized component vocabulary: the system uses a fixed set of structural section profiles (typically 3–6 section grades across rail, column, and brace roles) from which all structural configurations within the system family are assembled — no project-specific custom sections are required within the validated application range; (2) Interchangeable module geometry: the fundamental structural subassembly (the “module bay” — one post spacing × one table width) is geometrically identical for all rows in a project, enabling factory production of identical subassemblies that can be installed in any row position without site-specific modification; (3) Defined structural boundary conditions: the module bay is structurally self-consistent — all internal connections within the module bay are factory-verified; the interface connections between module bays (rail splice joints, module-to-pile connections) are standardized and site-installed with a defined torque and bolt specification. The structural engineering validation of a modular system — demonstrating that the standardized section vocabulary provides code-compliant structural performance across the range of wind speeds, snow loads, seismic demands, and span lengths within the system’s application envelope — is the core engineering deliverable that distinguishes a structurally certified modular system from an assembly of convenient standard sections without structural validation.

Load Path in Modular Systems: Structural Continuity Across Module Boundaries

The structural load path in a modular solar mounting system follows the same chain as a conventional system — wind and snow loads on panels → panel-to-rail connection → rail bending to column support → column to pile head → pile to soil — but the module boundary introduces a structural discontinuity at every inter-module rail splice joint that must be explicitly designed. At a rail splice joint between two module bays, the moment continuity of the rail is interrupted: a standard butt splice with two bolt rows transfers shear force but transfers zero bending moment (a pin condition); a lap splice with adequate bolt pattern and clamping length can transfer partial moment; a fully moment-continuous splice with thick cover plates and sufficient bolt count can transfer the full design moment. Most modular solar mounting systems use shear-transferring rail splices (pin condition) at module boundaries — treating each module bay as a simply supported span rather than a continuous beam — which is structurally conservative (maximum bending moment M = wL²/8 at mid-span) but allows module interchangeability and simplifies factory fabrication. The lateral load path in modular systems requires particular attention: the bracing that provides lateral stability to the structural frame must be incorporated within the module bay (single-diagonal or X-brace within the module bay geometry) or at a defined inter-module braced frame location with compatible connection details across the module interface. The bracing design framework — including the lateral stiffness requirements that govern brace sizing in modular configurations — is developed in the structural bracing resource.

Tolerance and Assembly Accuracy: The Engineering Foundation of Modular Efficiency

The efficiency benefit of modular solar mounting systems — faster site installation, fewer assembly errors, more predictable labor consumption — is entirely dependent on achieving consistent dimensional tolerance in factory-fabricated modules. The critical tolerance parameters for modular solar mounting subassemblies are: (1) Column-to-base-plate hole pattern: ±1.0 mm from nominal bolt circle center to pile-head attachment; tolerance accumulation across the pile head → base plate → column → rail stack must remain within the panel clamp’s lateral adjustment range (typically ±10–15 mm at panel rail elevation); (2) Rail hole pattern spacing: ±1.5 mm between panel clamp attachment holes along the rail length; accumulated error across a 6-panel table row (6 × 1.0 m module width = 6.0 m) must remain within the panel frame’s inter-clamp tolerance (typically ±3 mm); (3) Module bay end-to-end length: ±2.0 mm for rail splice joint alignment; accumulated row-length error across 10 module bays (10 × L module) must remain within the tracker drive mechanism’s or perimeter cable management system’s accommodation range. CNC-controlled factory punching and cutting achieves ±0.5–1.0 mm on individual section operations, which compounds to ±2–5 mm at the assembled module bay level — within all three tolerance requirements above. Site-level cutting and drilling with handheld equipment achieves ±3–5 mm per operation, which compounds to ±15–30 mm at the assembled module bay level — frequently exceeding tolerance requirements and producing rework.

Impact of Module Standardization on Section Optimization

The section standardization inherent in modular system design produces a trade-off between per-member structural optimization and system-level cost optimization: a custom-designed system can specify the minimum compliant section for each structural member (minimizing total steel tonnage), while a modular system uses a fixed section grade for each structural role across all project positions (accepting minor overdesign at lightly loaded members). In practice, the material cost premium from section standardization overdesign (typically 5–12% additional steel tonnage at lightly loaded positions) is more than offset by the procurement cost saving from SKU reduction (10–20% unit price reduction from volume purchasing of a reduced section family) and the fabrication cost saving from tooling standardization (single tooling setup for one section grade versus retooling for each custom section). The specific interaction between section wall thickness grades and the structural demand range across a modular system’s application envelope — and the methodology for selecting the minimum standardized section family that maintains compliance across the full application range — is detailed in the material thickness and strength resource.

Design Standards & Code Compliance: Modularity Does Not Reduce Structural Requirements

Modular solar mounting systems are subject to the same structural design standards as conventional custom-fabricated systems — there is no code provision that reduces load requirements, deflection limits, or connection design requirements for factory-prefabricated systems. ASCE 7-22 defines load demands by site location and structural geometry, without reference to the manufacturing origin (factory vs field) of the structural system. IBC 2024 Section 1704 (Special Inspections) actually imposes additional quality assurance requirements for pre-fabricated structural components used in construction: structural members and connections produced in a manufacturing facility are typically subject to a quality control program that must be approved by the building official as a condition of accepting the factory fabrication in lieu of field inspection. AISC 360-22 Chapter N (Quality Control and Quality Assurance) and Chapter J (Design of Connections) apply to structural connections in both factory-fabricated and field-assembled configurations — factory bolted connections must achieve the same minimum bolt pretension and bearing/slip capacity as field-installed connections. Eurocode 3 EN 1993-1-8:2005 (Design of Joints) and the associated fabrication standard EN 1090-2 (Technical Requirements for Steel Structures) govern bolted and welded connection design and fabrication quality for modular solar mounting systems in European markets — EN 1090-2 execution class EXC2 (the default for structural steel components) imposes dimensional tolerance, welding quality, and bolt installation requirements applicable to factory-fabricated solar mounting modules.

The practical implication for modular system engineering: a modular solar mounting system must be accompanied by a complete structural calculation package demonstrating code compliance for each section in the modular series, at all combinations of span, tilt, wind speed, snow load, and seismic demand within the system’s stated application range. A “modular system” sold without this structural validation package is not a structurally certified modular system — it is an assembly of standard sections that may or may not be structurally adequate for any specific deployment site, regardless of its assembly efficiency.

Engineering Variable Comparison Table

Engineering Calculation Insight: Module Span Reduction from 5.0 m to 4.0 m

The following calculation demonstrates the structural and material consequence of optimizing modular bay width for a Middle East wind-governed project — showing why the span selection for the modular bay is the most consequential structural engineering decision in modular system product design.

Design inputs: Location: Abu Dhabi, UAE (V_ult-equivalent = 95 mph per ASCE 7-22, Exposure D flat desert terrain; p_g = 0.0 kPa; seismic: very low, SDC A); Rail: standard utility-scale ground mount; tilt 25°; tributary width 1.75 m; design wind pressure at array interior: q_h × G_f × C_N = 18.4 psf × 0.85 × 0.80 = 12.5 psf (0.60 kPa) downward equivalent at interior panels; at array edge: q_h × G_f × C_N(edge) = 18.4 × 0.85 × 1.55 = 24.2 psf (1.16 kPa) upward net uplift.

Design load (uplift governs at edge, LRFD):

\[ w = 0.9 \times 1.16 \times 1.75 = 1.83 \ \text{kN/m (governing uplift at array edge)} \]

At module bay width L = 5.0 m:

\[ M_{5} = \frac{1.83 \times 5.0^2}{8} = 5.72 \ \text{kN·m} \] \[ Z_{\text{req},5} = \frac{5.72 \times 10^6}{350} = 16{,}343 \ \text{mm}^3 \] \[ \delta_5 = \frac{5 \times 1.83 \times 5000^4}{384 \times 205{,}000 \times I_5} \]

For L/240 = 5,000/240 = 20.8 mm compliance: I_req,5 = 5 × 1.83 × 5,000⁴/(384 × 205,000 × 20.8) = 108.3 cm⁴. Minimum compliant section: 100×80×3.0 mm RHS (I = 128 cm⁴ ✓, Z = 32.1 cm³ ✓); mass = 8.72 kg/m.

At module bay width L = 4.0 m (25% span reduction):

\[ M_4 = \frac{1.83 \times 4.0^2}{8} = 3.66 \ \text{kN·m} \] \[ Z_{\text{req},4} = \frac{3.66 \times 10^6}{350} = 10{,}457 \ \text{mm}^3 \]

Moment reduction: M₄/M₅ = (4²/5²) = 0.64 — 36% bending moment reduction from 25% span reduction. For L/240 = 4,000/240 = 16.7 mm: I_req,4 = 5 × 1.83 × 4,000⁴/(384 × 205,000 × 16.7) = 44.4 cm⁴. Minimum compliant section: 80×60×2.5 mm RHS (I = 40.4 cm⁴ — marginal); 100×60×2.5 mm RHS (I = 60.2 cm⁴ ✓, Z = 20.3 cm³ ✓); mass = 5.81 kg/m.

Material consequence: Rail section grade drops from 100×80×3.0 mm (8.72 kg/m) to 100×60×2.5 mm (5.81 kg/m) — a 33% mass reduction per metre of rail. At 200 km rail length per 50 MWp project: total rail mass reduction = 200,000 m × (8.72 − 5.81) kg/m = 582,000 kg = 582 tonnes. At $2.2/kg steel price: $1.28M material cost saving from module bay width reduction of 1.0 m. Additional pile cost: 50 MWp × (1/4.0 − 1/5.0) piles/m × average row length 100 m × 2 rails/row × cost per pile $55 = approximately $275,000. Net structural cost saving from 5.0 m → 4.0 m module bay: $1.28M − $0.275M = $1.005M, or approximately $0.020/W at 50 MWp — a significant commercial outcome from a single modular design parameter decision. The interaction between tilt angle and the C_N wind pressure coefficient that governs the design wind load driving this calculation is quantified in the wind load calculation resource.

Real Engineering Case: Modular System Deployment, High-Wind Middle East Ground Mount

Project Profile

Location: Al-Qassim Region, Saudi Arabia (V_ult-equivalent = 100 mph, Exposure D desert terrain; p_g = 0.0 kPa; S_DS = 0.06 g, SDC A; ISO 12944 C2–C3 — dry inland, low humidity) | System: 80 MWp fixed-tilt ground-mounted installation, 25° tilt, project site accessible only by 3-hour desert road from nearest major city; local labor availability: skilled steel erection crew unavailable locally; on-site crew: 45 unskilled/semi-skilled laborers from local workforce for which the ground-mounted solar mounting systems installation framework applies | Primary challenge: Standard component-level installation approach (deliver loose sections, field-assemble) estimated at 9.2 months for structural installation at available crew size and skill level; project schedule required 7.0 months for structural installation to meet grid connection deadline.

Engineering Challenge

The site’s labor constraint was not a procurement failure — it was a structural engineering design failure: the original specification used a component-level structural assembly that required skilled erection sequence knowledge, on-site torque verification of 14 bolts per column-to-rail joint, and on-site section alignment at each post location. At 45 laborers and a demonstrated rate of 3.2 column-to-rail assemblies per laborer-day, the installation rate was 144 structural column-to-rail joints per day. The project required 38,400 column-to-rail joints (80 MWp × 480 joints/MWp) — an installation duration of 267 working days = 10.7 months at this rate, exceeding both the original 9.2 month estimate (which assumed 15% productivity improvement from crew learning) and the 7.0 month target.

Structural Adjustment and Outcome

The structural specification was converted to a factory-modular system: column-to-base-plate subassemblies with pre-installed and factory-torqued M16 Grade 8.8 bolts (6 bolts per base plate, torqued to 195 N·m at factory, confirmed with torque-indicating washers) were fabricated in the Saudi Arabia factory, delivered to site as pre-assembled 2-bay modules. Site installation reduced to: (1) attach base plate to pile head with 4 M20 bolts — 8 minutes per column; (2) install rail splice connector between pre-assembled modules — 4 minutes per splice. At 45 laborers and a demonstrated rate of 6.8 module base plate attachments per laborer-day (compared to 3.2 full column-to-rail assemblies), the installation rate increased to 306 base plate attachments per day versus 144 original column-to-rail assemblies per day — a 112% throughput increase. Installation duration: 38,400 attachments / 306 per day = 125 working days = 5.0 months — 2.0 months ahead of target. The connection hardware specification upgrade — from standard carbon steel bolts to stainless steel components A2-70 for all exposed inter-module rail splice connections — was implemented after site corrosion assessment determined that occasional condensation at large diurnal temperature variation (35°C day/10°C night) elevated effective atmospheric humidity above C2 classification at exposed metal surfaces; the stainless splice hardware added $0.0008/W but eliminated the risk of crevice corrosion at lap splice contact surfaces over the 25-year design life. Total installation labor reduction versus component-level specification: 22%; structural code compliance: unchanged from original specification — all sections and connections verified to same ASCE 7-22 load demands at same V_ult and exposure category.

Failure Risks & Common Engineering Mistakes

Overstandardizing Module Design Across Incompatible Climate Zones

The most consequential engineering error in modular solar mounting system design is developing a single global module specification that nominally covers all climate zones — and deploying it to markets where its structural section grades are inadequate for the governing load. The Canadian p_g = 2.5 kPa snow market requires rail sections with I ≥ 150–200 cm⁴ at standard 2.5 m module bay widths; the Middle East V_ult = 95 mph market requires rail sections with I ≈ 44–65 cm⁴ at standard 4.0 m module bay widths. A module series designed at the Middle East specification and deployed to Canada without structural recalculation will produce rail bending non-compliance of 200–400% in section modulus — a potentially catastrophic structural failure risk under heavy snow accumulation. Regional climate adaptation is not optional in modular system design — it is the structural engineering constraint that determines the section grade and bay width for each market series. Each climate market requires a validated modular series or a validated configuration within a multi-climate modular family with documented application limits.

Ignoring Corrosion Category in Module Material Specification

Modular solar mounting systems are typically specified with a standard coating system (HDG 85 µm per EN ISO 1461 for structural steel sections; standard zinc-phosphate primer for hardware) that is adequate for inland low-corrosion deployments (ISO C1–C3) but inadequate for coastal (ISO C4–C5) and tropical high-humidity (ISO C4) environments. The factory-applied coating system is a fixed specification in modular systems — unlike field-fabricated systems where coating can be specified project-by-project. The engineering error is shipping the standard inland coating specification to a coastal project because the module is “standard” — without verifying that the standard coating achieves 25-year service life at the project’s ISO corrosion category. The zinc coating depletion rates by ISO category and the supplementary coating system specifications required for C4–C5 modular solar mounting systems are detailed in the corrosion protection resource.

Weak Bolted Connections at Module Boundary Splice Joints

Inter-module rail splice connections are the most frequently under-designed structural connection in modular solar mounting systems — because they are field-installed (and therefore subject to field torque accuracy) rather than factory-installed (factory-controlled torque), and because their structural demand in shear under wind and snow loading is often computed without accounting for combined shear-plus-tension interactions when wind uplift and gravity loads act simultaneously. The minimum bolt shear capacity at a module splice joint must exceed the maximum rail shear force V = wL/2 (half the full module bay load) at the LRFD factored load level — typically 5–12 kN depending on load intensity and bay width. M10 Grade 8.8 bolts in single shear have φV_n = 19.8 kN per bolt (AISC 360-22 LRFD) — generally adequate for one or two M10 bolts at standard solar mounting rail shear demands. However, at seismic sites requiring Ω₀ = 2.0 amplification for splice connection design force, two M10 bolts in single shear may be undersized — requiring M12 Grade 8.8 bolts or a third bolt row. The complete bolt pattern verification methodology for module splice connections — including combined shear plus tension interactions and seismic overstrength requirements — is in the galvanization methods resource for coating specification, and the structural connection design resource for bolt pattern capacity.

System Integration Impact

Modular System Impact on Tilt Angle Configuration

Tilt angle in modular solar mounting systems is typically implemented through a finite set of adjustable column heights or leg extension settings that produce discrete tilt angles within the module family’s design range (typically 10°–40° in 2.5° or 5° increments). Each tilt angle setting changes the wind load C_N coefficient, the snow slope factor C_s, and the column height above grade — all three of which affect structural demand at the rail and column level. The modular system’s structural validation package must confirm that the full section family is code-compliant at each tilt angle configuration within the stated range, not just at the reference design tilt. The tilt angle interaction with wind and snow structural demand — and the tilt optimization methodology that identifies the energy-yield-optimal and structurally-efficient tilt angle for each climate zone — is developed in the tilt angle optimization resource.

Modular System Impact on Seismic Performance

Modular solar mounting systems deployed in seismic markets (California SDC D–F, Japan, Chile) must be classified under ASCE 7-22 Table 12.2-1 as a specific seismic force-resisting system — the R factor applied in the seismic base shear calculation depends on whether the modular frame is classified as a cantilever column system (R = 1.25) or a concentrically braced frame (R = 3.25). A modular system with bracing modules at defined inter-module intervals that are factory-prefabricated with Ω₀-designed connections qualifies as CBF and achieves R = 3.25 — a 2.6× reduction in design seismic base shear relative to the unbraced system. A modular system without bracing modules, or with bracing modules whose connections are not designed to Ω₀ amplification, may not qualify for CBF classification and must use R = 1.25. The seismic R factor decision, and the bracing module connection specification requirements for CBF classification in SDC C–F, are detailed in the seismic design resource.

Modular System Impact on Snow Load Distribution

Snow load distribution in modular solar mounting systems is affected by the inter-module rail splice geometry: a shear-only splice connection produces a moment release at the module boundary that creates a simply supported span condition for each module bay, with zero moment transfer across the splice and maximum deflection at mid-bay. A partial moment-transfer splice reduces peak mid-bay deflection but introduces moment demand at the splice connection. The standard simply supported module configuration produces symmetric snow load distribution per module bay — each bay’s snow accumulation is carried independently to the two boundary columns. However, inter-row snow drift (per ASCE 7-22 Section 7.7) can produce asymmetric loading at leeward module bays in the downstream rows, with drift surcharge concentrated in the first 3–5 m downwind of the inter-row gap — a loading condition that may not be captured by the uniform simply supported module design load and that requires explicit verification in high-snow markets. The inter-row drift calculation and its structural implications for modular bay design in high-snow deployments are covered in the snow load considerations resource.

Engineering Decision Guide

When Modular System Design Is Structurally and Commercially Recommended:

• Large-scale projects ≥ 10 MWp with repetitive row geometry on flat or gently sloping terrain — at this scale, the fixed cost of modular system structural validation ($50,000–$150,000 per modular series across all configurations) is amortized across sufficient project scale to produce positive net cost impact; modular installation efficiency gains are maximum at high repetition counts
• High-labor-cost regions (Western Europe: $45–$75/hour skilled erection labor; Australia: $55–$85/hour; Japan: $40–$65/hour; North America: $50–$90/hour) — the per-module labor saving of 30–50 minutes translates to $25–$75 per module bay; at $0.003–$0.005/W labor rate, this represents $0.003–$0.005/W structural installation cost saving per watt
• International export systems where shipping cost optimization matters — modular system nesting geometry reduces shipping volume per watt by 25–50% versus equivalent component-level shipment, producing meaningful per-watt shipping cost reductions on long-distance international routes
• Projects where installation schedule certainty is commercially important — modular systems produce more predictable daily installation rates with lower variance than component-level systems, because the module-level assembly operations are standardized and repetitive without the variability of field measurement and fabrication

When Custom Design May Outperform Modular Standardization:

• Highly irregular terrain with frequent pile height variation (>300 mm between adjacent posts) — modular systems require all piles to be driven to a tolerance that places the pile head within the base plate’s height adjustment range; on irregular terrain requiring wide pile height variation, custom-designed systems with individually sized column lengths may be more economical than modular base plate adjustment ranges
• Complex seismic requirements in SDC D–F with project-specific soil conditions — SDC D–F projects require site-specific soil investigation (Site Class determination from boring data), site-specific S_DS and S_D1 spectral acceleration values, and potentially site-specific seismic response analysis; a custom-designed system can optimize section and connection specifications specifically for the project’s seismic demand profile; a modular system’s section grades are designed for a range of seismic demands and may be conservatively sized for a specific project’s lower seismic demand
• Very small projects (<2 MWp) where the fixed engineering cost of modular system validation does not amortize to a cost-competitive per-watt value relative to standard component-level specification from existing structural calculation packages

Cost & Lifecycle Impact

The complete per-watt cost breakdown for modular versus component-level structural systems — including structural hardware, installation labor, engineering, and shipping cost by project scale and climate zone — is provided in the solar mounting cost per watt analysis resource.

Related Engineering Topics

• Structural Connection Design — Bolted joint capacity for module boundary splice connections; bolt grade and size selection; Ω₀-amplified connection design for seismic modular frames; slip-critical versus bearing-type connection specifications for modular systems
• Long Span Structural Design — Module bay width optimization as the fundamental modular design parameter; bending moment and deflection scaling laws that govern rail section grade selection at each bay width; span-section-pile cost optimization methodology for modular series design
• Material Thickness and Strength — Section grade family selection for modular system standardization; section property tables (Z, I, mass) for standard RHS and C-channel profiles used in modular solar mounting series; wall thickness optimization for climate-specific modular section families
• Structural Bracing — Bracing module design and integration within modular row layout; CBF classification requirements for seismic modular systems; bracing module connection specifications at factory-verified and field-installed interfaces
• Wind Load Calculation — Design wind pressure determination for modular bay section selection; wind load as the primary design driver for module series configuration in wind-governed markets; C_N coefficient selection at modular system tilt angle range
• Seismic Design — R factor classification for modular braced-frame systems in SDC C–F; seismic base shear per module bay as a function of bay width and seismic weight; Ω₀-amplified design for factory-prefabricated seismic connection modules
• Corrosion Protection — Factory coating specification for modular sections by deployment climate; ISO corrosion category determination for coastal modular system deployments; supplementary coating system specification for C4–C5 modular hardware
• Aluminum vs Steel — Material selection for modular section families: aluminum (lower mass, higher corrosion resistance, lower E requiring deeper sections for equal deflection) versus steel (lower cost per unit strength, higher E for deflection-governed modular spans); modular system section design implications of E = 70,000 vs 205,000 MPa

Technical Resources

• Modular Layout Checklist — Project-level checklist for modular system deployment: (1) project scale verification (>10 MWp threshold for modular economics); (2) terrain slope assessment (modular system compatible range: 0–8% grade without custom pile height specification); (3) module series climate compatibility verification (wind zone, snow zone, seismic SDC vs module series application range); (4) corrosion category verification (site ISO category vs module coating system rating); (5) pile head height tolerance verification (site soil driving accuracy vs module base plate adjustment range); (6) shipping dimension check (module subassembly length vs container dimension and site access road limit); (7) crew training requirement assessment (modular installation sequence training: typically 0.5 days per crew of 5); formatted for EPC project manager and structural engineer joint review. Download PDF
• Assembly Optimization Sheet — Installation productivity analysis tool for modular versus component-level specification: inputs: project size (MWp), number of structural bays per MWp, local skilled labor rate ($/hour), local unskilled labor rate ($/hour), crew size, climate zone; outputs for both modular and component-level systems: estimated daily installation rate (bays/day), total installation labor days, total installation labor cost, structural hardware unit cost ($/W), total structural + installation cost ($/W), breakeven project scale for modular premium recovery; includes sensitivity analysis for crew size and labor rate variability. Download XLSX
• Span vs Module Size Matrix — Design selection matrix cross-referencing module bay width (2.0–5.0 m in 0.5 m increments) versus site design load (wind V_ult 85–145 mph; snow p_g 0–3.0 kPa) for three module series: wind-optimized, snow-optimized, seismic-compliant; each cell shows: governing limit state (strength/deflection); minimum compliant section from standard library; section mass per metre; pile count per MWp; and overall structural cost index (relative, baseline = 3.0 m bay at V_ult = 110 mph, p_g = 0.5 kPa); optimal bay width highlighted for each climate combination; note for cells where no standard section achieves compliance (requires custom section or reduced bay width). Download XLSX

Frequently Asked Questions

What is a modular solar mounting structure?

A modular solar mounting structure is a solar mounting system engineered as a set of factory-prefabricated, standardized structural subassemblies — typically consisting of post-to-column modules, rail-and-clamp modules, and bracing modules — that are delivered to site as verified assemblies and connected at site using standardized inter-module connections. The defining engineering characteristics are: standardized section vocabulary (fixed set of structural section grades that cover the full application range); interchangeable module geometry (all module bays of the same type are dimensionally identical and interchangeable at any row position); factory-controlled assembly quality (critical structural connections factory-torqued to specification); and defined structural boundary conditions (inter-module connections standardized for maximum site installation simplicity within the structural validation framework).

Does modular design reduce structural strength or code compliance?

No — modular design changes the manufacturing and assembly process for the structural system, not the structural performance requirements. A modular solar mounting system is subject to the same ASCE 7-22, IBC 2024, Eurocode 1/3/8, or regional equivalent structural requirements as a custom-designed field-assembled system. The section grades, connection capacities, deflection limits, and seismic design requirements are identical. In practice, modular systems with factory quality control consistently produce higher connection quality (better bolt torque accuracy, better dimensional tolerance) than equivalent field-assembled systems — which may improve structural performance above the code-required minimum, not reduce it.

How does modularization reduce solar mounting installation cost?

Modularization reduces installation cost through three mechanisms: (1) labor efficiency — factory pre-assembly converts 20–25 field operations per module bay (component-level assembly) to 6–8 field operations (module attachment); at typical solar mounting labor rates, this reduces structural installation labor cost by 15–35%; (2) skill requirement reduction — field connection torquing, bolt pattern
