Replacing Damaged Components in Solar PV Racking Systems
An engineering framework for the safe extraction, load redistribution, and structural replacement of deformed, fatigued, or corroded components within ground-mount and rooftop solar mounting arrays.
| Maintenance Type | Corrective Structural Maintenance |
| Trigger Condition | Component deformation, severe corrosion loss, or impact damage |
| Risk Level | High if primary structural elements (rails, posts) are affected |
| Applicable Systems | Ground Mount & Rooftop PV Arrays |
| Primary Objective | Restore original load-bearing capacity and ensure system safety |
When Component Replacement Is Required in PV Mounting Systems
Solar racking components are engineered to withstand decades of cyclical stress, but they possess finite elastic limits. When an environmental load or chemical attack pushes a steel or aluminum profile past this limit, the component yields permanently. At this stage, tightening a bolt or applying a coat of paint is no longer a viable engineering solution; the physical integrity of the metal has been fundamentally destroyed, necessitating immediate physical replacement.
The most insidious trigger for replacement is section loss from corrosion. When rust consumes the base metal of a galvanized post or rail, the profile’s moment of inertia drops drastically, rendering it unable to support the weight of the modules or resist aerodynamic drag. Conversely, sudden environmental events trigger immediate mechanical failure. A microburst can cause severe wind uplift damage, snapping module clamps or tearing the threads off structural bolts. In northern climates, heavy snow load overstress frequently results in permanent structural deflection, where a horizontal rail sags and refuses to return to its original shape even after the snow melts.
Ignoring a yielded component is incredibly dangerous. A single bent rail shifts its designated load onto adjacent, unprepared brackets, triggering a cascading structural failure across the array row. As outlined in our Solar PV Racking System Maintenance Guide, timely corrective action prevents long-term structural degradation and ensures a localized failure does not escalate into a multimillion-dollar array collapse.
Common PV Racking Components That May Need Replacement
Corrective maintenance typically targets four specific areas of the racking architecture, each requiring a distinct extraction and replacement protocol.
1. Fasteners & Bolts
Fasteners are the most frequently replaced items in any mounting system. Bolts subjected to continuous vibration will eventually suffer thread galling or bolt-hole elongation, permanently losing their clamping tension. Additionally, galvanic corrosion can seize a nut to a bolt, requiring it to be cut off. Routine verification and replacement of fatigued hardware is detailed in our PV Racking Fastener Torque Check Procedures.
2. Rails & Structural Beams
Horizontal purlins and rails bear the direct brunt of gravity loads and wind uplift. When a rail exhibits a permanent mid-span sag or twists along its longitudinal axis, its elastic capacity is exhausted. Replacing a primary rail is a major structural intervention that requires careful planning, as outlined in our Structural Integrity Assessment for Solar PV Racking Systems, to ensure the array does not collapse during the extraction process.
3. Posts & Foundations
Vertical support posts require replacement if they have been struck by heavy machinery (e.g., tractors or mowers) or if soil erosion has permanently exposed their subterranean sections to rapid oxidation. Replacing a driven pile or ground screw requires specialized heavy equipment and a complete recalibration of the array’s height and tilt angle.
4. Corrosion-Damaged Components
Any bracket, splice, or base plate that exhibits heavy, flaking red rust with measurable thinning of the steel must be swapped out. Identifying which rusted parts can be wire-brushed and which must be scrapped relies on the protocols defined in our Corrosion Detection and Prevention for Racking Systems.
Safe Replacement Procedure for Damaged Racking Components
Replacing a structural member in a live, fully loaded solar array is a high-risk operation. The following engineering workflow must be strictly adhered to.
1. Damage Assessment & Load Verification
Before touching a wrench, an O&M engineer must assess the compromised component and determine how much load it is currently holding. If a rail is severely buckled, the adjacent rails are likely supporting the extra weight. The technician must map the current load path and document the exact part numbers required for a 1:1 OEM replacement. Never substitute a lighter gauge steel or a different aluminum alloy.
2. Structural Load Redistribution Planning
You cannot simply unbolt a primary structural member without supporting the weight above it. The maintenance team must deploy temporary shoring—such as adjustable hydraulic jacks or heavy-duty cribbing—to hold the solar modules and adjacent rails in their correct geometric position. In areas prone to sudden gusts, temporary lateral bracing must be installed to prevent the array from racking sideways while the damaged component is missing. Preparing for dynamic weather during repair is covered in our High Wind Maintenance for PV Racking Systems.

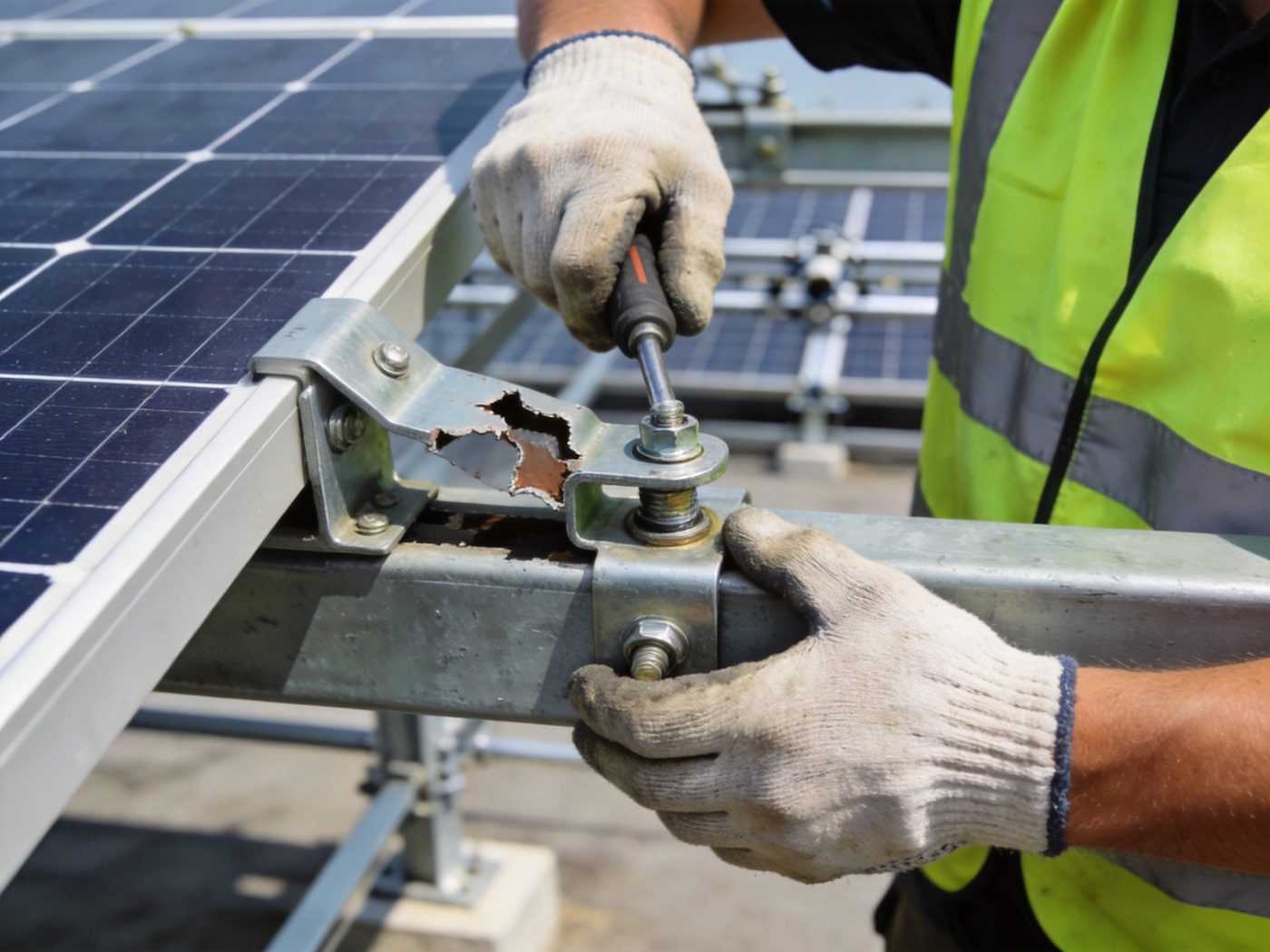

3. Component Removal & Replacement Installation
Once the load is safely transferred to the temporary shoring, the damaged component can be unbolted or carefully cut away. The mounting surfaces on the adjacent, healthy components must be wire-brushed clean of debris and rust. The new OEM component is then slotted into place. Fasteners should be threaded by hand initially to ensure proper alignment without cross-threading, before utilizing power tools.
4. Torque & Alignment Re-Verification
After the new component is installed and the temporary shoring is removed, the entire bay must be re-leveled using a laser transit. Every bolt involved in the repair must be tensioned to the manufacturer’s exact specification using a calibrated torque wrench. Finally, the repaired section should undergo a complete visual sweep as defined in the Routine Inspection Checklist for Solar PV Racking Systems to ensure full operational compliance.
| Component Type | Damage Indicator | Replacement Action |
|---|---|---|
| Bolt / Fastener | Severe corrosion / Stripped threads | Cut/remove, replace with OEM spec & re-torque |
| Horizontal Rail | Permanent mid-span deflection / Twist | Shore array, remove panels, extract & reinstall new rail |
| Vertical Post | Impact damage / Severe foundation settlement | Engineering review required; extract post & re-drive foundation |
| Splice / Bracket | Hairline cracking / Heavy rust flaking | Support adjacent rails, replace component, verify alignment |
Engineering Considerations Before Component Replacement
Corrective maintenance is a localized construction project. The primary engineering consideration is maintaining load path continuity. When a purlin is removed, the wind uplift force acting on the modules above it must be explicitly accounted for by the temporary support structure. If the array is not properly shored, a sudden 30 mph gust during the repair process can turn the disconnected modules into a dangerous sail, resulting in severe injury and catastrophic equipment damage.
Furthermore, replacing components must maintain the system’s structural balance. If an EPC replaces a damaged lightweight aluminum clamp with a heavy, mismatched galvanized steel bracket, the galvanic potential between the two metals will trigger rapid corrosion. Finally, any replacement of primary structural members (like posts or main beams) typically requires compliance verification from a licensed Professional Engineer (PE) to ensure the racking system’s original structural permit and warranty remain valid.
Environmental Factors That Accelerate Component Failure
Different climates destroy solar racking in different ways, dictating which components an O&M team should keep in their local spare parts inventory.
High Wind Damage
In hurricane zones or areas prone to microbursts, the aerodynamic flutter of the panels transfers immense, rapid cyclical stress into the module clamps and structural splices. These components frequently suffer fatigue cracking or fastener pull-out. Preparing a rapid-response replacement strategy for these specific parts is critical, as detailed in our High Wind Maintenance guide.
Snow & Ice Overload
In northern latitudes, the sheer gravity of accumulated, wet snow will frequently overwhelm the elastic limit of horizontal rails, causing them to permanently bow downward. Additionally, the expansion of ice inside tubular steel posts can cause the post to rupture at the seams. Mitigation and recovery strategies for these gravity-induced failures are found in Snow & Ice Maintenance for PV Mounting Systems.
Corrosion-Prone Environments
Coastal solar farms suffer from chloride-induced pitting, which eats through base plates and structural fasteners at an alarming rate. In these C4/C5 environments, O&M teams must frequently cut away and replace rusted U-bolts and grounding lugs. Integrating strict Galvanized Coating Maintenance is the only way to slow this inevitable replacement cycle.
How Component Replacement Affects Lifecycle & Cost
Targeted component replacement is the ultimate tool for lifecycle extension. Rather than decommissioning an entire 5 MW array at Year 15 because 10% of the splice joints have heavily corroded, proactively replacing those specific joints allows the remaining 90% of the healthy steel to safely operate through Year 25. This surgical intervention drastically improves the overall Lifecycle Expectancy of PV Racking Structures.
Financially, the cost of an OEM replacement bracket is negligible compared to the lost energy yield of a collapsed row or the capital expenditure of a full system repowering. However, the labor costs associated with deploying a heavy-rigging crew to replace a main beam can be substantial. Properly budgeting for these corrective events is a crucial element of accurate Maintenance Cost Impact Analysis for utility-scale solar portfolios.
Recommended Tools for Safe Component Replacement
Executing a structural replacement in the field requires heavy-duty construction equipment, not just standard inspection tools.
- Temporary Shoring & Lifting Equipment: Hydraulic jacks, A-frame gantries, and structural cribbing blocks to safely support the array’s dead weight during component extraction.
- Heavy-Duty Extraction Tools: Angle grinders, reciprocating saws, and bolt extractors/nut splitters to remove seized or heavily rusted fasteners.
- Calibrated Torque Wrench: Essential for tensioning the new replacement hardware to the precise OEM specification.
- Structural Alignment Tools: Laser transits and digital inclinometers to guarantee the repaired bay perfectly matches the tilt and azimuth of the adjacent rows.
- Protective Coating Repair Kits: Zinc-rich cold galvanizing compound to seal any field cuts or scratches made during the replacement process.
Related PV Racking Maintenance Resources
Corrective replacement is the final step in a comprehensive asset protection strategy. Deepen your engineering knowledge by exploring our related structural and diagnostic guides:
- Part of the Maintenance Framework
Solar PV Racking System Maintenance Guide - Related Technical Topics
Structural Integrity Assessment
Corrosion Detection & Prevention
Lifecycle Expectancy
Frequently Asked Questions About Component Replacement
When should a racking component be replaced instead of repaired?
A component must be replaced when its base metal has structurally yielded (permanent bending or twisting) or when corrosion has caused significant section loss (thinning of the steel). Minor surface rust can be cleaned and painted (repaired), but bent steel or heavily pitted aluminum has lost its load-bearing capacity and cannot be salvaged.
Can corroded parts be repaired onsite without removal?
If the corrosion is strictly superficial (only the protective zinc or paint layer is damaged), the part can be wire-brushed and coated with a zinc-rich compound onsite. However, if the corrosion has eaten deep into the threads of a bolt or created a hole in a C-channel, no amount of paint will restore its strength; it must be extracted.
Does replacing a structural component affect the system warranty?
It can, if done improperly. Replacing a part using non-OEM materials, incorrect fastener torque, or unapproved engineering methods will immediately void the manufacturer’s structural warranty. Always consult the OEM manual and utilize identical replacement parts to maintain warranty compliance.
How does proactive replacement impact lifecycle expectancy?
Proactive replacement is the definition of lifecycle extension. A mounting system is only as strong as its weakest connection. By swapping out the 5% of components that are failing due to localized stress or rust, you allow the remaining 95% of the healthy steel to safely operate for another decade, preventing a localized failure from bringing down the entire array.
