What Determines the Lifecycle of PV Mounting Structures

The lifecycle of a solar PV racking system is the duration it can safely and effectively hold the solar modules in their optimal orientation while resisting all environmental loads. Unlike solid-state solar panels, which experience a predictable annual degradation in electrical output (typically 0.4% to 0.5% per year), mounting structures fail through mechanical and chemical means. The ultimate lifecycle is determined by a race between material degradation (rust and pitting) and load fatigue (the gradual weakening of metal through repeated bending and vibration).

When an engineering firm designs a racking system for a 25-year Power Purchase Agreement (PPA), they calculate a specific corrosion progression rate and a maximum number of wind and snow loading cycles. However, real-world environmental exposure rarely perfectly matches the theoretical model. If a site experiences higher-than-expected humidity, or if the soil is more acidic than the geotechnical report indicated, the connection stability of the array will degrade much faster than anticipated.

As outlined in our Solar PV Racking System Maintenance Guide, lifecycle performance is directly linked to preventive and corrective maintenance practices. A racking system is not a “set-it-and-forget-it” asset; its 30-year survival depends entirely on intercepting these degradation mechanisms before they permanently yield the base steel or aluminum.

Structural Factors That Influence Lifecycle Expectancy

The physical endurance of the array is dictated by how well its individual components absorb and transfer stress over decades of operation.

1. Long-Term Load Fatigue

Every gust of wind and every pound of snow forces the racking metal to flex. Over 25 years, this continuous flexing creates microscopic fatigue cracks in the heat-affected zones of welds and at the sharp corners of stamped brackets. When these cracks propagate, the component loses its stiffness and yields. Monitoring and mitigating this metal fatigue requires a periodic Structural Integrity Assessment for Solar PV Racking Systems to verify that the main rails and vertical posts retain their elastic capacity.

2. Fastener Stability & Preload Retention

A racking system is only as strong as its weakest bolted joint. Daily thermal expansion and contraction, combined with wind vibration, constantly work to back the nuts off their bolts. When a fastener loses its clamping force (preload), the joint slips, accelerating wear on the connected parts. A system that undergoes a disciplined PV Racking Fastener Torque Check Procedures will invariably outlast a system where the bolts are left to loosen and thrash in the wind.

3. Corrosion-Induced Section Loss

Rust is the physical consumption of the array’s structural mass. As steel oxidizes, it flakes away, reducing the physical thickness (section loss) of the load-bearing profiles. A C-channel rail that was engineered to be 2.5mm thick cannot safely resist a hurricane if corrosion has reduced it to 1.5mm. Halting this material loss relies heavily on the aggressive application of the protocols found in Corrosion Detection and Prevention for Racking Systems.

Environmental Conditions That Reduce Structural Lifespan

The geographic location of the solar asset is the greatest external variable dictating its structural longevity.

High Wind Exposure

Arrays situated in hurricane corridors, open agricultural plains, or elevated ridges experience violent, high-frequency aerodynamic loading. These environments accelerate fastener fatigue and dramatically increase the risk of clamp failure and module blow-off. Surviving these dynamic forces for three decades requires specialized reinforcement and post-storm recovery protocols, as detailed in High Wind Maintenance for PV Racking Systems.

Heavy Snow & Ice Loads

In northern latitudes, the racking system must survive the crushing, static weight of multi-day snow accumulation and the expansive forces of trapped ice. These gravity loads cause permanent mid-span rail deflection and push foundations deeper into the soil. Managing these seasonal overloads is the focus of Snow & Ice Maintenance for PV Mounting Systems, ensuring the array springs back to its original geometry every spring.

Coastal & Corrosive Environments

Saltwater spray and heavy industrial pollution create a highly conductive, acidic film on the racking components that rapidly devours protective zinc layers. In an ISO C4 or C5 environment, an unprotected galvanized system may reach the end of its structural life in less than 10 years. Extending this lifespan to 25+ years requires relentless Galvanized Coating Maintenance to preserve the sacrificial barrier.

How Component Replacement Extends Service Life

No racking system will survive 30 years without some component failure. The key to lifecycle extension is localized surgical intervention. If 5% of the array’s splice brackets develop severe stress-corrosion cracking at Year 15, the entire array does not need to be decommissioned.

By isolating the damaged structural members, safely shoring the modules, and executing the procedures outlined in Replacing Damaged Components in Solar PV Racking Systems, asset owners can restore the original safety margins to that specific row. This prevents a localized mechanical failure from cascading into a catastrophic collapse, allowing the remaining 95% of the healthy racking infrastructure to safely fulfill its maximum financial lifespan.

Preventive Maintenance Strategies for Maximum Lifecycle

Achieving a 35-year lifespan is not accidental; it is the result of a meticulously executed preventive maintenance program. This begins with scheduled inspections that utilize the Routine Inspection Checklist for Solar PV Racking Systems to catch loose clamps and minor rust spots before they escalate.

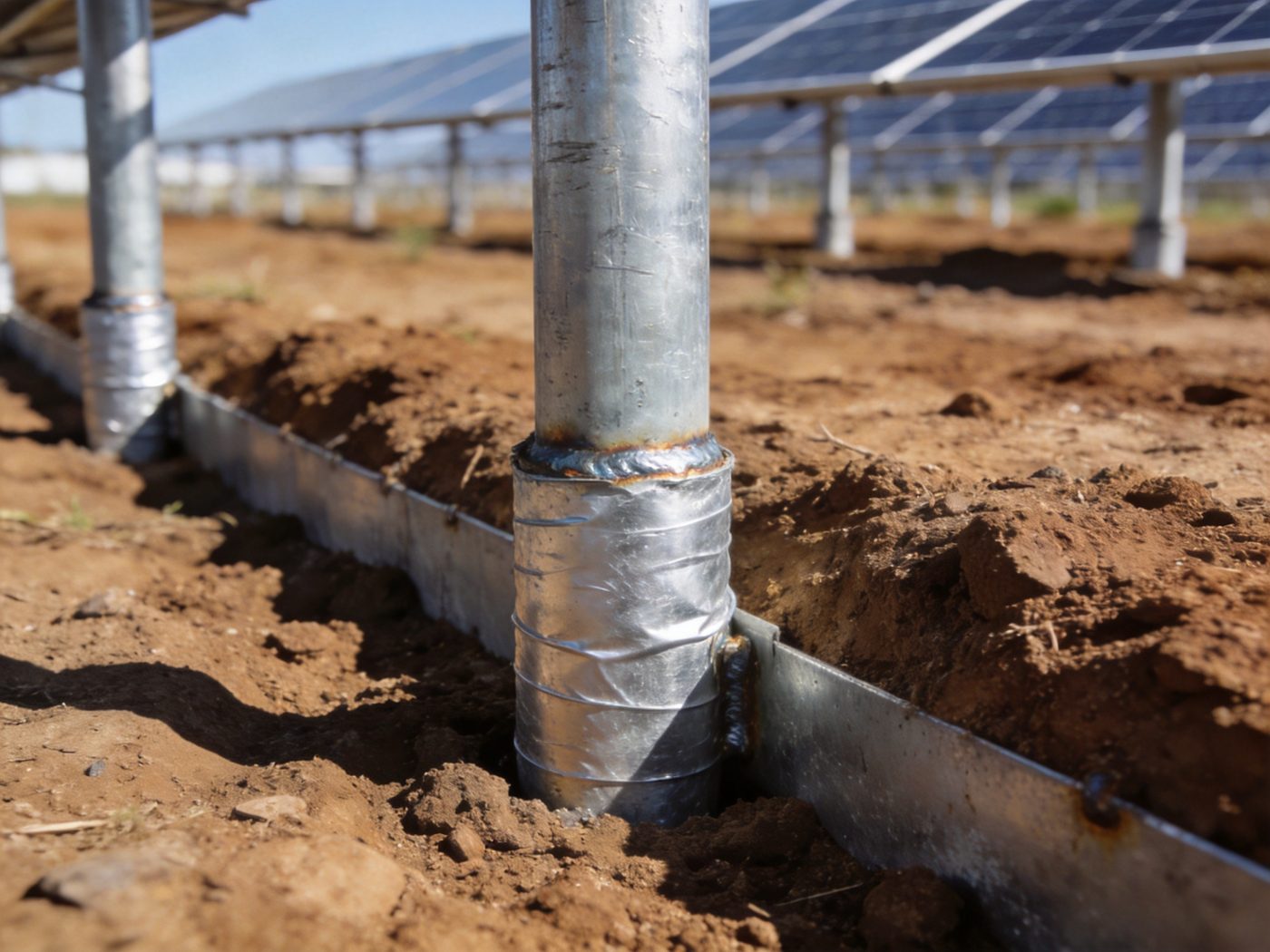

True lifecycle optimization involves proactive environmental risk management—such as clearing drainage paths to prevent frost heave—and ongoing structural verification to ensure rails remain plumb and level. Most importantly, it requires rigorous coating protection. If the zinc galvanization or aluminum anodization is kept intact through regular cleaning and spot-repair of scratches, the underlying base metal will never degrade, theoretically allowing the structure to last indefinitely.

Lifecycle Expectancy and Long-Term Financial Performance

The structural lifecycle directly dictates the project’s financial return. If a racking system fails at Year 15 of a 25-year PPA, the capital expenditure required to extract the panels, tear out the rusted steel, and rebuild the sub-structure will completely wipe out the project’s profitability.

Conversely, investing a fraction of that cost into annual torque checks and corrosion mitigation ensures the system safely generates revenue through Year 30. To understand the exact mathematical relationship between proactive O&M spending and avoided catastrophic replacement costs, review our Maintenance Cost Impact Analysis.

Lifecycle Monitoring & Structural Documentation

Proving that an array has achieved its lifecycle expectancy requires meticulous record-keeping. Independent Engineers (IEs) and project buyers will demand to see a continuous structural performance history.

This documentation package must include comprehensive inspection logs detailing every tightened bolt and replaced bracket over the decades. It must also include environmental records, proving that post-storm inspections were completed after every major wind or snow event. An unbroken chain of maintenance documentation not only ensures the system is physically safe but also maximizes the financial valuation of the asset during a portfolio sale or refinancing event.
