Proper site preparation is the foundational step that determines the long-term structural integrity and performance of every solar array. Before a single pile is driven or a rail is torqued, the ground beneath the system must be assessed, mapped, and prepared to engineering tolerances — because errors at this stage compound through every subsequent phase of a
comprehensive solar mounting installation guide.
This guide provides engineers, EPCs, and project managers with a rigorous, code-referenced workflow for site evaluation, layout, grading, and pre-construction inspection applicable to utility-scale and commercial ground-mounted projects across all U.S. climate zones.

1. Project Scope & Applicability

Site preparation and layout procedures must be matched to the specific system type, project scale, and geotechnical conditions of each installation site. The engineering requirements for a 5 MW fixed-tilt ground mount differ meaningfully from those of a tracker-equipped agrivoltaic installation. Understanding the applicable system type before mobilization prevents costly mid-project redesigns.

1.1 Applicable System Types

This guide applies directly to ground-mounted solar systems in all configurations, including fixed-tilt single-row, back-tracked multi-row, and pile-driven ballasted systems. It also covers the pre-construction site requirements for single-axis tracking systems, where cross-slope tolerances and inter-row spacing demand particularly precise surveying and earthwork control. For tracker layouts, post-to-post elevation variance must typically remain within 2° to prevent torque tube misalignment and mechanical binding during rotation.

1.2 Site Categories

Project sites are generally classified into three operational categories that drive engineering scope. Utility-scale projects (1 MW and above) typically require formal geotechnical reports, full topographic surveys, stormwater management plans, and dedicated access road construction before solar installation can begin. Commercial installations in the 100 kW–999 kW range often involve brownfield or previously disturbed land, requiring contamination screening and compaction verification in addition to standard layout procedures. Small ground-mount projects below 100 kW may proceed with a simplified site check, but all categories must comply with AHJ-specific setback and grading requirements, which typically range from 10 to 50 feet from property lines depending on jurisdiction.

2. Pre-Installation Planning

Pre-installation planning is the highest-leverage phase of any solar project. Decisions made on paper before mobilization determine foundation type, equipment selection, crew scheduling, and permit approval timelines. Each of the three sub-disciplines below must be completed — and their findings reconciled — before a Notice to Proceed is issued.

2.1 Soil & Geotechnical Assessment

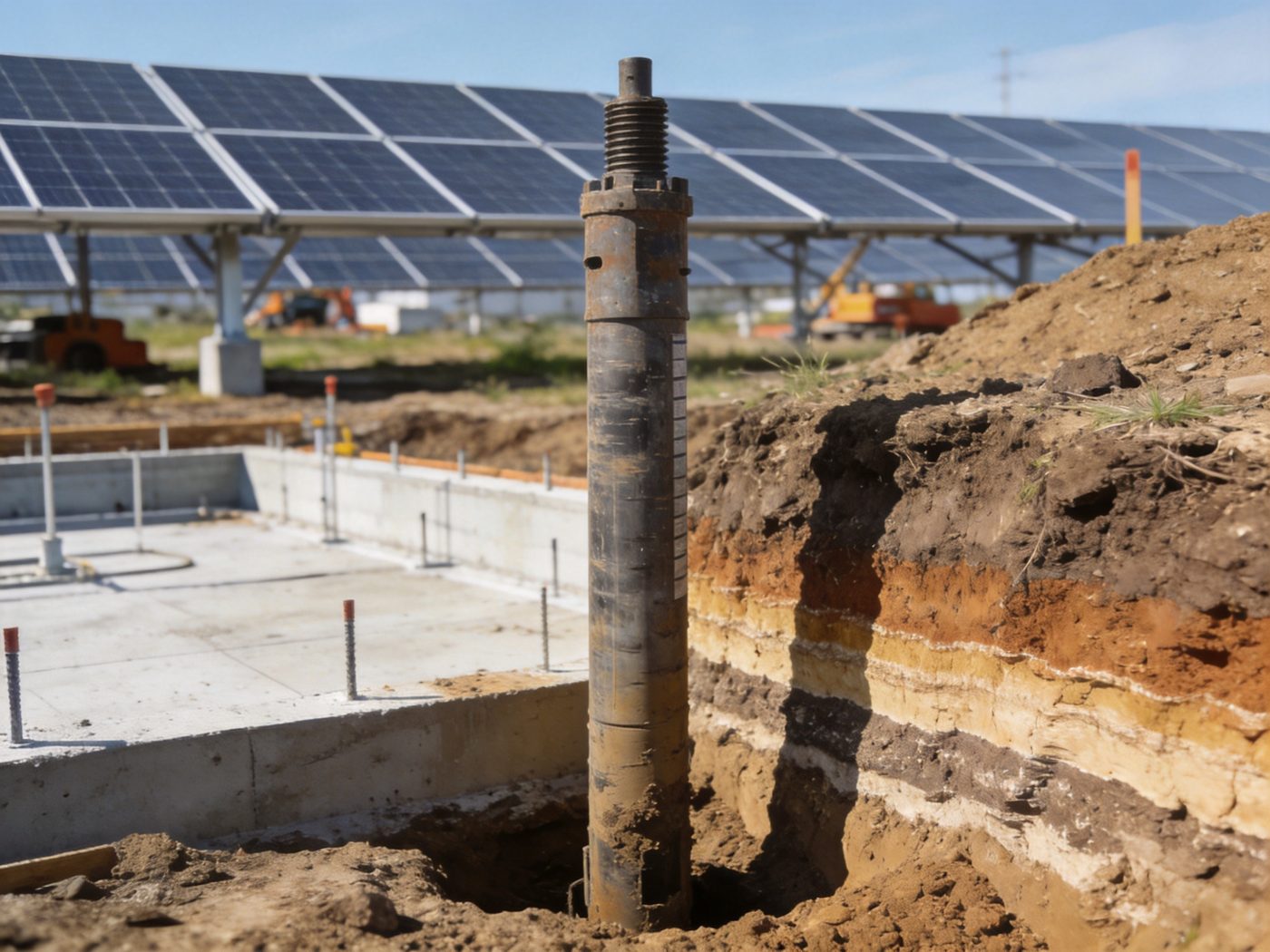

A geotechnical investigation establishes the design basis for all foundation decisions on the project. Borings or CPT tests are conducted at representative intervals — typically one test per 2–5 acres for uniform sites — to determine soil bearing capacity, plasticity index, frost depth, and corrosivity. For a detailed technical treatment of boring interpretation and foundation selection criteria, refer to the soil geotechnical considerations for solar foundations resource. Low-bearing-capacity soils (below 1,500 psf) may require driven H-piles or helical piers rather than standard driven pipes, substantially changing the installation schedule. Soil pH and resistivity values below 1,500 ohm-cm also trigger corrosion-protection requirements for steel components.

2.2 Wind & Environmental Review

Wind load governs structural design in most U.S. climate zones and is the primary factor controlling pile embedment depth, rail span, and module clamp specifications. The design wind speed for the project site must be extracted from ASCE 7-22 wind maps for the correct risk category (typically Risk Category II for commercial solar), and pressure coefficients applied per the applicable chapter (Chapter 27 or 29 for MWFRS and components & cladding). Conducting a thorough wind load calculation for solar mounting structures before site layout allows engineers to set pile spacing and embedment requirements before crews mobilize. Environmental review must also address wildfire buffer zones, flood zone encroachments (FEMA Zone A/AE boundaries), and protected species habitat that may restrict grading or vegetation removal activities.

2.3 Code & Compliance Verification

Every ground-mounted solar project must navigate a layered compliance framework before physical site work begins. At the federal level, NEPA review may apply to projects on federal lands. At the state level, interconnection agreements, environmental impact assessments, and fire code compliance must be resolved. At the local AHJ level, building permits, grading permits, and stormwater permits are typically required before any earth disturbance. A thorough review of U.S. building code requirements for solar projects early in the planning phase prevents permit rejections and schedule delays. Permit drawings must include a stamped site plan, foundation design, wind and snow load calculations, and a stormwater pollution prevention plan (SWPPP) in most jurisdictions.

3. Tools & Equipment Required

The following equipment is required for professional-grade site preparation and layout work. Selection of survey-grade instruments rather than consumer-grade alternatives directly impacts layout accuracy and downstream installation quality. Note that fastener torque specifications guide requirements will influence which torque tools must be staged during the layout phase when foundation anchor bolts are pre-set.

Category	Equipment / Tool	Specification / Accuracy	Purpose
Survey	GPS RTK Rover & Base	±5 mm horizontal, ±10 mm vertical	Primary layout control
Survey	Total Station	5″ angular accuracy	Precision pile positioning
Leveling	Rotating Laser Level	±1.5 mm/10 m	Grade verification
Layout	Batter Boards & String Lines	Per ASTM tolerances	Row axis alignment
Layout	Fiberglass Measuring Tape	100 m, Class II	Span and spacing checks
Earthwork	Compaction Plate or Roller	≥95% Proctor density	Subgrade preparation
Earthwork	Grading Blade / Laser-Guided Motor Grader	±25 mm finish grade	Site clearing and grading
Safety	Hard Hat, Hi-Vis Vest, Steel-Toed Boots	ANSI/ISEA compliant	PPE — all crew
Safety	Ground Disturbance Permits + 811 Markings	Required before any excavation	Underground utility protection
QC	Digital Inclinometer	±0.1° resolution	Slope and tilt verification
QC	Calibrated Torque Wrench	Per manufacturer specs	Foundation bolt torquing
Documentation	Field Survey Tablet / CAD Software	Real-time data capture	As-built recording

4. Installation Workflow Overview

Site preparation for solar mounting follows a defined sequential workflow in which each phase gates the next. Skipping or compressing any step introduces cumulative error that becomes expensive to remediate once foundations are installed. The following overview describes the logical order of operations; detailed step-by-step procedures are presented in Section 5.

1. Pre-Mobilization Review: Finalize geotechnical report, wind study, permit package, and site control drawing. Confirm 811 utility locates are complete and valid.
2. Site Clearing & Vegetation Removal: Remove above-ground obstacles, stump-grind tree roots, and establish haul roads. Install SWPPP controls (silt fence, sediment basins) before any grading.
3. Rough Grading & Drainage: Bring site to within ±100 mm of design grade. Establish positive drainage away from the array footprint; minimum 2% cross-slope where feasible.
4. Control Point Establishment: Set permanent survey monuments at array corners. Verify against project GPS coordinates and record in field log.
5. Row Layout & Grid Marking: Establish primary row axes using total station or RTK. Set batter boards, string lines, and paint marks for each pile position.
6. Foundation Installation: Drive or drill piles to specified embedment depth. Conduct pull-out testing at required frequency (typically 1 per 50 piles or per geotechnical specifications).
7. Finish Grade & Compaction Verification: Complete final grading, verify compaction to ≥95% Standard Proctor, and document drainage performance.
8. Pre-Installation Inspection: Walk the entire array footprint to verify pile positions, elevations, plumb, and embedment before any above-grade work begins.

5. Step-by-Step Site Preparation Process

This section provides the detailed engineering procedures for each major phase of site preparation. Each sub-section includes acceptance criteria and common failure modes to watch for during field execution.

5.1 Site Clearing & Grading

Site clearing begins with removal of all vegetation, debris, and surface obstructions within the array footprint plus a minimum 15-foot perimeter. All topsoil within the grading envelope should be stripped to a minimum 6-inch depth and stockpiled for potential re-use on perimeter revegetation areas — a requirement under many state-level SWPPP plans. Tree stumps must be removed to below subgrade elevation to prevent future differential settlement. Once the site is cleared, a laser-guided motor grader establishes rough grade to within ±100 mm of design elevation. For ballasted systems, the finish grade tolerance tightens to ±25 mm because elevation variance directly affects ballast distribution and water drainage under the array. A maximum cross-slope of 10% is generally accepted for fixed-tilt systems; slopes exceeding this threshold require a site-specific structural review to confirm foundation adequacy. Drainage swales must be installed along the downslope perimeter before installation proceeds, as post-construction stormwater concentration beneath arrays is a leading cause of scour and erosion failures.

5.2 Layout Marking & Grid Alignment

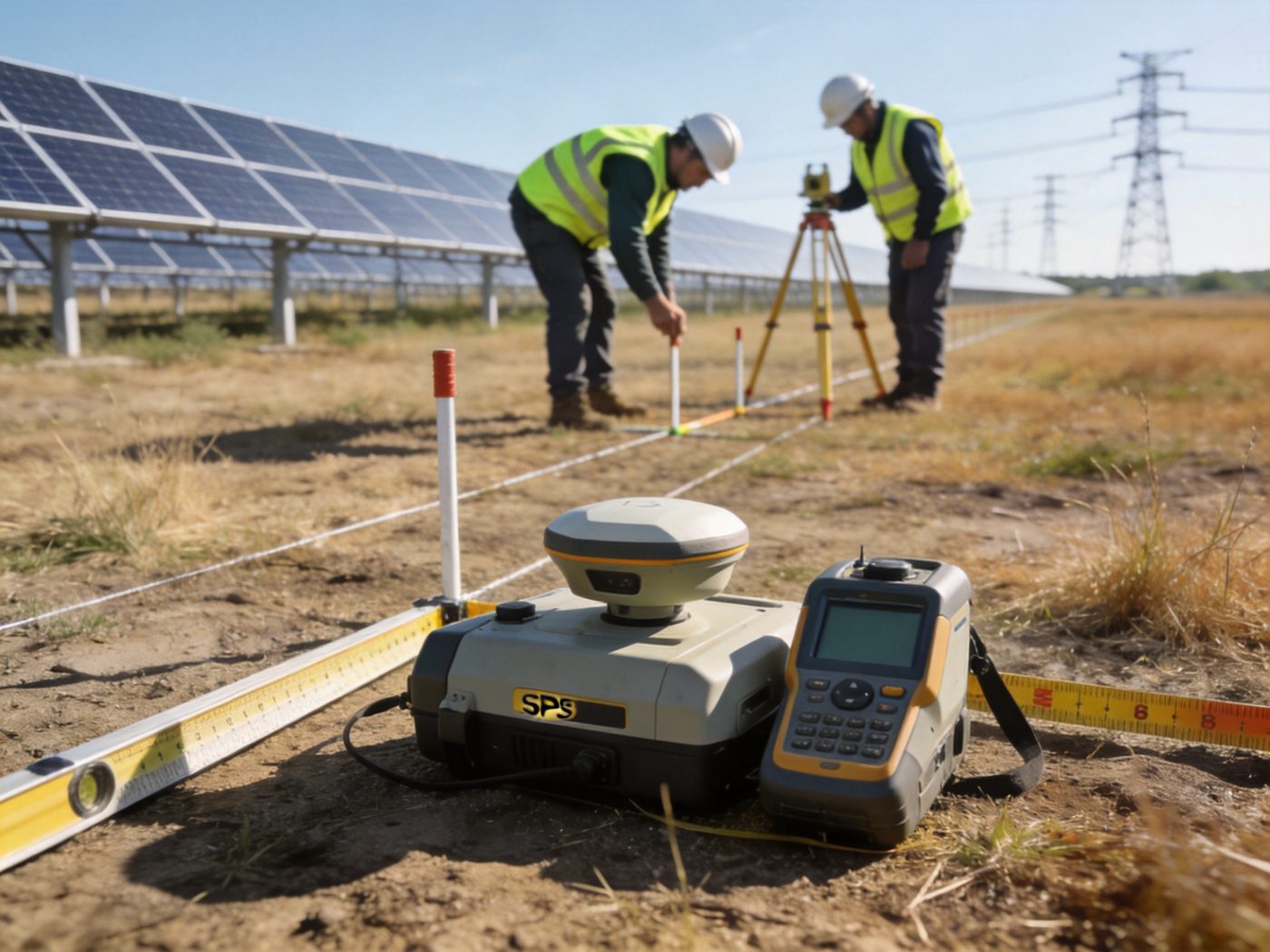

Accurate layout marking directly controls panel row alignment, inter-row spacing, and structural geometry across the entire array. Begin by establishing two primary baseline control points at opposite corners of the array using GPS RTK coordinates verified against the permitted site plan. From these two points, set the primary row azimuth using a total station — all rows must be parallel to this baseline within ±0.05° of angular error, which at a 100-meter row length translates to less than 87 mm of positional error at the far end. Mark each pile position using a combination of string lines stretched over batter boards and paint or survey stakes driven at the exact pile center. Inter-row spacing markings must account for the design row pitch as calculated in the energy model, typically 5.0–8.0 meters for fixed-tilt systems depending on latitude, tilt angle, and ground cover ratio (GCR) target. All layout markings should be verified against the issued-for-construction (IFC) structural drawings before any pile driving commences. Photograph each row axis string line with a geo-tagged image for the project as-built record.

5.3 Foundation Position Verification

Foundation position verification is a critical hold point in the installation sequence. Before any pile is driven, each marked position must be independently verified by the civil lead using a total station or RTK rover — relying solely on tape measures and string lines is insufficient for utility-scale projects where cumulative error over hundreds of meters can exceed acceptable tolerance. Each pile center must fall within ±25 mm of the design coordinate in plan, and ±10 mm in elevation at the pile head after installation. For a comprehensive overview of foundation types, embedment procedures, and acceptance testing protocols, refer to the solar foundation installation procedures documentation. Pile plumb tolerance is typically ±1% of pile length (e.g., ±30 mm out-of-plumb for a 3-meter pile), though tracker systems may impose tighter tolerances due to bearing alignment requirements. Record all as-installed positions in a coordinate log and flag any out-of-tolerance piles for engineer review before proceeding with rail installation.

5.4 Elevation & Tolerance Control

Elevation control at the pile head governs the ability to install rails and purlins within the manufacturer’s specified connection tolerances. Pile head elevations must be measured after installation (not during driving) using a calibrated digital level or total station, as driven piles rebound slightly after the hammer is removed. Elevation variance between adjacent piles in the same row must not exceed ±10 mm to ensure rail-to-purlin connections remain within the bearing surface. Cross-row elevation variance between opposite piles on the same module bay should not exceed ±15 mm to prevent module frame racking. Where pile heads are cut to final elevation (as opposed to driven to grade), a chop saw with a level guide is used to achieve a flat bearing surface perpendicular to the pile axis within ±2°. Compliance withstructural connection design tolerances is mandatory for warranty validity on all major racking system manufacturers, and the engineer of record must review and approve any pile positions outside these limits before proceeding.

5.5 Pre-Installation Inspection

A formal pre-installation inspection must be completed and documented before any above-grade structural work begins. This inspection serves as the final quality gate between site preparation and structure assembly, and its findings determine whether the project can proceed on schedule or requires remediation. The inspection covers four primary areas: (1) foundation position accuracy against the as-built survey log; (2) pile plumb and elevation compliance against design tolerances; (3) site drainage and grading adequacy — confirm no ponding areas exist within the array footprint after the most recent rain event; and (4) SWPPP compliance, verifying that all erosion controls are intact and functional. The installation quality control checklist provides a line-item inspection format aligned with IBC requirements and major racking manufacturer installation standards. All inspection findings must be signed off by the site civil lead and the EPC project manager before proceeding. Non-conformances must be tracked in a corrective action register with resolution deadlines assigned.

6. Engineering Design Considerations

Beyond the field execution workflow, several engineering design factors must be accounted for during the planning phase to ensure the site layout supports long-term structural performance. These considerations influence spacing decisions, material selection, and detailing choices that cannot be retrofitted after construction.

6.1 Wind Zone Influence on Layout

The project’s ASCE 7-22 wind zone classification directly affects allowable panel tilt angles, row end pile spacing, and edge zone pile embedment depth. Sites in ASCE exposure category D (open water or flat, unobstructed terrain) may face design wind pressures 30–40% higher than the same structure in exposure category B (suburban terrain), requiring shorter pile spans or heavier-gauge piling. Reviewing applicable wind load standards for solar structures before finalizing the array layout allows engineers to optimize pile spacing and avoid costly upgrades during structural review. Wind funneling effects between rows — where increased velocity pressure at row ends can exceed open-field values by 15–20% — must also be addressed in the layout by providing closer pile spacing at row terminations.

6.2 Thermal Expansion & Alignment

Solar racking structures experience significant thermal cycling across their 30+ year service life. Aluminum rails can expand and contract by approximately 2.3 mm per meter over a 100°F temperature range, which for a 10-meter rail translates to 23 mm of movement. Layout and splice joint positioning must account for this movement to prevent rail buckling in summer and joint separation in winter. Splice joints should be positioned at the rail midpoint between piles and pre-set to the manufacturer’s specified gap for the installation ambient temperature. In desert climates where daily temperature swings can exceed 60°F, a minimum 3 mm thermal gap per 3-meter rail section is a common design minimum. Monitoring rail alignment after the first full seasonal cycle is recommended as part of the year-one maintenance inspection.

6.3 Structural Deflection Control

Allowable structural deflection under service loads (dead load + live load) is typically limited to L/180 for racking rails supporting glass modules, where L is the unsupported span length. Exceeding this limit risks glass micro-cracking from frame distortion. During site layout, pile span must be selected to satisfy this deflection limit under the site-specific design snow load and module weight combination. For standard 72-cell bifacial modules (approximately 32 kg each) at 1.5-meter portrait orientation spans, a pile-to-pile spacing of 3.5–4.0 meters typically keeps rail deflection within limits for most structural steel rail profiles. Deflection calculations must be performed by a licensed PE for all projects requiring engineered drawings, which includes virtually all utility-scale and commercial projects in the U.S.

6.4 Corrosion & Drainage Planning

Site drainage planning and material corrosion protection are interrelated design considerations that must be addressed together during the layout phase. Improper grading that allows water to pond beneath arrays creates an accelerated corrosion environment for galvanized steel piles, as standing water plus organic material from plant decay produces acidic conditions that attack zinc coatings. A minimum 2% slope away from pile bases is required in the finished grade for all areas within the array footprint. For projects in coastal zones, industrial areas, or soils with pH below 5.5 or resistivity below 1,500 ohm-cm, enhanced corrosion protection strategies — including hot-dip galvanizing to ASTM A123 plus sacrificial anode systems — must be specified in the foundation design. Drainage channels and culverts must be sized to handle the 25-year storm event runoff from the array’s impervious surface contribution.

7. Special Installation Conditions

Certain geographic and climatic environments impose additional site preparation requirements beyond the standard workflow. Projects in these conditions require supplemental engineering analysis and modified field procedures before and during installation.

7.1 High Wind Areas

Projects located in ASCE 7-22 Basic Wind Speed zones exceeding 130 mph (3-second gust, Risk Category II) require a site-specific wind study that accounts for local terrain effects, topographic speed-up factors (Kzt), and potential channeling between terrain features. During site preparation, particular attention must be paid to row orientation relative to the prevailing storm wind direction — rows oriented perpendicular to storm winds experience the highest uplift loads and may require shorter pile spans or driven-to-greater-depth piles along the windward edge of the array. Full high wind solar installation guidelines provide supplemental pile specification tables, edge zone pile embedment requirements, and panel clamp specifications applicable to hurricane-exposure zones. Additionally, site clearing in high-wind areas must remove all potential wind-borne debris sources (loose aggregate, construction materials, vegetation) from within 200 feet of the array perimeter.

7.2 Cold Climate Regions

Sites in ASHRAE climate zones 5–7 and locations with a design frost depth exceeding 36 inches require modified site preparation procedures to address frost heave risk. Pile foundations in frost-susceptible soils (typically silts and fine sands with PI < 6) must be embedded below the frost line by a minimum of 6 inches, which can push pile lengths to 8–10 feet in northern states and require specialized pile-driving equipment. During site preparation, drainage is especially critical in cold climates: water that infiltrates beneath the array and freezes can cause differential heave of up to 50 mm between adjacent piles, destroying rail alignment. For complete cold-climate design criteria, grounding requirements, and module selection guidance for freeze-thaw environments, consult the cold climate solar installation requirements. Temporary freeze protection for freshly poured concrete footings — including insulating blankets for curing below 40°F ambient — must be included in the installation plan for any project with a fall or winter construction schedule.

8. Safety & Risk Management

Site preparation involves heavy equipment operation, ground disturbance, and proximity to underground utilities — all of which are high-risk activities requiring a formal safety plan before mobilization. Per OSHA 29 CFR 1926 Subpart C, employers must designate a competent person for each work task who can identify hazards and has authority to stop work when unsafe conditions exist. A Job Hazard Analysis (JHA) must be completed before each distinct task phase (clearing, grading, pile driving, inspection) and reviewed with the full crew at a daily safety briefing. Refer to the complete solar installation safety procedures for site-specific safety plan templates, PPE matrices, and OSHA citation references applicable to ground-mounted solar construction.

Underground utility strikes are the leading cause of serious injury during site preparation. A 811 dig-safe locate must be obtained and verified on-site — with locate marks confirmed still visible — within 24 hours before any ground disturbance. Hand-digging or vacuum excavation is required within the tolerance zone (18 inches either side of locate marks) regardless of the excavation method used elsewhere. Additional key risk controls include: establishing a 50-foot exclusion zone around pile-driving equipment during operation; requiring positive contact communication between equipment operators and ground personnel via radio at all times; and suspending grading operations when wind speeds exceed 25 mph due to impaired visibility from dust and reduced equipment stability on sloped terrain.

9. Quality Assurance Checklist

The following field QA checklist must be completed and signed before advancing from site preparation to structural assembly. All items marked N/C (non-conforming) must be resolved through the corrective action register before proceeding. For the complete project-wide installation quality assurance process, including photographic documentation requirements and third-party inspection sign-off protocols, refer to the quality control guide.

• Site clearing complete; all vegetation, stumps, and debris removed from array footprint plus 15-ft perimeter
• 811 utility locates obtained, field-marked, and verified within 24 hours of ground disturbance
• Rough grade within ±100 mm of design elevation; finish grade within ±25 mm
• Cross-slope ≤ 10% for fixed-tilt systems; ≤ 15% for tracker systems (verify against specific tracker manufacturer limit)
• Minimum 2% drainage slope away from pile bases confirmed across all array rows
• SWPPP controls (silt fence, sediment basins) installed and inspected
• All pile positions verified by total station or RTK against IFC coordinates — within ±25 mm plan, ±10 mm elevation
• Pile plumb verified at ≤ 1% of pile length out-of-plumb for each pile
• Pull-out testing completed at required frequency; results meet or exceed design values
• Pile head elevations recorded in as-built survey log; adjacent pile elevation differential ≤ ±10 mm
• No ponding areas observed within array footprint after rain event inspection
• Pre-installation inspection report signed by civil lead and EPC project manager
• Corrective action register reviewed; all open items resolved or formally accepted by engineer of record

10. Time & Labor Estimation

Site preparation productivity varies significantly based on terrain complexity, soil conditions, access constraints, and crew experience. For planning purposes, the following benchmarks represent industry-average performance for well-organized crews using appropriate equipment. Actual project schedules should be validated by the general contractor based on site-specific conditions and historical crew productivity data.

On a typical 5 MW fixed-tilt ground-mount project (approximately 400 piles, 8-acre footprint), site clearing and rough grading require 3–5 days with a two-machine earthwork crew. Layout and pile position marking adds 2–3 days for the survey team. Foundation installation (pile driving) typically proceeds at 80–120 piles per day with a two-hammer crew. The pre-installation inspection and punch-list resolution add approximately 1–2 days. In total, site preparation through pre-construction inspection typically represents 10–15% of total project installation labor hours. For a detailed breakdown of all phases contributing to project economics, refer to the full analysis of solar installation cost factors, which covers labor, equipment, and mobilization cost components by project scale and terrain category.

11. Frequently Asked Questions

12. Related Engineering Guides

Site preparation is the first step in a structured installation sequence. The resources below provide the detailed engineering guidance for each subsequent phase and supporting discipline, forming a complete technical reference for solar mounting projects.
