Executive Summary

Solar grounding and bonding merge civil engineering, structural steel assembly, and advanced electrical theory. Unlike traditional residential wiring enclosed in non-conductive PVC or isolated within walls, a solar array exposes its entire conductive framework to the elements. Without an intentional, mathematically verified equipotential bonding network, a single wire abrasion could energize an entire megawatt-scale array, creating a lethal shock hazard and posing a severe fire risk.

This technical guide outlines the methods required to bridge every disconnected piece of module framing, secondary purlin, and primary steel into a unified electrical mass. It covers the deployment of certified grounding lugs, penetrating bonding washers, and flexible equipment jumpers. It also establishes the framework for testing the mechanical integrity of these connections, proving to inspectors that fault currents will always find an immediate, unresisted path to earth, thereby tripping overcurrent protection devices instantly.

Scope & Applicability

The mandate to establish an electrically safe PV system transcends every structural mounting configuration. Every piece of normally non-current-carrying metal that could foreseeably become energized must be bonded [web:20]. This encompasses module frames, mounting rails, splice plates, cable trays, combiner boxes, and the primary structural columns driven into the earth [web:13]. The rules established in this manual apply to all personnel involved in the mechanical layout, steel assembly, and final electrical commissioning of a photovoltaic asset.

Applicable Installation Types

Different foundation and racking systems present unique grounding challenges. Heavy steel infrastructure embedded directly into the earth provides a baseline Ufer ground advantage, a reality heavily leveraged during the ground mount installation process. Conversely, rooftop arrays lack inherent earth contact, meaning the roof mount installation guide mandates continuous copper routing back to the main service panel’s grounding electrode. Moving structures present the most complex scenarios; the rotating joints inherent to the tracker installation process require specialized flexible bonding jumpers that can withstand decades of daily slewing without fatiguing or breaking the electrical fault path.

Grounding vs Bonding Explained

While frequently used interchangeably in the field, grounding and bonding represent distinct engineering concepts. Bonding is the physical act of connecting multiple metallic components together to establish electrical continuity and conductivity [web:20]. This ensures that all interconnected parts share the exact same electrical potential, virtually eliminating the risk of a person receiving a shock by touching two different metal surfaces simultaneously [web:21]. A bonding jumper simply connects piece A to piece B.

Grounding, specifically referencing the Grounding Electrode Conductor (GEC), is the intentional connection of this bonded metallic network directly to the earth. The earth acts as an infinite sink, stabilizing system voltages against lightning transients, line surges, or unintentional contact with higher-voltage lines [web:20]. In a fully compliant system, effective bonding provides the low-impedance path that allows fault currents to travel back to the source to trip a breaker, while grounding manages external voltage spikes and stabilizes the entire system referenced to zero volts.

Regulatory & Compliance Requirements

Failure to comply with grounding regulations is the leading cause of failed municipal and utility inspections. A single unbonded rail splice can delay Permission to Operate (PTO) for weeks. The standards outlined below govern the engineering calculations for conductor sizing, hardware listing, and testing protocols required to certify a solar array as safe for public operation.

NEC & U.S. Requirements

In the United States, photovoltaic installations are heavily regulated by the National Electrical Code (NEC). Specifically, NEC Article 690, Part V, provides the framework for grounding solar generators, while NEC Article 250 governs general grounding and bonding rules [web:20]. NEC 690.43 explicitly demands that exposed non-current-carrying metal parts of PV module frames, mounting structures, and enclosures be connected to an Equipment Grounding Conductor (EGC) [web:20]. Furthermore, the code permits the array’s EGC to tie into a building’s existing grounding electrode system when mounted on a structure [web:20]. To ensure your project meets local enforcement variations, cross-reference these mandates with regional U.S. building code requirements.

IEC & International Standards

For global utility-scale deployments, the International Electrotechnical Commission (IEC) provides the binding frameworks. IEC 62548 specifies the design requirements for PV arrays, reinforcing the absolute necessity of equipotential bonding for all non-current-carrying parts [web:21]. It explicitly prohibits separate, isolated earthing systems, requiring that the DC side (the array) and the AC side (the inverter) be bonded together [web:21]. Furthermore, IEC standards focus heavily on mitigating touch and step potentials through robust mesh earth grids installed around central inverter stations [web:21]. Align your engineering documentation with these directives by utilizing international ISO standards.

Inspection & Audit Requirements

Electrical inspectors will not simply visually verify a grounding system; they will demand proof of mechanical execution. This involves reviewing torque logs for grounding lugs, confirming that all hardware is UL 2703 listed, and validating that the materials used are rated for the specific environmental exposure [web:20]. Inspectors frequently utilize micro-ohm meters to test the resistance across mechanical splices to ensure electrical continuity remains well below the permissible limits. Prepare your site teams for these rigorous validations by adopting comprehensive inspection and audit requirements.

Materials & Components for Grounding

The solar environment is uniquely harsh. Grounding hardware must maintain low electrical resistance while surviving decades of UV radiation, thermal expansion, moisture, and potential salt spray. Substituting unlisted, generic hardware in place of certified PV bonding equipment compromises the entire fault path and creates immediate code violations.

Grounding Lugs & Clips

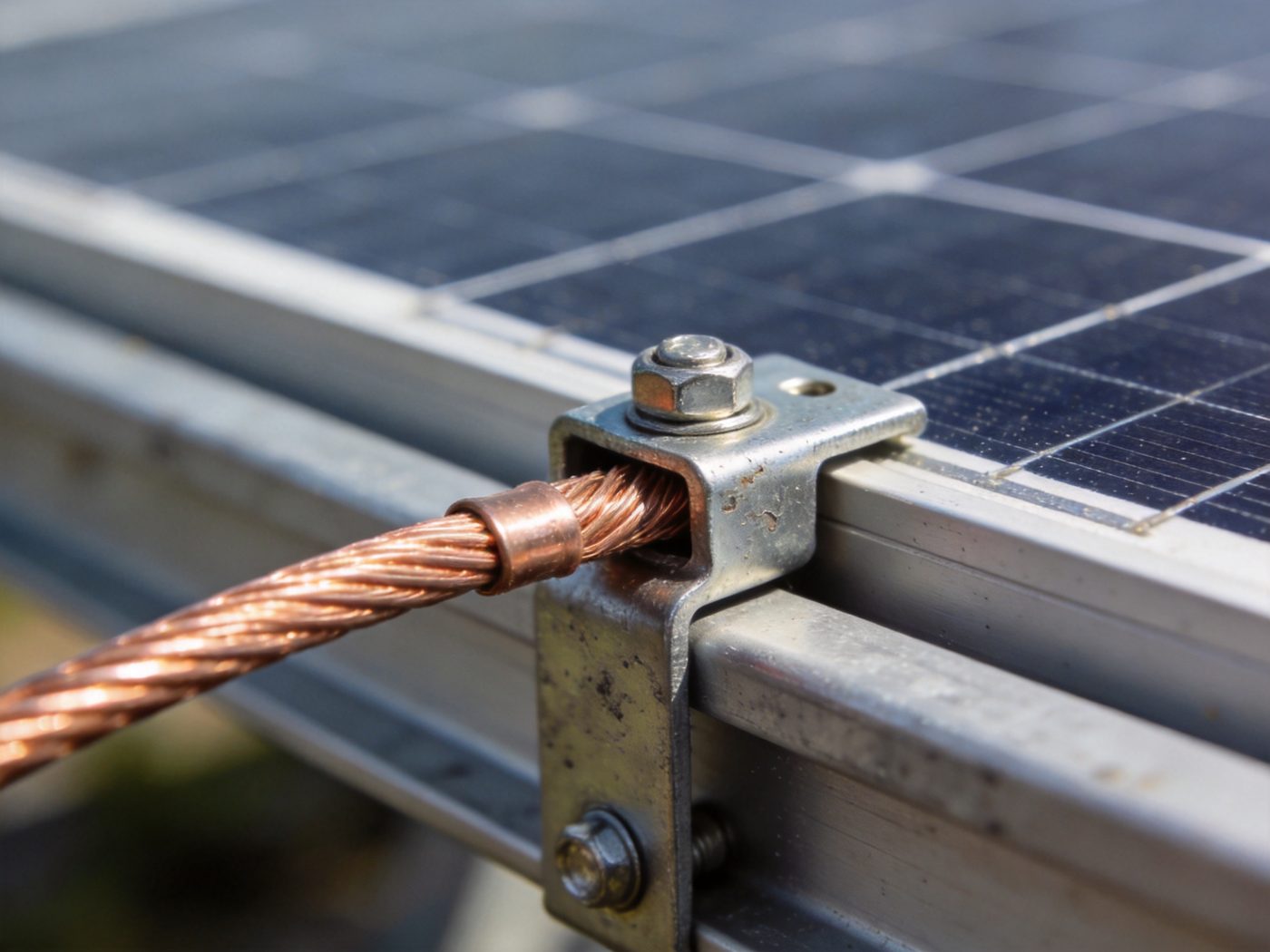

Solar grounding lugs are specifically engineered to clamp onto conductive metal surfaces and securely hold a bare copper ground wire [web:28]. These lay-in lugs utilize a set screw to clamp the copper conductor firmly in place, ensuring an unbreakable electrical connection [web:28]. In modern racking systems, penetrating grounding washers (often referred to as WEEB clips) are utilized beneath module clamps [web:25]. These stainless-steel washers feature sharp teeth designed to physically pierce the non-conductive anodized layer of the aluminum module frame, creating a gas-tight electrical bond directly to the mounting rail without the need to run individual copper wires to every single solar panel [web:25].

Bonding Jumpers & Conductors

When a structural run is broken by an expansion joint, a mechanical splice, or a tracker bearing, electrical continuity must be maintained. Bonding jumpers are utilized for this exact purpose [web:25]. These are typically braided copper straps or pre-manufactured wire assemblies that bridge the physical gap between two disconnected rails or columns. High-quality bonding jumpers allow the structural components to move independently due to thermal expansion or mechanical rotation while maintaining an unbroken, low-resistance electrical path [web:22]. Using rigid copper wire in high-movement joints often leads to metal fatigue and eventual snapping of the ground path.

Corrosion Protection for Ground Connections

The interface between copper grounding wires and aluminum module frames or galvanized steel rails presents a high risk of galvanic corrosion. When dissimilar metals interact in the presence of an electrolyte (like rainwater or humidity), the less noble metal will rapidly corrode, destroying the electrical connection. Certified PV grounding lugs are typically constructed from tin-plated copper or specialized aluminum alloys to neutralize this galvanic reaction. Installers must occasionally apply antioxidant compounds to bare wire connections to block oxygen and moisture. These material pairings are a critical component of broader corrosion protection strategies.

Step-by-Step Grounding & Bonding Installation

Creating an equipotential bonding network requires a methodical, sequenced approach. If bonding is treated as an afterthought during mechanical assembly, crews will be forced to deconstruct completed arrays to retrofit missed grounding washers or lugs. Integrate these electrical safety steps directly into the daily structural workflows.

Structural Frame Bonding

The grounding sequence begins with the primary and secondary steel framing. As structural columns, girders, and rails are erected, the connections between them must be electrically bonded. For bolted connections, heavily painted or galvanized surfaces may impede conductivity. Star washers or specialized bonding plates must be utilized to bite through protective coatings and reach bare metal. If the array utilizes continuous aluminum rail extrusions, bonding jumpers must be installed across every mechanical rail splice [web:25]. This ensures the entire length of the row acts as a single, unbroken electrical conductor. Ensure this step aligns flawlessly with the rail and module mounting guide.

Module Frame Grounding

Modern solar modules feature an anodized aluminum frame that acts as a powerful electrical insulator. To ground the module, this anodized layer must be breached. The most efficient method employs UL 2703 listed mid-clamps equipped with integrated bonding pins [web:20]. As the clamp is torqued to specification, the stainless-steel pins pierce the anodization and embed into the raw aluminum, grounding the module directly to the supporting rail. Alternatively, some systems require attaching a dedicated grounding lug to a pre-drilled, designated grounding hole marked on the module frame, routing a continuous copper wire from panel to panel [web:22].

Ground Conductor Routing

Once the modules and structure are locally bonded, an Equipment Grounding Conductor (EGC) must route the fault path back to the inverter and ultimately to the main electrical service [web:20]. The EGC is typically a bare solid or stranded copper wire (sized according to NEC Article 250 based on the maximum overcurrent protection device). The routing of this bare wire must be carefully managed to prevent physical damage. It must be secured using specialized wire clips and protected from sharp metal edges, weed trimmers, and pedestrian traffic.

Ground Rod Installation

For ground-mounted systems or free-standing carports, separate grounding electrodes (ground rods) are often driven into the earth near the array [web:24]. These copper-bonded steel rods must be driven deep into the soil to reach permanent moisture, minimizing earth resistance [web:21]. The EGC from the array is connected to this rod using a certified exothermic weld or an approved direct-burial acorn clamp. Note that NEC rules permit auxiliary electrodes at the array, provided they are properly bonded to the main premises grounding electrode system to prevent dangerous potential differences [web:20]. For execution details regarding earth-contact structures, consult the foundation installation guide.

Continuity Testing & Verification

Mechanical completion does not guarantee electrical safety. Before the array is wired with live DC strings, a qualified technician must perform rigorous continuity testing. Utilizing a low-resistance ohmmeter (or a multimeter capable of measuring fractions of an ohm), the technician tests the resistance between the furthest solar module frame and the main grounding busbar. The resistance must remain exceedingly low (typically under 0.5 ohms) to ensure fault currents can travel unimpeded. These test results must be recorded meticulously as part of the formal installation quality control checklist.

Engineering Design Considerations

Grounding systems must be engineered to survive the exact same environmental extremes as the structural steel. A bonding jumper that functions perfectly on day one is useless if it snaps due to thermal fatigue or wind vibration in year three. Installers must respect the engineering logic behind specialized hardware and flexible tolerances.

Lightning Protection Integration

Solar arrays are highly susceptible to direct and indirect lightning strikes. The grounding system must safely dissipate massive, instantaneous surges of current without melting conductors or destroying inverters. In regions with high lightning activity, the PV equipotential bonding network must be tied into a dedicated Lightning Protection System (LPS) utilizing air terminals and heavy-gauge down conductors [web:21]. This integration prevents side-flashing, where lightning arcs between the protection system and the PV mounting structure.

Wind-Induced Vibration & Electrical Continuity

Arrays subjected to high winds experience continuous micro-vibrations across all bolted joints. If grounding lugs are under-torqued, this vibration will slowly back the set screws out, dropping the copper wire and breaking the fault path. Utilizing thread-locking compounds on grounding hardware and ensuring adequate slack in copper wire routing prevents vibration from transferring mechanical stress directly into the electrical connections. These considerations operate in tandem with the mechanical parameters set by wind load standards.

Thermal Expansion & Bonding Reliability

Long runs of aluminum rail expand and contract significantly as ambient temperatures fluctuate. Racking engineers design thermal expansion joints (gaps in the rail) to prevent the structure from buckling. Electrical crews must cross these mechanical gaps with highly flexible bonding braids [web:25]. If a solid copper wire is pulled tight across an expansion joint, the thermal movement of the aluminum rail will easily snap the wire during a severe temperature drop, instantly severing the array’s connection to earth.

Seismic & Structural Movement

In seismically active zones, the earth and the structure may move violently. The grounding electrode conductors connecting the steel frame to the driven ground rods must feature substantial service loops to accommodate shifting soil without tearing the copper wire out of the direct-burial clamps. Specialized structural foundations designed to yield under stress must still maintain absolute electrical continuity. Align these grounding practices with the structural movement tolerances outlined in seismic design standards.

Special Installation Conditions

Standard grounding protocols must be elevated when facing extreme geographical challenges. Installation teams must recognize when basic hardware is insufficient for the environmental risk profile.

High Wind Areas

In hurricane or typhoon zones, the risk of flying debris striking and severing exposed bare copper wires is elevated. In these regions, the Equipment Grounding Conductor (EGC) is often routed within heavily armored metallic conduit rather than running exposed along the racking infrastructure. Grounding lugs may require secondary mechanical protection or specialized vibration-proof hardware. Adapt these electrical protection measures alongside the structural mandates found in the high wind installation guidelines.

Cold Climate Installations

Deep freezes introduce unique challenges for earthing systems. When the ground freezes, soil resistivity skyrockets, effectively isolating the ground rods from the earth. In these climates, ground rods must be driven below the maximum historical frost line to reach conductive, unfrozen soil. Additionally, copper wire becomes stiff and difficult to work with at sub-zero temperatures, increasing the risk of brittle fractures during installation. For cold-weather handling techniques, reference the cold climate installation requirements.

Safety & Risk Management

Working with grounding systems exposes technicians to the inherent dangers of the electrical grid. Even if the solar panels are disconnected, touching a bare ground wire that is tied to a building’s main service panel can expose a worker to dangerous fault currents originating from the utility grid or from an internal building fault seeking a path to earth.

Installers must wear appropriate dielectric PPE (voltage-rated gloves and boots) when making final terminations to the grounding electrode system. Never disconnect an active bonding jumper while the array is energized; doing so forces your body to become the bridge for any residual current seeking ground. Thoroughly brief all crews on these hazards using the core solar installation safety procedures.

Common Grounding Mistakes & Failures

Grounding failures are insidious because they are invisible. The solar array will produce power normally even if the entire grounding system is disconnected. The failure is only discovered when a lightning strike destroys the inverters, or worse, when a technician is severely shocked.

• Loose Grounding Lugs: Relying on feel rather than a calibrated torque screwdriver when securing copper wire leads to loose connections that fail under fault conditions.
• Paint or Anodization Interference: Bolting a grounding lug directly over thick industrial paint or failing to use a penetrating WEEB washer on an anodized frame completely blocks electrical flow.
• Missing Continuity Tests: Skipping the final ohmmeter verification leaves the team blind to failed mechanical bonds buried beneath rows of solar panels.
• Galvanic Corrosion at Contact Surfaces: Using unlisted galvanized steel washers against bare copper wire guarantees rapid corrosion and total loss of the grounding path within a few years.

Maintenance & Periodic Inspection

An equipotential bonding network requires persistent lifecycle management. Soil shifts, wildlife damage, and extreme weather slowly degrade grounding connections. Operations and Maintenance (O&M) protocols dictate that all visible grounding lugs, bonding jumpers, and bare copper runs must be visually inspected annually.

Technicians must utilize clamping earth resistance testers to verify that the ground rods still provide a low-resistance path to earth (typically checking against a benchmark of 25 ohms or less). Loose connections discovered during these audits must be cleaned of any oxidized buildup, re-torqued to specification, and coated with an antioxidant compound. Build these critical electrical audits into your broader structural integrity assessment.

FAQs

Do I need a separate ground rod for my solar array?

Not necessarily. According to NEC 690.47, if a PV array is attached to a building, the array’s equipment grounding conductor can route back and connect directly to the building’s existing grounding electrode system. While an auxiliary ground rod at the array is permitted, it must be bonded to the main system to prevent dangerous differences in potential.

Can I use the aluminum racking rail as my ground path?

Yes, provided the racking system is UL 2703 listed and certified to act as an Equipment Grounding Conductor. When using the rail as the ground path, you must ensure that mechanical splices between rail segments are bridged with certified bonding jumpers so that electrical continuity is never broken.

What happens if I forget to ground the solar panels?

If the panels are ungrounded and a wire frays, transferring high-voltage DC to the metal frame, the frame will remain silently energized. The next person who touches the panel while standing on the earth or touching a grounded metal roof will complete the circuit, suffering a potentially fatal electric shock. Furthermore, ground-fault protection systems in the inverter will fail to operate without a return path.

Why do inspectors use an ohmmeter on the racking?

Inspectors test the mechanical racking to verify electrical continuity. They are checking to see if the bonding washers successfully pierced the anodized coating. If the ohmmeter shows high resistance between two connected metal parts, it proves that the mechanical bond is failing electrically, and the installation is non-compliant.
