Solar Carport Installation Guide (Commercial & Parking Structure Systems)

Executive Summary

A solar carport fails as a project if it does not first succeed as a building. Because these structures span active parking lots and pedestrian zones, the structural tolerances, foundation designs, and safety factors are significantly higher than standard ground-mount systems. An error in column alignment or foundation elevation does not just look bad—it can compromise the steel connection geometry, invalidate the structural engineering stamp, and create long-term liability.

This guide provides the engineering workflow for executing a carport project: from geotechnical review and foundation construction to steel erection and module mounting. Use these hold points and verification steps to ensure that the heavy civil and structural phases align perfectly with the precise tolerances required by the solar racking and module components.

1. Project Scope & Applications

This page covers the installation of overhead solar structures designed to shelter vehicles while generating power. The scope includes site layout within existing or planned parking configurations, foundation excavation and concrete work, primary steel erection (columns and girders), secondary framing (purlins/rails), integrated water management (decking and gutters), and module installation. Because carports involve heavy construction in public spaces, the installation process must be tightly coordinated with site operations, traffic control, and phased lot closures.

Unlike a remote ground-mount field, a carport site has hard constraints: property lines, existing underground utilities, ADA parking requirements, and fire truck access lanes. The installation workflow must respect these constraints without compromising the structural integrity of the steel frame.

1.1 Commercial & Institutional Applications

Carports are high-value assets deployed at hospitals, shopping centers, corporate campuses, and schools. In these environments, the structure must meet aesthetic expectations (often requiring architectural finishes or concealed wiring) and incorporate secondary systems like LED lighting, security cameras, and EV charging stations. This multi-trade integration requires the installation team to coordinate conduit routing and mounting provisions early in the steel erection phase. For a breakdown of how these structures serve different facility types, see commercial solar mounting applications.

1.2 Structural Configuration Types

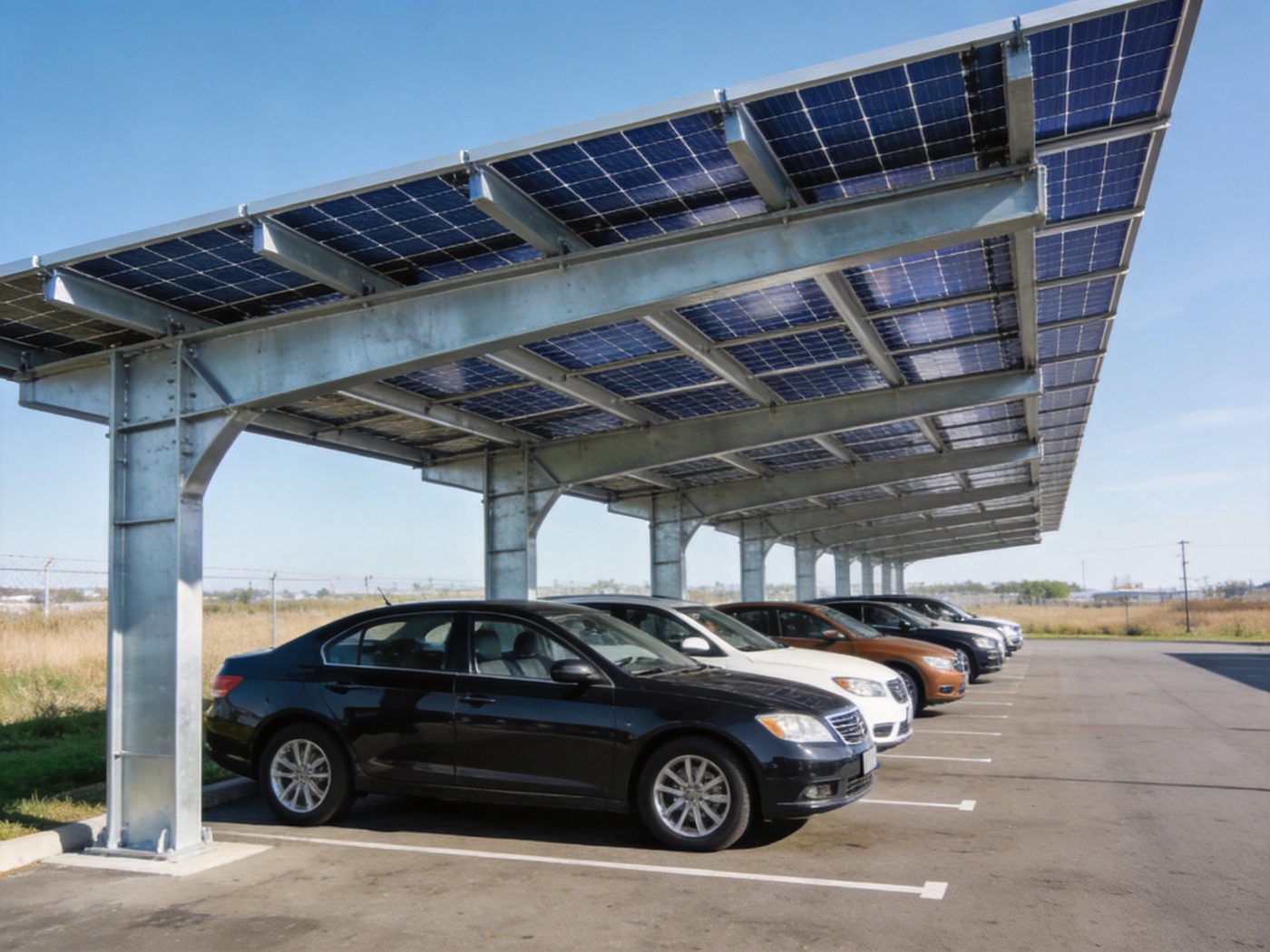

The installation sequence changes significantly based on the structural geometry. Common configurations include single-column cantilever (T-structures or L-structures) and dual-column spans. Single-column designs maximize parking maneuverability but place immense overturning moment on the foundation, requiring massive, deeply embedded concrete caissons. Dual-column designs distribute the load better but require precise span alignment between two foundation points. Understanding the mechanical behavior of your specific frame is essential before setting foundations. For the design logic of each type, review solar carport systems.

1.3 Site & Parking Layout Requirements

Carport column placement must thread the needle between structural span limits and parking lot striping. Columns must land in specific zones (typically between parking stalls or on islands) to avoid consuming parking spaces or creating collision hazards. Site layout must also account for vehicle overhangs, turning radii, and minimum vertical clearances (often 13’6″ or 14′ for fire lanes). If a column location must shift to avoid a utility strike, the engineering team must approve the span change before excavation. For the methodology of translating plans to physical stakes, refer to site preparation and layout procedures.

2. Pre-Installation Planning

The success of a carport installation is determined before the heavy equipment arrives. Planning for a carport is fundamentally a commercial construction planning exercise: you must manage geotechnical risk, structural steel lead times, concrete scheduling, and phased traffic control. Because the foundation and steel tolerances dictate the success of the solar installation, the solar EPC must act as, or closely manage, the civil and structural contractors.

Establish clear hold points for engineering review: foundation rebar cage inspection, anchor bolt template verification, concrete strength tests, and steel connection torque verification. Missing one of these hold points can result in a structure that cannot be legally occupied or safely loaded.

2.1 Geotechnical & Foundation Review

Carport foundations are primarily designed to resist massive wind uplift and overturning moments, rather than just gravity loads. A site-specific geotechnical report is mandatory. The report will define soil bearing capacity, lateral earth pressure, groundwater levels, and seismic site class—all of which dictate the caisson depth and diameter (often 24″ to 36″ diameter, 10′ to 20′ deep). Before mobilizing drill rigs, coordinate potholing to verify no utility conflicts exist at the exact column locations. For the detailed civil workflow, use the foundation installation guide.

2.2 Structural Steel Design Coordination

Review the structural steel shop drawings against the architectural and solar layouts. Confirm how the primary steel (columns and girders) connects to the secondary steel (purlins) and how the modules attach to the purlins. Identify whether connections are bolted or field-welded. If bolted, confirm the required bolt grades, sizes, and torque values. If welded, verify the required welding procedures and testing requirements (e.g., ultrasonic or magnetic particle testing). The interface between heavy steel and lightweight solar components requires careful tolerance management, as detailed in structural connection design principles.

2.3 Wind & Load Verification

Carports act as large sails. The upward wind force (uplift) and horizontal wind force (shear) on a cantilevered canopy are extreme. The installation must strictly adhere to the engineered design regarding column base plate thickness, anchor bolt embedment, and structural bracing. Do not substitute materials or alter connection details without the structural engineer of record’s (EOR) approval. Ensure the local wind speed and exposure category used in the design match the actual site conditions, referencing wind load calculation methods for context.

2.4 Code & Permitting Requirements

Carports are classified as accessory structures or occupied buildings depending on the jurisdiction. This means they are subject to rigorous building, fire, and electrical codes beyond standard ground-mount rules. Special inspections are often required by the municipality for concrete pouring, anchor bolt placement, high-strength bolting, and field welding. Prepare a binder with all stamped drawings, inspection logs, and material certifications to keep onsite for the building inspector, guided by the local building code requirements for solar structures.

3. Tools & Equipment Required

Carport installation requires heavy civil and steel erection equipment that must be operated by certified personnel. The tool list is closer to a commercial building project than a standard solar array:

• Civil/Foundation: Caisson drill rigs, excavators, concrete pump trucks, rebar tying tools, and concrete vibrators.
• Steel Erection: Mobile cranes (sized for the heaviest lift at the maximum required radius), boom lifts/telehandlers, tag lines, and certified rigging equipment.
• Assembly & Connections: Spud wrenches, alignment pins, calibrated torque multipliers or pneumatic torque wrenches for large structural bolts, and field welding rigs (if required).
• Solar Installation: Standard solar tooling, wire management tools, and specialized material lifts for raising modules to the canopy deck.

Because of the structural liability, bolt tensioning is a critical QA parameter. Use calibrated tools and document the torque of primary structural connections according to the specified bolt torque specifications.

4. Installation Workflow Overview

The workflow must be sequenced to manage site traffic and allow for required curing times and inspections. A typical phased approach includes:

1. Layout & Utility Location: Surveying, potholing, and staking.
2. Foundation Construction: Drilling, rebar cage placement, anchor bolt templating, and concrete pouring.
3. Steel Column Installation: Erecting, plumbing, and grouting columns.
4. Beam Assembly: Setting girders and installing structural bracing.
5. Rail Installation: Placing secondary purlins, decking (if used), and module rails.
6. Module Mounting: Securing modules and managing string wiring.
7. Grounding: Bonding structural steel and electrical components.
8. Final QA: Structural torque verification, electrical testing, and site restoration.

5. Step-by-Step Carport Installation Process

This is the core engineering execution sequence. Adhere strictly to the tolerances defined in the stamped structural drawings. A 1/2-inch error at the foundation can translate to a multi-inch misalignment at the canopy edge, making module installation impossible without field-cutting steel.

5.1 Site Layout & Excavation

Begin by establishing precise control lines using a total station. Mark the center point of every column foundation. Before drilling, perform utility locating (GPR or potholing) at every mark to prevent striking live lines. Once cleared, use an auger or drill rig to excavate the caissons to the engineer-specified depth and diameter. In caving soils, temporary steel casing may be required. Manage spoils removal continuously so parking areas are not blocked by excavated dirt. For the surveying and marking methodology, follow the solar site layout process.

5.2 Foundation Construction

Place the engineered rebar cage into the excavated shaft, ensuring proper concrete clearance using stand-offs. The most critical step in this phase is setting the anchor bolts. Use rigid, engineered templates to hold the heavy anchor bolts in the exact orientation, spacing, and projection height required. Pour the concrete (often 3000 to 4000 PSI mix) and consolidate it using vibrators. Survey the anchor bolts immediately after the pour while the concrete is still plastic to verify they have not shifted. Allow the concrete to reach its required compressive strength before erecting steel. Detailed concrete QA steps are found in the solar foundation installation guide.

5.3 Steel Column Installation

Once the concrete has cured, lift the steel columns onto the anchor bolts using a crane. Install the leveling nuts and washers beneath the column base plate to plumb the column. The column must be perfectly vertical; a leaning column introduces eccentric loads into the foundation. Once plumbed and the top nuts are tightened to a snug-tight condition, pump non-shrink grout under the base plate to provide continuous bearing support. Do not load the columns with girders until the grout has reached its specified strength.

5.4 Beam & Structural Assembly

Lift the primary girders or beams into place and connect them to the columns. Many carport designs use a bolted moment connection or a field-welded connection at this joint. If bolted, use the turn-of-nut method or calibrated tension-control bolts to achieve the required clamping force. Install all knee braces or cross bracing required by the design to stabilize the frame against lateral loads. For insight into how these elements resist shear forces, review the principles of structural bracing systems.

5.5 Rail Installation & Alignment

With the primary frame secure, install the secondary purlins (usually Z-purlins or C-channels) spanning across the girders. If the design includes a waterproof canopy, install the corrugated steel decking and gutter systems now. Ensure the purlins or rails are aligned perfectly straight across the entire array length; any waviness in the steel will cause the solar modules to sit unevenly, creating stress on the glass and an unprofessional appearance. Use string lines and lasers to verify plane alignment before tightening the secondary connections, following the rail and module mounting guide.

5.6 Module Mounting & Torque Control

Module installation on carports requires working at height, often from scissor lifts or boom lifts. Use the specified clamps and mounting hardware to secure the modules to the rails or purlins. Because carports are subjected to significant wind vibration, torque control on module clamps is vital. Under-torqued clamps will lead to module slippage, while over-torqued clamps can shatter the glass. Use calibrated torque wrenches and mark tightened bolts with a paint pen to indicate QA completion, adhering to the recommended torque values.

5.7 Grounding & Bonding

Every piece of structural steel, module frame, and electrical conduit must be electrically bonded to create a continuous fault current path back to the service ground. Carports often require heavy bonding jumpers across structural expansion joints or painted connections where metal-to-metal contact is not guaranteed. Ensure that the primary columns are bonded to the foundation rebar (Ufer ground) or driven ground rods as dictated by the electrical design and the grounding and bonding requirements.

5.8 Final Inspection & QA

The final QA process involves a comprehensive walk-through with the EOR, the electrical inspector, and the building official. Verify all structural torque marks, inspect the paint/galvanizing for damage and apply cold galvanizing compound where needed, confirm that drainage systems are clear of debris and pitched correctly, and ensure all wiring is fully concealed and protected from bird nesting and vandalism. Use the installation quality control checklist to prepare the handover documentation.

6. Engineering Design Considerations

Carports are engineered structures first and solar mounts second. The design must account for the safety of the people and vehicles underneath, meaning the engineering safety margins are higher than ground-mount systems. Installers must understand these design forces to appreciate why specific hardware and tolerances are mandated.

6.1 Wind Uplift & Lateral Loads

The large surface area and high clearance of a carport create massive aerodynamic lift, similar to an airplane wing. The foundation and column-to-beam connections are heavily engineered to resist these forces. Missing a structural bolt or using an inferior grade can lead to catastrophic failure during a microburst or hurricane. The design criteria are established based on regional wind load standards.

6.2 Snow Load & Drainage Design

Snow accumulation adds massive dead weight to the cantilevered structure. Furthermore, melting snow must be managed so it does not drip and refreeze into hazardous ice patches in the parking lot below. Water management systems (decking, ice guards, and internal downspouts) must be installed exactly as designed to prevent water pooling or uncontrolled runoff, addressing the specific snow load considerations for overhead structures.

6.3 Seismic Design Requirements

In earthquake-prone regions, the heavy mass of the steel and modules at the top of the columns creates significant lateral shear forces during a seismic event. The connections and base plates are designed to absorb and distribute this energy without fracturing. Never modify bracing or column orientations, as this violates the engineered response modeled in accordance with seismic design standards.

6.4 Corrosion & Protective Coating

Carport steel is exposed to weather, vehicle exhaust, and often road salt carried in on tires. Structural steel is typically hot-dip galvanized or coated with industrial epoxy paint. During installation, any scratches, field cuts, or welds must be properly prepared and recoated to prevent rust from compromising the steel’s lifespan. Implement the appropriate corrosion protection strategies as part of the daily QA process.

6.5 Thermal Expansion & Structural Deflection

Long steel canopies expand and contract significantly with temperature changes. The design will include expansion joints to prevent the steel from buckling or tearing the module clamps. Ensure these expansion gaps are maintained during installation and that electrical conduit and bonding jumpers crossing these joints have sufficient flexibility to accommodate the movement.

7. Special Installation Conditions

Site-specific environmental extremes dictate modifications to the standard installation workflow. Identify these conditions during the planning phase to order the correct materials and schedule the appropriate labor.

7.1 High Wind Areas

In hurricane or typhoon zones, the structure will require deeper foundations, thicker steel sections, and higher-grade structural bolts. The installation team must be prepared for stricter municipal inspections and must never leave a partially assembled structure unsupported if a high wind event is forecast. Follow the specific protocols for securing the site outlined in the high wind installation guidelines.

7.2 Cold Climate Installations

Winter construction introduces risks regarding concrete curing (requiring heated blankets or additives) and steel brittleness. Heavy snow loads dictate specific module clamping zones and the integration of robust snow guards. Ice damming in the gutters must be mitigated with heat trace cables if specified in the design. Address these seasonal challenges using the cold climate installation requirements.

7.3 Coastal & Corrosive Environments

Near the ocean, salt spray rapidly degrades unprotected steel. Galvanized coatings must meet higher thickness standards (e.g., G115 or higher), and dissimilar metal contact (like aluminum modules on steel purlins) must be aggressively mitigated with dielectric tape or isolation gaskets to prevent galvanic corrosion.

8. Safety & Risk Management

Carport installation involves high-risk activities: crane lifts, fall hazards, and trenching in active public areas. A site-specific safety plan is mandatory. Secure the work zone with chain-link fencing to keep pedestrians and vehicles out of the swing radius of heavy equipment. 100% tie-off fall protection is required when working on the steel canopy. Conduct daily Job Hazard Analyses (JHAs) and ensure all operators are certified for their equipment, aligning with the core solar installation safety procedures.

9. Time & Labor Benchmark

Carport projects are civil and structural heavy, meaning the solar component is only a fraction of the labor. Drilling and concrete pouring can take 1-2 weeks depending on lot size and soil conditions. Steel erection requires a specialized crew and crane, typically progressing at 2-4 spans per day. Module installation and wiring occur faster but require lifts. Understand how these phased trades interact to impact the overall project budget by reviewing the installation cost factors.

10. Common Failures & Troubleshooting

Addressing errors early is critical; mistakes compound rapidly in steel construction.

• Anchor Bolt Misalignment: Caused by templates shifting during the concrete pour. If bolts are out of tolerance, the EOR must design a fix (often involving slotted base plates or epoxied dowels). Never bend structural anchor bolts to fit.
• Column Plumbness Issues: Usually due to inadequate leveling nuts or rushing the grouting process. An out-of-plumb column prevents beams from aligning and stresses the foundation.
• Water Leaks in Decking: Occurs when corrugated decking is not overlapped correctly, sealant is missed, or fasteners miss the purlin. Repair requires locating the penetration and applying compatible roof sealant.
• Paint or Galvanizing Damage: Results from rough handling during lifting or bolt tightening. Must be repaired immediately with zinc-rich paint to prevent rust blooming.

11. Maintenance Implications

Carports require ongoing structural maintenance. Annual inspections should check for vehicle strike damage on columns, verify the torque on primary structural connections, and ensure drainage systems (gutters and downspouts) are clear of leaves and debris. Bird nesting is a common issue that damages wiring and creates unsanitary conditions below; install bird netting or spikes during initial construction if possible. Plan for long-term care using the structural integrity assessment framework.

12. FAQs

Why do carports take so much longer to build than ground mounts?

Carports are occupied structures that require heavy civil foundations, structural steel erection, and municipal building inspections at multiple hold points (rebar, concrete, welding, bolting). The logistics of working in active commercial parking lots also slow down the production rate.

Can we use driven piles for carports instead of concrete caissons?

Rarely. Driven piles (W-beams or C-channels) are excellent for ground mounts but usually lack the cross-sectional strength and soil bearing area required to resist the massive overturning moments generated by a cantilevered carport canopy. Engineered concrete caissons or large spread footings are almost always required.

What happens if we hit a utility line during excavation?

Hitting a utility is a severe safety and financial risk. All work must stop, and the utility owner must be contacted. This is why thorough potholing and Ground Penetrating Radar (GPR) sweeps are mandatory before any drilling begins in a commercial parking lot.

Are solar carports waterproof?

Not automatically. If a waterproof canopy is required, a sub-decking system (corrugated steel) with integrated gutters and downspouts must be installed beneath the solar modules. Standard rail-and-clamp module mounting without decking will allow rain to pass between the panels.
