Solar Mounting Foundations – Complete Structural & Geotechnical Guide

Why Foundation Design is Critical for Solar Mounting Systems

Foundation engineering represents the critical interface between photovoltaic mounting structures and supporting earth materials, transferring all structural loads including panel dead weight, wind uplift forces, snow accumulation, and seismic events to adequate bearing strata while resisting overturning moments and lateral displacement throughout 25-30 year operational lifetimes. The foundation system must accommodate diverse soil conditions ranging from loose sand to bedrock, varying groundwater levels, seasonal frost penetration in cold climates, and site-specific geotechnical constraints affecting bearing capacity and settlement characteristics. Foundation design is a critical aspect of solar mounting materials & structural design, directly influencing structural integrity and lifecycle performance through proper load distribution, corrosion resistance provisions, and installation methodology compatible with site conditions and project economics.

Different solar mounting system types require specific foundation configurations optimized for their structural characteristics, loading patterns, and installation contexts. Ground-mounted utility-scale projects predominantly employ driven pile foundations enabling rapid mechanized installation across hundreds of acres, while residential rooftop systems eliminate foundation requirements through integration with existing building structures. Commercial flat-roof applications frequently utilize ballasted foundations avoiding roof penetrations and preserving waterproofing integrity, whereas rocky terrain or contaminated sites may necessitate specialized rock anchoring or non-invasive foundation solutions. The foundation selection process involves comprehensive geotechnical investigation characterizing subsurface conditions, structural engineering analysis computing required capacity and embedment depth, economic evaluation balancing foundation costs against installation efficiency, and regulatory compliance ensuring adherence to building code provisions for structural safety and environmental protection. Proper foundation design prevents catastrophic structural failures from inadequate capacity, minimizes long-term maintenance from differential settlement or frost heave damage, and optimizes project economics through installation method selection appropriate to site constraints and project scale.

Types of Foundations Used in Solar Mounting

Solar mounting foundation systems encompass five primary categories, each serving distinct geotechnical conditions, structural requirements, and project constraints. Driven pile foundations utilize steel posts mechanically driven into soil without excavation, representing the dominant solution for utility-scale ground-mounted installations where rapid installation rates and adaptability to varying soil conditions deliver optimal economics. Concrete foundations employ cast-in-place or precast elements including spread footings, piers, and mat foundations, providing maximum load capacity and structural rigidity for applications requiring substantial bearing area or moment resistance. Ballasted foundations apply gravitational restraint through concrete blocks or weighted platforms without ground penetration, serving rooftop installations where membrane integrity preservation proves paramount and ground applications on impervious surfaces or contaminated soils prohibiting excavation. Ground screw foundations, also termed helical piers or helical anchors, feature continuous helical bearing plates welded to central shaft, advancing into soil through rotational torque creating minimal soil disturbance with immediate load capacity upon installation. Rock anchoring systems address sites with shallow bedrock or rocky terrain where conventional foundation methods prove impractical, utilizing drilled anchors grouted into competent rock or mechanical expansion anchors engaging rock fissures and providing tensile capacity resisting uplift forces.

Foundation selection methodology follows comprehensive foundation selection guide protocols evaluating multiple criteria including subsurface geotechnical characteristics from soil boring investigations, structural loading magnitudes from wind and snow analysis, installation equipment accessibility and site logistics constraints, project budget parameters and installation timeline requirements, environmental restrictions affecting excavation or soil disturbance, and long-term performance considerations including corrosion potential and frost heave susceptibility. The decision matrix weighs competing factors where driven piles excel in rapid large-scale deployment but require specialized equipment and may encounter installation refusal in dense soil or shallow bedrock, concrete foundations provide superior capacity and permanence but demand curing time and excavation access, ballasted systems enable non-penetrating installation preserving site reversibility but impose substantial weight loading and wind uplift vulnerability, ground screws offer installation flexibility and reduced soil disturbance but exhibit limited capacity in soft soils and higher unit costs, and rock anchoring serves otherwise unbuildable sites but necessitates specialized drilling equipment and technical expertise. The optimal foundation approach emerges from site-specific analysis integrating geotechnical data, structural requirements, economic constraints, and project-specific objectives rather than universal prescriptive solutions, with hybrid approaches sometimes combining multiple foundation types addressing localized soil variations or structural requirements within single project boundaries.

Foundation Types & Engineering Details

Pile Driven Foundations

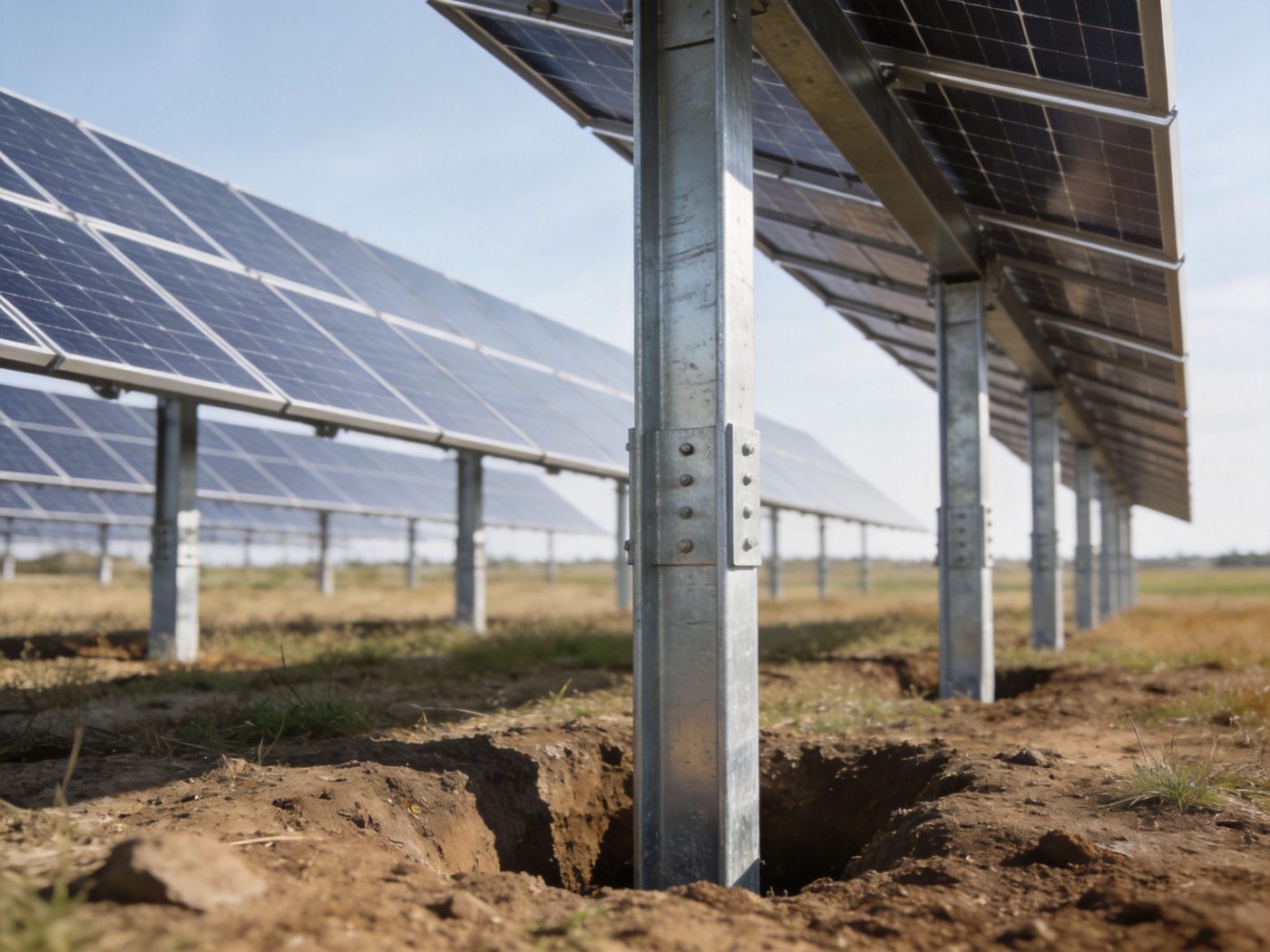

Pile driven foundation systems employ steel posts typically 2.5-4 inches in diameter and 5-10 feet length, mechanically driven into soil using hydraulic impact hammers or vibratory drivers at installation rates exceeding 1,000 piles per day on utility-scale projects. The driven pile develops capacity through soil friction along the embedded shaft length and end bearing at the pile tip, with ultimate capacity determined through either bearing graphs recording blow counts during installation or load testing verifying design assumptions. Common pile profiles include H-sections providing biaxial bending resistance, pipe sections offering superior driving characteristics in dense soils, and W-sections combining material efficiency with structural capacity. The installation process generates minimal excavation or soil disposal, with piles advancing directly into bearing strata through dynamic energy transferring from pile driver ram to pile head. Driven pile advantages include rapid installation compatible with mechanized equipment achieving economies of scale on large projects, immediate load capacity upon installation without curing delays, adaptability to varying soil conditions through adjustable embedment depth, and proven performance record across utility-scale solar deployments globally. Limitations encompass specialized equipment requirements increasing mobilization costs on small projects, potential installation refusal encountering bedrock or dense soil layers, noise and vibration concerns in sensitive environments, and uncertainty regarding capacity in highly variable soil conditions. Proper wind load calculation determines required pile capacity and spacing, with structural analysis computing overturning moments and uplift forces transferred through mounting structure to foundation elements. Driven pile design specifications account for corrosion loss through sacrificial steel thickness or galvanization protection, with typical wall thickness ranging 3-5mm providing 25-30 year service life accounting for atmospheric and soil-side corrosion rates based on geotechnical investigation electrochemical testing.

Concrete Foundations

Concrete foundation types for solar mounting encompass spread footings distributing loads over adequate bearing area to limit soil bearing pressure below allowable values, drilled piers or caissons extending through weak surface soils to competent bearing strata, and mat foundations creating continuous reinforced concrete slabs supporting entire array sections. Spread footings typically measure 2-4 feet square and 12-24 inches deep for residential and small commercial applications, with reinforcement steel providing tensile capacity and crack control. Drilled pier foundations range 12-36 inches diameter extending 4-12 feet depth depending on required capacity and competent bearing depth, with steel reinforcement cages and concrete placement following geotechnical specifications. The concrete foundation advantages include maximum load capacity supporting heavy structures and concentrated loading, design flexibility accommodating complex geometries and moment resistance requirements, permanence and durability minimizing long-term maintenance, and suitability for poor soil conditions through deep foundation elements bypassing weak surface layers. Concrete foundation challenges involve extended installation timelines from excavation, forming, concrete placement, and 7-28 day curing periods before structural loading, significant excavation quantities generating soil disposal requirements and site disturbance, weather-dependent construction vulnerable to temperature extremes affecting concrete curing, and higher unit costs per foundation element compared to driven pile alternatives. Soil geotechnical considerations determine appropriate footing dimensions and embedment depth, with bearing capacity analysis ensuring adequate safety factors against shear failure and settlement analysis limiting differential movement preventing structural distress. Reinforcement design follows ACI 318 concrete design provisions, with minimum reinforcement preventing shrinkage cracking and structural reinforcement resisting applied moments from eccentric loading and lateral forces. Concrete foundations prove optimal for applications requiring maximum capacity including carport structures with long spans and heavy loading, sites with adequate construction access and timeline flexibility, poor soil conditions necessitating deep foundations, and permanent installations where foundation reversibility provides no benefit.

Ballasted Foundations

Ballasted foundation systems achieve structural stability through gravitational resistance, utilizing precast concrete blocks or steel trays filled with gravel or sand weighing 3-10 pounds per square foot of array area to counteract wind uplift and overturning moments without penetrating mounting surface. Ballasted solar mounting configurations integrate foundation blocks with mounting structure through mechanical connections, with ballast quantities calculated from wind load analysis accounting for array geometry, site wind exposure, and required safety factors against uplift and sliding. The ballasted approach proves essential for flat commercial roof applications where membrane penetrations risk water infiltration and warranty violations, brownfield or contaminated sites prohibiting soil excavation due to environmental restrictions, and temporary installations requiring future relocation or site restoration to original conditions. Ballasted system advantages include non-penetrating installation preserving waterproofing integrity and enabling straightforward removal, rapid deployment without specialized equipment or ground preparation, design flexibility through modular block configurations accommodating roof obstacles and drainage requirements, and suitability for sites prohibiting excavation from environmental, archaeological, or property access constraints. Ballasted foundation limitations encompass substantial weight imposing roof structural loading requiring capacity verification, wind performance vulnerability necessitating conservative design factors and potential reduced tilt angles, higher unit costs from concrete material quantities and transportation logistics, and seasonal installation constraints from frozen ground preventing proper block placement and leveling. Ballast block design specifications vary from standardized precast units with integrated mounting brackets to custom configurations sized for specific wind exposure and structural requirements. The roof structural analysis verifies adequate capacity for concentrated ballast loading at block locations, with load distribution to building structural members evaluated considering existing dead loads, code-required live loads, and environmental loading combinations. Proper ballast installation includes roof surface preparation ensuring level bearing surfaces, drainage preservation maintaining roof water management, and edge setbacks satisfying fire department access requirements and building code provisions for rooftop equipment placement.

Ground Screw Foundations

Ground screw foundation installation employs helical bearing plates welded to central steel shaft, mechanically rotated into soil using hydraulic torque motors developing installation torque correlating to ultimate capacity through empirically-derived factors. The helical plates typically range 8-14 inches diameter with one to three plates spaced along shaft length, advancing through soil rotation creating continuous bearing surface without soil displacement or excavation spoils. Ground screw capacity derives from bearing resistance of helical plates in competent soil strata, with torque monitoring during installation providing real-time capacity verification and quality control. The ground screw advantages include reduced soil disturbance from displacement installation method, immediate load capacity upon installation enabling same-day structural erection, installation flexibility adapting to variable site conditions through adjustable final depth, suitability for environmentally sensitive sites minimizing excavation and habitat disruption, and cost-effectiveness on small to medium projects avoiding mobilization expenses for specialized pile driving equipment. Ground screw limitations involve capacity constraints in soft or loose soils where helical plate bearing area proves insufficient, installation challenges in rocky or heavily vegetated terrain, higher unit costs compared to driven piles on large utility-scale projects, and sensitivity to installation quality including proper alignment and torque verification. Proper ground screw specification requires geotechnical investigation characterizing soil shear strength and layering, with helical plate diameter and quantity selected achieving adequate capacity in site-specific conditions. Load testing protocols verify capacity assumptions through proof testing sample anchors to 150-200% design load, with deflection measurements and residual torque confirming adequate performance. Ground-mounted solar systems on distributed generation projects frequently employ ground screws balancing installation efficiency against foundation costs on projects ranging from 50kW to several megawatts where driven pile mobilization proves economically prohibitive. Installation quality control monitors torque values, final depth achievement, and plumbness verification, with deficient installations requiring supplemental anchors or foundation redesign ensuring structural adequacy throughout operational lifetime.

Rock Anchoring Systems

Rock anchoring foundation design addresses sites with shallow bedrock, mountainous terrain, or rocky soils where conventional foundation methods encounter installation difficulties or prove economically infeasible. Rock anchor systems utilize drilled holes 1-3 inches diameter extending 3-6 feet into competent rock, with threaded steel rods grouted using non-shrink cementitious or epoxy grout developing bond strength and mechanical interlock. Alternative mechanical expansion anchors employ wedge mechanisms engaging rock sidewalls, providing immediate capacity without grout curing delays. Rock anchor capacity derives from bond stress along the grouted embedment length, with ultimate capacity typically 15,000-40,000 pounds per anchor depending on rock quality, embedment depth, and anchor diameter. The rock anchoring approach proves essential for mountainous utility-scale projects where shallow bedrock prevents pile driving, urban solar installations on rock outcrops or ledge conditions, and specialized applications including solar canopies over rocky parking areas or steep hillside installations. Rock anchor advantages include suitability for otherwise unbuildable sites expanding project development opportunities, high capacity per anchor reducing foundation quantities and visual impact, corrosion resistance from rock encapsulation protecting embedded portions, and design flexibility through adjustable anchor angles accommodating irregular terrain. Rock anchoring challenges encompass specialized drilling equipment requirements increasing installation costs, rock quality dependency with fractured or weathered rock exhibiting reduced capacity, technical expertise requirements for proper installation and testing, and potential environmental concerns from drilling fluid disposal or groundwater interaction. Rock anchor design methodology follows geotechnical investigation with rock coring characterizing rock type, strength, and fracture patterns, with anchor capacity computed from published correlations or site-specific pullout testing. Single-axis tracking systems deployed on rocky terrain may employ rock anchors at foundation locations encountering bedrock, with hybrid foundation approaches combining rock anchors and driven piles or ground screws addressing variable site conditions within project boundaries. Installation procedures include diamond core drilling creating precise diameter holes, hole cleaning removing rock cuttings and ensuring proper grout bond, anchor installation with specified embedment depth and orientation, grout placement using tremie methods preventing void formation, and curing period before load application or structural connection.

Geotechnical & Climate Factors in Foundation Engineering

Soil Geotechnical Considerations

Comprehensive soil geotechnical considerations establish foundation design parameters through subsurface investigation including soil borings, standard penetration testing (SPT), cone penetration testing (CPT), and laboratory analysis characterizing soil classification, bearing capacity, shear strength, consolidation characteristics, and corrosion potential. The geotechnical investigation typically employs borings at 150-300 foot spacing on utility-scale projects or minimum three borings on smaller commercial installations, extending to depths of 15-25 feet or until reaching competent bearing strata. Standard penetration test N-values quantify soil density and consistency, with N-values below 10 indicating very loose or soft soils requiring deep foundations or ground improvement, values 10-30 representing medium density suitable for most foundation types with proper design, and values exceeding 30 indicating dense or hard soils providing high capacity but potentially challenging pile installation. Laboratory testing includes grain size analysis determining soil classification per Unified Soil Classification System (USCS), Atterberg limits quantifying plasticity characteristics affecting frost susceptibility and volume change potential, direct shear or triaxial testing measuring shear strength parameters for bearing capacity calculations, and consolidation testing predicting long-term settlement under sustained loading.

Soil corrosivity assessment evaluates electrochemical factors affecting buried steel foundation longevity, with testing measuring soil resistivity correlating inversely to corrosion rates, pH indicating acidic conditions accelerating metal loss, chloride and sulfate content identifying aggressive chemical environments, and redox potential characterizing oxidation-reduction conditions. Soil resistivity below 1,000 ohm-cm indicates severely corrosive conditions requiring enhanced protection, values 1,000-5,000 ohm-cm represent moderately corrosive environments with standard galvanization providing adequate protection, and resistivity exceeding 10,000 ohm-cm suggests mildly corrosive conditions with minimal steel loss over design life. Foundation corrosion protection strategies address identified risks through galvanization thickness specifications, sacrificial steel allowances, cathodic protection systems, or isolation methods separating dissimilar metals. Bearing capacity analysis applies Terzaghi, Meyerhof, or other recognized methodologies computing allowable soil bearing pressure from soil strength parameters, foundation geometry, embedment depth, and groundwater conditions, with typical allowable bearing pressures ranging 1,500-3,000 psf for medium dense sand or stiff clay, 3,000-6,000 psf for dense sand or very stiff clay, and 8,000+ psf for cemented soils or soft rock. Settlement analysis evaluates immediate elastic deformation and time-dependent consolidation, with acceptable total settlement typically limited to 1-2 inches and differential settlement between adjacent foundations restricted to 0.5 inches preventing structural distress or tracker misalignment. The geotechnical report provides foundation recommendations including type selection, minimum embedment depth, allowable capacities, corrosion protection requirements, and special considerations for challenging conditions including expansive soils, collapsible soils, high groundwater, orseismically active zones.

Frost Protection Design

Cold climate frost protection design requirements address frost heave mechanisms where freezing temperatures cause ice lens formation in frost-susceptible soils, generating upward soil expansion and adfreeze forces lifting foundation elements. Frost heave potential correlates with soil type, with silty soils exhibiting highest susceptibility through capillary water migration feeding ice lens growth, clayey soils demonstrating moderate susceptibility, and granular soils showing minimal heave tendency from drainage characteristics limiting water availability. The primary frost protection strategy involves foundation embedment below frost penetration depth, with regional frost depth maps providing design values ranging from zero in southern climates to 6+ feet in northern regions and high elevations. Foundation elements extending above frost depth require adfreeze protection through smooth surfaces or friction-reducing sleeves preventing soil bonding, with plastic pipe sleeves or bituminous coatings reducing adfreeze shear stress by 50-80% compared to bare steel. Frost heave damage manifests as vertical displacement lifting arrays from design positions, connection distress from differential movement between foundations, panel misalignment affecting electrical performance and creating shading losses, and structural overstress from accumulated deformation over multiple freeze-thaw cycles. Snow load considerations interact with frost protection through embedment requirements, with deeper foundations satisfying both frost depth and increased overturning resistance from snow loading.

Alternative frost protection strategies include soil replacement with non-frost-susceptible gravel backfill around foundations, subsurface drainage intercepting groundwater migration toward freezing front, insulation materials reducing frost penetration depth in localized areas, and oversized foundation elements with capacity margins accommodating modest heave displacement without structural failure. Foundation design in frost-prone regions specifies minimum embedment depth exceeding frost line by 12-24 inches providing safety margin against deeper-than-predicted frost penetration from extreme winter events. Post-installation monitoring during initial winter seasons verifies frost protection adequacy, with surveying detecting vertical displacement and enabling corrective interventions before significant structural damage. Tracked solar mounting systems prove particularly vulnerable to frost heave effects, as vertical displacement of individual foundations creates row misalignment preventing proper tracker rotation and inducing mechanical stress in drive systems. Fixed-tilt ground mount installations tolerate minor differential settlement more readily through connection flexibility, though excessive heave still risks structural overstress and long-term fatigue from cyclic seasonal movement. The geotechnical investigation identifies frost susceptibility through soil classification and laboratory testing, with frost depth recommendations incorporating local climate data, site-specific factors including vegetation, drainage, and solar exposure affecting ground temperature regimes, and project risk tolerance balancing foundation cost increases against potential damage consequences.

Load Transfer Principles

Effective load transfer principles for solar mounting ensure continuous force paths from panel mounting points through structural members, connections, foundation elements, and bearing soils without overstress or excessive deformation. Foundation loads include compressive bearing from combined dead and live loads, uplift tension from wind suction attempting to extract foundations, lateral shear from wind drag and seismic forces, and overturning moments from eccentric loading creating coupled vertical forces at foundation clusters. Driven pile foundations resist compression through shaft friction and end bearing, tension through shaft friction mobilized in opposite direction, and lateral loads through passive soil pressure developing along embedded length. Concrete spread footings rely on bearing area adequacy preventing soil shear failure, weight mass resisting uplift and overturning, and base friction combined with passive earth pressure resisting sliding. The structural interface between mounting framework and foundations requires connection details accommodating construction tolerances while maintaining load path integrity, with adjustable base plates, grout-filled void spaces, or field-welded connections addressing as-built position variations. Structural bracing systems interact with foundation design through lateral load distribution, with bracing configurations affecting individual foundation loading patterns and overall system stability.

Foundation safety factors typically range 2.0-3.0 for ultimate limit states and 1.5-2.0 for serviceability conditions, with higher factors addressing uncertainty in soil characterization, construction quality variability, potential for extreme environmental loading exceeding design basis, and consequences of failure affecting public safety or major economic loss. Load combinations per ASCE 7 evaluate multiple scenarios including dead plus live loads, dead plus wind with reduced live load, and dead plus seismic, with foundation design ensuring adequacy for all applicable combinations. Geotechnical failure modes include bearing capacity failure from excessive pressure causing soil shear, pullout failure from inadequate friction or bearing resistance under tension, sliding failure from insufficient base friction under lateral loading, and overturning failure when destabilizing moments exceed stabilizing mass and bearing resistance. Structural failure modes encompass foundation element fracture from bending or shear overstress, connection failure at structure-to-foundation interface, and fatigue crack propagation from cyclic wind loading particularly affecting tracked systems with continuous motion. The foundation design process integrates structural analysis determining applied loads, geotechnical analysis verifying soil capacity, material specifications ensuring adequate strength and corrosion resistance, and construction specifications defining installation procedures and quality control measures confirming design assumptions throughout execution.

Engineering Best Practices for Solar Foundations

Foundation Corrosion Protection

Comprehensive foundation corrosion protection strategies extend foundation service life through protective coatings, sacrificial material allowances, cathodic protection systems, and material selection appropriate to exposure conditions. Hot-dip galvanization provides primary corrosion protection for buried steel foundations, with zinc coating thickness 85-100 microns (G-90 to G-235 designation) offering 20-30 year protection in moderate soil conditions. The galvanization layer corrodes sacrificially protecting underlying steel, with corrosion rates determined from geotechnical investigation electrochemical testing including soil resistivity, pH, moisture content, and chemical composition. Sacrificial steel thickness compensates for anticipated metal loss over design life, with typical specifications adding 1-3mm wall thickness beyond structural requirements accounting for both atmospheric corrosion above ground and accelerated soil-side corrosion in aggressive environments. Corrosion modeling employs empirical relationships correlating soil properties to annual metal loss rates, typically 0.5-2 mils per year for galvanized steel in moderate conditions, 2-5 mils per year in aggressive soils with low resistivity or high chloride content, and potentially 5+ mils per year in severely corrosive environments including coastal areas or industrial sites with contaminated soils. Corrosion protection design considers both uniform general corrosion reducing cross-sectional area and localized pitting corrosion creating stress concentration points potentially initiating structural failure at lower average section loss.

Cathodic protection systems offer active corrosion mitigation through impressed current or sacrificial anode methods, though practical implementation challenges including maintenance requirements, electrical isolation needs, and cost considerations limit widespread adoption in solar applications. Alternative protection strategies include epoxy or polyurethane coatings creating barrier protection, though installation damage during pile driving often compromises coating integrity rendering protection ineffective. Foundation design for corrosive environments typically specifies enhanced galvanization thickness, increased sacrificial steel allowances, and potentially upgraded material specifications including weathering steel or stainless steel for critical components. Long-term monitoring programs on representative projects employ witness pile techniques where spare foundations are periodically extracted and measured for actual corrosion rates, validating design assumptions or triggering mitigation interventions if accelerated degradation threatens structural adequacy before design life completion. The corrosion protection design balances initial cost premiums for enhanced specifications against potential replacement costs, production losses from structural failure, and safety consequences, with lifecycle cost analysis incorporating probability-weighted future scenarios determining economically optimal protection levels for specific project risk profiles and site conditions.

Foundation Selection Guide

Strategic foundation selection follows comprehensive complete foundation selection guide methodology evaluating technical feasibility, economic optimization, schedule constraints, and long-term performance considerations. The decision matrix weighs soil conditions from geotechnical investigation results, with cohesionless sands and gravels favoring driven piles or ground screws, cohesive clays suitable for concrete footings or driven piles depending on consistency, mixed or variable soils potentially requiring multiple foundation types, and rock or very dense soils necessitating specialized solutions including rock anchors or pre-drilling for driven piles. Project scale influences foundation economics, with utility-scale installations exceeding 5MW capacity achieving driven pile cost advantages through mechanized installation equipment amortizing mobilization expenses, projects 500kW-5MW representing transition range where ground screws or concrete may prove competitive, and small commercial or residential installations below 500kW favoring concrete footings or ground screws avoiding pile driver mobilization costs. Site accessibility affects equipment feasibility, with confined urban sites or rooftop installations precluding heavy machinery favoring hand-excavated footings or small-diameter ground screws, while open rural sites enable efficient deployment of truck-mounted pile drivers or drilling rigs. Regional climate design guide considerations influence foundation specifications, with cold climates requiring frost protection adding embedment depth, corrosive coastal environments necessitating enhanced protection, and seismic zones demanding ductile connection detailing.

Schedule sensitivity weighs installation duration against project deadlines, with driven piles enabling most rapid deployment at 1,000+ piles per day on large sites, ground screws achieving 50-150 anchors per crew daily on smaller projects, concrete foundations requiring excavation, forming, placement, and curing extending timelines by weeks, and rock anchoring proceeding at 10-40 anchors per day depending on drilling conditions. Environmental constraints including wetlands, endangered species habitat, archaeological sensitivity, or contaminated soils affect foundation permitting and methodology, with driven piles and ground screws minimizing soil disturbance favored in sensitive areas, concrete foundations generating excavation spoils requiring disposal management, and ballasted systems enabling non-invasive installation where excavation prohibition proves absolute. Reversibility requirements for temporary installations, leased property, or sites requiring eventual restoration favor ballasted or ground screw foundations enabling straightforward removal and site rehabilitation, while permanent utility-scale projects prioritize installation economy and long-term performance over end-of-life considerations. The optimal foundation selection emerges from multi-criteria analysis weighting site-specific factors rather than universal prescriptive approaches, with experienced engineering judgment considering lessons from comparable projects, regional construction practices, contractor capabilities, and owner preferences integrating into technically sound and economically optimized solutions.

Integration with Mounting Structure & Installation

Foundation & Structure Integration

Foundation and mounting structure integration requires compatible design ensuring proper load transfer, accommodation of construction tolerances, and installation sequencing coordination. The structure-to-foundation interface typically employs bolted base plate connections for concrete foundations with anchor bolts cast in place or epoxy-grouted post-installation, slip-fit post connections for driven piles with set screws or through-bolts securing structural columns, or specialized brackets for ground screws and rock anchors transferring loads through mechanical interfaces. Construction tolerances address unavoidable position variations from foundation installation, with typical horizontal tolerance ±2 inches and vertical tolerance ±1 inch requiring structural connections with adjustment range or field-fit capability. Roof mount installation guide protocols address rooftop waterproofing integration and structural attachment verification, while ground mount installation guide procedures specify foundation layout survey requirements, structural member assembly sequences, and quality control checkpoints. Foundation installation precedes structural erection, with survey verification confirming position accuracy, load testing validating capacity assumptions on representative samples, and corrective measures addressing deficient foundations before structural loading. The structural design accommodates foundation flexibility particularly for driven piles exhibiting greater deflection than rigid concrete alternatives, with connection details allowing minor rotation or translation without inducing overstress. Thermal expansion considerations prove critical for large arrays, with foundation layout accommodating dimensional changes from temperature variation through expansion joints, sliding connections, or adequate connection flexibility preventing thermal stress accumulation.

Cost Considerations in Foundation Design

Foundation costs represent 15-30% of total mounting system expenditure depending on selected foundation type, site conditions, and project scale. Driven pile foundations typically cost $15-35 per pile for utility-scale projects with mechanized installation, escalating to $50-100 per pile for small projects with mobilization cost dominance. Concrete foundations range $75-200 per footing for residential applications with hand excavation and small volumes, reducing to $40-80 per footing on large commercial projects with mechanized excavation and volume concrete placement. Ground screws cost $50-150 per anchor depending on diameter, length, and soil conditions, with installation rates of 50-150 anchors per crew-day. Ballasted systems impose $8-15 per square foot of array area for concrete block costs, with transportation and placement adding $3-8 per square foot. Installation cost factors include equipment mobilization, labor rates, site accessibility, soil conditions affecting installation difficulty, and project scale enabling efficiency improvements. Regional cost differences reflect local labor rates varying 50-200% between markets, material costs influenced by transportation distances and market supply, and equipment availability affecting rental rates and mobilization expenses. Foundation optimization balances initial cost minimization against long-term performance, with value engineering identifying opportunities for cost reduction without compromising structural adequacy or reliability throughout design life.

Comparison of Solar Foundation Types

The comparative analysis reveals fundamental trade-offs between installation efficiency, capacity, cost, and site suitability across foundation categories. Detailed comparison of pile vs ground screw foundations evaluates installation methodology differences, capacity characteristics, equipment requirements, and economic breakeven points for varying project scales. Similarly, comprehensive comparison of pile vs concrete foundations addresses installation timeline implications, ultimate capacity differences, soil condition suitability, and lifecycle performance considerations. The optimal foundation selection emerges from multi-criteria decision analysis integrating technical feasibility from geotechnical investigation, economic optimization through lifecycle cost evaluation, schedule constraints affecting project completion timelines, and performance requirements ensuring structural adequacy throughout 25-30 year operational periods. Site-specific conditions including soil properties, environmental constraints, access limitations, and regulatory requirements ultimately determine foundation feasibility, with experienced engineering judgment incorporating lessons from comparable projects and regional construction practices into technically sound and economically optimized solutions tailored to unique project characteristics and owner objectives.

Frequently Asked Questions About Solar Foundations

What type of foundation is most common for utility-scale solar projects?

Driven pile foundations dominate utility-scale solar installations, accounting for 70-80% of ground-mounted projects exceeding 5MW capacity. Steel piles driven 5-8 feet deep using mechanized pile drivers achieve installation rates exceeding 1,000 piles per day, delivering optimal economics through rapid deployment and adaptability to varying soil conditions. The driven pile methodology requires minimal site preparation, generates no excavation spoils, and provides immediate load capacity without curing delays. Alternative foundation types serve specialized conditions including shallow bedrock requiring rock anchors, very soft soils necessitating deep concrete piers, or environmentally sensitive sites where ground screws minimize soil disturbance.

How deep do solar panel foundations need to be?

Foundation depth requirements vary by foundation type, soil conditions, loading magnitude, and climate factors. Driven piles typically embed 5-8 feet for standard utility-scale applications, extending to 10-12 feet in soft soils or high wind exposure zones. Concrete spread footings generally place bases 18-36 inches deep in moderate climates, increasing to 4-6+ feet in frost-prone regions to achieve embedment below frost penetration depth. Ground screw anchors advance 4-8 feet depending on helical plate configuration and soil bearing characteristics. Rock anchors drill 3-6 feet into competent rock achieving required bond length. The geotechnical investigation and structural engineering analysis determine project-specific depth requirements ensuring adequate capacity and frost protection.

What soil conditions are best for solar foundations?

Medium dense to dense granular soils including sands and gravels provideoptimal foundation conditions, offering good bearing capacity of 2,000-4,000 psf, excellent drainage characteristics, ease of pile driving installation, and minimal frost heave susceptibility. Stiff to very stiff cohesive clays perform adequately though require attention to consolidation settlement and potential frost heave in cold climates. Very loose or soft soils necessitate deep foundations bypassing weak surface layers or ground improvement techniques including compaction or stabilization. Rocky terrain or very dense soils challenge driven pile installation but support high capacities through rock anchoring or pre-drilled pile installation. Comprehensive geotechnical investigation characterizes site-specific conditions enabling appropriate foundation selection across diverse soil profiles.

How do foundations prevent solar panels from blowing away in high winds?

Foundations resist wind uplift forces through multiple mechanisms depending on type. Driven piles and ground screws develop tensile capacity from soil friction along embedded shaft length, with ultimate pullout resistance typically 5,000-15,000 pounds per pile. Concrete spread footings resist uplift through self-weight and overlying soil weight, requiring adequate bearing area and embedment depth. Ballasted foundations rely on gravitational mass, with concrete block weight exceeding maximum uplift forces by safety factors typically 1.5-2.0. The structural analysis per ASCE 7 wind load provisions computes design wind pressures from site-specific wind speeds, exposure categories, and array geometry, with foundation design ensuring adequate capacity for 50-year return period wind events including appropriate safety factors against uplift, overturning, and sliding failure modes.

What maintenance do solar foundations require?

Properly designed and installed foundations require minimal maintenance throughout 25-30 year operational lifetimes. Inspection protocols include visual examination for foundation movement, settlement, or heaving indicated by structural misalignment or connection distress. Corrosion monitoring in aggressive environments verifies protective coating integrity at above-ground portions, with electrochemical testing characterizing buried element condition. Foundation repair interventions address identified deficiencies including grouting voids beneath settled footings, supplemental anchors for inadequate capacity, or structural modifications redistributing loads. Periodic surveying on tracked systems verifies row alignment within operational tolerances, with corrective measures addressing differential settlement before mechanical damage. Preventive maintenance emphasizes proper drainage maintaining design conditions and vegetation control preventing root damage or moisture retention accelerating corrosion.

Foundation engineering integrates with broader system design addressed in solar mounting system types documentation and solar mounting materials & design technical resources. Comprehensive installation procedures in installation quality control guides establish verification protocols ensuring foundation installation meets engineering specifications and maintains structural integrity throughout operational lifetime.
