Engineering Overview

In the structural engineering of utility-scale solar arrays, the foundation is the absolute baseline of bankability. If the foundation fails, the entire kinetic and static load architecture collapses. The engineering decision between utilizing pile driven foundation systems and ground screw foundation systems is dictated entirely by a site’s unique geotechnical profile and the specific uplift forces generated by the superstructure. The engineering consensus is direct: Driven piles are the undisputed standard for massive, utility-scale deployments in dense, cohesive soils or rocky strata, offering unparalleled load-bearing capacity and extreme resistance to overturning moments. Conversely, ground screws are the superior technical solution for soft, sandy, or loamy soils, offering extremely rapid, low-disturbance installation without the need for heavy concrete remediation or massive pile-driving rigs.

Attempting to force a driven pile into a swamp, or attempting to twist a ground screw into solid granite, guarantees catastrophic budget overruns and compromised structural safety. To systematically evaluate which subterranean anchoring method aligns with your project’s environmental reality and financial constraints, developers must utilize this solar mounting comparison hub to bridge the gap between initial civil engineering costs and 30-year structural survival.

Quick Engineering Recommendation

Pile vs Ground Screw – Technical Comparison

The evaluation matrix highlights that while both systems offer exceptional long-term performance and negligible maintenance, their upfront economics and deployment speeds diverge based on soil mechanics. Driven piles generally offer a lower raw material unit cost but demand heavier, slower machinery. Ground screws frequently carry a higher per-unit manufacturing cost due to their complex helical threading, but offset this premium by drastically accelerating the installation velocity in highly specific, soft-soil environments.

What Is a Driven Pile Foundation?

Technical Definition

A driven pile foundation is a deep foundational element consisting of a heavy-gauge steel column (typically a C-channel, H-beam, or tubular profile) that is violently hammered or vibrated directly into the earth using a hydraulic or pneumatic pile-driving rig. It relies entirely on the immense friction generated between the steel surface and the surrounding compacted soil (skin friction), combined with the resistance at the base of the pile (end-bearing capacity), to anchor the superstructure.

Structural Characteristics

The defining characteristic of a driven pile is its brute-force high load-bearing capacity. Because it displaces and violently compacts the earth around it during installation, it creates an incredibly dense soil envelope that provides extreme resistance to lateral movement and massive vertical uplift forces. To ensure these forces do not sheer or pull the pile out of the ground, engineers rely on strict load transfer principles to calculate the exact embedment depth required. Furthermore, because standard solar arrays act as massive sails, precise wind load calculation data dictates the thickness and yield strength of the steel used for the pile.

Typical Applications

Driven piles are the undisputed backbone of standard ground mounted solar systems. Due to their low material cost and high structural rigidity, they are universally mandated across multi-megawatt utility-scale solar projects deployed in dense clays, highly cohesive soils, and regions featuring deep, solid bedrock stratas that allow for pre-drilled pile insertion.

Advantages

The primary advantage is absolute maximum structural strength at a highly economical unit cost. Once driven to refusal, a heavy H-beam pile offers unparalleled resistance against catastrophic hurricane uplift and heavy snow compression. They are highly adaptable; if a pile hits a minor subterranean obstruction, the massive kinetic energy of the driving rig can often shatter or push past the obstacle without halting construction.

Limitations

Driven piles perform poorly in loose, sandy, or highly saturated marshy soils, as the lack of soil cohesion prevents the pile from generating adequate skin friction, leading to severe settlement or “pull-out” failure. They require massive, diesel-guzzling, heavy-tracked machinery that causes significant site disturbance and generates extreme localized noise pollution during installation.

[image:4]

What Is a Ground Screw Foundation?

Technical Definition

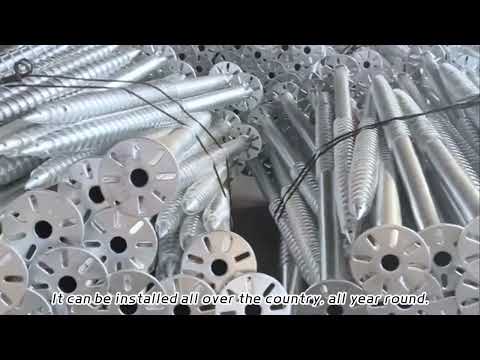

A ground screw foundation (or helical pile) is a specialized steel pipe featuring a continuous, helical welded thread. Instead of being hammered into the earth, it is rotationally screwed into the ground utilizing high-torque hydraulic rotary drive heads. It effectively threads itself into the subterranean strata, mechanically locking the steel flights into the undisturbed soil without requiring excavation or poured concrete.

Structural Characteristics

Ground screws generate their load-bearing capacity differently than driven piles. Their structural strength relies on the surface area of the helical threads gripping the surrounding soil, making them highly effective at resisting uplift (tension) forces. Because the installation process actively draws the screw down rather than violently displacing earth outward, the surrounding soil matrix remains largely undisturbed. Understanding how these threads interact with varying soil densities requires rigorous evaluation of localized soil geotechnical considerations. Furthermore, the installation is entirely torque-controlled; operators can measure the exact hydraulic pressure required to turn the screw, providing real-time, empirical data verifying the foundation’s load-bearing capacity.

Typical Applications

Ground screws excel in environmentally sensitive areas, steep undulating terrains, and regions featuring deep layers of soft, sandy, or loamy soil where traditional driven piles would simply slip out. They are frequently the foundation of choice for remote off-grid solar installations, temporary deployments, or sites where heavy pile-driving equipment cannot physically access the terrain.

Advantages

The overriding advantage is rapid, low-impact installation in loose soils. Ground screws eliminate the loud, violent vibration of pile driving, minimizing acoustic disruption to nearby communities or wildlife. They completely eliminate the need for concrete (curing times, water sourcing, mixing trucks) even in complex soils. Crucially, they are 100% reversible; at the end of a project’s 25-year lifecycle, ground screws can be unscrewed and entirely removed, leaving zero subterranean scars.

Limitations

The primary limitation is their inability to penetrate solid bedrock or extremely dense, rocky cobble. Attempting to twist a ground screw into hard rock will either strip the steel threads or sheer the shaft entirely. They also carry a higher initial manufacturing cost per unit due to the complex welding and machining required to create the helical flights.

[image:4]

Cost Engineering Analysis

Foundation economics cannot be judged by the raw price of the steel alone. A true cost evaluation must account for the required machinery, the speed of deployment, and the probability of encountering catastrophic subterranean refusal.

Initial Material Cost

A standard driven pile (C-channel or H-beam) is a heavily commoditized, highly economical piece of roll-formed or extruded steel. A ground screw requires specialized tube manufacturing, precision helical flight welding, and heavy Hot-Dip Galvanizing to protect the threads. Consequently, the raw material cost of a ground screw is generally 15% to 30% higher than an equivalent driven pile. Project developers must execute a detailed solar mounting material cost breakdown to determine if this upfront premium is justified.

Equipment & Installation Cost

Driven piles require massive, highly specialized pile-driving rigs. These machines are expensive to rent, require expensive specialized transport (lowboys) to reach the site, and consume massive amounts of diesel fuel. Ground screws are installed utilizing hydraulic rotary heads that can be attached to standard, readily available construction excavators or even compact skid-steers. This significantly lowers the mobilization and equipment rental costs, especially for smaller remote sites.

Soil Testing & Preparation Cost

Because both systems rely entirely on soil mechanics, neither can be specified without a comprehensive geotechnical report. However, if a driven pile encounters unexpected rock, the civil cost explodes; crews must demobilize the pile driver, bring in pre-drilling augers, drill through the rock, and backfill with concrete. Proper soil testing requirements are mandatory to map these subterranean risks before finalizing the foundation bill of materials.

Transportation & Logistics

Driven piles (especially C-channels) stack incredibly densely, allowing for highly efficient ocean and inland freight. Ground screws, due to their protruding helical threads, cannot be flat-packed efficiently. They consume significantly more volumetric space inside a shipping container, resulting in a notably higher logistical freight penalty per megawatt.

25-Year Lifecycle Cost

In a 25-year lifecycle cost analysis, both systems generally perform equally well, assuming they were properly specified to the soil. The primary lifecycle divergence occurs during decommissioning. Pulling driven piles out of dense earth frequently deforms or tears the steel, reducing its scrap value. Ground screws can be cleanly reversed out of the earth, preserving their integrity and potentially allowing for secondary reuse or higher salvage returns.

Structural Performance Comparison

Subterranean performance dictates above-ground survival. The foundation must resist multi-directional kinetic forces while enduring decades of chemical soil degradation.

Wind Load Resistance

When engineered correctly, both systems easily comply with stringent wind load standards. Driven piles resist lateral wind shear through their massive, dense embedment profile. Ground screws resist wind-induced uplift tension exceptionally well because the broad helical threads engage a massive cone of undisturbed soil, making them highly effective against extreme vertical “pull-out” forces generated by hurricane updrafts.

Uplift Resistance

In soft, non-cohesive soils (sand, loam), a standard driven pile will fail uplift tests because the soil lacks the friction to grip the smooth steel. In these exact conditions, a ground screw thrives; the mechanical threading creates artificial grip, securing the structure firmly against uplifting forces where a driven pile would simply slide out.

Soil Bearing Capacity

Driven piles provide superior downward bearing capacity in dense clays and rocky soils. The violent compaction during driving creates an immensely dense supporting column capable of holding massive, heavy utility-scale tracking architectures without suffering long-term vertical settlement.

Seismic Stability

Both systems must adhere to strict seismic standards. Driven piles (specifically H-beams) offer excellent ductility, allowing the subterranean column to flex and absorb lateral ground shear during an earthquake without fracturing. Ground screws are slightly more rigid; extreme seismic shear can potentially warp the helical flights or bend the tubular shaft, requiring thicker-walled pipes in high-seismic zones.

Corrosion Durability

Both systems face extreme subterranean galvanic corrosion and must be heavily Hot-Dip Galvanized. However, driven piles suffer violent abrasion as they are hammered through gravel and rock, which can scrape the zinc coating off, exposing raw steel to acidic soil. Ground screws, twisting smoothly into softer earth, generally preserve their galvanized coating more effectively during the installation process.

Installation & Construction Complexity

Site Preparation Requirements

Driven pile sites demand significant grading to allow heavy, wide-tracked piling rigs to maneuver without tipping over. Ground screws can be installed using highly articulate, long-reach excavators, allowing the foundation to be placed on highly irregular, steeply sloped, or undulating terrain with minimal to zero site grading required.

Machinery Requirements

Driven piles mandate specialized, single-purpose pile drivers (e.g., Gayk, Vermeer) that offer massive kinetic hammering force. Ground screws utilize standard construction excavators outfitted with specialized hydraulic rotary drive heads, meaning the heavy machinery can be sourced easily from local rental yards rather than requiring cross-country mobilization of specialized rigs.

Installation Speed Comparison

In perfect, cohesive clay, a heavy pile-driving rig can outpace a ground screw operation, rapidly hammering posts every few minutes. However, in soft, sandy, or marshy soils, the ground screw is vastly faster, as it establishes immediate load-bearing capacity without requiring the deep embedment depths or concrete backfilling that a driven pile would need in identical loose soil.

Noise & Environmental Impact

Pile driving is violently loud, often exceeding 110 decibels, making it unviable near residential zones, hospitals, or sensitive wildlife habitats. Ground screw installation is a smooth, continuous rotational process; the only noise generated is the hum of the excavator’s diesel engine, making it the most environmentally friendly, low-impact subterranean anchoring method available.

Long-Term Operational Impact

Maintenance Frequency

Once correctly installed, neither foundation system requires active mechanical maintenance. However, asset managers must conduct a specialized structural integrity assessment following extreme weather events (e.g., severe flooding or earthquakes) to ensure the subterranean soil matrix has not washed away or liquefied, which would compromise the anchoring grip of either system.

Settlement Risk

Driven piles deployed in inadequately compacted or overly wet soils carry a high risk of long-term vertical settlement. If the piles sink unevenly over 10 years, they will twist the above-ground superstructure, binding tracker motors and shattering PV glass. Ground screws, mechanically locked into deep strata via their threads, generally exhibit superior resistance to slow, progressive settlement.

Corrosion Monitoring

In highly acidic (pH < 5) or alkaline soils, both systems are susceptible to long-term zinc depletion. While they cannot be visually inspected underground, advanced installations may utilize subterranean corrosion probes or sacrificial anodes to monitor the degradation of the galvanized coating over the 25-year operational term.

25-Year Structural Projection

Assuming strict adherence to geotechnical reporting and corrosion standards, both driven piles and ground screws will flawlessly support the solar asset through its entire 25-year commercial lifespan without requiring excavation, reinforcement, or replacement.

Decision Matrix by Soil Condition

Geology dictates technology. Utilizing the matrix below ensures the foundation specification perfectly aligns with the mechanical realities of the earth.

Engineering Decision Flowchart

Execute this rapid geotechnical logic to determine the appropriate foundation baseline:

Step 1: Soil Density. Does the geotechnical report indicate loose, sandy, or extremely soft, non-cohesive soil?
→ Yes → Ground Screw is mandatory for adequate uplift resistance.
→ No → Proceed to Step 2.

Step 2: Subterranean Obstructions. Does the site feature a solid rock layer, heavy cobble, or dense hardpan near the surface?
→ Yes → Driven Pile (often requiring pre-drilling). Ground screws will fail.
→ No → Proceed to Step 3.

Step 3: Load & Scale. Is it a massive, heavy utility-scale tracking system requiring maximum downward bearing capacity?
→ Yes → Driven Pile is the most economical and structurally rigid choice.

Frequently Asked Engineering Questions

Can a ground screw hold as much weight as a driven pile?

Yes, but it achieves this capacity differently. While a driven pile relies on deep skin friction and end-bearing strength in dense soil, a ground screw relies on the surface area of its helical threads pulling against undisturbed soil. In the correct soft-soil conditions, a properly sized ground screw can meet or exceed the uplift and compression capacities of a standard driven pile.

Why are ground screws more expensive than driven piles?

The manufacturing process for ground screws is significantly more labor-intensive. A driven pile is essentially a raw, roll-formed piece of C-channel steel cut to length. A ground screw requires fabricating a steel tube, meticulously welding a continuous helical flight around the shaft, forging a specialized driving tip, and heavily galvanizing the entire complex geometry. You are paying for advanced fabrication, not just raw steel weight.

What happens if a driven pile hits a large subterranean rock?

This is called “refusal.” If the pile cannot reach its engineered embedment depth, the pile-driving operation must halt. The crew must demobilize the pile driver, bring in a specialized pre-drilling auger to drill through the rock, place the pile in the hole, and backfill it with concrete or aggregate. This process is incredibly slow and violently escalates the civil engineering budget.

Can ground screws be reused if the solar farm is decommissioned?

Yes, this is one of their greatest advantages. At the end of a 25-year lease, a hydraulic rotary drive can simply reverse the ground screw out of the earth. Assuming the galvanized coating hasn’t severely degraded, the steel remains intact and can theoretically be reused or sold for high-value scrap. Driven piles are often severely warped or bent during extraction.

Do ground screws require concrete?

No, ground screws are specifically designed to eliminate the need for concrete. They establish their structural lock purely through mechanical threading into the soil. This eliminates curing times, water sourcing, and the massive carbon footprint associated with pouring cement, making them an exceptionally fast and “green” foundation solution.

How do you test the strength of these foundations before building?

Before finalizing the foundation design, engineers mandate a “pull-test” (or pile load test). A sample pile or screw is installed on-site, and heavy hydraulic jacks physically attempt to pull it out of the ground or push it deeper. The exact force required to cause the foundation to fail is recorded, and the final structural engineering plans are based on empirical, site-specific failure data.
