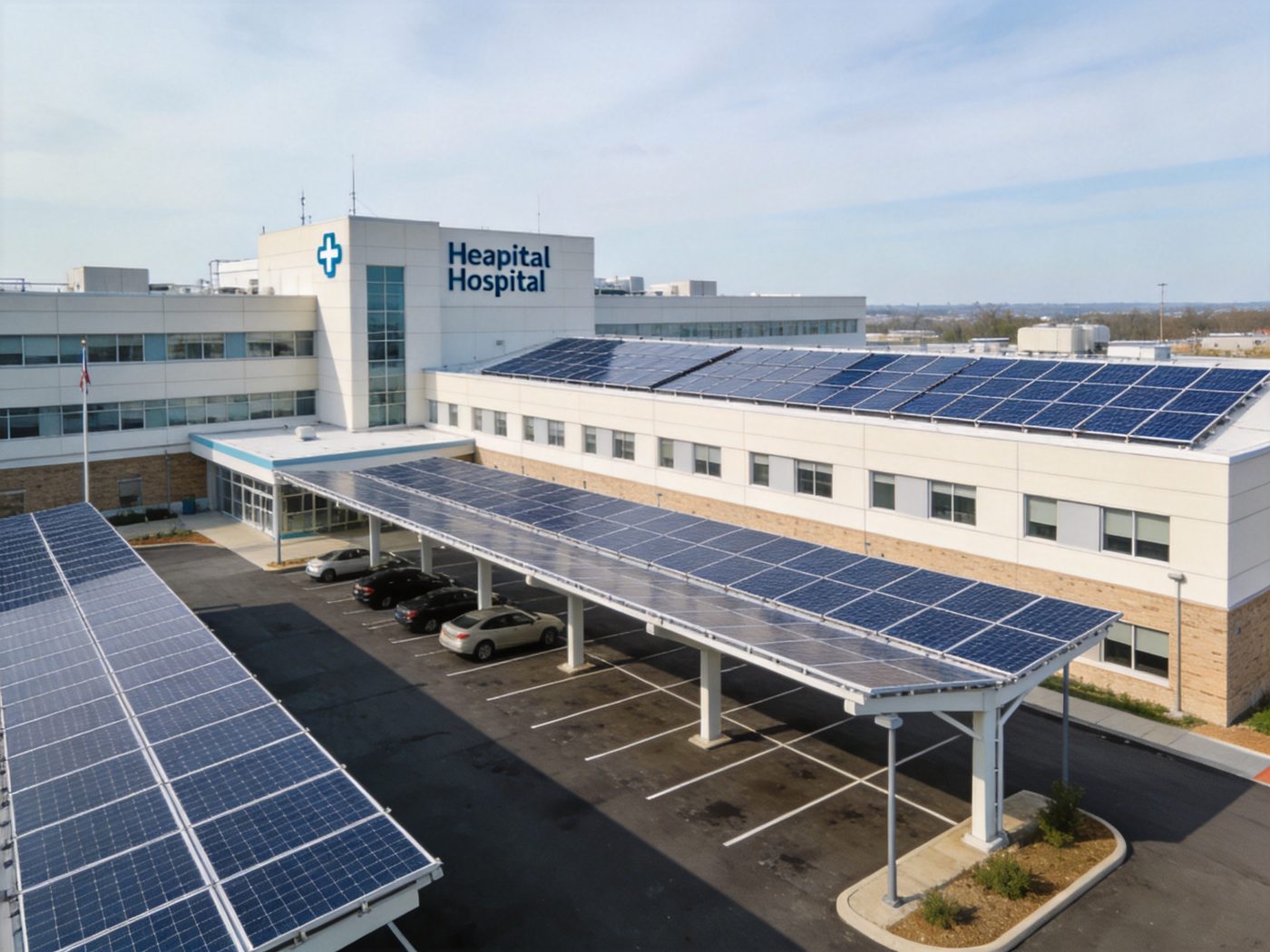

Solar Mounting Solutions for Hospitals & Healthcare Facilities

Hospital and healthcare facility solar installations must satisfy the highest structural reliability standard in the commercial solar portfolio — serving 24/7 critical loads with mounting systems engineered to ASCE 7-22 Risk Category IV, zero-tolerance corrosion protection, and installation procedures that maintain continuous facility operation and patient safety throughout construction.

This healthcare solar installation guide covers the complete structural, engineering, regulatory, and financial landscape of photovoltaic deployment on hospital campuses and healthcare facility networks — from roof-mounted systems on hospital building rooftops through solar carport canopies over patient, staff, and emergency vehicle parking areas, ground-mount arrays on campus expansion land, and the combined energy reliability and financial modeling that healthcare CFOs, facility directors, and sustainability officers use to build the investment case for hospital solar programs. Healthcare facilities represent the most demanding solar application in the commercial portfolio: the consequence of structural failure, supply disruption, or compliance deficiency is not a financial loss but a patient safety event — making engineering reliability, structural over-engineering, and regulatory compliance non-negotiable design requirements at every project stage.

This healthcare solar installation guide is part of our comprehensive resource covering educational, industrial, commercial, and public-sector facilities across all solar deployment environments. Explore the complete Solar Mounting Applications overview to navigate the full library of mounting application resources by project type and installation environment.

Solar Requirements for Healthcare Facilities

Continuous Energy Demand Characteristics

Hospitals and healthcare facilities have a fundamentally different energy demand profile from all other commercial solar applications: they operate continuously 24 hours a day, 365 days per year, with no nighttime shutdown, no seasonal closure, and no reduction in critical load demand during adverse weather events that may coincide with maximum structural load on the solar mounting system. The U.S. Energy Information Administration (EIA) classifies hospitals as the single highest-intensity commercial energy users per square foot — consuming 2.5–3.5× more electricity per m² than office buildings — because of the continuous operation of HVAC systems maintaining clean-room air quality in operating suites and ICUs, sterilization autoclaves, medical imaging equipment (MRI, CT, PET scanners), emergency power systems on continuous charge, and the lighting requirements of 24-hour clinical operations across all facility zones. This continuous high-baseload profile means hospital solar self-consumption of 95–100% is achievable around the clock — daytime solar generation serves peak clinical operation demand, while battery storage integrated with emergency backup systems captures excess midday generation for evening and overnight critical load support. Demand charge management is particularly valuable for hospital electricity economics: demand charges of $15–$25/kW/month on hospital accounts at commercial utility rates represent 35–55% of the total electricity bill, and solar peak generation during the highest-demand clinical operation hours directly reduces the monthly demand charge — a financial benefit that amplifies the energy savings of solar for high-consumption healthcare accounts.

Installation Environment & Campus Layout

Hospital campuses are architecturally complex solar installation environments: high-rise patient tower rooftops with limited structural reserve for solar load addition; low-rise ancillary building rooftops (cafeteria, pharmacy, administrative wings, outpatient clinic blocks) with large, clear flat roof surfaces well-suited to solar deployment; campus parking structures and surface parking lots covering significant land area with high carport canopy potential; and campus expansion land parcels on the periphery of growing hospital campuses that provide ground-mount solar capacity at lower installed cost per watt than rooftop. Emergency vehicle access lanes — ambulance bays, helicopter landing zones, and emergency department vehicle access circuits — must be preserved as exclusion zones in all campus solar layout designs, requiring coordination with the hospital’s facilities and emergency management teams before any solar design brief is finalized. Most hospital campuses utilize durable roof mounted solar systems optimized for long-term structural reliability — ballasted non-penetrating systems on low-slope membrane rooftops that preserve the hospital building envelope warranty and avoid any waterproofing risk on rooftops directly above occupied clinical spaces.

Structural & Safety Requirements

Hospital buildings in the United States are classified as Risk Category IV under ASCE 7-22 — the highest structural design risk category, reserved for essential facilities whose continued operation is essential to post-disaster community function. Risk Category IV applies specifically to hospitals with emergency treatment facilities, fire stations, designated emergency shelters, and similar critical community infrastructure. Risk Category IV classification imposes a 1.25 importance factor on design wind speed (versus 1.00 for standard commercial buildings) and a 1.20 factor on design snow loads — increasing wind pressure demands by 56% and snow load demands by 20% relative to standard commercial structures. These elevated structural demands propagate through the entire solar mounting load path: heavier rail sections, more robust connection hardware, deeper foundation embedment, and more conservative structural analysis assumptions at every level of the mounting system hierarchy. Structural calculations for all hospital solar installations must comply with professional wind load calculation standards — using ASCE 7-22 Risk Category IV importance factors — to satisfy the life-safety performance requirements that healthcare facility accreditation bodies and state health department facility inspectors enforce as conditions of hospital operating license maintenance.

Typical Project Scale & Redundancy Needs

Hospital solar installations typically range from 200 kW on a small community hospital campus to 5 MW on a large regional medical center or multi-building academic medical campus. The most commercially active scale range for hospital solar in the U.S. is 500 kW–3 MW — representing the capacity achievable on the combined rooftop and parking canopy surfaces of a medium-to-large hospital campus. All hospital solar systems above 500 kW are designed with system redundancy provisions: multiple independent string inverter zones with separate grid connection breakers, so that a single inverter failure does not eliminate solar contribution to critical load circuits; battery energy storage system (BESS) integration for critical load support during utility grid outages that exceed the hospital’s generator runtime; and dedicated solar monitoring with 24/7 alarm response for system performance deviations that could indicate structural damage or electrical fault requiring immediate inspection.

Recommended Solar Mounting Systems for Hospitals

Roof-Mounted Systems for Hospital Buildings

Rooftop solar on hospital buildings is the primary deployment surface for most healthcare facility solar programs — providing installation capacity directly above the building’s electrical service entrance, minimizing DC cable run length and associated resistive losses. The structural design approach for hospital rooftop solar is governed by a key constraint absent from standard commercial rooftop applications: hospital rooftops are heavily occupied by critical mechanical and electrical infrastructure — rooftop HVAC chillers, cooling towers, emergency generator exhaust stacks, medical gas supply equipment, and telecommunications antennae — that limits available clear solar installation area and creates shading sources that must be modeled in the pre-design shadow analysis. Ballasted non-penetrating racking systems on TPO and EPDM membrane rooftops are the standard specification — preserving the waterproofing membrane warranty that is non-negotiable when the rooftop is directly above occupied patient care areas. Roof mounted solar systems purpose-engineered for institutional healthcare buildings include east-west symmetrical low-tilt systems (5°–7° per face) that maximize module density on weight-limited hospital rooftops while distributing ballast load uniformly across the roof deck, minimizing the concentrated point loads at module support feet that govern structural adequacy checks on older hospital building roof framing.

Solar Carport Installations for Parking Areas

Hospital campus parking areas — often among the largest impervious surface areas on healthcare campuses — represent a high-value solar carport deployment opportunity that delivers three simultaneous benefits: solar generation serving hospital electrical load, covered parking amenity for patients and visitors experiencing medical stress who particularly value weather-protected vehicle access, and EV charging infrastructure supporting the hospital’s fleet electrification and staff commute sustainability commitments. Solar carport mounting systems on hospital parking areas must preserve emergency vehicle access lanes with minimum 5.0 m clear height for ambulance and emergency equipment vehicles — significantly higher than the 2.7–3.0 m clearance of standard commercial carport specifications — requiring taller column sections and heavier structural profiles that increase carport cost per covered space versus non-healthcare commercial applications. Patient drop-off zones, ambulance bays, and helicopter approach paths must be excluded from carport coverage and kept clearly identifiable with unobstructed overhead clearance — coordination requirements that must be confirmed with the hospital’s emergency management and facilities teams before structural design commences.

Fixed-Tilt Ground Systems for Campus Expansion

Growing hospital campuses frequently develop solar ground-mount systems on land parcels adjacent to the main clinical buildings — undeveloped campus perimeter land, surface parking areas converted to ground-mount fields, or campus owned land parcels not required for near-term building expansion. Fixed-tilt ground mounted systems on healthcare campus land are the highest-generation-per-dollar solar option when suitable open land is available — avoiding the structural complexity of rooftop integration and the vehicle clearance engineering of carport systems. Ground-mount systems on hospital campuses must be designed with security fence enclosures that prevent patient, visitor, and unauthorized personnel access — healthcare campuses have security protocols that require all utility infrastructure to be physically secured — and with monitoring system connectivity to the hospital’s building management system (BMS) for integrated energy performance tracking and fault alarm routing.

Ground-Mounted Systems for Large Healthcare Networks

Large healthcare networks — regional health systems operating 10–50 hospitals, outpatient clinics, and medical office buildings across multiple campuses — increasingly develop centralized ground-mount solar installations on dedicated land parcels that serve multiple network facilities through a virtual net metering or community solar subscription structure. Ground mounted solar systems at 2–20 MW capacity on dedicated off-campus land parcels connected to the health system’s aggregated utility accounts through virtual net metering deliver the cost efficiency of utility-scale ground-mount solar to healthcare network electricity portfolios that cannot be fully served by the combined on-campus rooftop and carport capacity of individual hospital buildings.

Structural & Engineering Considerations

Snow & Wind Resistance for Critical Facilities

Hospital solar mounting systems must maintain structural integrity under the extreme wind and snow load events that ASCE 7-22 Risk Category IV design requires — and do so without any possibility of structural failure that could damage the hospital building envelope, injure patients or staff below, or disrupt clinical operations. The ASCE 7-22 Risk Category IV importance factor for wind (Iw = 1.25) and snow (Is = 1.20) means that a hospital rooftop solar system in Boston, Massachusetts, must be designed for a 160 mph effective design wind speed and 1.44 kN/m² roof snow load — versus 130 mph and 1.20 kN/m² for a standard commercial building at the same location. These elevated design parameters require conservative structural engineering at every level: module clamp pullout capacity, rail section moment of inertia, connection hardware proof-load verification, and foundation embedment depth must all be calculated against Risk Category IV load combinations, not the commercial-standard calculations that non-healthcare solar structural packages routinely use. The complete guidance on extreme climate load design for critical facility solar in the snow load considerations resource covers ASCE 7-22 Risk Category IV snow load factors, the special inspection requirements for hospital structural installations under IBC Chapter 17, and the documentation standards required for the healthcare facility’s Joint Commission Environment of Care (EC) compliance file — which includes structural certification for all rooftop loading additions to hospital buildings.

Corrosion Protection & Long-Term Durability

Hospital solar systems are deployed under long-term financial structures — 20–25 year PPAs, direct bond-funded ownership, or C-PACE financing — that require structural hardware to maintain certified load-bearing performance for the full contract term without major replacement events. Healthcare facility solar corrosion protection must address three distinct environments simultaneously: rooftop systems exposed to the hospital building’s HVAC exhaust — which may contain biological aerosols, sterilization chemical vapors, and medical gas purge releases that accelerate aluminum anodize degradation beyond standard C3 atmospheric corrosion classification; coastal hospital campus systems facing C4–C5 marine aerosol; and parking lot carport structures in northern climates exposed to road de-icing salt aerosol at concentrations amplified by the high vehicle density of hospital parking areas. The complete material specification framework in the corrosion protection resource covers minimum HDG coating requirements for healthcare campus structural steel (ISO 1461 Class ≥ 85 µm standard, ≥ 140 µm for coastal or HVAC exhaust exposure zones); Class 20 anodizing minimum for all aluminum rail and hardware; SUS316L stainless for all fasteners within 100 m of hospital exhaust stack discharge points; and the duplex coating (HDG + polyurethane topcoat) specifications for carport structures where aesthetic compatibility with the hospital’s facility standards is a procurement requirement.

Foundation Strategy for Healthcare Campuses

Foundation design for hospital campus solar faces a site complexity challenge that most commercial projects do not encounter: healthcare campuses have dense subsurface utility networks — medical gas piping, chilled water mains, electrical duct banks, pneumatic tube systems, and telecommunications conduits — that must be fully located and avoided during foundation installation. A mandatory utility locate and ground-penetrating radar (GPR) survey of all proposed foundation positions is standard practice before drilling or driving any hospital campus solar foundation. For ground-mount and carport systems on accessible paved campus areas, cast-in-place concrete pier foundations provide the highest moment capacity per foundation unit — critical for Risk Category IV structural performance at the elevated wind loads that govern hospital campus system design. For installations where drilling vibration or concrete pour logistics create unacceptable disruption to hospital operations — particularly adjacent to occupied patient wings or critical care areas — driven steel pile foundations using low-vibration hydraulic push-pile equipment provide a silent, concrete-free alternative that maintains structural adequacy for Risk Category IV loads when designed with the appropriate HP or WF section profile and verified embedment depth.

Structural Load Transfer & Redundancy Planning

The Risk Category IV structural standard for hospital solar requires not only that the mounting system resist design loads in the undamaged state, but that no single structural failure — a failed weld, a corroded fastener, or a foundation settlement event — initiates progressive collapse of adjacent structural elements. This redundancy requirement influences connection design throughout the load path: moment connections at column bases must be designed with secondary bolt-backup to the primary weld; pile foundations must include minimum two piles per structural frame to prevent single-pile failure from allowing frame rotation. The engineering principles governing redundant load transfer in critical facility solar mounting systems — including progressive collapse prevention detailing, connection redundancy requirements, and the pile installation quality verification protocols required for Risk Category IV hospital solar foundation acceptance — form the structural engineering package that healthcare facility insurers, Joint Commission surveyors, and state health department facility inspectors require before approving solar installation on occupied hospital campuses.

Optimal System Configuration for Hospital Solar Projects

DC/AC Ratio & Critical Load Coordination

Hospital solar systems are designed at DC/AC ratios of 1.15–1.25 — more conservative than utility-scale commercial ratios — reflecting the life-safety consequence of any system component failure at a healthcare facility. Multiple independent string inverter zones with dedicated circuit breakers are the standard hospital solar architecture: a 2 MW hospital rooftop system is typically configured as 8–10 independent 200–250 kW inverter zones, each serving a separate electrical panel and connected to a different hospital load circuit. This distributed architecture ensures that a single inverter failure reduces system output by only 10–12% — not 100% — while the failed zone is repaired or replaced. Critical load circuits (ICU, operating suites, emergency department) should be served by inverter zones with the highest uptime record and most accessible maintenance position on the campus, prioritizing reliability over energy optimization for these mission-critical distribution points.

Array Layout & Emergency Access Planning

Hospital campus solar array layouts must be coordinated with the facility’s emergency operations plan before design commences — a requirement that distinguishes hospital solar from all other commercial applications. Fire department access requirements mandate minimum 0.9 m (3 ft) pathways every 6.1 m (20 ft) on all hospital rooftops per NFPA 1 and IFC provisions, preserving firefighter access routes and ventilation points across rooftop solar array areas. Helicopter approach and departure flight paths to hospital helipad facilities must be surveyed and all tall structures — including carport columns and ground-mount racking — verified to be outside the FAA-regulated obstacle clearance surfaces (OCS) associated with the hospital’s helipad IFR approach procedure. Emergency generator exhaust stack locations must be mapped and module placement designed to avoid exhaust plume impingement on module surfaces — which can create localized hot spots and accelerate encapsulant degradation on modules in the discharge zone.

Maintenance & Redundancy Planning

Hospital solar maintenance plans must be designed around the facility’s 24/7 occupancy — maintenance activities on hospital rooftops or adjacent to building entrances must be scheduled and executed without creating infection control risks, patient privacy violations, or interruptions to clinical operations. All rooftop maintenance contractors must follow hospital-specific safety protocols: contractor orientation, background check compliance, specific PPE requirements in clinical zones, and infection control procedures for rooftop access adjacent to operating room air intake systems. Remote monitoring with 24/7 automated alarm escalation — connecting to both the solar contractor’s operations center and the hospital’s facility management team — is essential, as undetected performance degradation at a hospital system can represent both a financial loss and a reduction in the emergency backup capacity that the solar-plus-battery system is sized to provide.

Cost Structure & ROI Expectations

Cost Per Watt for Healthcare Facilities

Hospital solar installations carry a structural cost premium of 12–18% over equivalent commercial solar due to ASCE 7-22 Risk Category IV engineering requirements — heavier structural sections, deeper foundations, special inspection, and the additional engineering documentation required for healthcare facility permitting. All-in installed cost for hospital solar systems above 500 kW ranges from $2.60–$3.60/W DC, with the Risk Category IV structural premium representing $0.12–$0.25/W of the total. Nonprofit hospital systems — accounting for approximately 60% of U.S. hospital beds — qualify for IRA elective pay (direct cash payment of 30% of eligible system cost from IRS) without requiring a tax equity partner, making the effective post-incentive cost $1.82–$2.52/W. Analysis of healthcare-specific cost per watt benchmarks — disaggregated by system configuration (rooftop, carport, ground-mount), Risk Category IV structural premium, and special inspection cost — provides healthcare CFOs and facilities directors with the reference data needed to evaluate contractor proposals and structure competitive procurement processes for hospital solar programs.

Installation & Structural Cost Factors

Hospital solar installation involves cost drivers unique to occupied critical care facilities: infection control requirements that mandate sealed work zones on all rooftop installations above occupied clinical areas, adding $15,000–$40,000 in temporary barrier and air management cost per project; mandatory out-of-hours work restrictions at hospital facilities that limit rooftop construction to nighttime and weekend windows, increasing installation labor cost by 25–40% versus standard daytime commercial construction rates; Joint Commission Environment of Care (EC) compliance documentation requirements that add 40–80 hours of engineering coordination cost per project; and the mandatory ground-penetrating radar utility locate survey that adds $8,000–$20,000 per campus before any foundation installation begins. Complete analysis of hospital-specific installation cost factors — including infection control barrier costs, out-of-hours labor premiums by trade, GPR survey scope and cost, and Joint Commission EC documentation requirements — provides the granular budget inputs that hospital capital projects teams require for accurate appropriations requests.

Lifecycle Cost & Long-Term Planning

Hospital solar lifecycle financial modeling must satisfy the institutional review standards of healthcare finance governance: Board of Trustees capital committee approval processes require 25-year NPV analysis with sensitivity analysis on electricity rate escalation (typically 2–5% annual escalation in healthcare utility rate modeling), inverter replacement reserve requirements (year 12–15 replacement at $25,000–$60,000/MW), and structural inspection reserve for the mandatory 5-year third-party structural certification required by healthcare facility insurers. Nonprofit hospital systems present the lifecycle cost model through IRS Form 990 capital expenditure disclosure requirements, with solar assets capitalized and depreciated per GAAP healthcare organization accounting standards. The complete lifecycle cost ROI framework for hospital solar covers 25-year NPV modeling for both direct ownership (with elective pay) and PPA financing structures, GAAP capitalization and depreciation guidance for nonprofit hospital solar assets, and the demand charge savings quantification methodology that healthcare utility accounts require to fully capture solar financial return — since demand charge reduction represents 35–55% of total hospital solar savings.

Financial Stability & Risk Reduction

Beyond the direct electricity savings that govern solar ROI calculations, hospital solar delivers a financial risk management benefit that does not appear in standard NPV analysis: electricity price hedging. Hospital systems with large solar generation capacity have effectively locked in the production cost of 15–25% of their annual electricity consumption at near-zero marginal cost for 25 years — insulating that portion of their energy spend from future utility rate increases. At current U.S. commercial healthcare electricity rates of $0.10–$0.18/kWh and 3–4% annual escalation, a 500 kW hospital solar system that generates 650,000 kWh/year avoids $65,000–$117,000 in electricity purchases in year one, growing to $113,000–$203,000 by year 25 — a financial stabilization benefit that healthcare finance officers increasingly recognize as a strategic risk management tool alongside traditional commodity hedging.

Regulatory & Compliance Requirements

U.S. Healthcare Building Codes

Hospital solar installations in the United States face the most complex regulatory compliance environment of any commercial solar application — a multi-agency framework that extends well beyond the standard building permit and utility interconnection process. IBC 2021 Risk Category IV structural requirements (ASCE 7-22 wind, snow, seismic) govern the mounting system structural design; NEC 2023 Articles 690 (PV systems) and 700/701/702 (emergency, legally required standby, and optional standby systems) govern the electrical integration of solar with hospital critical power systems; NFPA 99 (Health Care Facilities Code) Chapter 6 governs rooftop mechanical and electrical equipment affecting patient care areas; NFPA 1 and IFC govern rooftop firefighter access pathway provisions for all solar installations above 10 kW on occupied buildings; and The Joint Commission (TJC) Environment of Care standards EC.02.05.01 through EC.02.05.09 govern the facility management documentation, inspection, and testing requirements for all utility systems — including solar — on TJC-accredited hospital campuses. The comprehensive reference for U.S. building codes applicable to hospital solar covers all six regulatory frameworks, state health department facility plan review requirements in California, New York, Texas, Florida, and Illinois, and the documentation checklist required for TJC EC compliance file submission.

European Structural & Safety Standards

Hospital solar installations in EU member states are governed by the Eurocode structural framework — EN 1990 through EN 1999 — with Reliability Class RC3 (the highest Eurocode reliability classification, equivalent to ASCE 7-22 Risk Category IV) applicable to hospital buildings and their structural additions. EN 1990 Annex B defines RC3 for buildings whose failure would result in very great social or economic consequences — a classification that applies to all hospitals with emergency and critical care functions. RC3 classification imposes a reliability index β = 4.3 (versus β = 3.8 for standard commercial buildings), effectively increasing design load factors and requiring more conservative structural resistance calculations for all hospital solar structural elements. European hospital solar electrical compliance follows IEC 60364-7-712 (PV systems electrical installations) and IEC 60364-7-710 (medical locations) for the integration of solar systems with hospital critical electrical infrastructure. The applicable Eurocode standards for European hospital solar — including RC3 structural reliability requirements, EN 1991 Risk Class 3 action definitions, and national annex parameters for Germany, France, UK, Italy, Spain, and the Netherlands — provide the engineering compliance framework for healthcare facility solar across the EU member states with the most active hospital solar development programs.

UL & CE Certification Requirements

Hospital solar hardware must meet product certification requirements that are more thoroughly verified at healthcare facilities than at standard commercial sites — because TJC Environment of Care surveyors and state health department facility inspectors review equipment listings as part of the facility compliance file audit. UL 2703 listing is required for all racking and mounting systems; UL 1741-SA (grid support utility interactive equipment) for inverters connected to hospital distribution systems that may interact with generator transfer switching; UL 9540 for any battery energy storage system integrated with the solar installation; and UL 508A for electrical enclosures in healthcare environments. CE marking under CPR (Construction Products Regulation) and LVD (Low Voltage Directive) is required for all structural and electrical components deployed at EU hospital facilities. Unlisted or non-CE-marked equipment can delay TJC compliance approval and state health department facility plan review by 3–6 months — a schedule risk that healthcare solar procurement teams must eliminate through pre-qualification of all hardware to the applicable listing standards before equipment procurement commences.

Example Hospital Solar Projects

Project 1 — 1.4 MWp Regional Medical Center, Cleveland, Ohio

A 650-bed regional medical center in Cuyahoga County, Ohio, deployed a 1.4 MWp combined rooftop and carport solar system — 800 kWp on four low-rise ancillary building rooftops (pharmacy building, outpatient clinic, administrative wing, and conference center) using ballasted east-west 7° tilt racking on TPO membrane roofs, and 600 kWp on the main staff and visitor parking field in a double-row center-column steel carport configuration at 10° south-facing tilt with 5.0 m clear height for emergency vehicle access. The project was developed as a direct-ownership purchase by the nonprofit health system using tax-exempt bond proceeds, with 30% IRA elective pay ($630,000 direct cash from IRS) reducing the net bond principal to $1.47 million. Annual generation of 1,680,000 kWh offsets 24% of the medical center’s electricity consumption, saving $235,000/year at Ohio utility rates. Structural design followed ASCE 7-22 Risk Category IV with IBC Chapter 17 special inspection — the state of Ohio health department plan review required two submittal cycles over 14 weeks before construction approval. TJC Environment of Care file documentation was completed and accepted at the subsequent annual TJC survey without citation.

Project 2 — 2.5 MWp Academic Medical Center, Phoenix, Arizona

A 900-bed academic medical center in Maricopa County, Arizona — affiliated with a state university health sciences college — developed a 2.5 MWp ground-mount and rooftop hybrid solar system across the main hospital campus and an adjacent off-campus outpatient campus 1.2 km away. The main campus contributed 1.1 MWp of rooftop solar on 11 low-rise building rooftops; the adjacent outpatient campus contributed 1.4 MWp of fixed-tilt ground-mount on 3.2 acres of undeveloped campus perimeter land. Annual combined generation of approximately 4,750,000 kWh covers 31% of the two-campus combined electricity consumption, reducing annual electricity costs by $617,000 at APS commercial rates. The project was financed through a 25-year PPA at $0.075/kWh — a below-market rate reflecting the health system’s investment-grade credit and the developer’s ability to monetize the 30% ITC through a tax equity partnership. Arizona state corporation commission virtual net metering allowed the off-campus ground-mount generation to be credited against the main hospital campus account — a key policy enabler that made the distributed two-campus development financially optimal versus a rooftop-only single-campus system. ASCE 7-22 Risk Category IV structural design was applied to all system components; Arizona Department of Health Services facility plan review accepted the structural package after one 6-week review cycle.

Frequently Asked Questions About Solar for Hospitals

Can a nonprofit hospital claim the 30% federal solar tax credit?

Yes — the Inflation Reduction Act’s elective pay (direct pay) provision under IRA Section 6417 allows tax-exempt nonprofit hospitals to receive the 30% Investment Tax Credit as a direct cash payment from the IRS, without requiring a tax equity financing partner. Nonprofit hospitals must file IRS Form 3468, meet IRA prevailing wage and apprenticeship requirements, and satisfy domestic content requirements to access the full 30–40% incentive range. Many nonprofit health systems qualify for an additional 10% domestic content bonus ITC under IRA Section 45X, bringing the maximum incentive to 40% of eligible system cost.

Does hospital solar installation require The Joint Commission approval?

Solar installation on TJC-accredited hospital campuses must be documented in the hospital’s Environment of Care (EC) management plan under standard EC.02.05.01. While TJC does not pre-approve individual capital projects, the solar system’s structural engineering documentation, electrical compliance certifications, fire code compliance for rooftop firefighter access pathways, and equipment UL listings must all be included in the facility’s EC compliance file before the next TJC survey. Facilities that install solar without completing EC documentation risk TJC citations for utility system management deficiencies — a regulatory finding that can trigger corrective action requirements and affect the hospital’s accreditation status.

What is ASCE 7-22 Risk Category IV and why does it matter for hospital solar?

ASCE 7-22 Risk Category IV is the highest structural design classification under U.S. building codes — applied to essential facilities including hospitals with emergency treatment, fire stations, and emergency shelters. Risk Category IV imposes a 1.25 importance factor on design wind loads and 1.20 on design snow loads, increasing the structural requirements for hospital solar by 20–56% versus standard commercial designs. This means hospital solar mounting systems must use heavier structural sections, deeper foundations, and more conservative connection details than an identical system on a commercial warehouse in the same location — a cost premium of approximately 12–18% on the mounting and foundation hardware.

How can hospital solar integrate with emergency backup power systems?

Hospital solar integrates with emergency backup systems through two architectures: grid-tied solar with an automatic transfer switch (ATS) that isolates the solar system during grid outages (simplest, lowest cost, no backup capability); and solar-plus-battery storage with islanding capability that allows the solar-battery system to continue supplying critical loads during grid outages alongside the diesel generator. The solar-battery islanding architecture is increasingly specified at hospital systems seeking to reduce generator runtime and fuel cost during grid outages, providing seamless power continuity during the initial seconds of outage before the diesel generator reaches full output — eliminating the momentary voltage dip that can affect sensitive medical equipment during traditional generator transfer switching.

What isthe typical installation timeline for a hospital solar project?

Hospital solar projects typically require 16–24 months from initial feasibility study to permission-to-operate — longer than equivalent commercial projects — because of the additional regulatory review steps: state health department facility plan review (6–14 weeks), TJC EC documentation preparation (4–8 weeks), utility interconnection application for large hospital accounts (8–16 weeks), infection control work planning approval, and the mandatory GPR utility locate survey before foundation installation. Early engagement with the state health department facility review office and the local utility interconnection team — simultaneously with the engineering design process — is the most effective strategy to maintain the overall project schedule within a 20-month target from kickoff to PTO.

Is solar viable for hospitals in northern climates with high snow loads?

Yes — hospital solar is financially viable in all U.S. climate zones, including high-snow-load northern markets. Boston, Minneapolis, Chicago, and Denver hospitals achieve payback periods of 6–9 years on direct-ownership systems after IRA elective pay — somewhat longer than Sun Belt markets but still within the capital planning horizon of most hospital CFOs. Snow load at ASCE 7-22 Risk Category IV values does increase structural cost for northern hospital systems by 15–25% versus Sun Belt equivalents, but this structural premium is a one-time capital cost that does not affect the 25-year operating economics or the annual electricity savings that drive payback period calculation.
