Solar Mounting Solutions for Airports & Aviation Facilities

Airport solar installations transform the large expanses of secured perimeter land, terminal rooftops, and parking infrastructure of aviation facilities into 25-year clean energy assets — while satisfying the FAA glare analysis requirements, aviation obstacle clearance standards, and ASCE 7-22 Exposure Category C wind engineering that open-terrain airport environments impose on every solar structure.

This airport solar installation guide covers the complete structural, engineering, regulatory, and financial landscape of photovoltaic deployment on airport property — from utility-scale ground-mount arrays on secured perimeter land through terminal building rooftop systems, solar carport canopies over passenger and employee parking structures, and the FAA regulatory compliance, glare analysis, and aviation obstacle clearance frameworks that govern every solar installation within the airport property boundary and the surrounding airspace influence zone. Airports present a uniquely advantaged solar development profile: large, flat, open land parcels with unobstructed solar exposure that cannot be developed for other uses due to aviation height restrictions and safety area requirements — land that generates minimal revenue for airport operators in its current undeveloped state but can support 5–100 MW of solar generation capacity under 25-year ground lease structures without compromising any aviation operational function.

This airport solar installation guide is part of our comprehensive resource covering industrial, commercial, healthcare, and mission-critical facilities across all solar deployment environments. Explore the complete Solar Mounting Applications overview to navigate the full library of mounting application resources by project type and installation environment.

Solar Requirements for Airport Facilities

Energy Consumption Characteristics

Commercial service airports are among the most energy-intensive public facilities per square meter — operating continuously 24 hours a day, 365 days per year, with no opportunity for operational shutdown that could reduce electricity demand. Terminal buildings at major U.S. airports consume 200–400 kWh per square meter annually — 15–30 times the energy intensity of standard commercial office space — driven by the combination of continuous passenger comfort HVAC in large-volume atrium spaces, baggage handling conveyor and sorting systems, security screening equipment (X-ray, CT, and full-body scanner loads), retail and food service tenant electrical loads, and the tens of thousands of LED runway edge lights, taxiway centerline lights, approach lighting systems, and airfield ground lighting circuits that must remain energized around the clock for operational safety. Runway lighting systems alone at a major commercial airport consume 500 kW–2 MW of continuous power; airside HVAC for jet bridges, ground support equipment charging, and terminal gate areas adds another 5–20 MW of baseload demand at large hub airports. The continuous 24/7 operation profile means airport solar self-consumption rates of 85–100% are achievable at all hours — daytime solar generation is consumed immediately by terminal HVAC and operations, with no excess generation wasted to grid export at below-retail net metering rates.

Installation Environment & Land Availability

Airport campuses contain land assets that are uniquely well-suited to solar development — large, flat, contiguous land parcels that have been cleared of vegetation, obstacles, and structures for aviation safety area requirements and cannot be developed for commercial or industrial use due to FAA height restrictions and runway protection zone regulations. The Runway Protection Zone (RPZ) at the approach end of each runway — a trapezoid of land beginning 200 ft beyond the runway threshold that must be kept clear of all structures — is typically 500–1,000 acres at large commercial airports. The RPZ itself cannot host fixed solar structures but surrounding areas — the airport perimeter beyond the RPZ, the land between parallel runways, and the areas beyond the far end of runways — provide the deployment area that large airport solar projects occupy. Many airport operators deploy large-scale ground mounted solar systems across unused perimeter land — land that generates no aeronautical revenue in its current state but can support decades of solar generation under lease arrangements that benefit both the airport authority and the solar developer.

Structural & Safety Demands

Airport solar installations face a structural design environment that is more demanding than most commercial or industrial solar applications: open-terrain Exposure Category C wind conditions apply at virtually all airport sites, because airports by regulatory definition must be sited away from tall buildings, dense vegetation, and other terrain features that would reduce wind exposure — the same characteristics that create excellent unobstructed solar resource also produce consistently higher wind loads than sheltered commercial sites. ASCE 7-22 Exposure Category C increases design wind pressure by approximately 45–65% versus Category B (suburban) for the same basic wind speed — a multiplier that propagates through every element of the structural load path and requires heavier sections, more robust connections, and deeper foundation embedment than comparable systems in sheltered commercial environments. Additionally, all airport solar structures must maintain maximum heights below the relevant Obstacle Limitation Surface (OLS) — the imaginary sloped surface above which no object may penetrate without FAA Form 7460-1 review and approval — which in approach zones restricts structures to as little as 1–3 m above existing grade. Structural engineering must comply with validated wind load calculation standards — applying ASCE 7-22 Exposure Category C inputs with the full airport site’s terrain roughness characterization — to meet the aviation safety and structural performance standards that airport operators and their FAA-oversight relationships require.

Typical Project Scale

Airport solar installations range from 500 kW rooftop systems on small regional airport terminal buildings to 100 MW+ ground-mount arrays on the perimeter land of large international airports. The most commercially active airport solar scale range is 5–50 MW — representing the capacity deployable on typical mid-size commercial service airport perimeter land outside the RPZ and OLS-constrained approach corridors. Denver International Airport’s 2025 solar development agreement — for a system expected to be the largest in Denver at approximately 20 MW — and Amsterdam Schiphol Airport’s 7 MW perimeter solar farm illustrate the scale of current airport solar activity globally. Hybrid airport microgrids combining solar, battery storage, and backup generation are increasingly specified at airports seeking energy resilience independent of regional grid stability.

Recommended Solar Mounting Systems for Airports

Ground-Mounted Utility Arrays

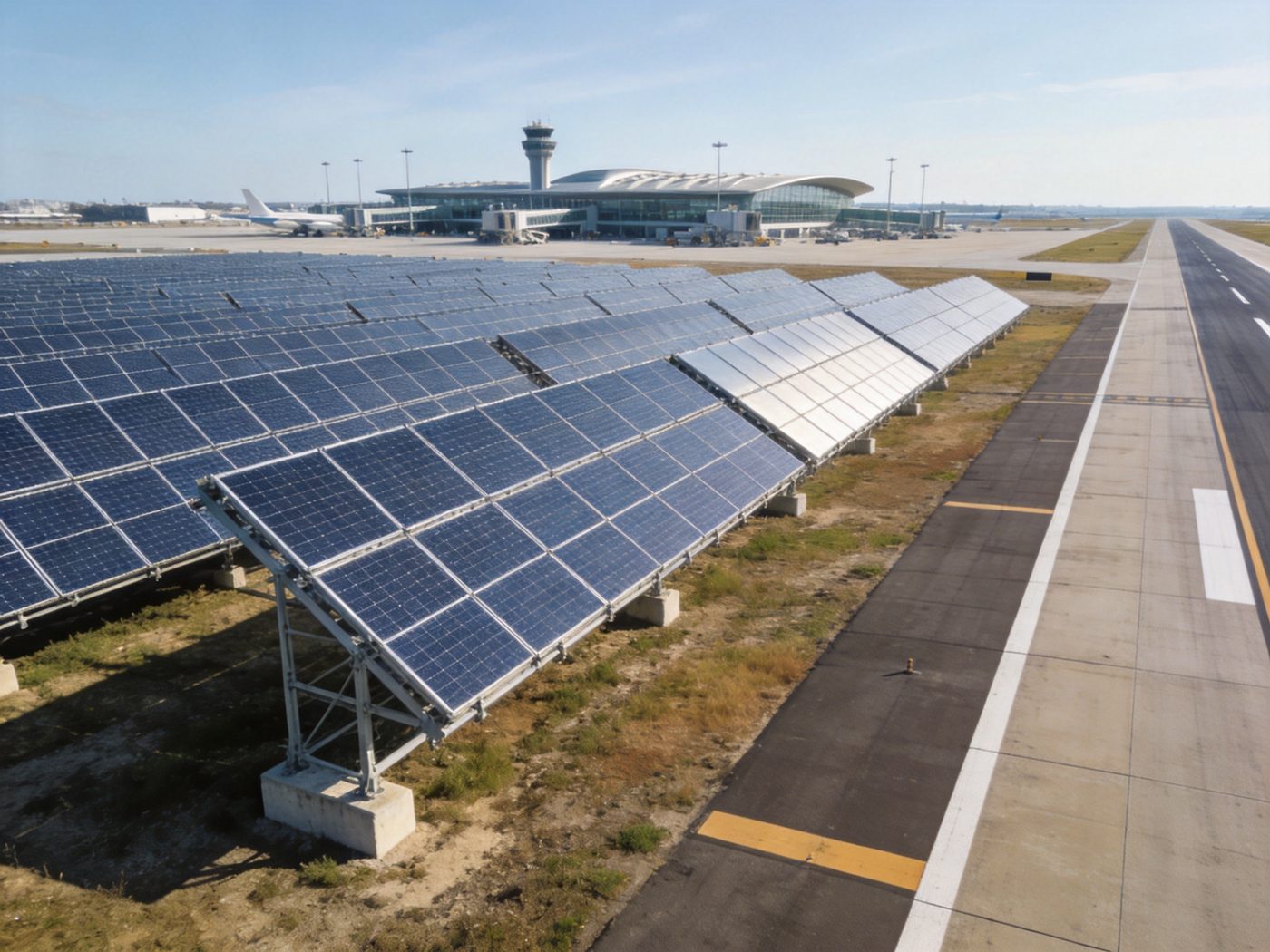

Ground-mounted utility-scale arrays on airport perimeter land are the primary solar deployment format at commercial service airports — providing the installation scale (5–100 MW) and generation output that meaningfully reduces airport electricity costs and supports RE100 and carbon neutrality commitments. Airport perimeter ground-mount systems must be engineered to the structural requirements specific to open aviation terrain: Exposure Category C wind design throughout, maximum structure height limited by OLS surface geometry to typically 2.5–4.0 m above grade, and security fence integration that prevents unauthorized access to the array without creating a visual obstruction that could mislead pilots about the airport boundary. The documentation of utility-scale airport ground-mount structural configurations — including low-profile pile-and-rail designs that satisfy OLS height constraints in approach zones — is provided in the ground mounted solar systems resource, covering both standard perimeter installations beyond approach corridors and the specialized low-profile designs required in OLS-constrained zones closer to runway thresholds.

Fixed-Tilt Structures for Stability

Fixed-tilt ground-mount structures are the baseline structural choice for airport solar — providing the mechanically simplest, most structurally robust, and lowest-maintenance system configuration in the demanding open-terrain airport environment where wind loads are higher and maintenance access more controlled than at commercial industrial sites. Fixed-tilt ground mounted systems at airport solar projects are designed at tilt angles of 20°–30° for maximum annual yield at mid-latitude U.S. and European airport sites — with the additional constraint that module tilt angle and row height must be verified against the site-specific OLS geometry to confirm no penetration of the obstacle clearance surface at any point in the array footprint. The fixed-tilt structural advantage at airports is operational: no moving parts, no tracking motor failure modes, and no electronic controller maintenance requirements — a system that continues performing identically in year 25 as in year 1, requiring only periodic visual inspection and vegetation management within the high-security airport perimeter.

Single-Axis Tracking for Yield Optimization

Single-axis tracking systems are specified at larger airport solar projects (10 MW+) on perimeter land well beyond approach corridors, where the 15–25% yield advantage over fixed-tilt reduces the land area required per megawatt-hour of annual generation and improves the financial returns to both the airport authority (ground lease revenue) and the solar developer (PPA revenue). Single-axis tracking systems at airport installations require careful OLS height compliance verification — the tracker’s east morning stow position and west evening stow position both achieve maximum structural height, and both positions must be checked against the OLS surface at the array’s location relative to the nearest runway approach path. Tracker emergency stow capability — automatic horizontal position stow at wind speeds above 45 mph — is a required specification for all airport tracking installations, ensuring that maximum structural height is maintained only during the brief morning and evening stow periods rather than continuously throughout the day.

Solar Carport Installations

Airport parking structures — both surface lots and multi-level parking garages serving the millions of passengers and tens of thousands of employees at major commercial airports — represent a high-value solar carport deployment opportunity that adds covered parking amenity for travelers returning to their vehicles in rain or snow. Solar carport mounting systems at airport parking areas must maintain the minimum 2.7 m clear vehicle height standard (or higher for airport bus and ground service equipment lanes at 4.2 m), provide emergency vehicle access lanes through the carport field without structural obstruction, and be positioned outside any FAA OLS-constrained zone where carport column height would require Form 7460-1 review. Airport parking carports frequently integrate EV charging infrastructure — supporting the airport’s zero-emission ground transportation commitments and the growing electrification of airport shuttle, rental car, and ground service equipment fleets.

Structural & Engineering Considerations

Wind & Extreme Weather Resistance

Airport solar structural design in open-terrain Exposure Category C conditions must address wind load intensities that exceed typical commercial solar design by a substantial margin — not just in absolute pressure magnitude but in the degree of turbulence-induced fluctuating load that accelerates structural fatigue in continuous row arrays. The combination of flat terrain (no wind speed reduction from upstream roughness), high solar structure aspect ratio (large continuous arrays with high wind-facing projected area), and the absence of surrounding buildings that would shelter the array from any wind direction produces a structural design environment where corner and edge module uplift pressures of 1.8–2.8 kN/m² are common in U.S. airport locations — values that require either heavy ballast or positive mechanical attachment at all module positions in the array perimeter. The complete guidance on open-terrain exposure load design for airport solar in the snow and extreme weather load considerations resource covers ASCE 7-22 Exposure Category C pressure coefficients for low-slope ground-mounted arrays at airports, combined wind-ice load cases for northern U.S. airport locations where freezing rain events follow high wind periods, and the aerodynamic pressure amplification at array corners that governs structural design in the continuous-row utility-scale arrays typical of large airport perimeter installations.

Corrosion Protection in Coastal Airports

A significant proportion of major commercial airports are located in coastal or near-coastal environments — Los Angeles International, San Francisco International, Miami International, Boston Logan, Amsterdam Schiphol, London Heathrow, Singapore Changi, and Tokyo Narita are all within 5–30 km of salt-water coastlines — placing their perimeter solar installations in C4–C5 atmospheric corrosion classification environments where standard C3-specification hardware degrades significantly faster than design life. Airport perimeter solar at coastal locations must be specified to minimum HDG coating weight of 140 µm (ISO 1461 Class for sections ≥ 6 mm) for all structural steel; Class 25 anodizing minimum for all aluminum rail and hardware; SUS316L stainless for all fasteners and clamps within 500 m of tidal water; and duplex coating (HDG + polyurethane topcoat) for all carport steel and any structural elements that must maintain appearance standards consistent with airport facility aesthetics. The complete material specification framework for coastal and near-coastal airport solar in the corrosion protection resource covers coating specifications by ISO 12944 atmospheric classification, salt spray test requirements for airport hardware qualification, and the inspection and re-coating intervals that maintain structural warranty validity across 25-year airport ground lease terms.

Foundation Strategy for Large Runway-Adjacent Areas

Airport perimeter ground-mount foundation design must account for the unique soil conditions created by airport construction history: fill material placed during runway grading operations — which may contain construction debris, jet fuel contamination, or hydraulic fill of variable density — frequently underlies the nominally “open” perimeter land that appears suitable for solar development on site plans. A geotechnical investigation including SPT borings at representative grid positions across the proposed solar array footprint is mandatory before foundation design can proceed at airport perimeter sites. Driven steel pile foundations are the standard choice for airport perimeter solar at accessible sites with competent load-bearing soil at depths of 1.5–3.5 m — vibratory hammer installation achieves 300–600 piles per day without excavation or concrete, preserving the permeability of the airport perimeter stormwater drainage system that airport authorities require to be maintained without modification. For locations where shallow rock, existing concrete apron structures, or the airport’s subsurface drainage grid infrastructure prevents driven pile installation, concrete pier foundations using rotary drill rigs provide the moment capacity and uplift resistance required for Exposure Category C wind loading in Exposure Category conditions, with the additional benefit that drilled pier positions can be precisely coordinated around existing subsurface infrastructure identified in the airport’s underground utility atlas.

Load Transfer & Structural Integrity

Airport solar mounting system structural integrity must be verified through an independent engineering review process — because airport solar installations on federally-obligated airports are subject to FAA Airport Improvement Program (AIP) grant compliance oversight that requires third-party confirmation of structural adequacy as a condition of AIP grant eligibility for the airport authority. The engineering principles governing verified load transfer through airport solar mounting structures — pile pullout capacity verification by ASTM D 7400 dynamic testing or ASTM D 1143 static load testing, rail-to-pile connection bearing capacity under combined wind uplift and lateral shear, and the module clamp torque verification protocol required for Exposure Category C wind loadcertification — represent the structural documentation standard that airport authority engineering departments and FAA regional engineering offices require before approving construction of solar systems within the airport property boundary.

Optimal System Configuration for Airport Solar Projects

DC/AC Ratio & Load Coordination

Airport solar systems are designed at DC/AC ratios of 1.20–1.35 — consistent with utility-scale commercial practice — with inverter architecture selected to match the airport’s electrical distribution configuration. Large airports typically have 33 kV or 66 kV medium-voltage internal distribution networks; utility-scale solar at 10 MW+ is most efficiently connected at medium voltage using central inverters (2–4 MW) or large string inverter cluster stations (1–2 MW) that output at medium voltage through integrated step-up transformers. Airport solar generation should be coordinated with the airport’s existing diesel generator backup system — solar generation during daylight hours can reduce generator runtime and fuel consumption, with the airport’s automatic transfer switch reconfigured to recognize solar as a preferred partial supply source during normal grid-connected operation.

Array Layout & Glare Management

Glare management is the defining array layout constraint for airport solar that distinguishes this application from all other utility-scale solar deployment environments. The FAA’s 2021 policy requires any airport sponsor proposing solar on federally-obligated airport property to file FAA Form 7460-1 (Notice of Proposed Construction or Alteration) including a statement confirming that a glint and glare analysis has been conducted and confirms no ocular hazard to pilots during critical flight phases or to air traffic controllers in the tower cab. The SolarFarmer Glare Analysis Tool (developed under FAA sponsorship) or equivalent software must simulate reflected glare at all observer positions — runway approach corridor, tower cab windows, and taxiway intersections — for all sun positions through the full annual solar path. Anti-reflective (AR) coated glass modules that reduce front-surface reflectance from 8% (standard glass) to below 2% are the standard glare mitigation specification for airport solar — reducing reflected irradiance from module surfaces to levels that fall below FAA’s ocular hazard threshold across virtually all approach and tower cab viewing geometries.

Maintenance Access & Security Planning

Airport solar O&M must comply with the airport’s airside and landside security protocols — all maintenance personnel accessing perimeter solar arrays within the Security Identification Display Area (SIDA) boundary must hold valid SIDA badges, requiring criminal history records checks (CHRC) and security threat assessments (STA) coordinated with the airport’s TSA-approved security program. O&M road access routes through the airport perimeter must be approved by the airport security coordinator and coordinated with airfield operations to prevent any vehicle movement that could inadvertently enter active movement areas. Vegetation management within the solar array — critical for preventing shading losses and fire risk in dry climates — must use airport-approved herbicide programs and mowing equipment that comply with wildlife hazard management plan requirements: airports near bird habitats must ensure that vegetation conditions within solar arrays do not create attractive foraging habitat for bird species that create bird strike risk for aircraft operations.

Cost Structure & ROI Expectations

Cost Per Watt at Utility Scale

Airport utility-scale solar installations of 5–100 MW achieve all-in installed costs of $0.90–$1.40/W DC — within the standard utility-scale cost range, with a moderate premium versus non-airport utility-scale solar reflecting the additional compliance costs of FAA Form 7460-1 review, glare analysis ($15,000–$40,000 per project), airport security coordination, and the more complex project development process at a federally-regulated facility. Ground-mount structural system cost (racking, piles) represents 11–14% of total installed cost ($0.11–$0.18/W) — including the structural premium for Exposure Category C wind engineering versus Category B designs. The reference benchmarks for airport-specific cost per watt — disaggregated by system scale, site wind exposure, module specification (standard vs. AR-coated glare-reduction glass), and structural configuration — provide airport authority facilities teams and solar developers with the cost validation data needed to evaluate proposals in competitive airport solar RFP processes.

Installation & Infrastructure Costs

Airport solar installation involves cost premiums that do not appear in standard commercial ground-mount budgets: SIDA badging and security training for all construction personnel ($300–$500 per worker); airfield operations safety training and escort requirements for crews accessing areas within specified distances of active movement areas; FAA Form 7460-1 filing and response coordination ($8,000–$20,000); glare analysis software, simulation, and professional sign-off ($15,000–$40,000); geotechnical investigation at multiple boring locations across the array footprint ($25,000–$60,000 for a 10–50 MW project); and environmental compliance for any wildlife habitat impacts within the airport property boundary. Complete analysis of airport-specific installation cost factors — including security training and badging cost by workforce size, FAA review timeline and soft cost, glare analysis scope and fees, geotechnical investigation requirements for airport fill soil conditions, and the contingency allocations appropriate for the high-regulatory airport development environment — provides the detailed budget inputs that airport authority capital planning teams and solar developer RFP responses require.

Lifecycle Cost & Long-Term Planning

Airport solar lifecycle financial modeling must satisfy the dual accountability of airport authority governance: public-sector financial reporting (airports are typically public authorities with bond-funded capital structures) and FAA grant assurance compliance oversight that applies to any revenue-generating use of federally-obligated airport property. The FAA Grant Assurance 25 (Revenue Use) requirement mandates that airport revenues — including ground lease payments from solar developers — be used for airport purposes, creating a regulatory constraint on how solar lease revenue is classified in airport financial statements. The lifecycle cost ROI framework for airport solar covers 25-year NPV analysis for both airport-owned and third-party developer structures, FAA Grant Assurance 25 revenue use compliance requirements, AIP grant eligibility analysis for airport-owned solar capital expenditures, and the ground lease versus direct ownership financial comparison that airport authority boards require when evaluating competing solar development proposals.

Long-Term Revenue & ESG Impact

Airport solar delivers financial returns through multiple simultaneous value streams: direct electricity cost savings for airport-owned terminal and airfield operations (worth $500,000–$5,000,000/year at major hub airports with 50–200 MW of solar capacity); ground lease revenue from third-party solar developers ($800–$2,500/acre/year for 25-year terms on perimeter land); carbon offset and renewable energy certificate revenue supporting the airport’s Airport Carbon Accreditation (ACA) Level 3+ or Level 4 neutrality certification; and the ESG valuation uplift that sustainable airport operations produce — IATA’s Fly Net Zero 2050 commitment and ICAO’s CORSIA offsetting mechanism both recognize on-airport renewable generation as the highest-credibility carbon reduction action in an airport’s sustainability portfolio.

Regulatory & Compliance Requirements

U.S. Aviation & Building Codes

Airport solar installations in the United States are governed by a regulatory framework that extends significantly beyond the standard commercial solar permitting process: FAA Form 7460-1 (Notice of Proposed Construction or Alteration) is required for any structure on or near airport property that could affect navigable airspace — with the FAA reviewing height, location, and glare impact before construction authorization is granted; FAA Advisory Circular AC 150/5190-7 (Minimum Standards for Commercial Aeronautical Activities) governs revenue-generating uses of airport property by third parties; FAA Grant Assurance compliance oversight applies to any solar development on property acquired with AIP grants; and local building codes (IBC 2021) apply to all structural systems within the airport property boundary. The comprehensive reference for U.S. building codes and FAA regulatory requirements for airport solar covers Form 7460-1 filing procedures and review timelines, Advisory Circular AC 150/5190-7 compliance for third-party solar developers on airport property, Grant Assurance 25 revenue use compliance, and the glare analysis documentation requirements that FAA regional engineering offices review as part of the airspace evaluation process.

European Engineering Standards

Airport solar installations at European airports are governed by the Eurocode structural framework — EN 1991-1-4 wind action with Terrain Category 0 or I (the most severe wind exposure categories) for open airport environments, EN 1991-1-3 snow load with the appropriate National Annex for the airport’s geographic location, and EN 1993/1999 for steel and aluminum structural member design. European Aviation Safety Agency (EASA) regulations and national civil aviation authority requirements govern obstacle limitation surface compliance for structures on airport property — requiring coordination with the national CAA (UK CAA, DGAC in France, LBA in Germany, ENAC in Italy) before any solar structure within the airport boundary is designed or permitted. Airport Carbon Accreditation (ACA) standards — administered by Airports Council International Europe — recognize on-airport solar generation under Level 3 (Optimization) and Level 4 (Neutrality) certification frameworks. The applicable Eurocode standards for EU airport solar cover Terrain Category 0/I wind design parameters for major European airport locations and the national annex inputs for Amsterdam, Frankfurt, London, Paris, Madrid, and Rome.

Glare & Aviation Safety Compliance

The FAA’s 2021 Solar Glare Policy requires any federally-obligated airport proposing solar on airport property to file FAA Form 7460-1 including a self-certification that a glint and glare analysis has been completed confirming no ocular hazard to pilots during critical flight phases or to air traffic controllers. The analysis must evaluate all sun positions through the full annual solar cycle against all critical observer positions — tower cab, approach corridor, and taxiway intersection viewpoints. Anti-reflective coated glass modules reducing front-surface reflectance below 2% are the standard mitigation for airport solar installations; module orientation and tilt angle optimization can further reduce reflected glare toward sensitive aviation viewpoints. Any glare impacts discovered after construction must be mitigated at the airport’s expense, and airports may face FAA compliance action for unresolved post-construction visual hazards — making pre-construction glare analysis the most consequential technical step in airport solar project development.

Example Airport Solar Projects

Project 1 — 20 MWp Perimeter Ground-Mount, Denver International Airport, Colorado

Denver International Airport (DEN) — the fifth-busiest airport in the United States and one of the largest by land area at 53 square miles — entered a development agreement in August 2025 for a 20 MWp ground-mount solar installation on secured airport perimeter land in the northeast quadrant of the campus, designed to become the largest solar installation in Denver. The developer pays approximately $2.3 million to lease the land from DEN over the 25-year contract term; the airport pays a below-market electricity rate for solar generation delivered to the terminal complex. Array layout was designed in coordination with DEN airfield operations to maintain all required approach surface clearances and avoid glare toward the DEN air traffic control tower and all runway approach corridors — with FAA Form 7460-1 review completed before construction authorization. Structural engineering applied ASCE 7-22 Exposure Category C with Colorado Front Range basic wind speed of 115 mph; driven galvanized H-pile foundations at 2.8 m embedment in the silty sand and gravel native soil of the Denver metro area provide the moment capacity required for Category C uplift and lateral shear. Ground snow load of 1.44 kN/m² (30 psf) at the 5,430 ft DEN elevation governed the combined wind-snow structural design case.

Project 2 — 7 MWp Perimeter Solar, Amsterdam Airport Schiphol, Netherlands

Amsterdam Airport Schiphol — one of Europe’s busiest international airports at 71 million passengers per year (2024) — developed a 7 MWp fixed-tilt ground-mount solar installation on perimeter land in the Schiphol-Oost sector, within the airport security perimeter but outside all OLS-constrained approach surfaces. The system uses galvanized steel C-channel rail on driven hollow section steel pile foundations at 30° south-facing tilt — the yield-optimal configuration for the 52.2°N Amsterdam latitude. Structural design followed EN 1991-1-4 Netherlands National Annex with Terrain Category 0 (flat open polder terrain, basic wind speed 27 m/s) — the most severe Eurocode wind exposure classification, producing design pressures of 2.1–2.6 kN/m² on perimeter modules. All structural steel was specified to ISO 1461 minimum 86 µm HDG for the C4 near-coastal atmospheric classification at the Schiphol site 8 km from the North Sea coast. The project contributes to Schiphol’s Airport Carbon Accreditation Level 3 Optimization certification — on-airport renewable generation being the highest-credibility carbon reduction element in Schiphol’s ACA submission.

Frequently Asked Questions About Solar for Airports

Does the FAA prohibit solar panels near airports?

No — the FAA does not prohibit solar installations on airport property but regulates them through a glare analysis requirement. The FAA’s 2021 Solar Glare Policy requires federally-obligated airports with control towers to file FAA Form 7460-1 before constructing solar systems, including a self-certification that a glint and glare analysis confirms no ocular hazard to pilots during critical flight phases or to air traffic controllers. Anti-reflective coated module glass — which reduces front-surface reflectance below 2% — is the standard mitigation that allows the vast majority of airport solar projects to proceed with a favorable FAA determination.

What areas of airport property can solar be installed on?

Solar can be installed on airport land outside the Runway Protection Zone (RPZ) and below the Obstacle Limitation Surface (OLS) height envelope — which, at most airports, includes large areas of perimeter land, non-aeronautical service areas, and parking facilities. Terminal building rooftops are also eligible for rooftop solar if structural capacity is adequate. Areas within the RPZ itself must remain clear of structures per FAA RPZ land use requirements, but the land surrounding the RPZ — typically the majority of airport perimeter — is available for solar development with appropriate FAA airspace review and glare analysis.

What is the typical financial structure for airport solar development?

Airport solar is most commonly developed through a third-party Power Purchase Agreement (PPA) or ground lease structure — a private solar developer constructs and owns the system on airport land under a 25-year ground lease, selling the electricity to the airport at a below-market fixed rate. This structure requires zero capital from the airport authority, generates ground lease revenue ($800–$2,500/acre/year), and delivers immediate electricity cost savings from year one. Airport-owned direct purchase is also viable using AIP-eligible capital expenditures where FAA grant eligibility applies to the solar investment, with IRA direct pay providing the 30% ITC equivalent for public airport authorities.

How does airport solar handle the high wind loads at open-terrain sites?

Airport solar structural systems are engineered for ASCE 7-22 Exposure Category C — the open terrain classification that applies at virtually all airport sites — using heavier structural sections, more robust connection hardware, and deeper foundation embedment than sheltered commercial solar. Specific design measures include zone-specific fastener patterns with increased module clamp frequency at array perimeter and corner positions, driven steel pile foundations with verified pullout capacity from load testing, and structural analysis confirming zero progressive collapse potential under maximum wind load events. Anti-uplift connectors between modules and rails provide additional resistance at the highest-load perimeter positions.

Can airport solar contribute to Airport Carbon Accreditation?

Yes — on-airport renewable energy generation is recognized as a Scope 2 direct reduction in the Airport Carbon Accreditation (ACA) framework administered by Airports Council International. On-site solar generation that replaces grid electricity directly reduces the airport’s market-based Scope 2 emissions — a more credible reduction than purchased RECs from off-airport generation. ACA Level 3 (Optimization) and Level 4 (Neutrality) require documented Scope 1 and Scope 2 reductions; on-airport solar typically contributes the largest single reduction in airports’ ACA submissions at these higher certification levels.

How long does airport solar permitting take compared to standard commercial solar?

Airport solar permitting takes 6–15 months longer than equivalent commercial solar — primarily due to FAA Form 7460-1 review (8–16 weeks for standard reviews, up to 6 months for complex airspace cases),glare analysis and documentation preparation (6–12 weeks), airport authority internal engineering and legal review (8–16 weeks), and the additional environmental review steps that apply to federally-obligated airport property under NEPA categorical exclusion or environmental assessment procedures. Early engagement with the FAA regional airports division and the airport authority’s facilities engineering department — simultaneously with the solar design process — is the most effective strategy for managing airport solar permitting timelines within a 12–18 month target from project kickoff to construction authorization.
