Solar Roof Mounting System with Short rail bracket, or Mini Rail fix

Name: Solar Short rail Roof Mounting System, Solar Railless Mounting System

Product Origin: Fujian, China

Material: AL-6005-T5 -structure,SUS410-fasteners

Surface Treatment: Anodized

Warranty: 12years

Duration: 25years

Shipping Port: XiaMen Port

Lead Time: 7-15 days

Max Wind Speed: 60m/s

Max Snow Load: 1.4kn/㎡

Standard:AS/NZS1170/JISC8955:2017.

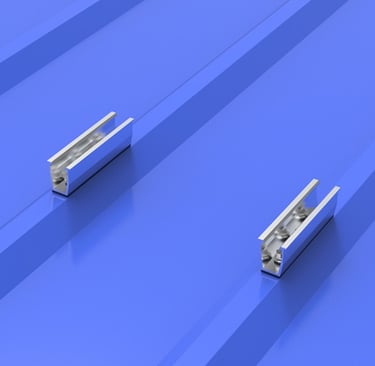

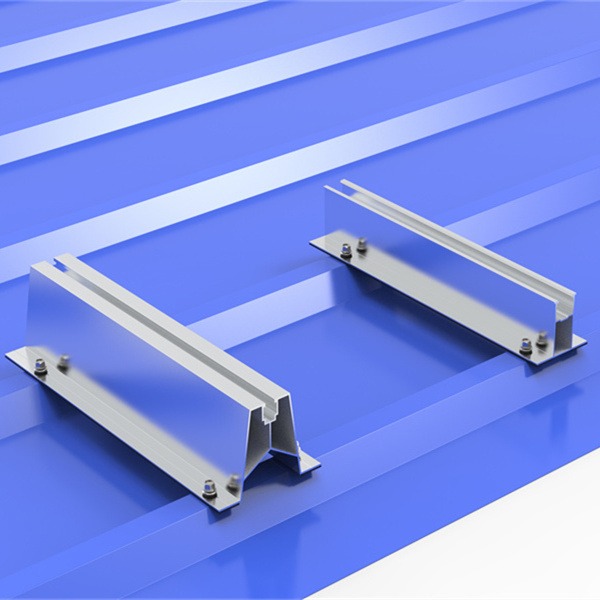

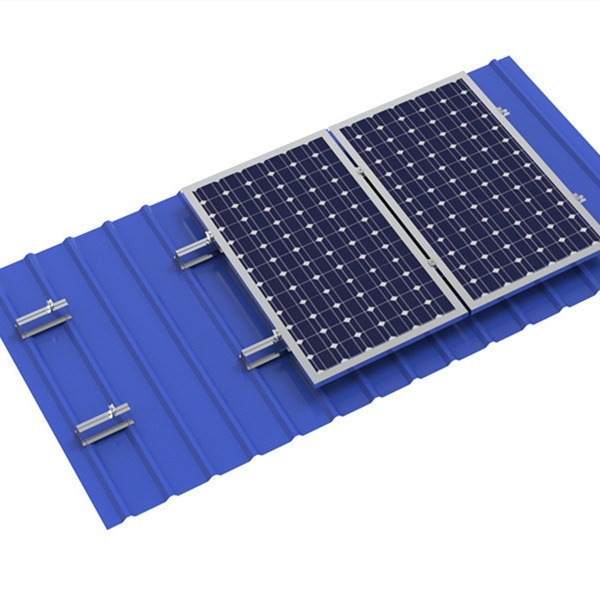

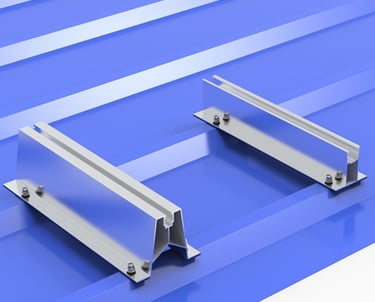

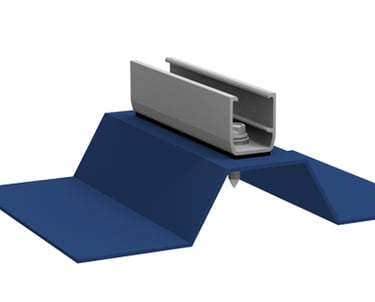

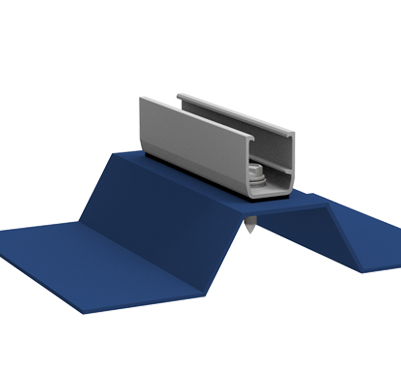

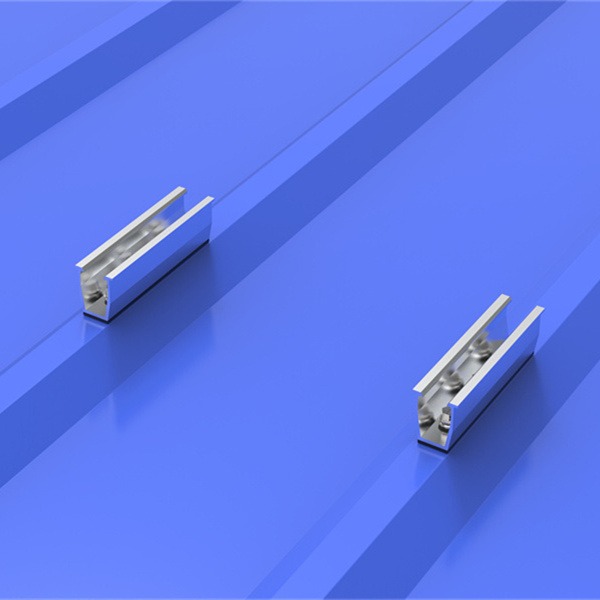

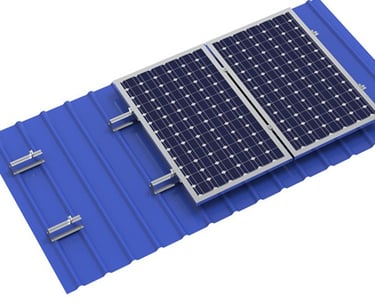

U mini rail mounting system for solar installation has been specially developed for metal sheet roof, like trapezoidal sheet roof and corrugated iron roofs. It's a variant of Mini rail system and impresses with its universality and simplicity. The whole system consists only four components and easy to install. This system is workable for both portrait and landscape orientation. Watertight seal is dispalyed by using the four EPDM mat. Short rail system with pre-punched holes for quick mounting.

It means no rail or no long rails installation solar structure, suitable for areas with low wind and snow.

Also called solar short rail racking system/ Tin roof railless aluminium solar mounting bracket simple structure and fast installation.

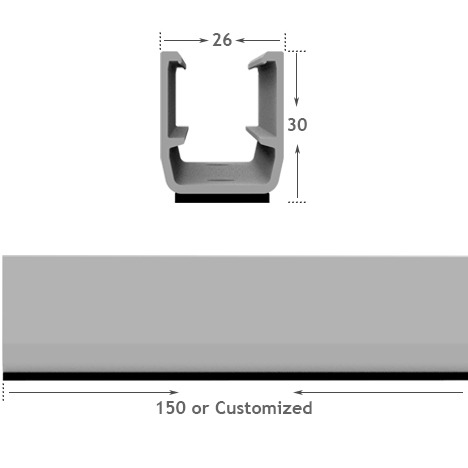

The railless/ short rail/ Mini rail length is 120mm, 200mm, 300mm or 500mm

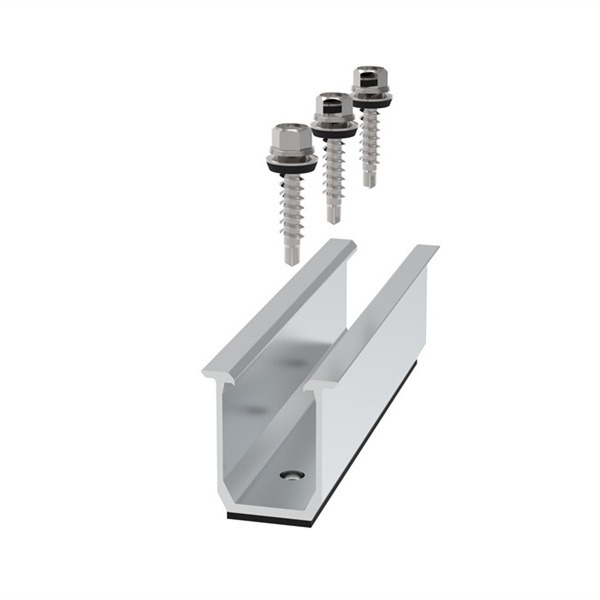

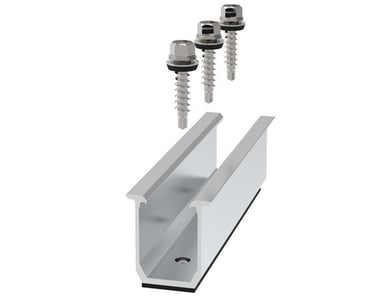

For complete solar railless mounting bracket the necessary part: solar aluminum short rails, solar end clamp, solar middle clamp, grounding earth/grounding clip , etc..
